Features:

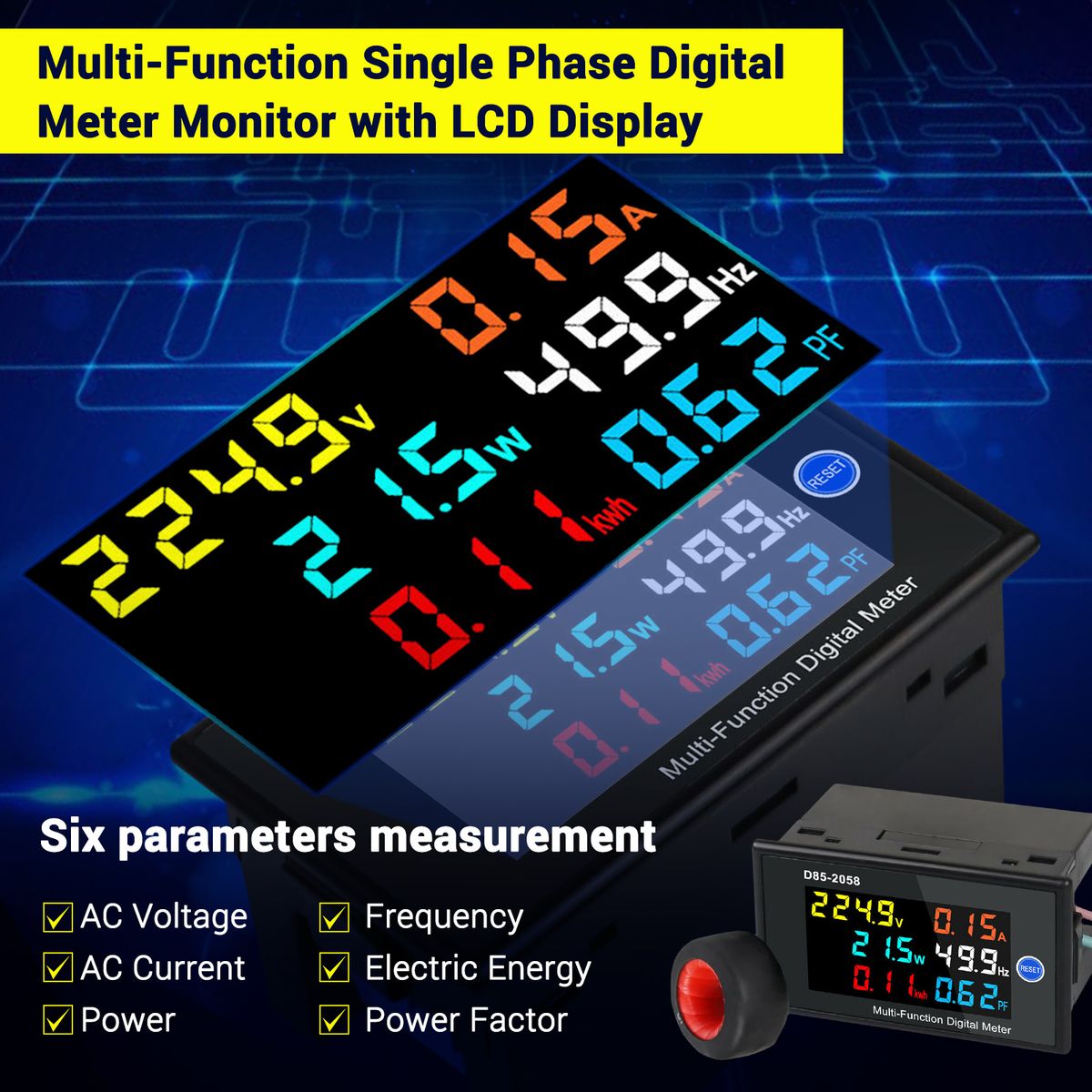

Multi-function digital meter can measure and display 6 parameters, including AC voltage, AC current, power, frequency, electric energy and power factor at the same time.
With power-down memory function: When the meter is powered off during use, the meter';s accumulated power value will be stored automatically (the previous data will not be lost).
Equipped with a LCD HD display, which is clear and easy to read.
There\'s a reset button on the right side of the display which can reset the accumulated values to zero if pressed and held for 5 seconds.
One digital meter to monitor household power consumption in real time.
Specifications:
Material: ABS
Color: Black
Measurement Range:
AC voltage: AC 40.0-300.0V / AC 200.0-450.0V (Optional)
AC current: AC 0-99.99A, Minimum resolution is 0.01A
Power: 0-30000W(AC 40.0-300.0V); 0-45000W(AC 200.0-450.0V) 0-9999.9W minimum display resolution is 0.1W, otherwise Minimum resolution is 1W.
Electric energy: 0-9 999 999kwh.
0-9999.999kwh minimum resolution is 0.001kwh ;
10000,00-99999.99kwh minimum resolution is 0.01kwh ;
100000.0-999999.9kwh minimum resolution is 0.1kwh;
Otherwise minimum resolution is 1kwh
Accuracy: 1% plusmn;2 words
Measuring speed: 2 times per second

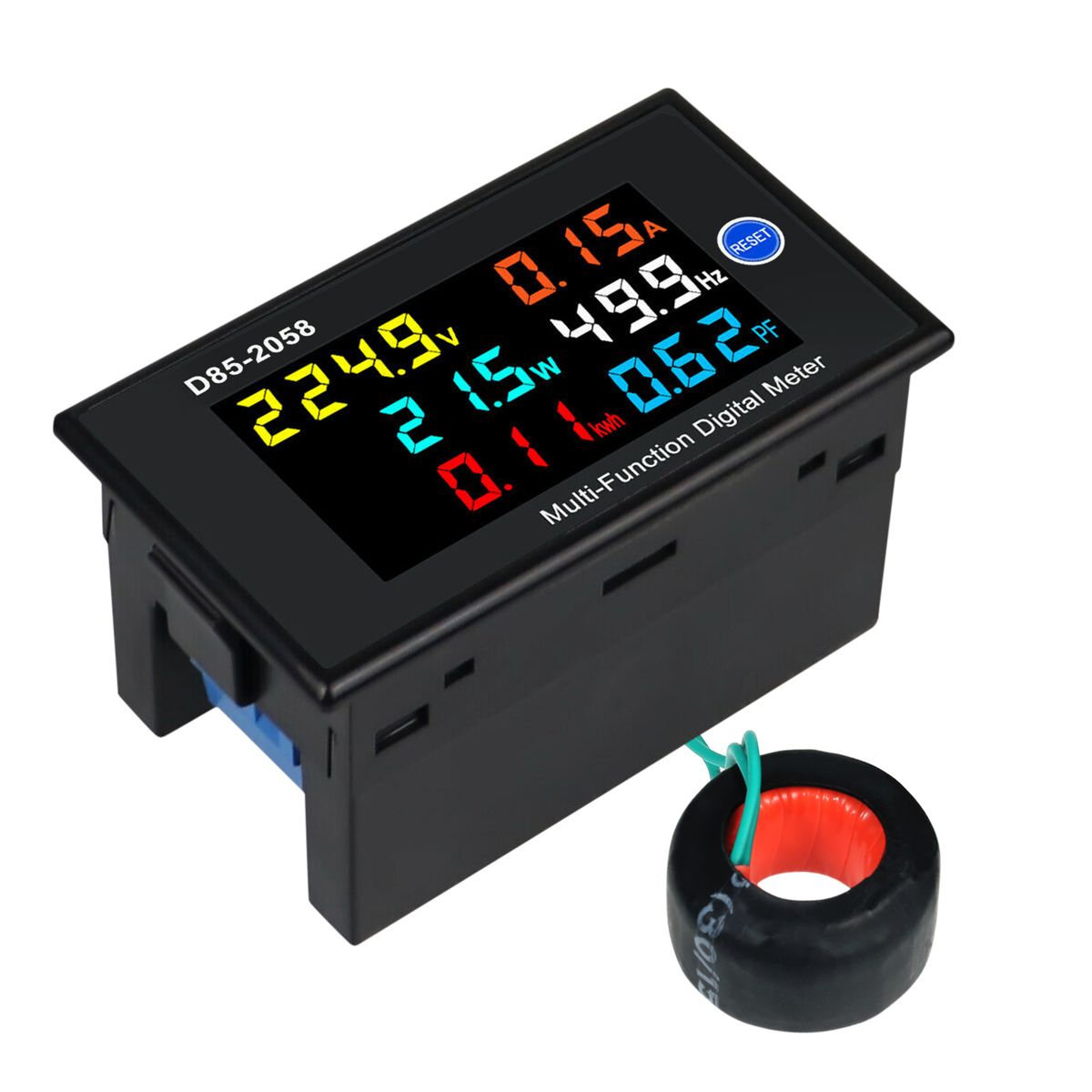

100A current transformer hole diameter 15.5mm
Working temperature: -10~+50℃
Working humidity: 10~80% (no condensation)
Working pressure: 80~106kPa
Size: 70 * 40 * 39mm / 2.75 * 1.57 * 1.53in
Weight: 83g / 2.92oz
Package Weight: 90g / 3.17oz
Package Size: 9*4.5*4.5cm / 3.54 * 1.77 * 1.77in
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Multi-function digital meter can measure and display 6 parameters, including AC voltage, AC current, power, frequency, electric energy and power factor at the same time.
With power-down memory function: When the meter is powered off during use, the meter';s accumulated power value will be stored automatically (the previous data will not be lost).
Equipped with a LCD HD display, which is clear and easy to read.
There\'s a reset button on the right side of the display which can reset the accumulated values to zero if pressed and held for 5 seconds.
One digital meter to monitor household power consumption in real time.
