Buy MPR121-Breakout-v12 Proximity Capacitive Touch Sensor Controller

MPR121-Breakout-v12 Proximity Capacitive Touch Sensor Controller Keyboard Development Board

₦ 41,781.98 ₦ 43,981.03 -5%

0 No Reviews

Product SKU: RENG221350

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	JAVANLINCJ2176544
Production Country	China
Size (L x W x H cm)	4 x 3 x 1
Weight (kg)	0.1
Certifications	Organic
Color	Multicolor
Main Material	Patent Leather
From the Manufacturer	1
Care Label	1

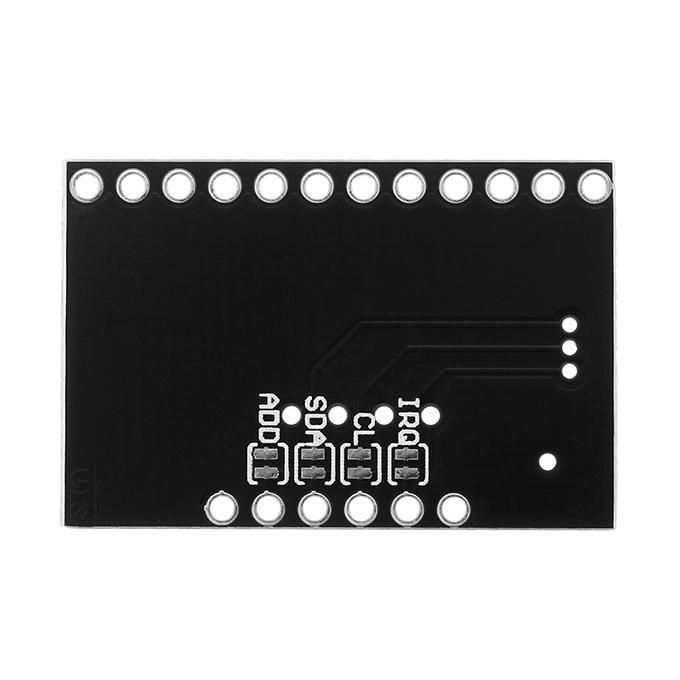

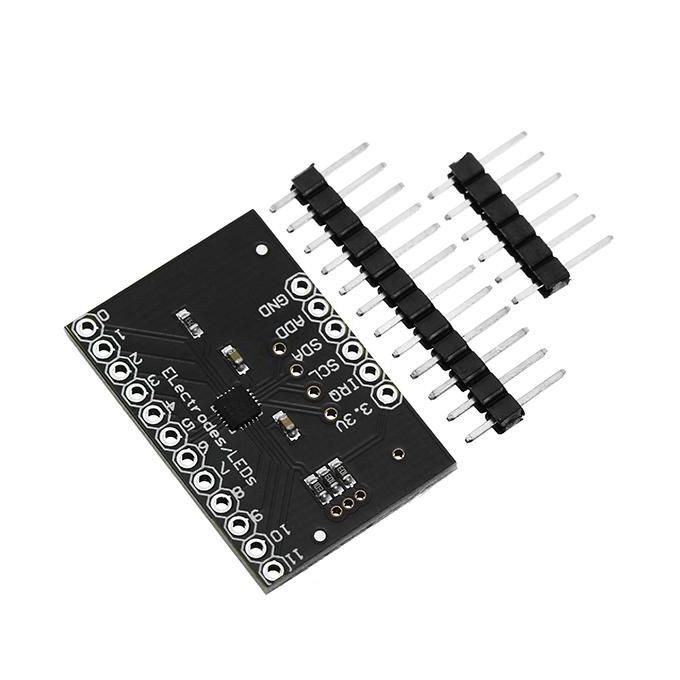

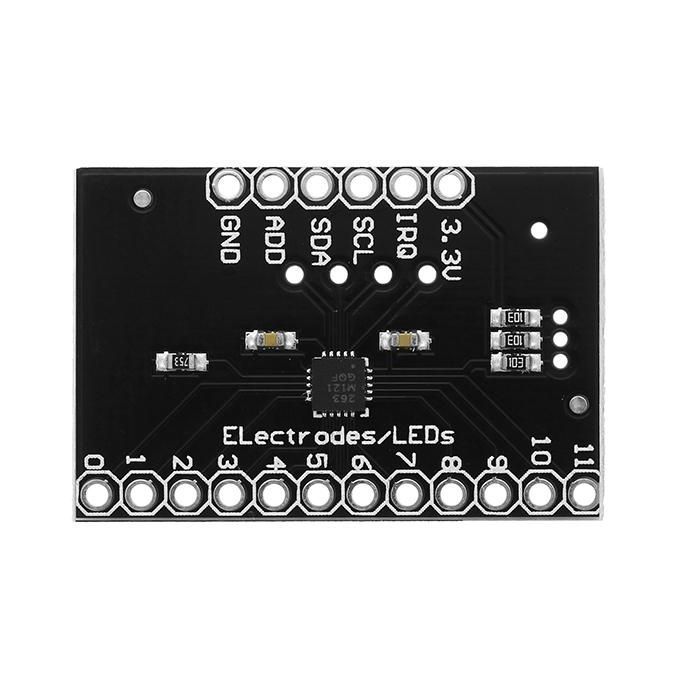

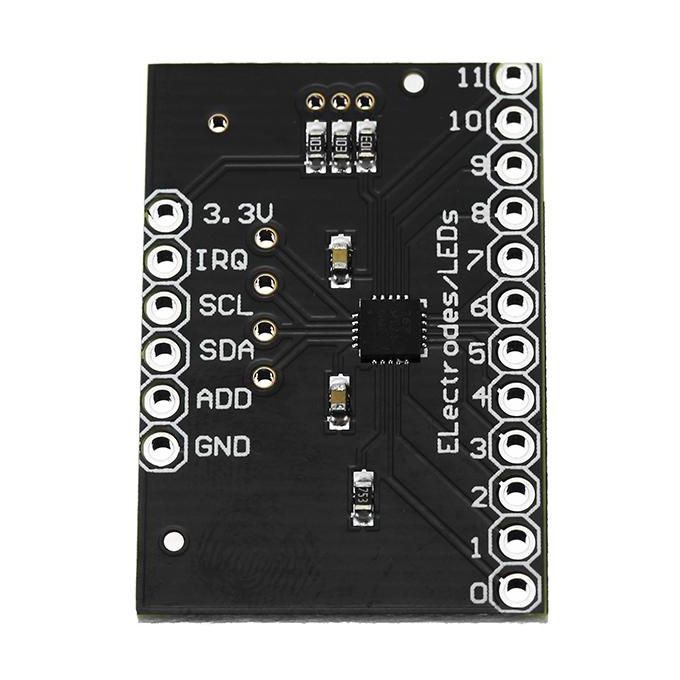

Descrtion: &sp; This is a breakout board for Freescale's MPR121QR2. The MPR121 is a capacitive touch r controller driven by an I2C inteace. The ch can control up to twee individual electrodes, as well as a simulated thirteenth electrode. The MPR121 also features eight LED driving pins. When these pins are not configured as electrodes, they may be used to drive LEDs. There a four jumpers on the bottom of the board, all of which are set (closed) by default. An address jumper ties the ADD pin to ground, meaning the default I2C address of the ch will be 0x5A. If you need to change the address of the ch (by shorting ADD to a different pin, e sure) you open the jumper first. Jumpers also connect SDA, SCL and the interrupt pin to 10K pull-up resistors. If you don't require the pull-up resistors you can open the jumpers by the trace connecting them. There is no regulation on the board, so the voltage sulied should be between 2.5 to 3.6V. The VREG pin 2.5 and is connected through a 0.1uF capacitor to ground, which means, unless you modify the board, you can't operate the MPR121 in low-suly voltage mode (1.71-2.75V). Paage included: 1 x&sp;MPR121-Breakout-v12 Proximity Capacitive Touch r Board
a a a a a

Key Features

:As the picture shown
Durable and practical
Top Sales Item
Reasonable price
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1xMPR121-Breakout-v12 Proximity Capacitive Touch Sensor Board
