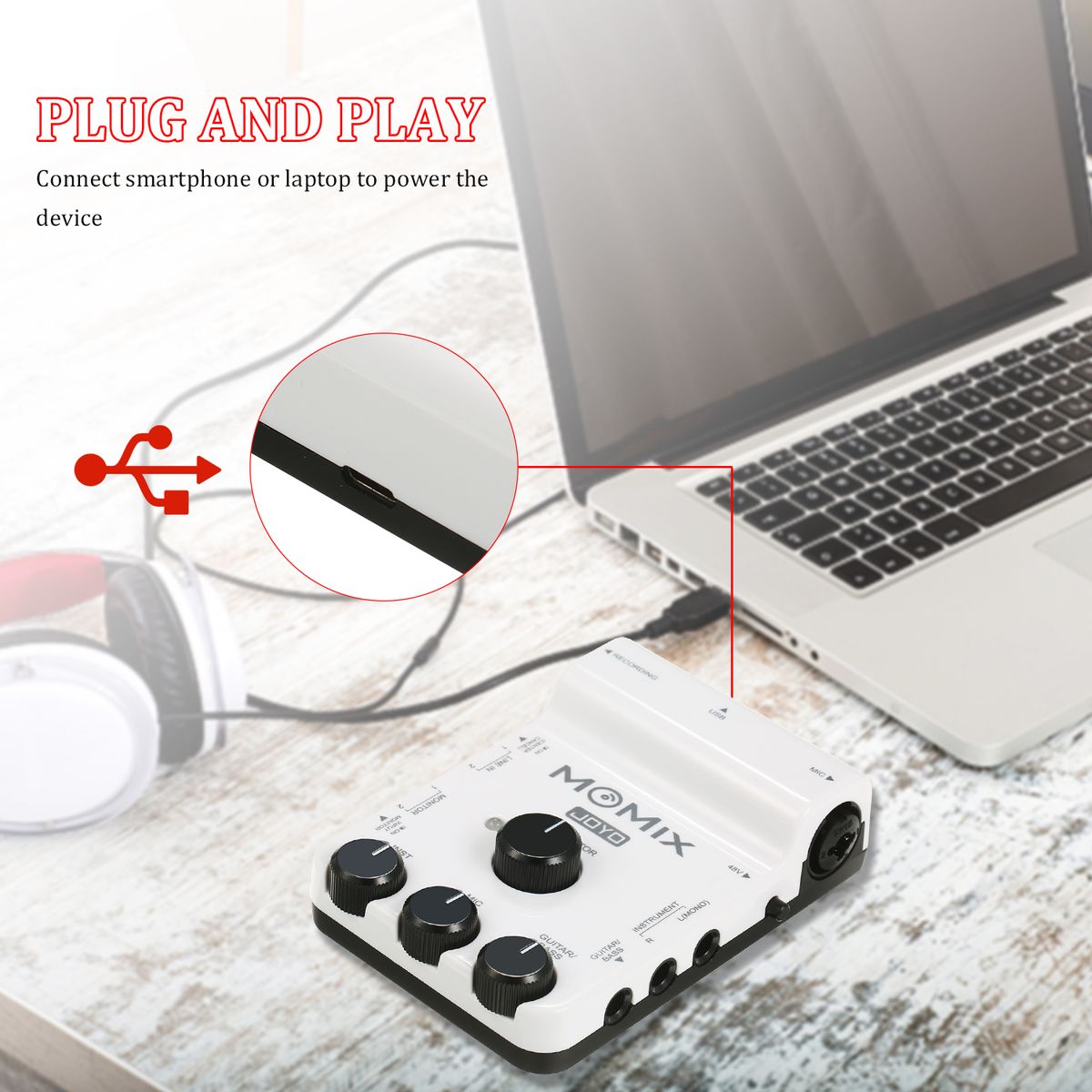

Features:Plug and play, connect mixer to mic, guitar, bass, keyboard, electronic drum sets, and then attach to smartphone/tablet(as supply); each has independent volume control.
Just connect headphone/amp to the audio mixer, push “INOUT MONIOTR” button, to well monitor(volume adjustable, turn to on: dry and wet sound, turn to off: only wet sound).
Wire MP3/MP4 or drum machine to LINE IN; turn "CENTER CANCEL" on to reduce the vocal volume of playback music, making your sound prominent.
Can connect device to "RECORDING", real time output audio to smartphone, great for live stream; work with guitar effect pedal similar software, to create music, suitable for composing songs.
Portable audio equipment, features , simple, nice, fit for various scenes, lightweight, compact, not so big, space-saving, very convenient to anywhere.
Specifications:Material: Plastic + Electric Components
Color: White
: USB Type-C 5V
Current Consumption: 50mA
Audio Resolution Sampling: 48KHz/16bit

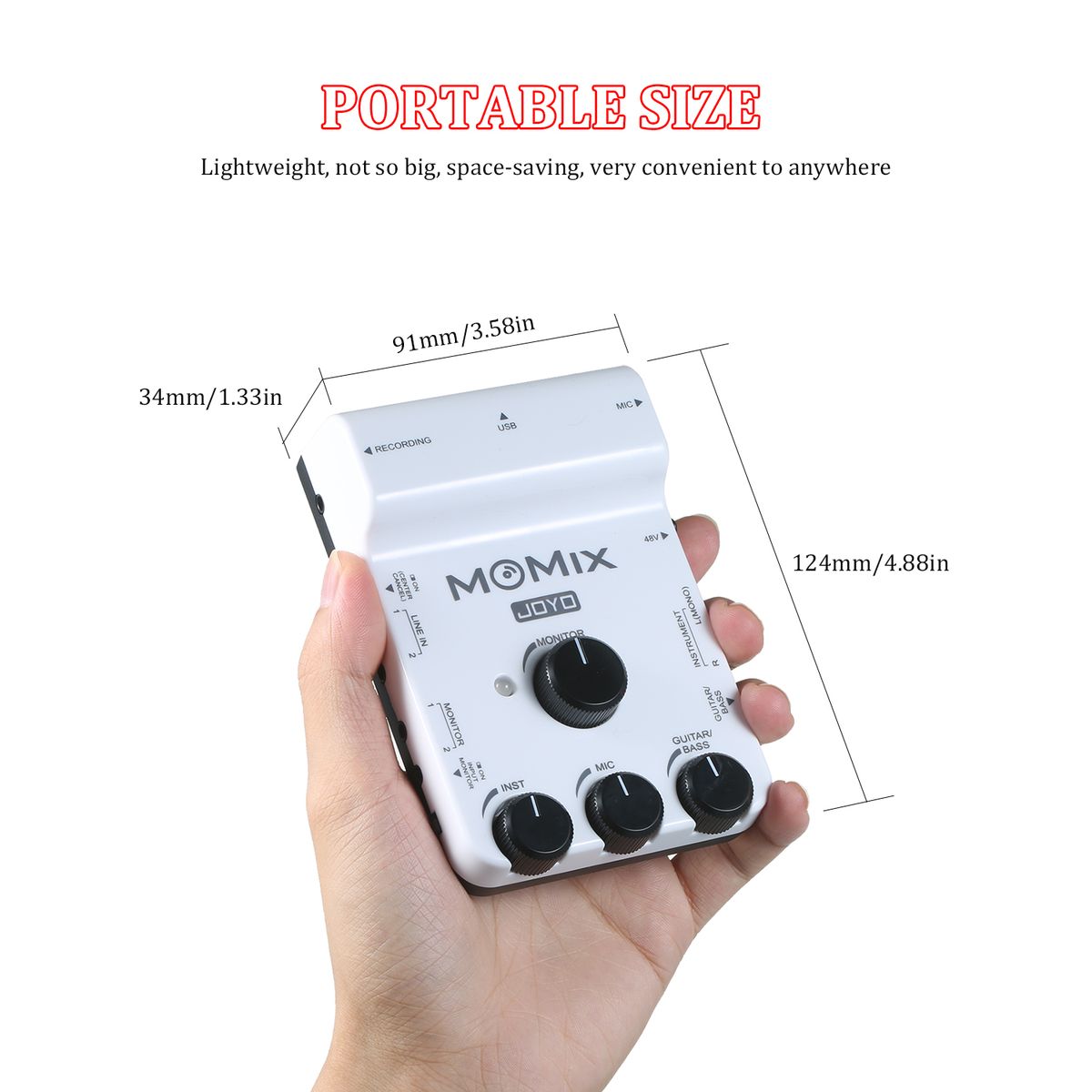

Dimensions: 124*91*34mm / 4.88*3.58*1.33in
Net Weight: 149g / 5.25oz
Package Size: 16*13*5.5cm / 6.29*5.11*2.16in
Package Weight: 255g / 8.99oz
Input Impedance And SensitivityMic: 2.2KΩ-45dBV
Guitar: 1MΩ-20dBV
INSTRUMENT: 10KΩ-10dBV
LINE IN: 10KΩ -10dBV
Output Level: MONITOR: 0dBV
Note:Audio mixer only, other accessories in the pictures are not included.
"CENTER CANCEL" function only supports LINE IN 1, not LINE IN 2.
Please read the user manual carefully for more information before usage.
Due to lighting or other reasons, the picture and material object may slightly differ.
Due to manual measurement, there may be deviation, please in kind prevail.

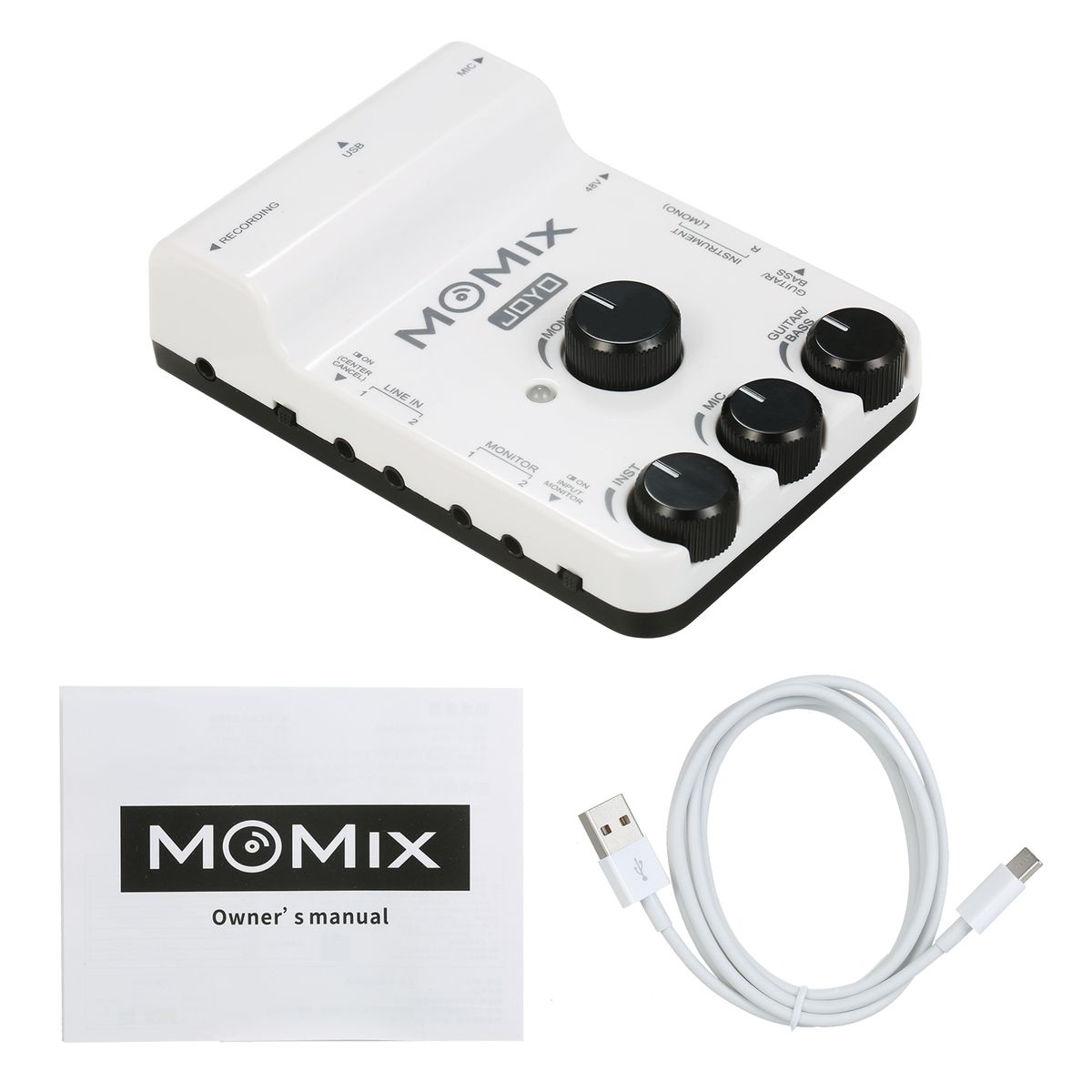

Packing List:1 * Audio Mixer
1 * USB Type-C Cable
1 * User Manual
Key Features
Plug and play, connect mixer to mic, guitar, bass, keyboard, electronic drum sets, and then attach to smartphone/tablet(as supply); each has independent volume control.
Just connect headphone/amp to the audio mixer, push “INOUT MONIOTR” button, to well monitor(volume adjustable, turn to on: dry and wet sound, turn to off: only wet sound).
Wire MP3/MP4 or drum machine to LINE IN; turn "CENTER CANCEL" on to reduce the vocal volume of playback music, making your sound prominent.
Can connect device to "RECORDING", real time output audio to smartphone, great for live stream; work with guitar effect pedal similar software, to create music, suitable for composing songs.
Portable audio equipment, features , simple, nice, fit for various scenes, lightweight, compact, not so big, space-saving, very convenient to anywhere.
Plug and play, connect mixer to mic, guitar, bass, keyboard, electronic drum sets, and then attach to smartphone/tablet(as supply); each has independent volume control.
What's In the Box
1 x Audio Mixer,1 x USB Type-C Cable,1 x User Manual
