Features:Professional for converting the phono signal to a line level signal.

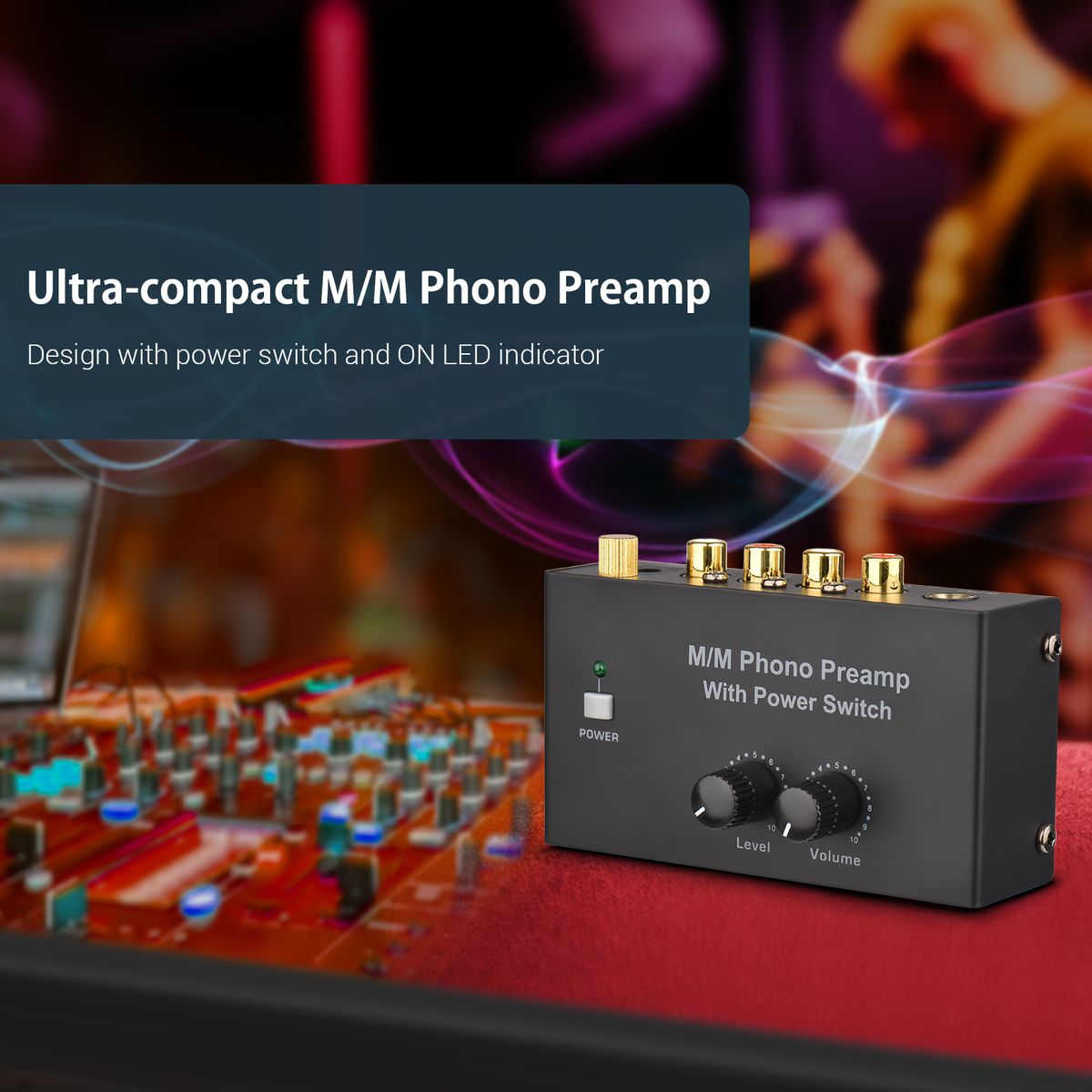

Ultra-compact phono preamp with metal shell, portable and durable.

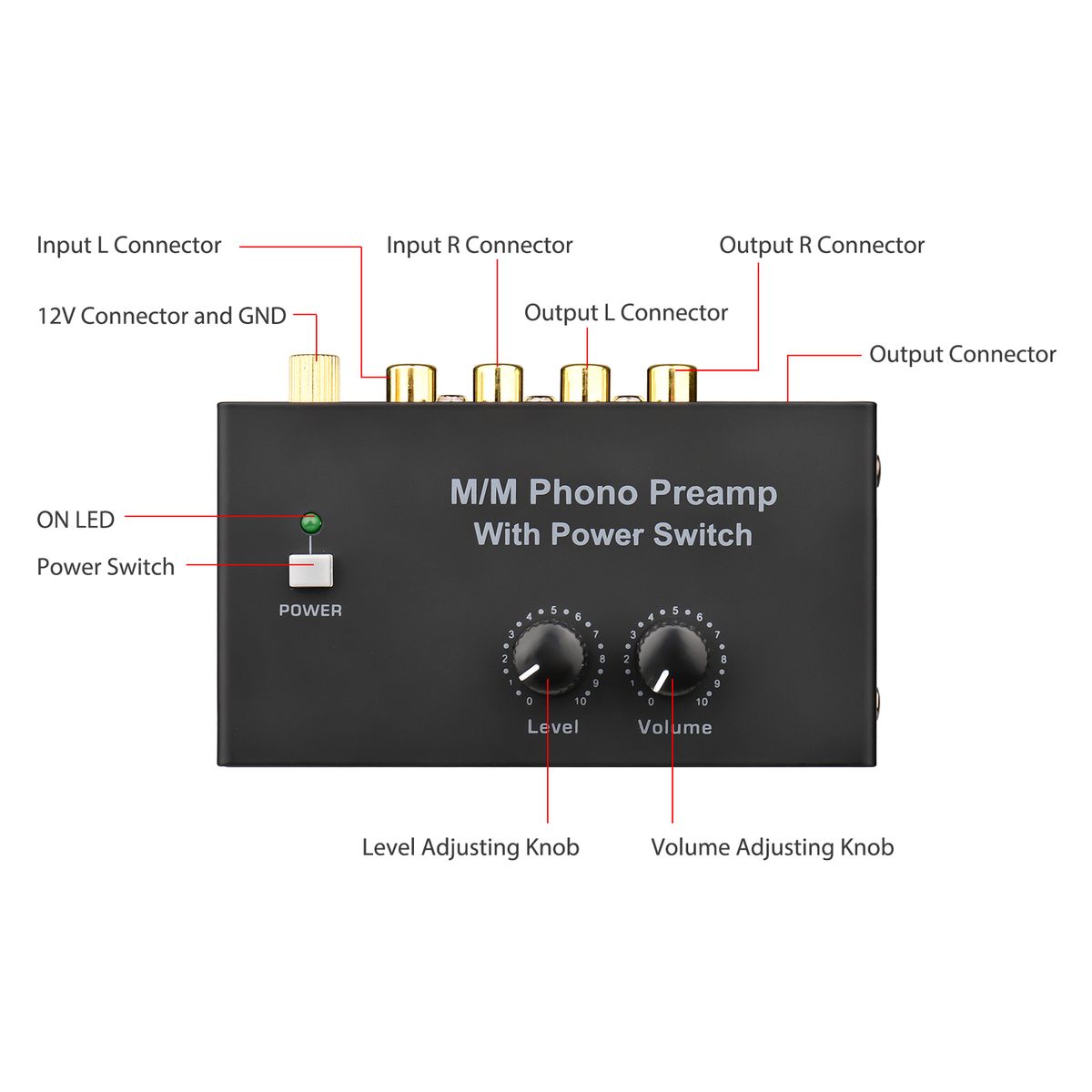

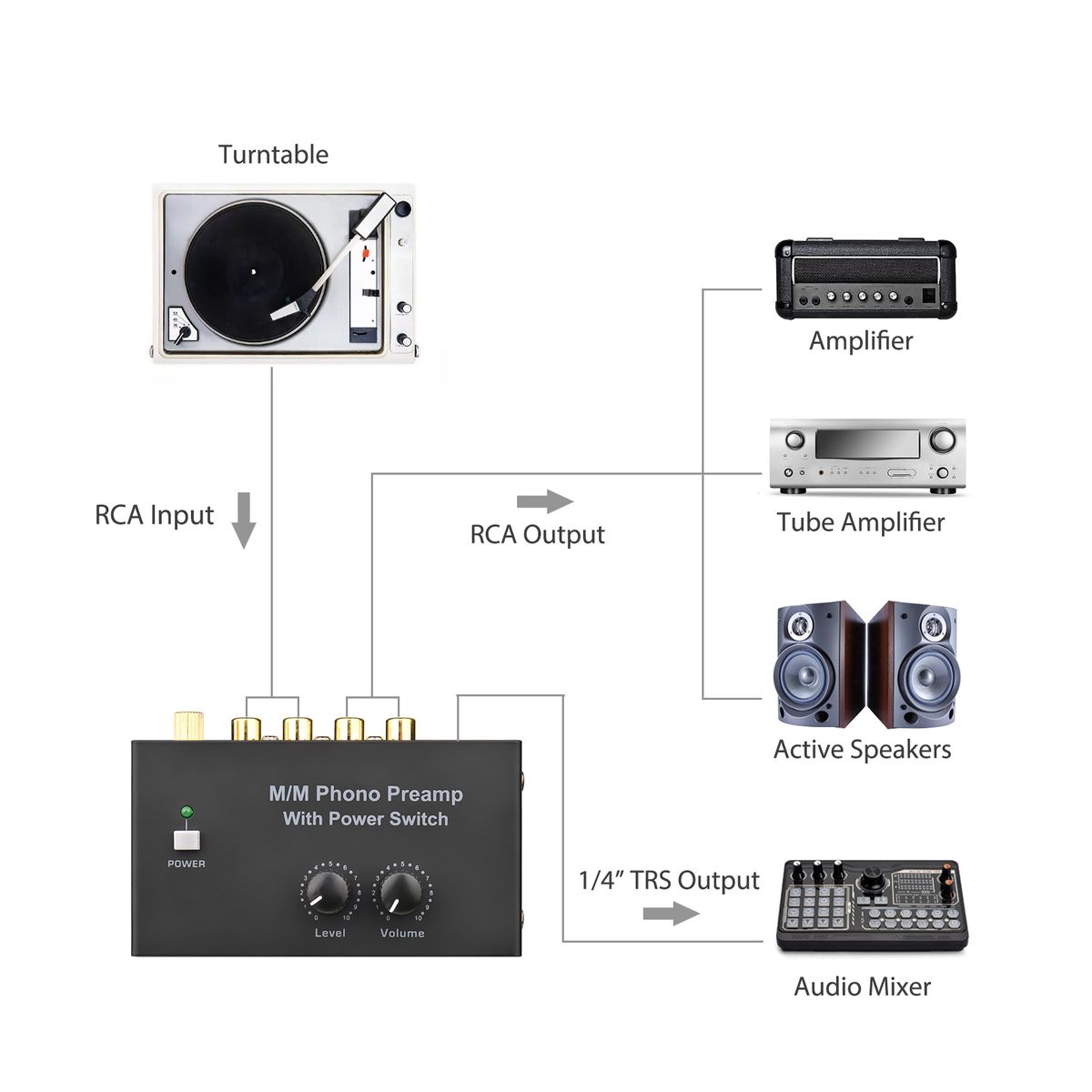

2 * RCA(L & R) inputs, 2 * RCA(L & R) outputs, 1 * 1/4" TRS output, multiple connection choices.
Designed with a push button switch and power indicator.
With level and volume control knobs, easy to adjust.
Ultra low-noise audio performance, offers excellent sound quality.
Specifications:Plug Type: US Plug
Material: Metal
Power Supply: DC 12V, 150mA
Power Adapter: Input--100-240V, 50/60Hz, output--12V, 1A
Item Size: 103 * 64 * 32mm / 4.06 * 2.60 * 1.26in
Item Weight: 179g / 6.33oz
Package Weight: 316g / 11.16oz
Package Size: 14 * 9.8 * 8cm / 5.51 * 3.86 * 3.15in

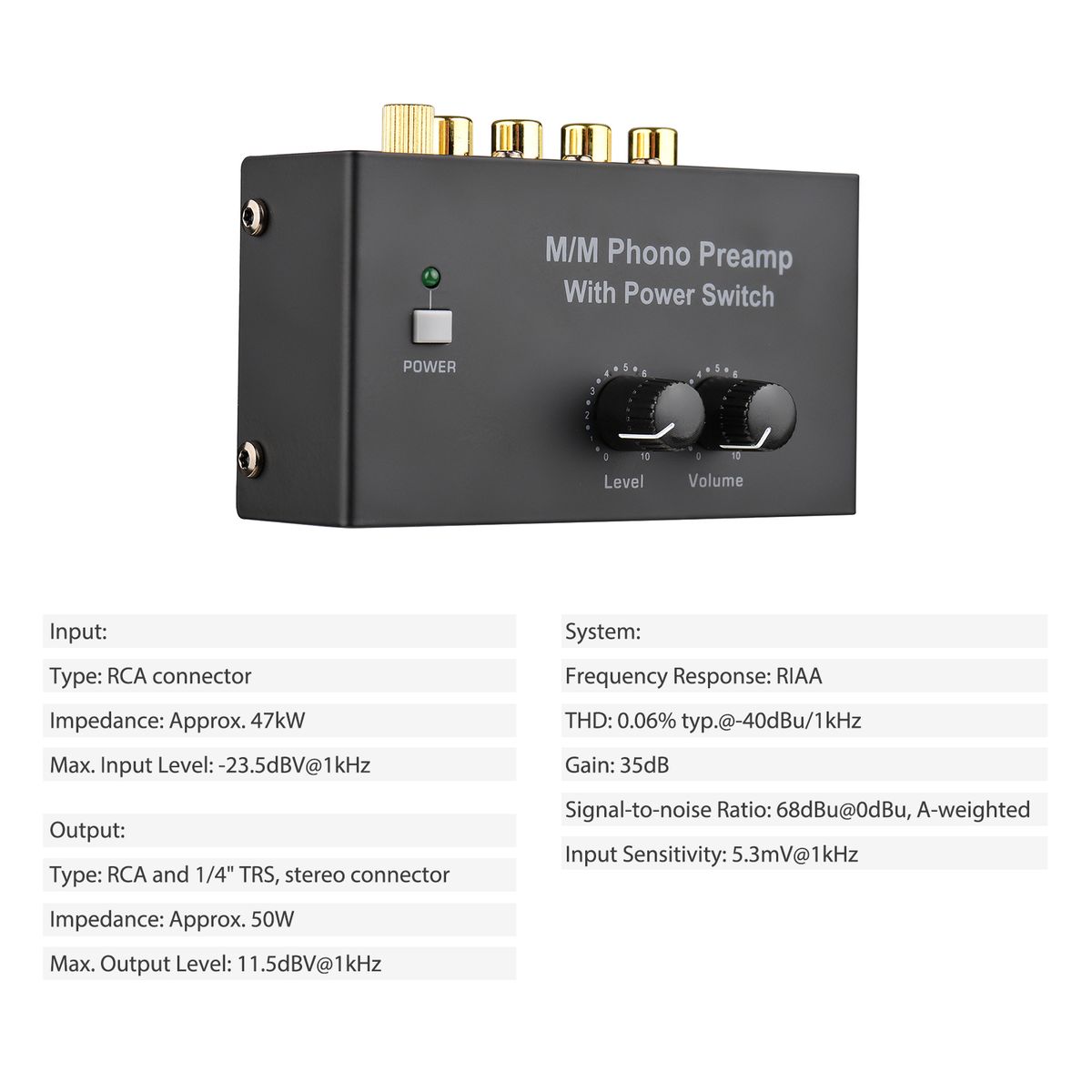

Input:
Type: RCA connector
Impedance: Approx. 47kW
Max. Input Level: -23.5dBV@1kHz
Output:
Type: RCA and 1/4" TRS, stereo connector
Impedance: Approx. 50W
Max. Output Level: 11.5dBV@1kHz
System:
Frequency Response: RIAA
THD: 0.06% typ.@-40dBu/1kHz
Gain: 35dB
Signal-to-noise Ratio: 68dBu@0dBu, A-weighted
Input Sensitivity: 5.3mV@1kHz

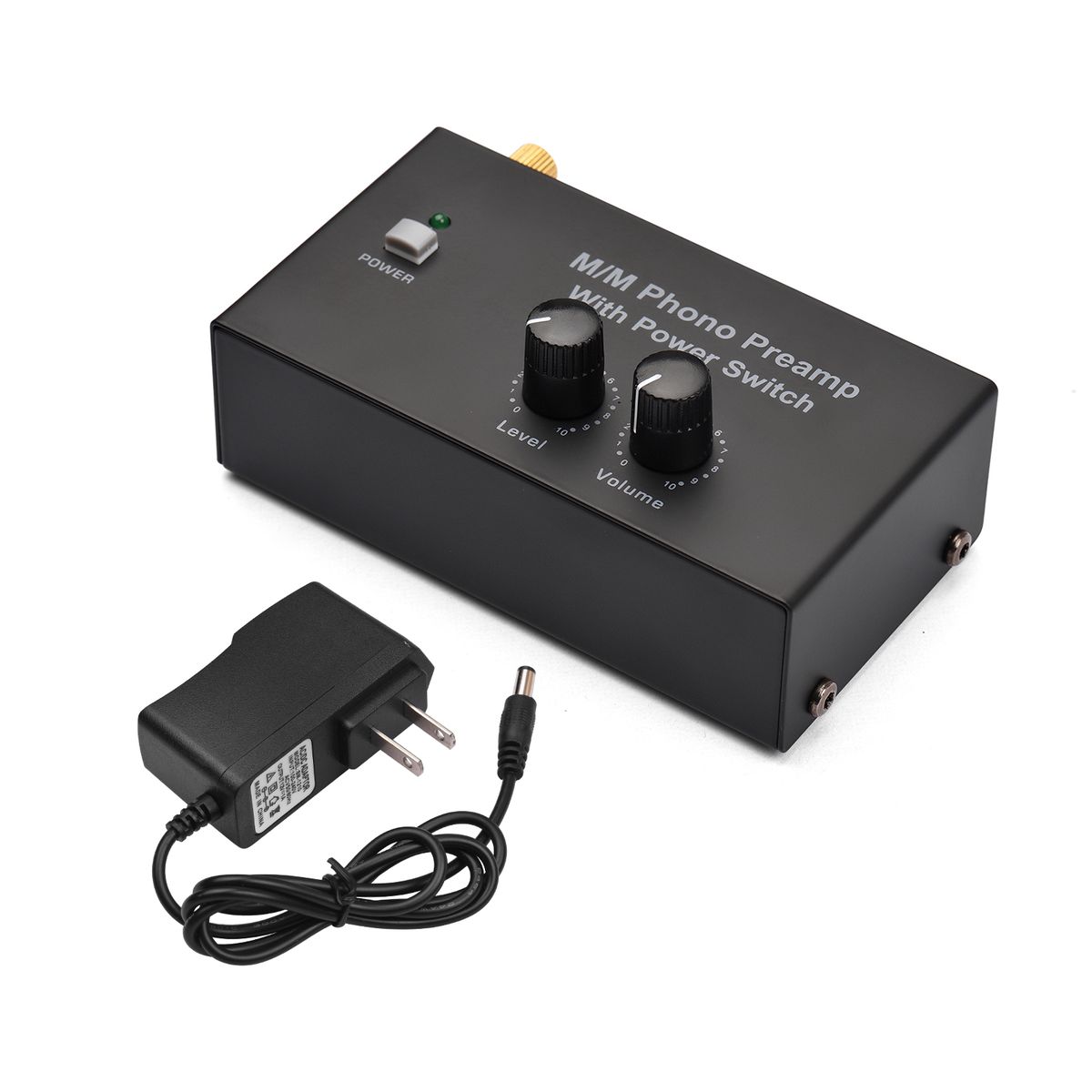

Packing List:1 * Phono Preamp
1 * Power Adapter
Key Features
Professional for converting the phono signal to a line level signal.
Ultra-compact phono preamp with metal shell, portable and durable.
2 * RCA(L & R) inputs, 2 * RCA(L & R) outputs, 1 * 1/4" TRS output, multiple connection choices.
Designed with a push button switch and power indicator.
With level and volume control knobs, easy to adjust.
Ultra low-noise audio performance, offers excellent sound quality.
What's In the Box
1 * Phono Preamp
1 * Power Adapter
