Want to make molds or samples, create products and DIY process soft metals? Being curious about making handmade articles or crafts? Try this! Professional 6 in 1 motorized jigsaw, grinder, driller, miller, metal lathe, wood lathe. It\\\'s perfect for processing plastic, models, soft metal, pure copper, pure aluminum and wood.
Features:
Mini 6 in 1 lathe machine for DIY assembly of sawing machine, grinder, driller, wood lathe, metal lathe, miller.
Great handcraft tool kit for DIY, hobby, model making, crafts, students, small parts processing, etc.
Made of advanced aluminum alloy and zinc alloy, durable and non-deformable for usage.
Very interesting to install and use, perfect gift for lathe DIY enthusiasts.
This mini multipurpose machine can be assembled into 6 kinds of different lathes, but you can use only one kind of these lathes at the same time.
Specifications:
Plug Type: EU Plug
Material: Aluminum Alloy + Zinc Alloy
Color: Black + Red
Motor Speed: 20000rpm
Voltage: AC 100-240V 50/60Hz
Output: DC 12V 4A
Power: 48W
Can Assemble Machine: Jigsaw, Grinder, Driller, Wood Lathe, Metal Lathe, Miller
6-in-1 Functions: Drilling, Sanding, Turning Lathe, Milling, Sawing, Wood Turning Lathe
Can Process Objects: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.) Acrylic, PCB, etc.
Package Size: 47.5 * 36 * 10cm / 18.70 * 14.17 * 3.94in
Package Weight: 4.5kg / 9.92 lb

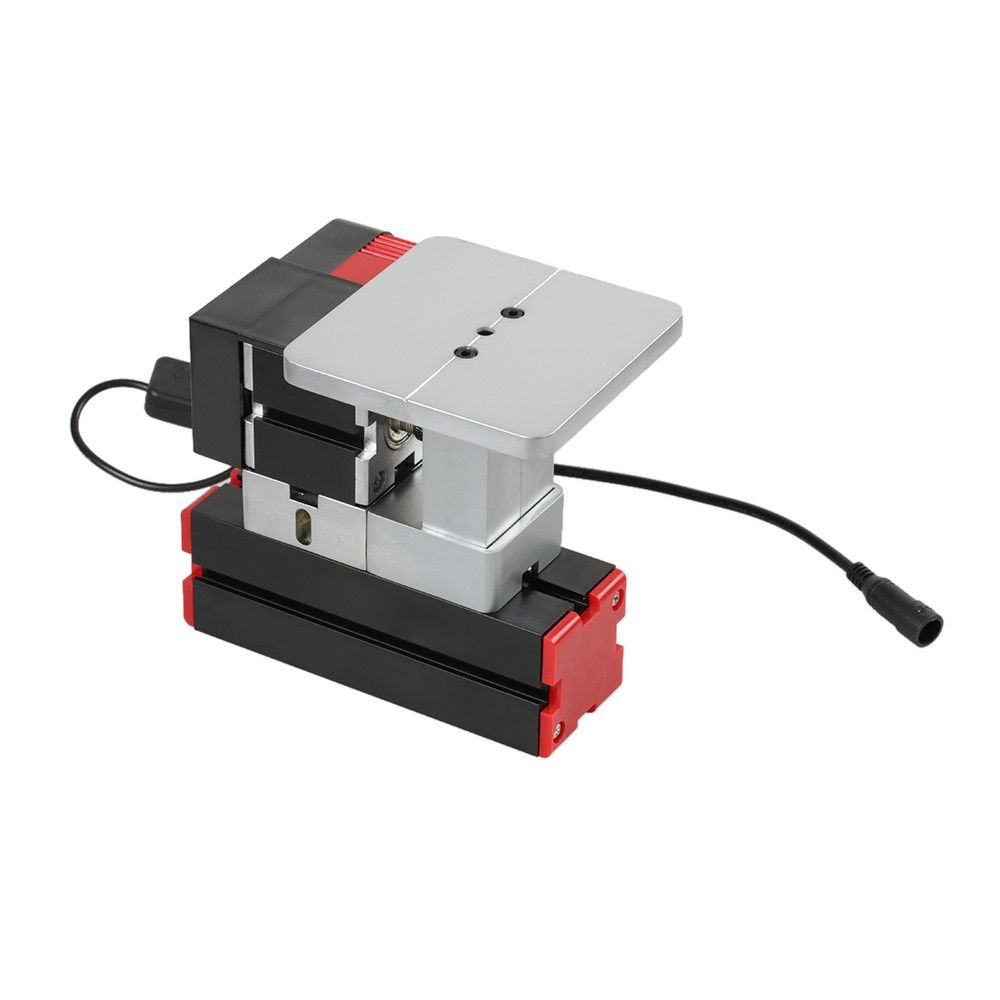

Technique Data of Jigsaw:
Operating Space: 100 * 100mm / 3.94 * 3.94in
Maximum Cutting Saw Depth: 4mm Hardwood, 7mm Triply Wood, 18mm Softwood, 0.5mm Aluminium Flakes, 2mm Organic Glass
Jigsaw Weight: 2.4kg / 5.29 lb
Jigsaw Size: 150 * 100 * 140mm / 5.91 * 3.94 * 5.51in
Technique Data of Grinder:
Operating Space: 120 * 100mm / 4.72 * 3.94in
Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
Grinder Weight: 1.5kg / 3.31 lb
Grinder Size: 290 * 100 * 100mm / 11.42 * 3.94 * 3.94in

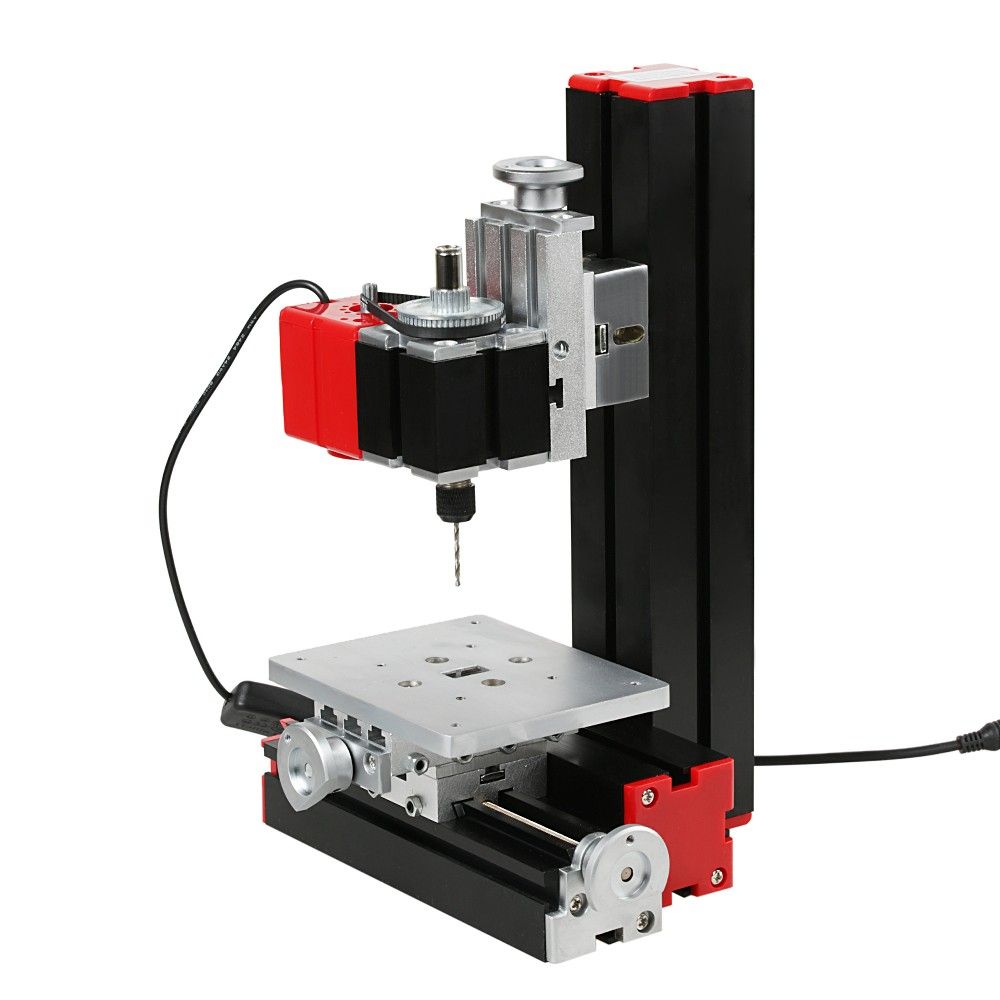

Technique Data of Driller:
Operating Space: 120 * 100mm / 4.72 * 3.94in
Slide Stroke: 30-50mm
Collets Size: 1-6mm
Clamping Size of Vice Clamp: 0-35mm
Driller Weight: 2.8kg / 6.17 lb
Driller Size: 160 * 290 * 150mm / 6.30 * 11.42 * 5.91in
Technique Data of Wood Lathe:
Maximum Processing Diameter: 50mm
Processing Length: 135mm
Grinding Materials: Wood, Plastics
Wood Lathe Weight: 2.0kg / 4.41 lb
Wood Lathe Size: 290 * 150 * 130mm / 11.42 * 5.91 * 5.12in

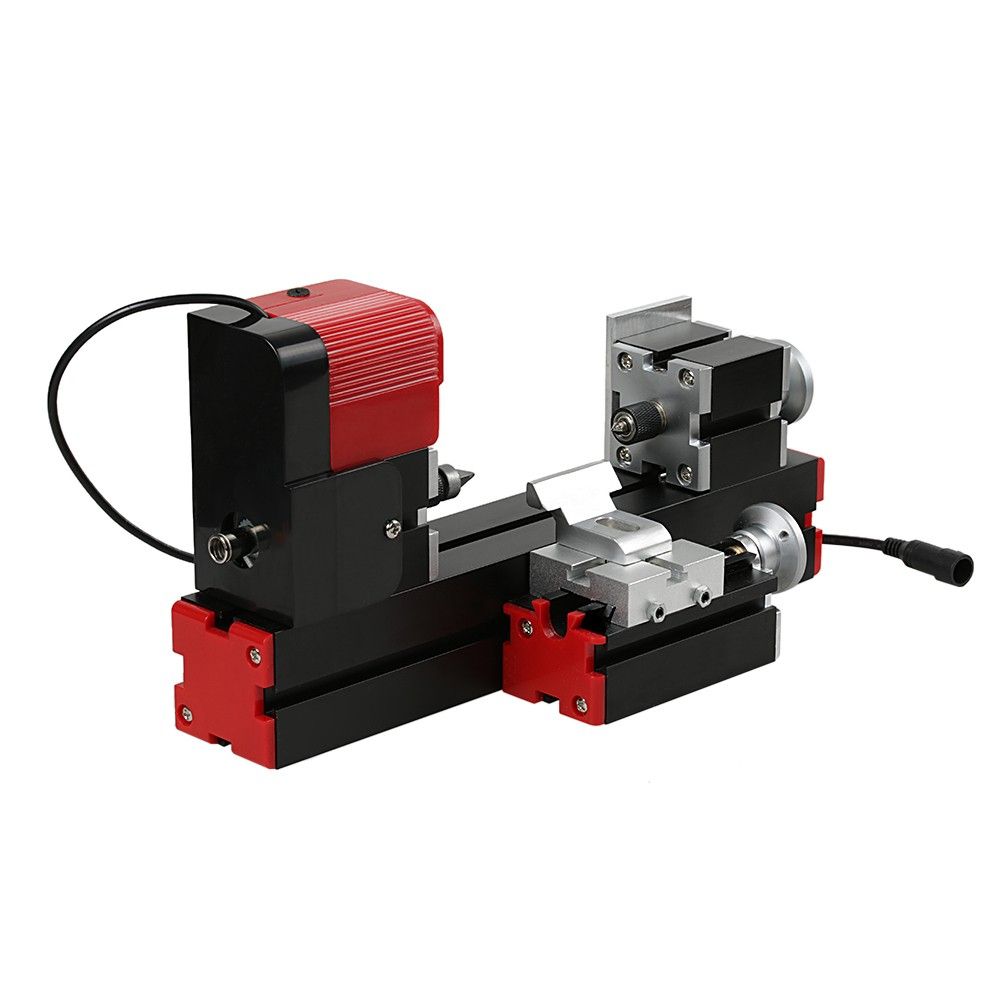

Technique Data of Metal Lathe:
Lengthened Large Slide Block Stroke: 140mm
Maximum Processing Diameter: 50mm
Processing Length: 135mm
Grinding Materials: Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
Metal Lathe Weight: 2.5kg / 5.51 lb
Metal Lathe Size: 290 * 90 * 220mm / 11.42 * 3.54 * 8.66in

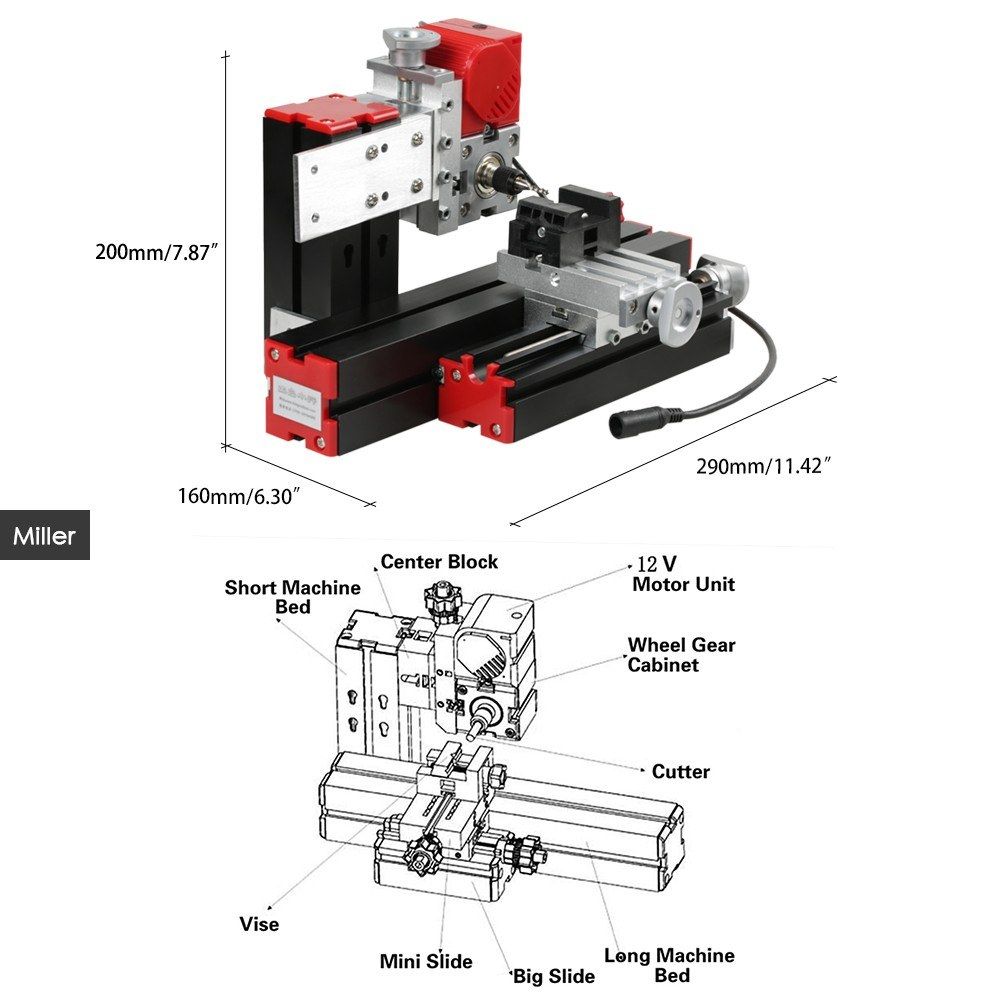

Technique Data of Miller:
Slide Stroke: 30-50mm
Collets Size: 1-6mm
Clamping Size of Vice Clamp: 1-35mm
Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
Metal Lathe Weight: 2.8kg / 6.17 lb
Metal Lathe Size: 290 * 160 * 200mm / 11.42 * 6.30 * 7.87in
Package List:
1 * Long Machine Bed
1 * Wood Board
1 * 3-Jaw Chuck
1 * Abrasive Disc
1 * Working Accessories
1 * Driller Rocker Arm
2 * Small Slider
1 * Big Belt Cover Block
1 * Grinder Protection Cover
2 * Right-angle Fixed Plate
1 * Power Transformer
1 * Plain Vice
1 * Big Slider
1 * Motor
1 * Counter Shaft
1 * Tail Stock
1 * Short Machine Bed
8 * Copper 1-6mm Collets
3 * Bracket
1 * Sawing Machine Base + Bracket
