| Model |
Micro 4-Channel HDMI & DP Video Switcher |
| Size (L x W x H cm) |
9.4 x 5.5 x 1.7" / 23.8 x 14 x 4.4 cm |
| Weight (kg) |
1.7 |
| Color |
Black |
Switch up to four HDMI video inputs and one DisplayPort while monitoring the program feed with the Micro 4-Channel HDMI & DP Video Switcher from AVMATRIX. Use the USB-C output together with your computer for capture and streaming. This compact switcher supports up to 1080p60 video input and output with embedded audio and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, PotPlayer, or vMix.
Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.

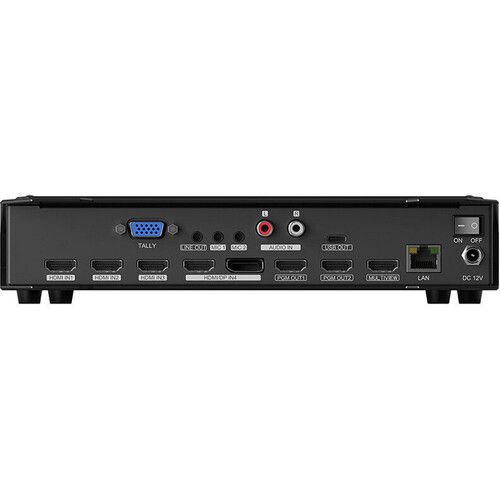

Multiple interfaces include HDMI and DisplayPort inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports.
Key Features
Compact 4-Channel Video Switcher
1 x DisplayPort & 4 x HDMI Inputs
1 x HDMI Multiview & 2 x HDMI PGM Out
1 x USB-C Out for Capture & Streaming
Supports up to 1080p60 Video In/Out
1 x LAN for Control Input
T-Bar, Auto & Cut Transitions
Audio Mixing, Multiview Output
Adjustable PiP Size & Positioning
DB-15 Tally Output, Fade to Black
What's In the Box
- AVMATRIX Micro 4-Channel HDMI & DP Video Switcher
- 12V Power Supply
- USB-A to USB-C Cable
- Tally Connector
