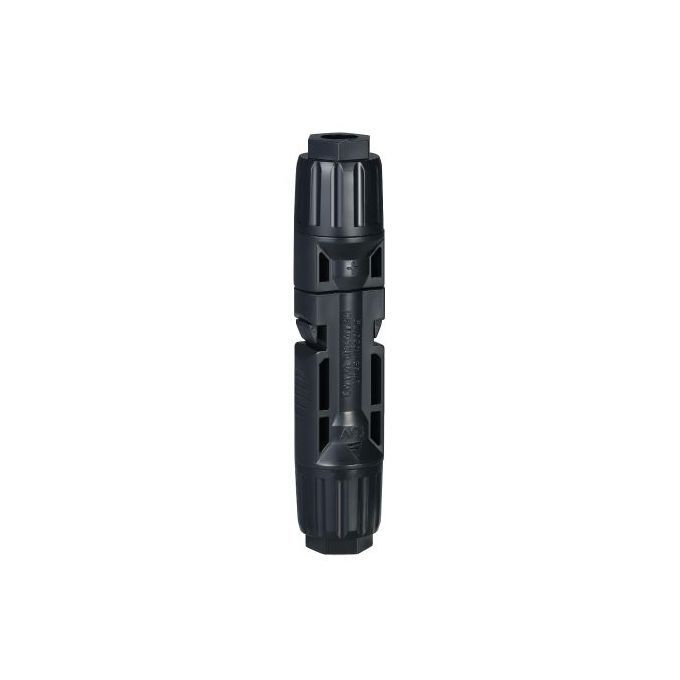

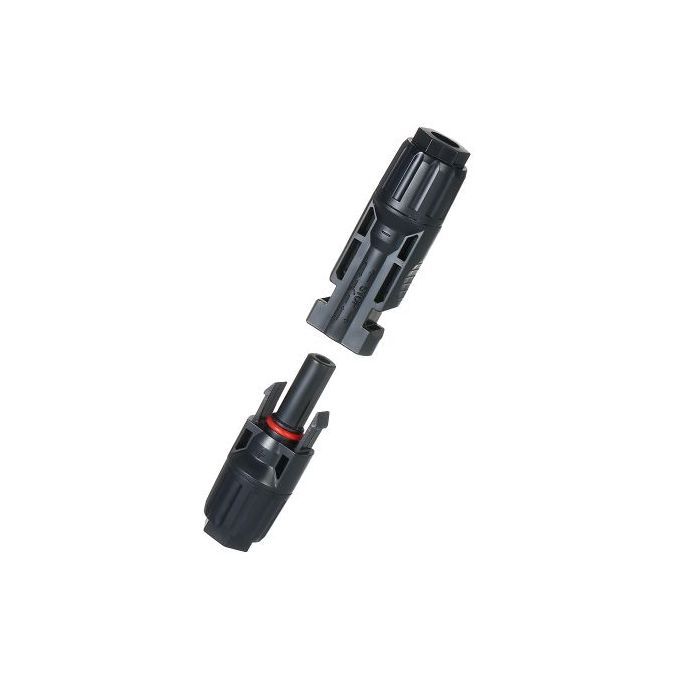

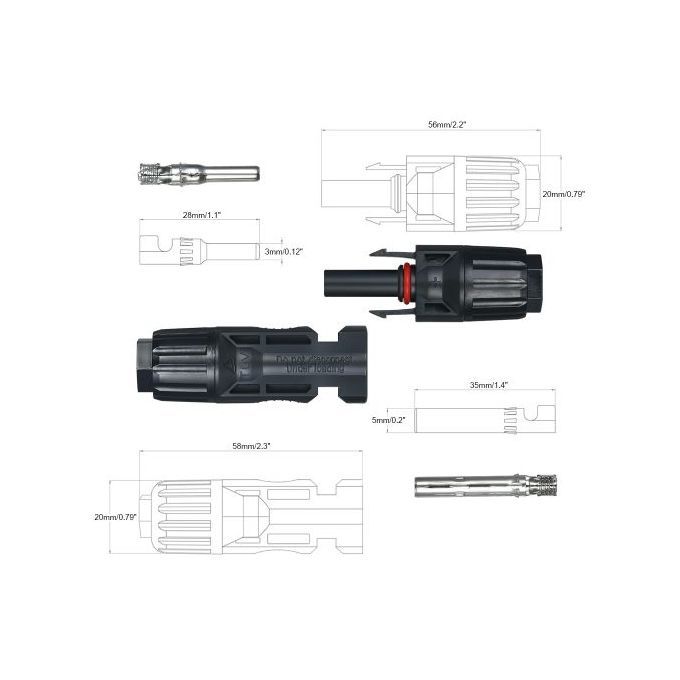

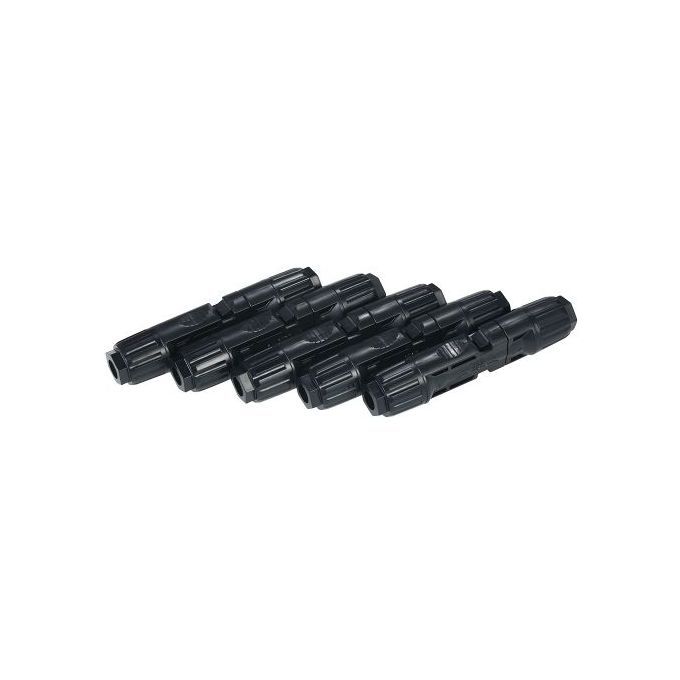

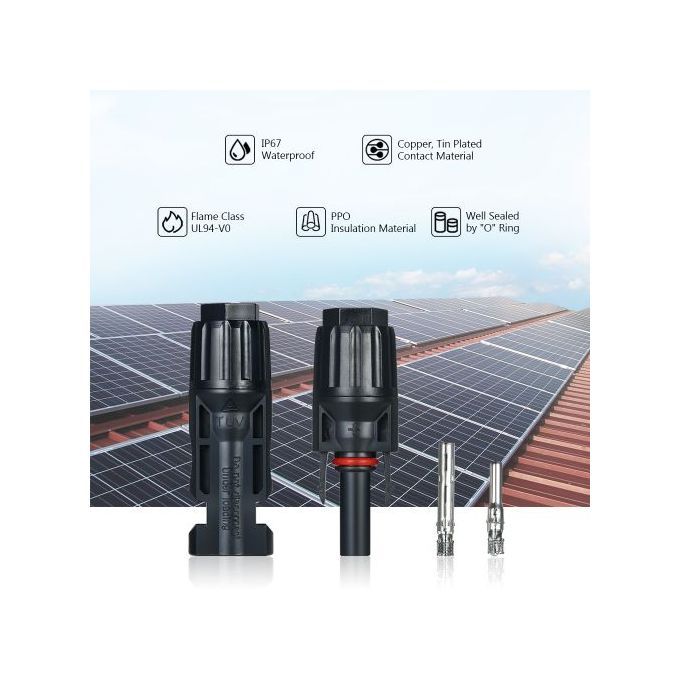

These are MC4 style connectors which are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications. The included MC4 assembly tool makes it easier for users to quickly and easily tighten and separate the connectors.
Features:With excellent aging resistance and UV endurance, it can be used in harsh environment.
The O ring on connector is perfect to seal out water and dust to prevent corrosion.
Cable connection adopts method of rivet and lock, quick & simple for assembly.

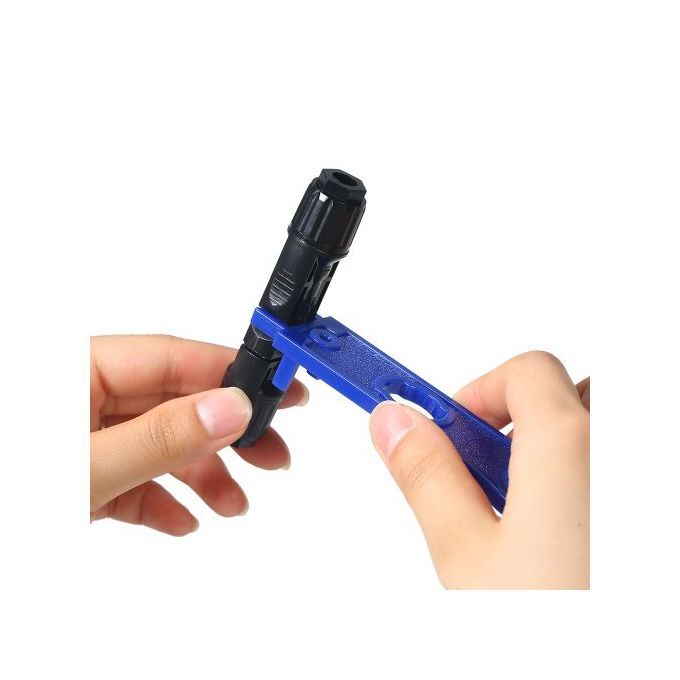

The included MC4 assembly tool makes it easier to tighten and separate the connectors.
Great solution for parallel connection of multiple panels together in a solar field.
Specifications:Quantity: 20 Pairs
(Optional) Rated Current: 16A(2.5㎡, AWG14), 30A(4㎡, AWG12), 52A(6㎡, AWG10)
Withstanding Voltage: 1000V DC
Typical Contact Resistance: 2mΩ
Suitable Cable Size: 2.5mm²/4mm²/6mm²
Protection Class: Class Ⅱ
Protection Degree: IP67
Insulation Material: PPO
Contact Material: Copper, Tin Plated
Flame Class: UL94-V0
Ambient Temperature Range: -40°C ~ +105°C
Insertion Force: less than 50N
Withdrawal Force: over 50N
Package Weight: 213g-407g / 7.52oz-14.37oz

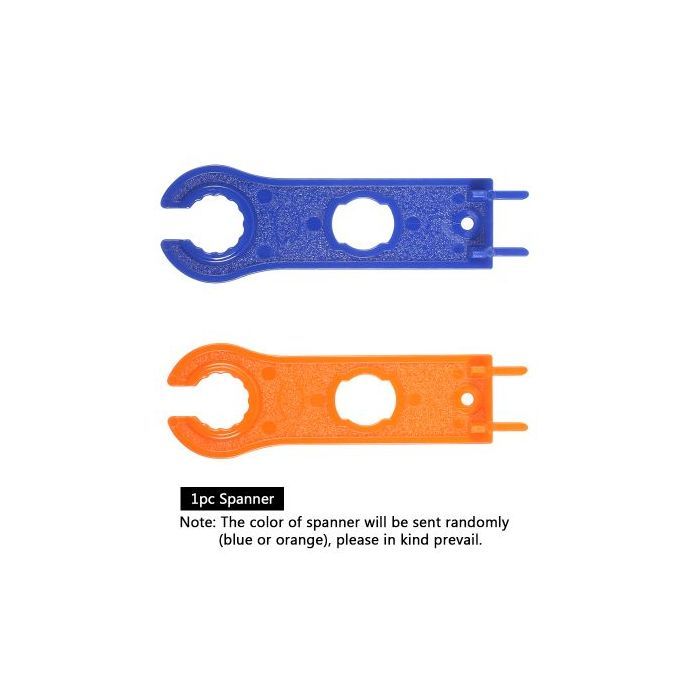

Note:The color of spanner will be sent randomly(blue or orange), please in kind prevail.

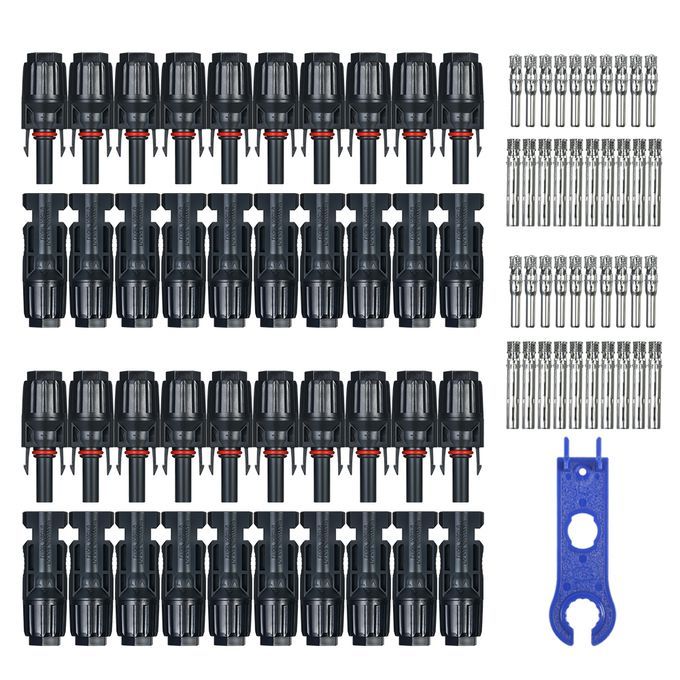

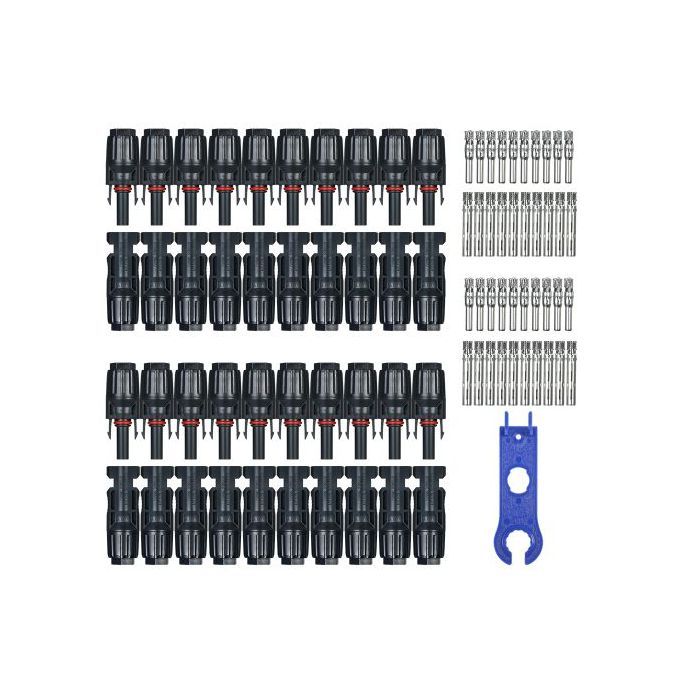

Package List:20 * Pairs MC4 Connectors
1 * Spanner
