Buy Malachite Receiver 3.5 Inch Touching Screen 50kHz~200MHz

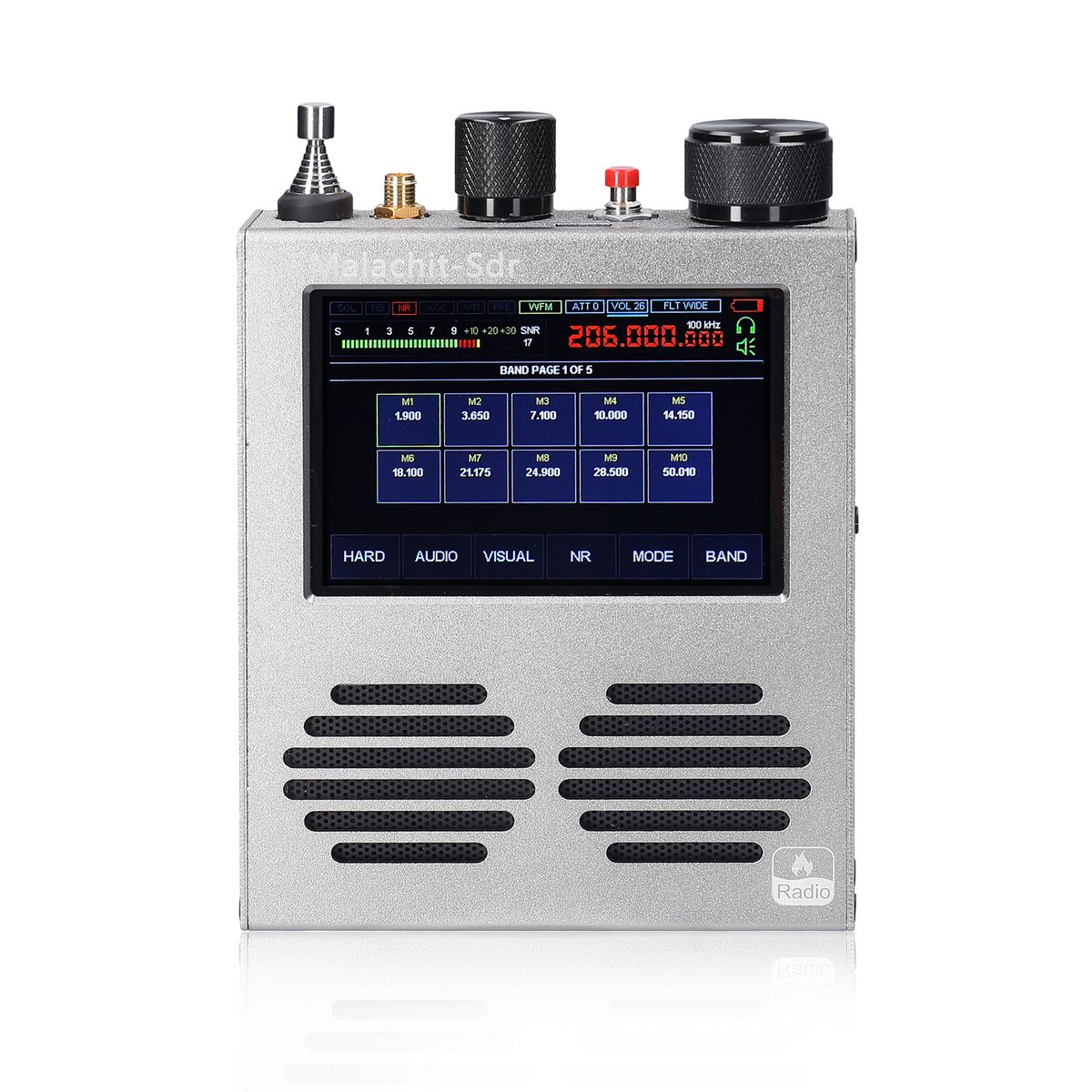

Malachite Receiver 3.5 Inch Touching Screen 50kHz~200MHz

₦ 1,064,672.66 ₦ 1,120,708.06 -5%

0 No Reviews

Product SKU: RENG305264

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	N/A
Production Country	China
Weight (kg)	0.49
Color	N/A
From the Manufacturer	N/A
Care Label	N/A

Features:

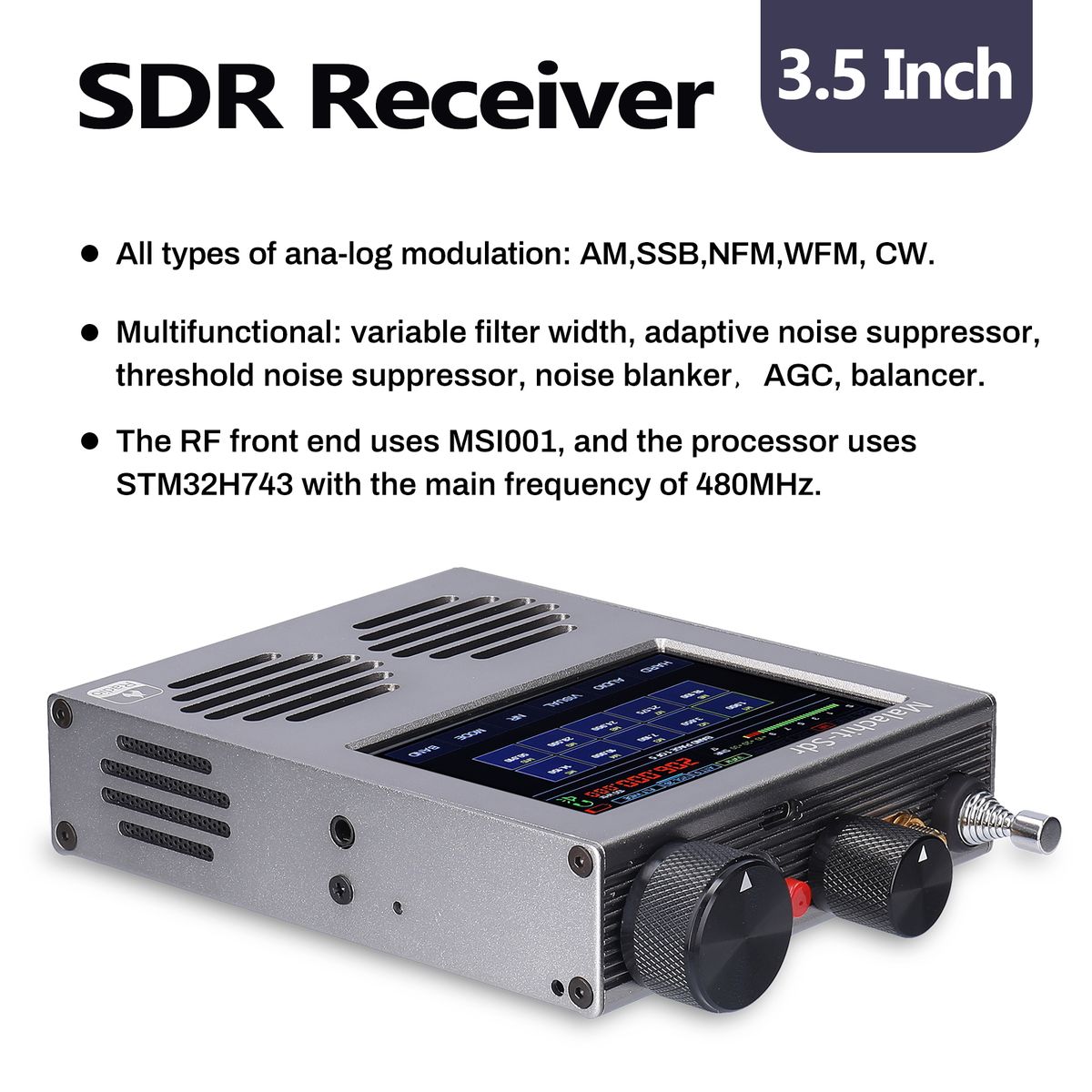

The receiver is based on the SDR principle architecture and its functions are determined by the loaded software.

All types of ana-log modulation: AM，SSB，NFM，WFM, CW.

Multifunctional: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker，AGC, balancer.

The RF front end uses MSI001, and the processor uses STM32H743 with the main frequency of 480MHz.

Support UHF band, operation mode includes two EC11 pulse encoders and capacitive touching screen.

Connect to com-puter via USB, which can transfer CA-T, IQ and audio.

The built-in LNA is used to improve the dynamic ranges of the receiver, The screen display bandwidth is 160kHz, and can be zoomed and displayed.

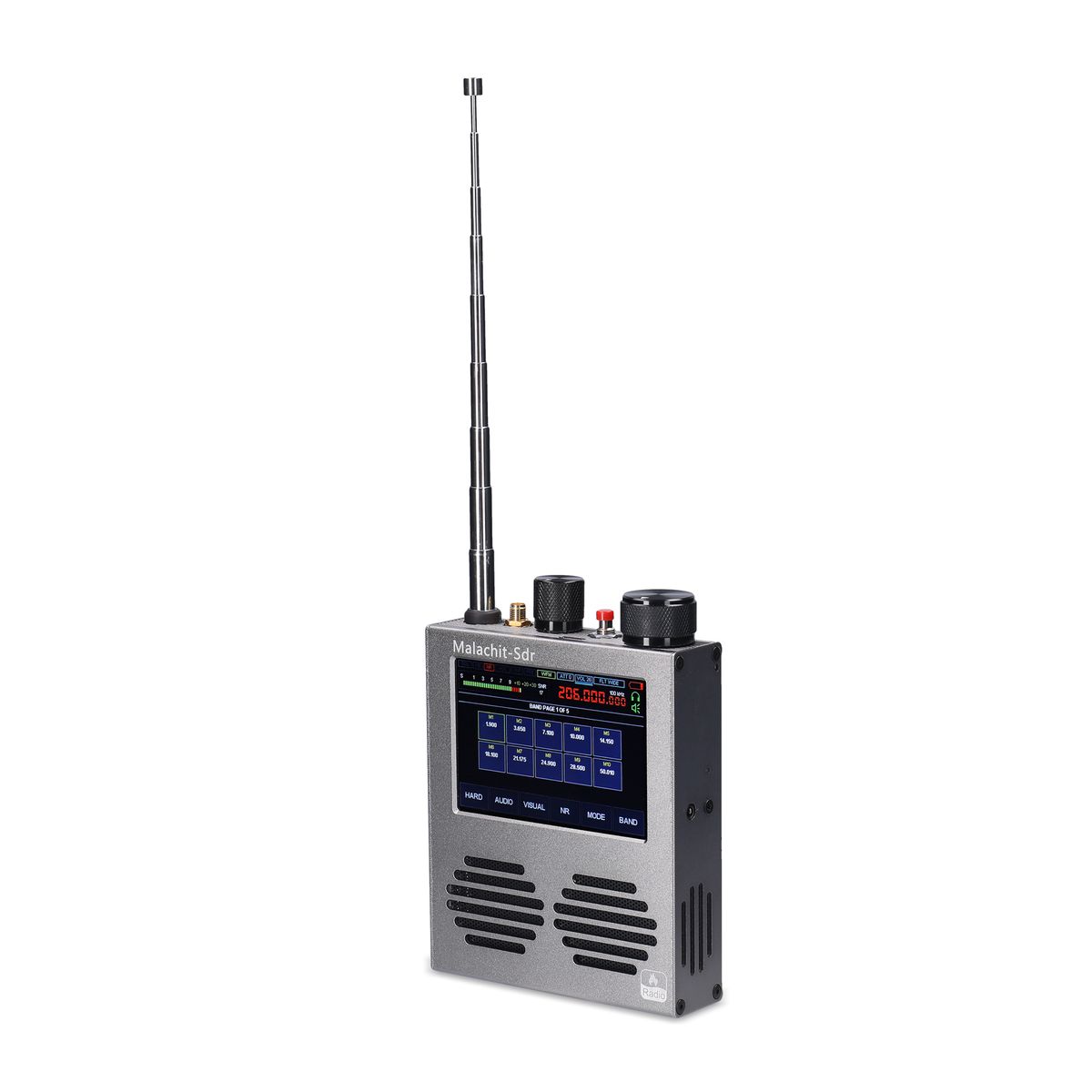

The total length of the built-in antenna is 680mm, the thickest is 11mm, and the external SMA antenna socket.

Using a high-quality sound cavity with a bass diaphragm, the printed circuit board uses a double-layer circuit board process, and impedance matching is performed on the circuit.

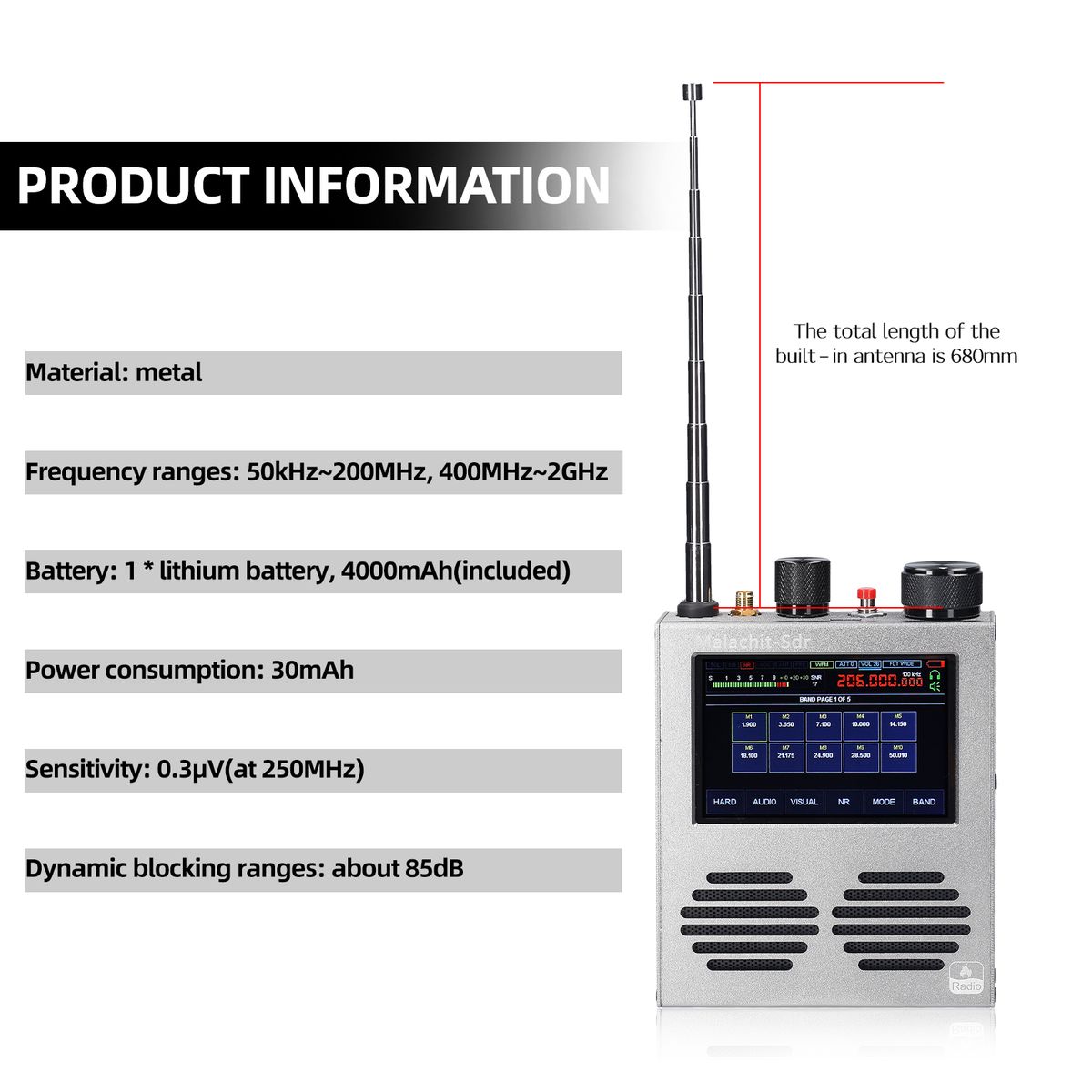

Specifications:

Material: metal

Frequency ranges: 50kHz~200MHz, 400MHz~2GHz

Battery: 1 * lithium battery, 4000mAh(included)

Power consumption: 30mAh

Sensitivity: 0.3 mu;V(at 250MHz)

Dynamic blocking ranges: about 85dB

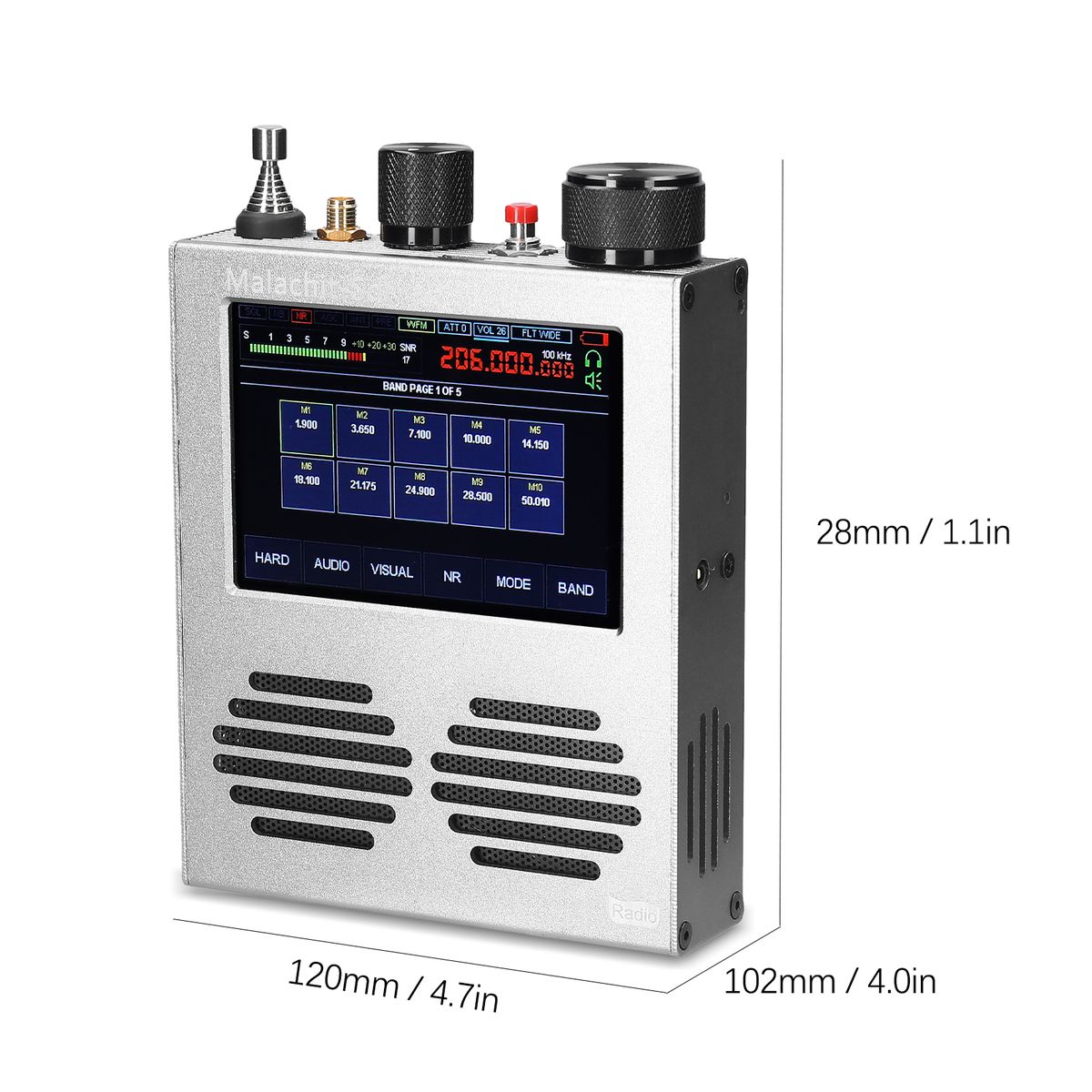

size: 120 * 102 * 28mm / 4.7 * 4.0 * 1.1in(not include protruding parts）

weight: 423g / 0.9lb

Package size: 150 * 150 * 50mm / 5.9 * 5.9 * 2.0in

Package weight: 483g / 1.1lb
