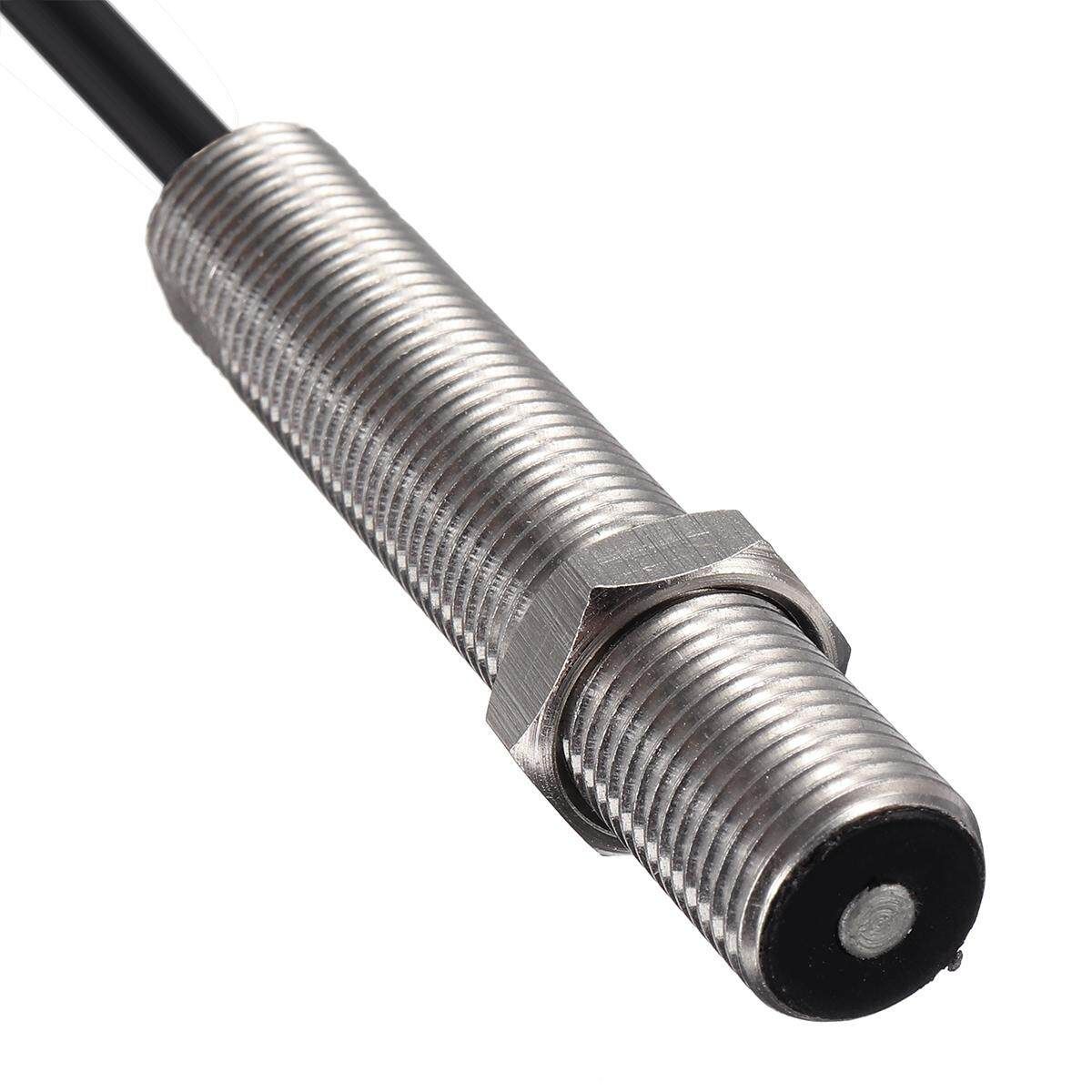

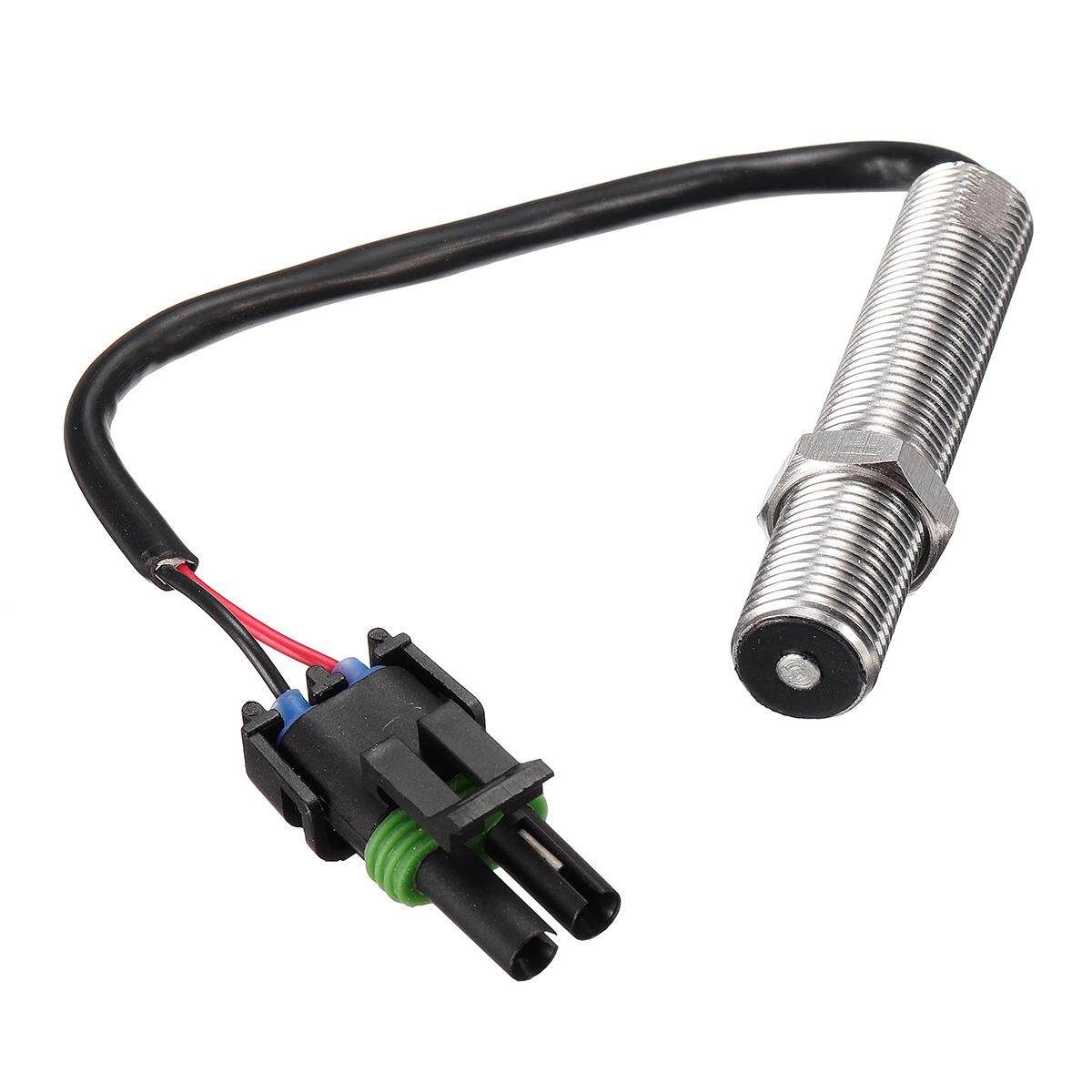

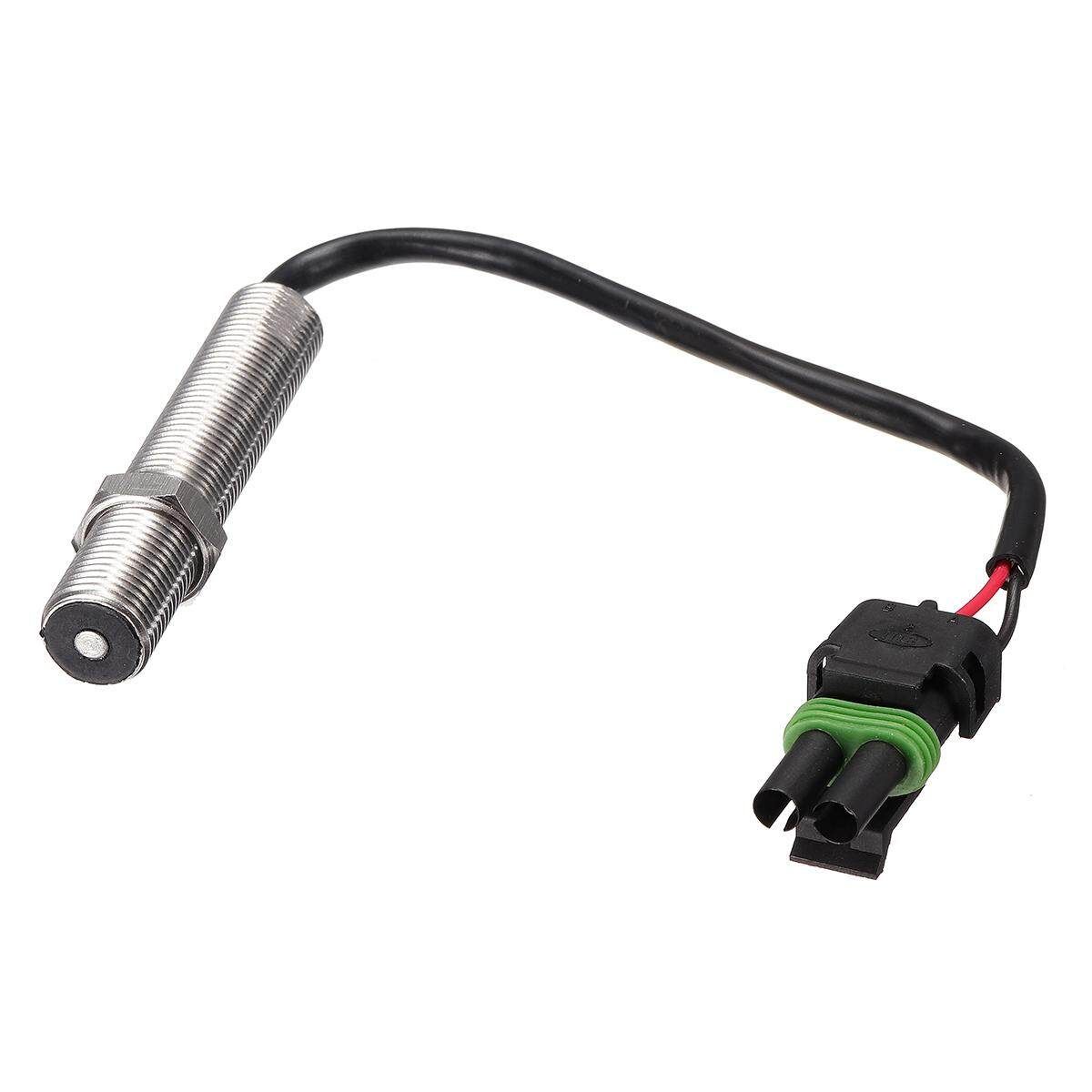

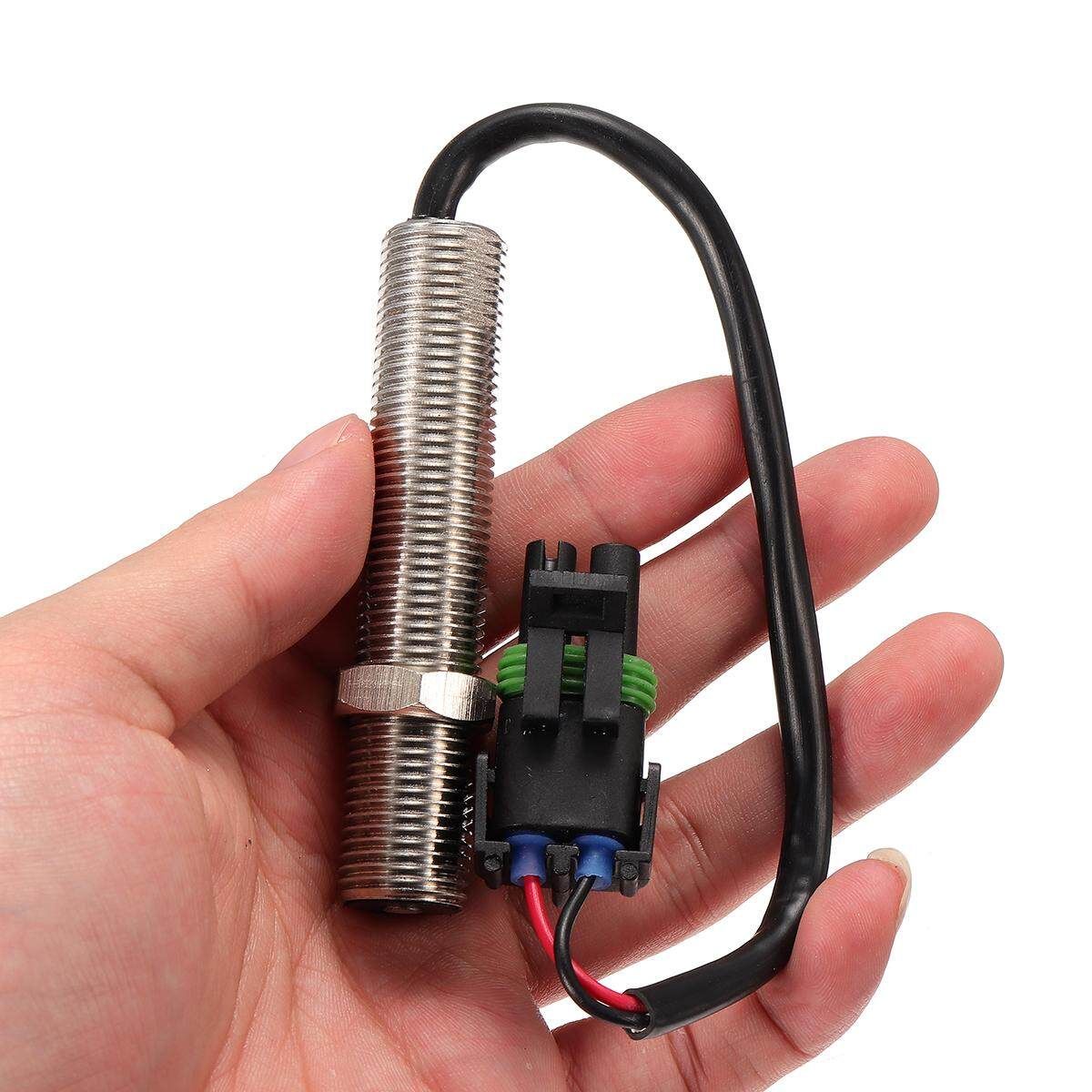

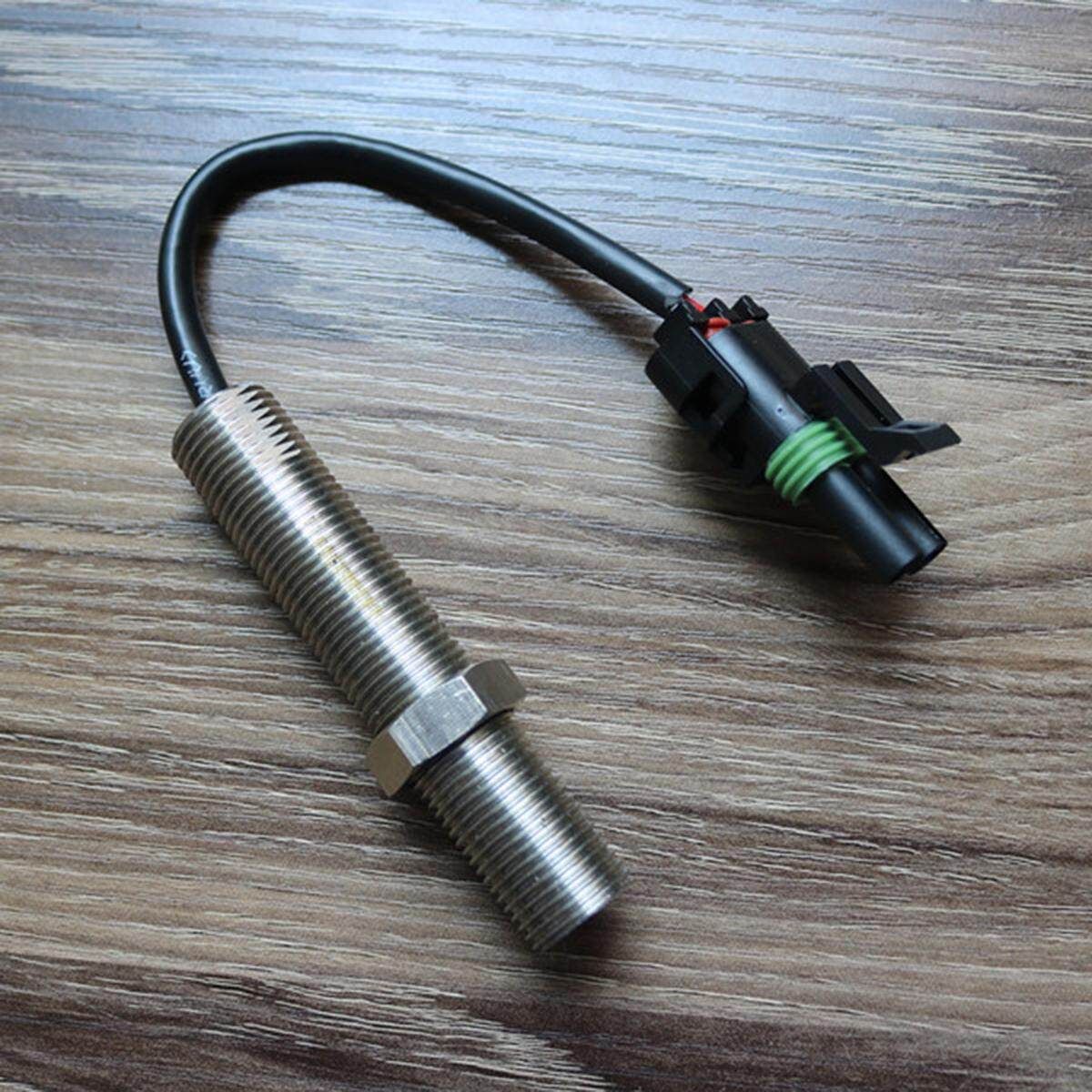

Magnetic Pickup 3034572 Speed Sensor Fits Cummins K38 G38 QSK38 KTA38GC K106
Specifications:
Model: 907616
Manufacturer Part Number: 3034572
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. - .042 in .(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg to 105 deg
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum
Total length: 30cm
Package included:
1 X speed sensor
Note: The pictures are for reference, please make the object as the standard. Thank you for your understanding!
a a a a a
Key Features
Model: 907616
Manufacturer Part Number: 3034572
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Total length: 30cm
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 X speed sensor
