Specifications:
Model: TL88
Net weight: 173g
Package weight: 633g
Dimension: 120*65*30mm
Package size: 260*175*65mm
Display : TN/ANTI-UV LCD with LED back-lighting
Depth range :0.7m to 100m (2ft to 328ft)
Sensor Beam Angle :45 degrees
Operating temperature : -20a° to 70a° (-4a°F to 158a°F)
Powered by : 4 x AAA batteries (NOT included)
Selectable between meter or feet readings
Can mount the sonar with the following methods
A. Fix it to the boat hull
B. Use a float on the cable to mount the sonar inside the water
. Fix it on a pole and push it into the desirable position inside the water
D. Cut a hole on the ice surface and place the sonar under the water
Display the nature or circumstance of bottom of Sea (i.e. grass, and sand)Features:
1. Detect and display grass, short tall weeds, sand, and rocks on seabed
2. Get the approximate location of fish and the depth of water

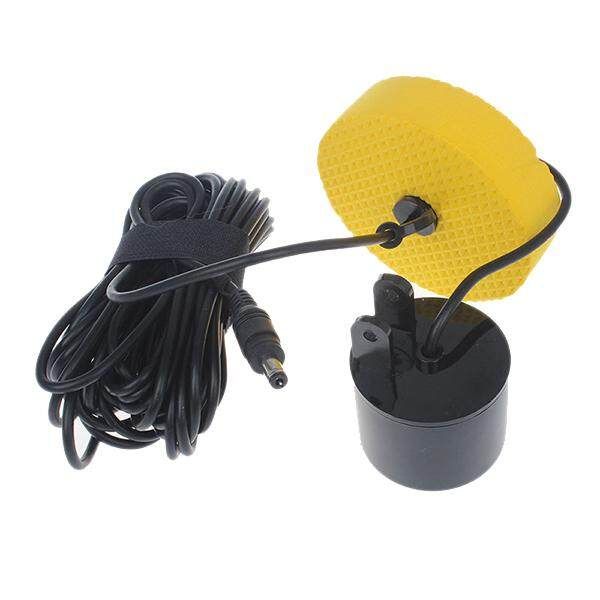

3. Round transducer sensor with 7.5 m cable, 45-degree beam angle
4. With fish depth scale and audible fish alarm
5. User selectable meter or feet readings
6. Range of depth readout from 0.7 meters up to 100 meters
7. Display bottom or grass
8. Removable float
Package Included:

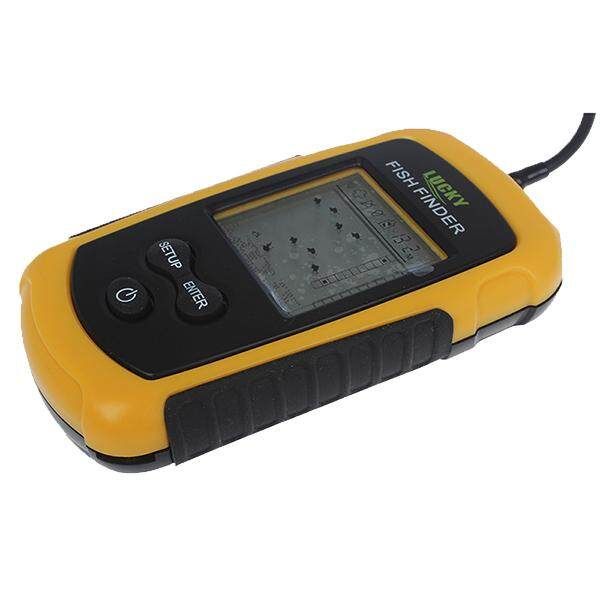

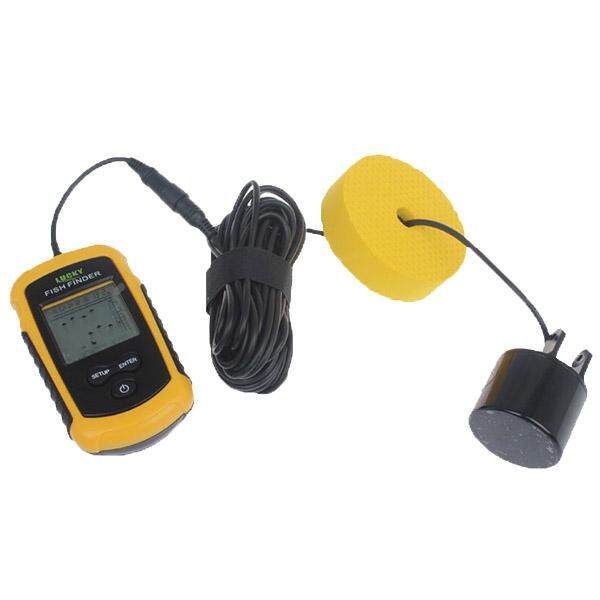

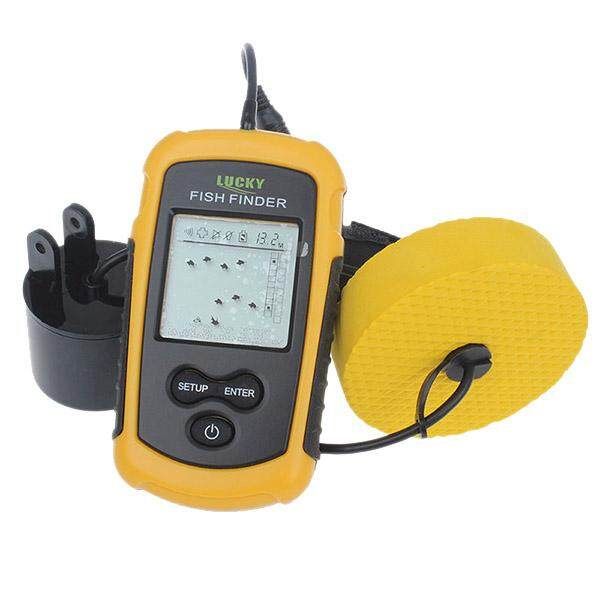

1 x Fish Finder
1 x Round Sonar Sensor with 7.5m Cable
1 x Bolt
1 x Wing Nut
1 x Neck Strap
1 x User Manual
a a a a a
Key Features
Model: TL88
Dimension: 120*65*30mm
Package size: 260*175*65mm
Display : TN/ANTI-UV LCD with LED back-lighting
Depth range :0.7m to 100m (2ft to 328ft)
Sensor Beam Angle :45 degrees
Operating temperature : -20a° to 70a° (-4a°F to 158a°F)
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
- 1 x Fish Finder
- 1 x Round Sonar Sensor with 7.5m Cable
- 1 x Bolt
- 1 x Wing Nut
- 1 x Neck Strap
- 1 x User Manual
