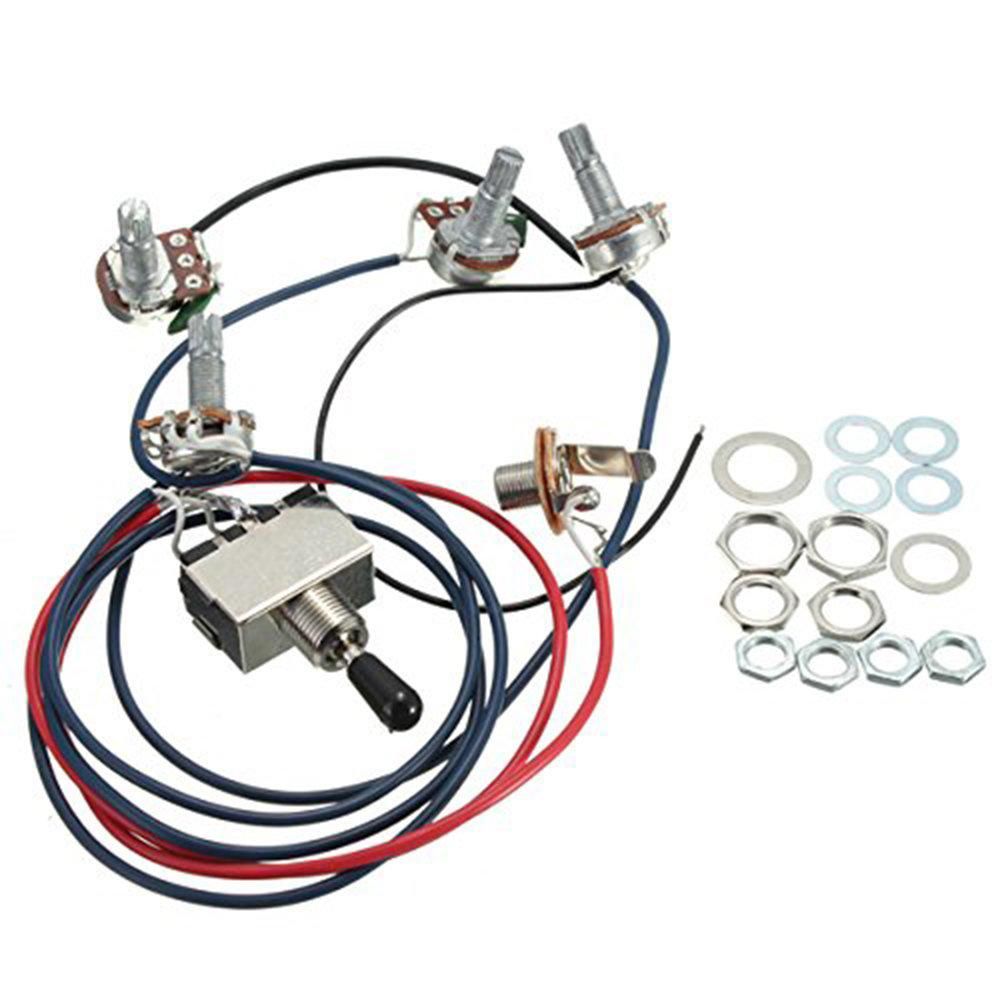

Circuit wiring set for LP SG EPI Style electric guitar, Material: Metal and wire,

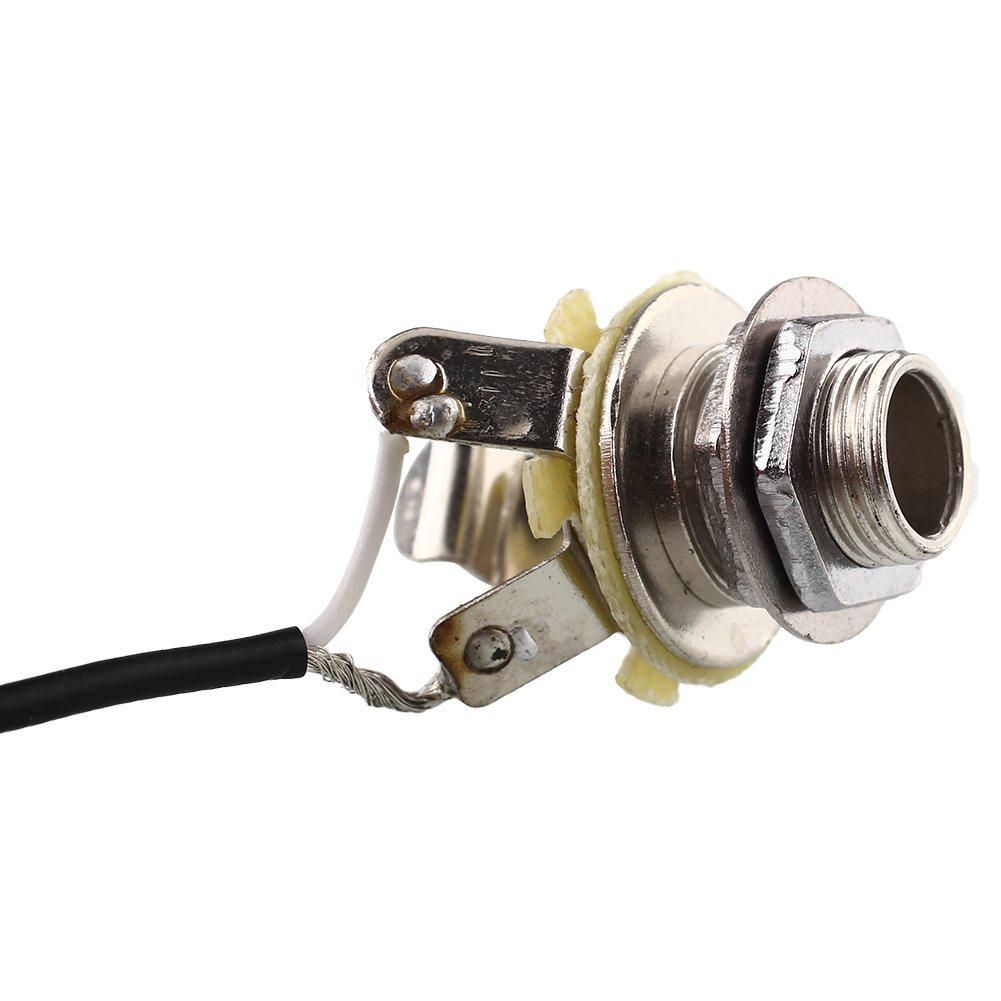

Wiring harness: Two volume/ Two tones / Three way switch, two capacitors, one input jack socket

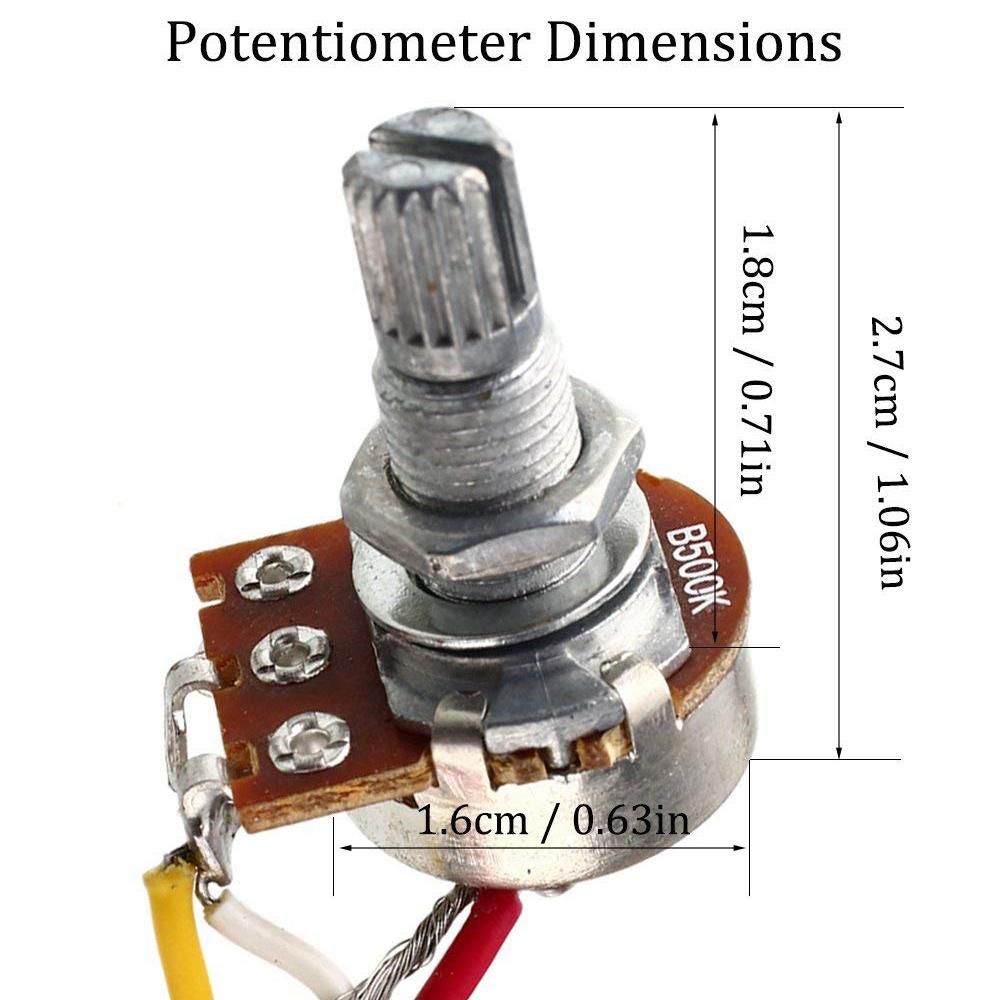

2 Volume and 2 Tone Knob Pots: Two A500k potentiometer, two B500k potentiometer

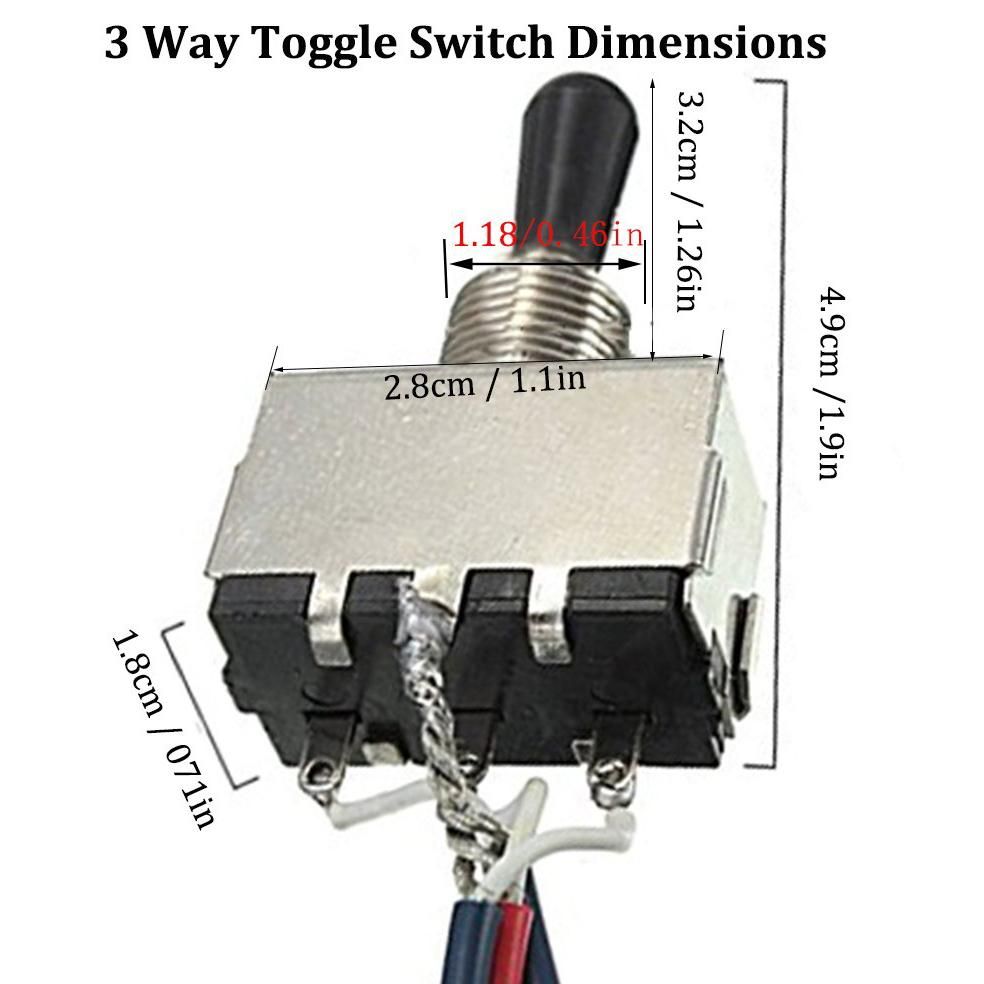

Pots Shaft length: approx. 18mm / 0.71 inch, Base diameter: approx. 16mm / 0.63 inch, Switch: Approx. 18 x 28 x 49mm / 0.71 x 1.1 x 1.9 inch
Switch Cap: Black Cap

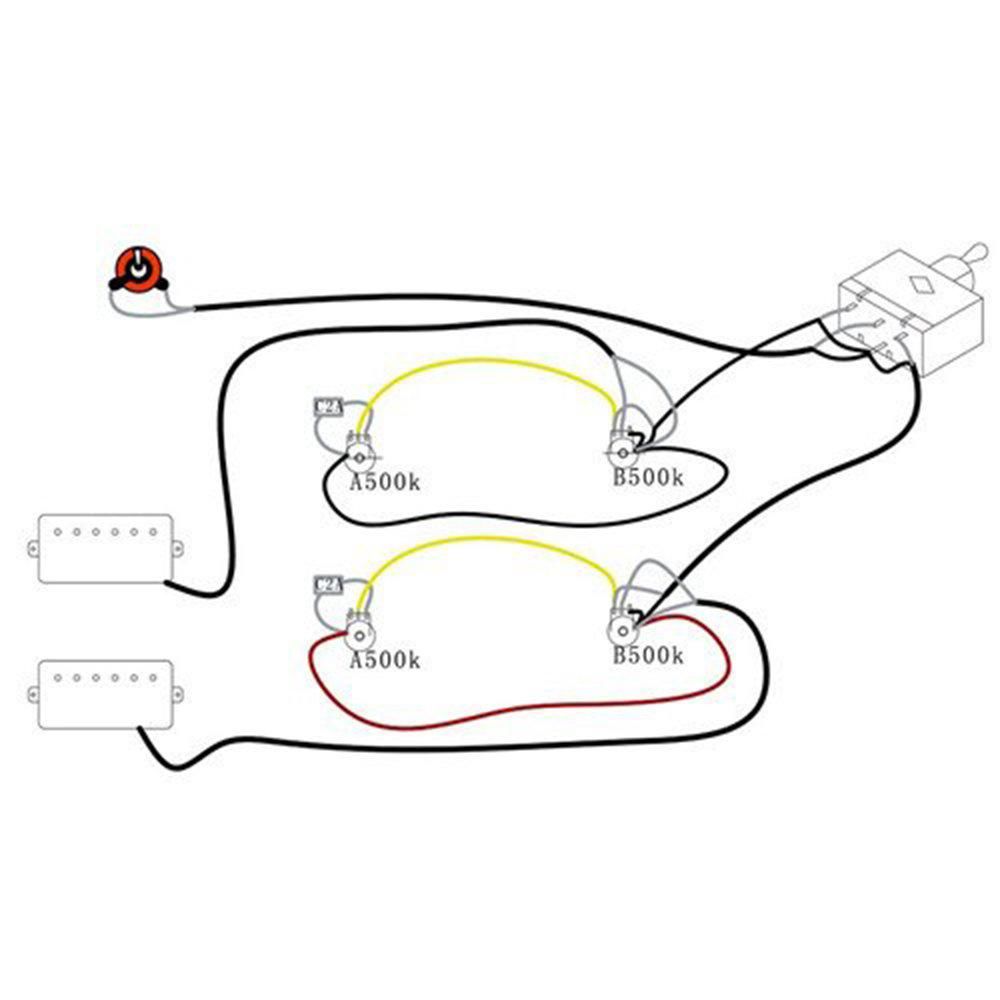

Wiring diagram as the picture seventh shown, this harness is completely prewired. All you need to do is solder your pickups to the switch and ground them to the volume pots.
Material: metal + ABS
Package Included:
1 * Wiring Harness
11 * Nuts
6 * Washers
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
