This low frequency module is an audio amplifier with high voltage and high current, which can operate source from to ±10V to 40V, and can provides continuous output current up to 5A. With nice heat dissipation performance, and protects the amplifier and load from failure conditions. Wide applications, suitable for driving various high loads of amplifiers, such as motor drive, small signal amplification, audio signal amplification, etc.
Features:The module is an audio amplifier with high voltage and high current, which can operate source from to ±10V to 40V, and can provides continuous output current up to 5A.
The integrated module circuit provides high accuracy of low level signals, and stable output voltage and current.
This module is protected by internal current limit and thermal shutdown circuit, and can be easily installed on the heating device.
The heat sink has nice heat dissipation performance, and protects the amplifier and load from failure conditions.
Wide applications, suitable for driving various high loads of amplifiers, such as motor drive, small signal amplification, audio signal amplification, etc.

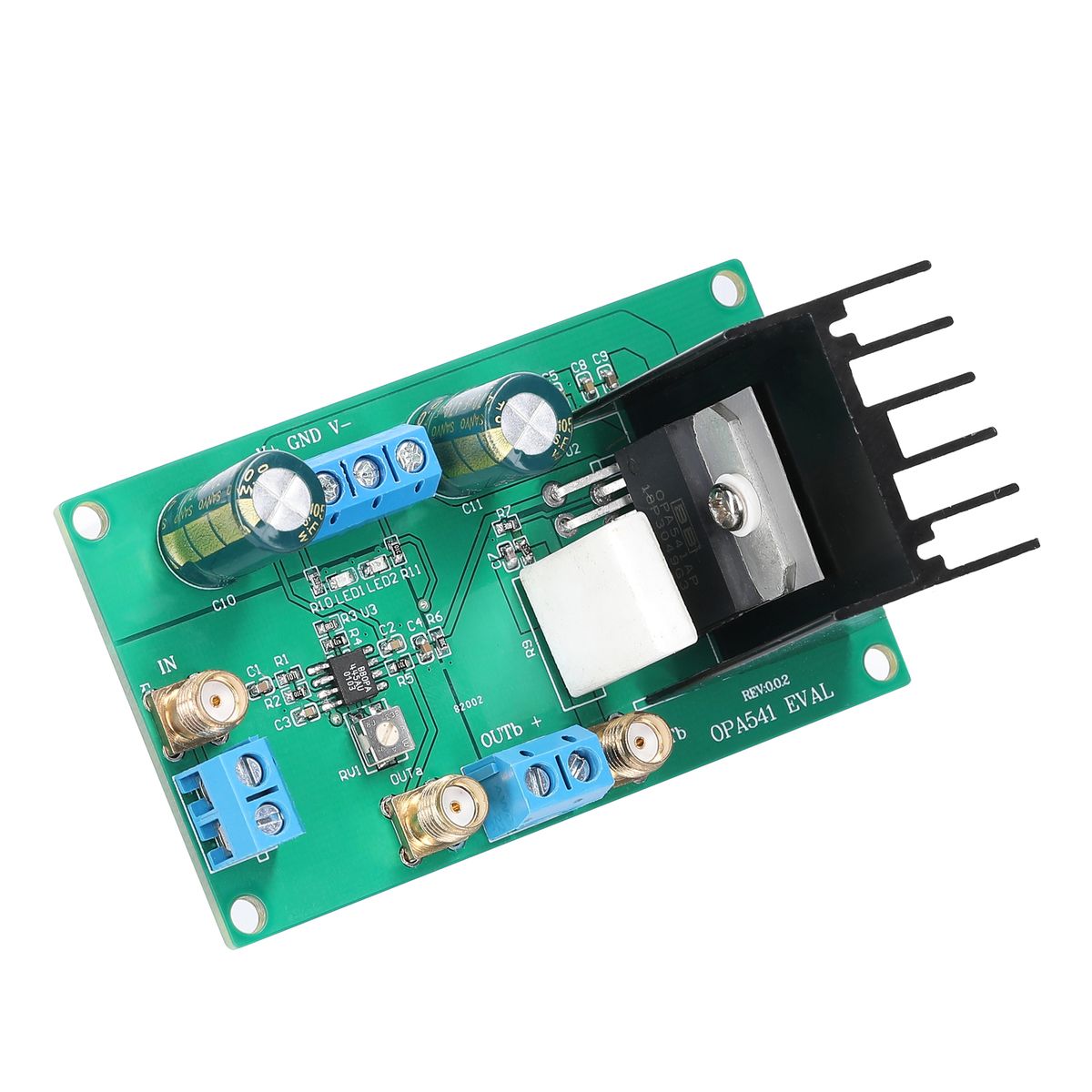

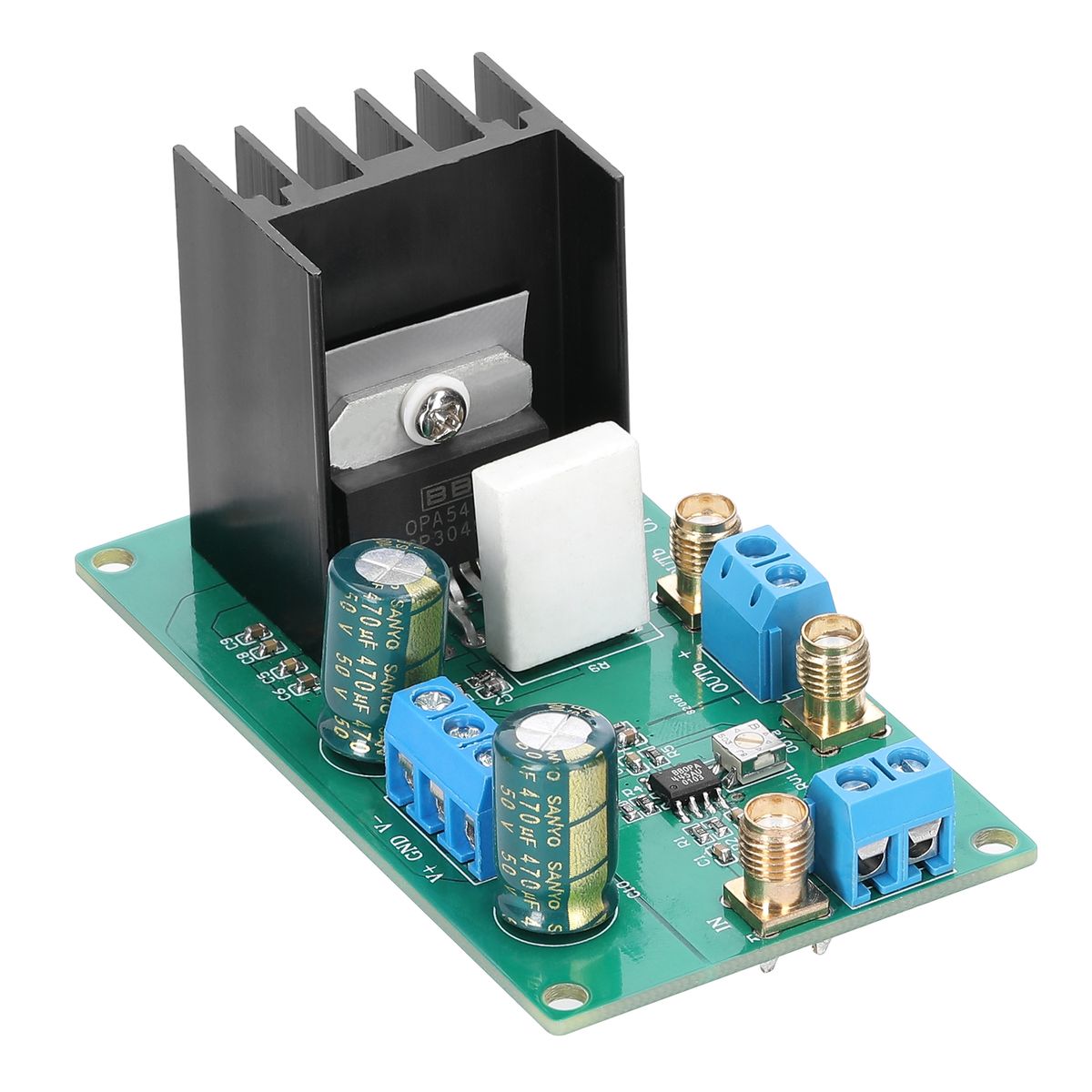

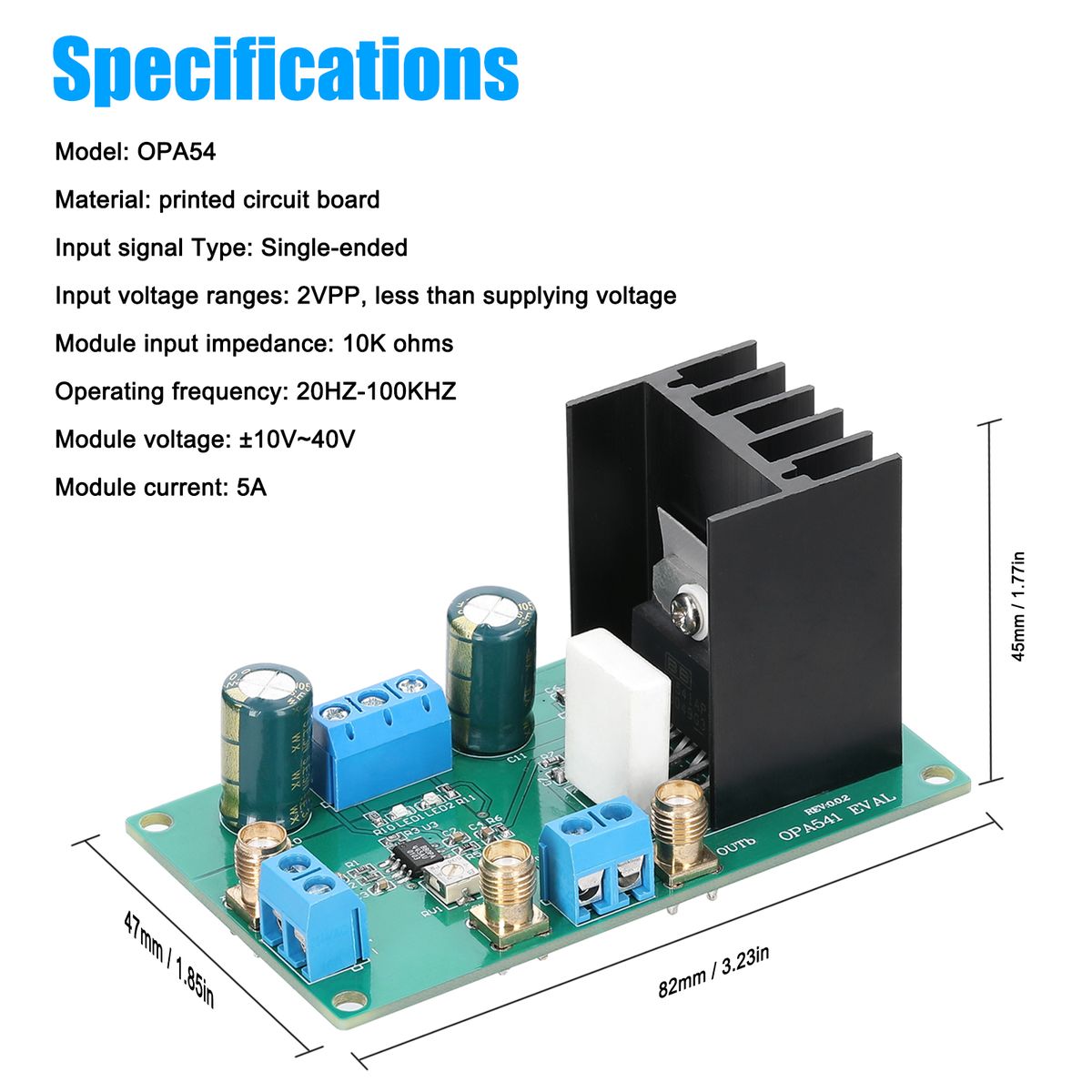

Specifications:Name: Low Frequency Amplifier Module
Material: printed circuit board
Input signal Type: Single-ended
Input voltage ranges: 2VPP, less than supplying voltage
Module input impedance: 10K ohms
Operating frequency: 20HZ-100KHZ
Module voltage: ±10V~40V
Module current: 5A
Input voltage ranges: 68VPP, when the supplying voltage is ±40V
Input current: 5A
Input : 50W (MAX)

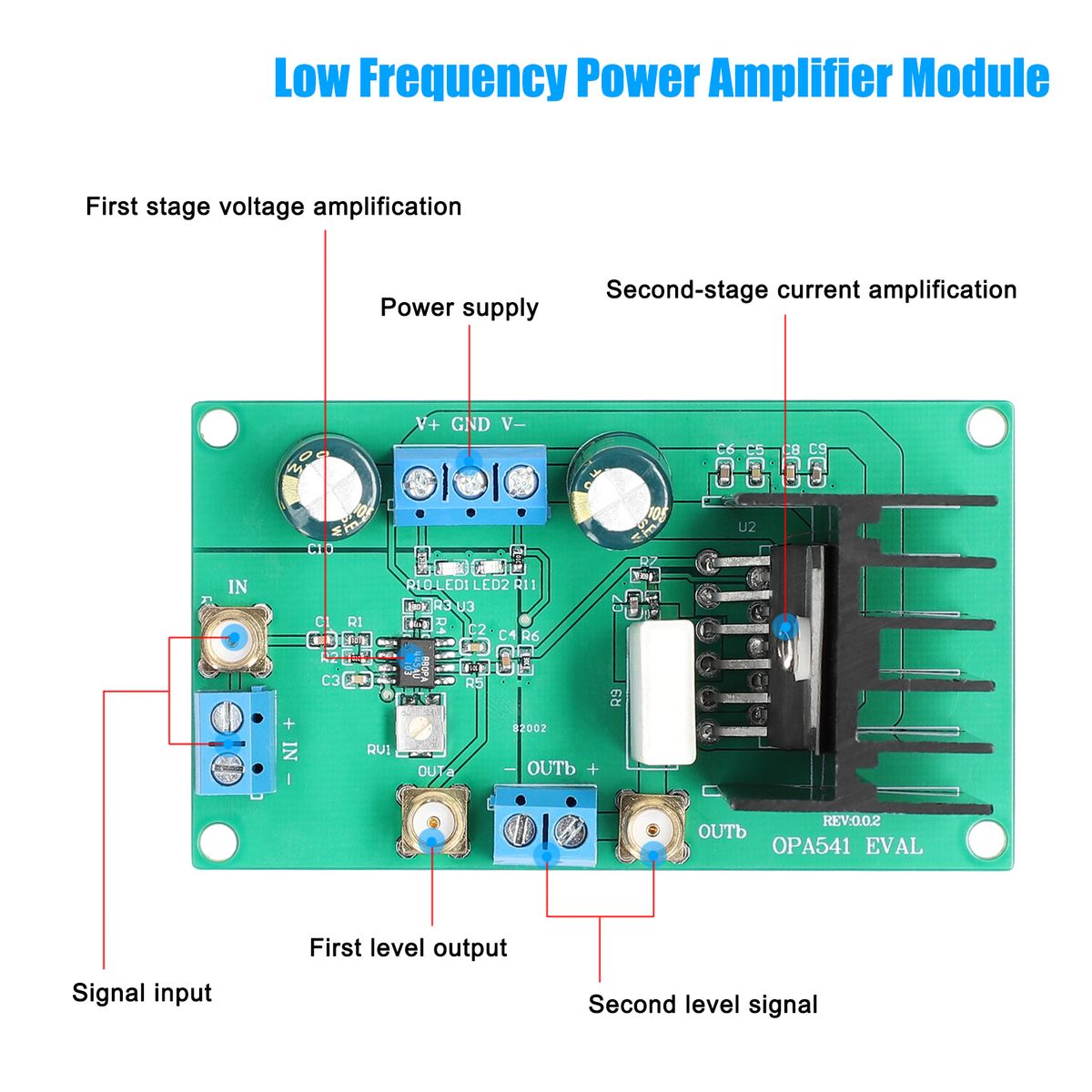

Module gain: 3.3x~82x, the first stage amplification is adjustable up to 25x, the second stage amplification is 3.3x
Module protection: None
Module heat: When the input and output voltage is too large or the module is damaged, the module is equipped with a heat sink.
Module operating temperature: -40℃~75℃
Module features: positive and negative LED indication
Applications: small signal amplification, audio signal amplification, motor drive, etc.
Module interface type: 5.08 blue card holder, SMA signal input and output
Item size: 82 * 47 * 45mm / 3.23 * 1.85 * 1.77in
Item weight: 58g / 2.05ounce
Package size: 110 * 70 * 50mm / 4.33 * 2.76 * 1.97in
Package weight: 65g / 2.29ounce
Packing List:1 * Amplifier Module
Key Features
The module is an audio amplifier with high voltage and high current, which can operate source from to ±10V to 40V, and can provides continuous output current up to 5A.
The integrated module circuit provides high accuracy of low level signals, and stable output voltage and current.
This module is protected by internal current limit and thermal shutdown circuit, and can be easily installed on the heating device.
The heat sink has nice heat dissipation performance, and protects the amplifier and load from failure conditions.
Wide applications, suitable for driving various high loads of amplifiers, such as motor drive, small signal amplification, audio signal amplification, etc.
The module is an audio amplifier with high voltage and high current, which can operate source from to ±10V to 40V, and can provides continuous output current up to 5A.
What's In the Box
1 x Amplifier Module
