Model |
JMVANLIN659173 |
Production Country |
China |
Size (L x W x H cm) |
35 x 9 x 5 |
Weight (kg) |
1.3 |
Certifications |
Organic |
Color |
multicolor |
Main Material |
1 |
From the Manufacturer |
1 |
Care Label |
1 |
Specifications
:silver+black
Materials:aluminum alloy
Size:350*64*50mm
Slide Width:78mm
The Number Of Sliders:1
Horizontal Load:56KG
Vertical Load:15KG
Current:1.2A
Voltage:12V
Resistance:3.2 ohms
Step Angle:1.8o
Torque:45N.cm
Accuracy:0.1mm
Round Trip Accuracy:0.1-0.5mm
Ambient Temperature:-10o~50o
Slide Stroke:200mm
Connected line:Red:"A+", Green:"A-", Blue:"B+" , Yellow:"B-"
Features
-100% and high quality.
-Horizontal load 56KG, vertical (pull) load 15KG.

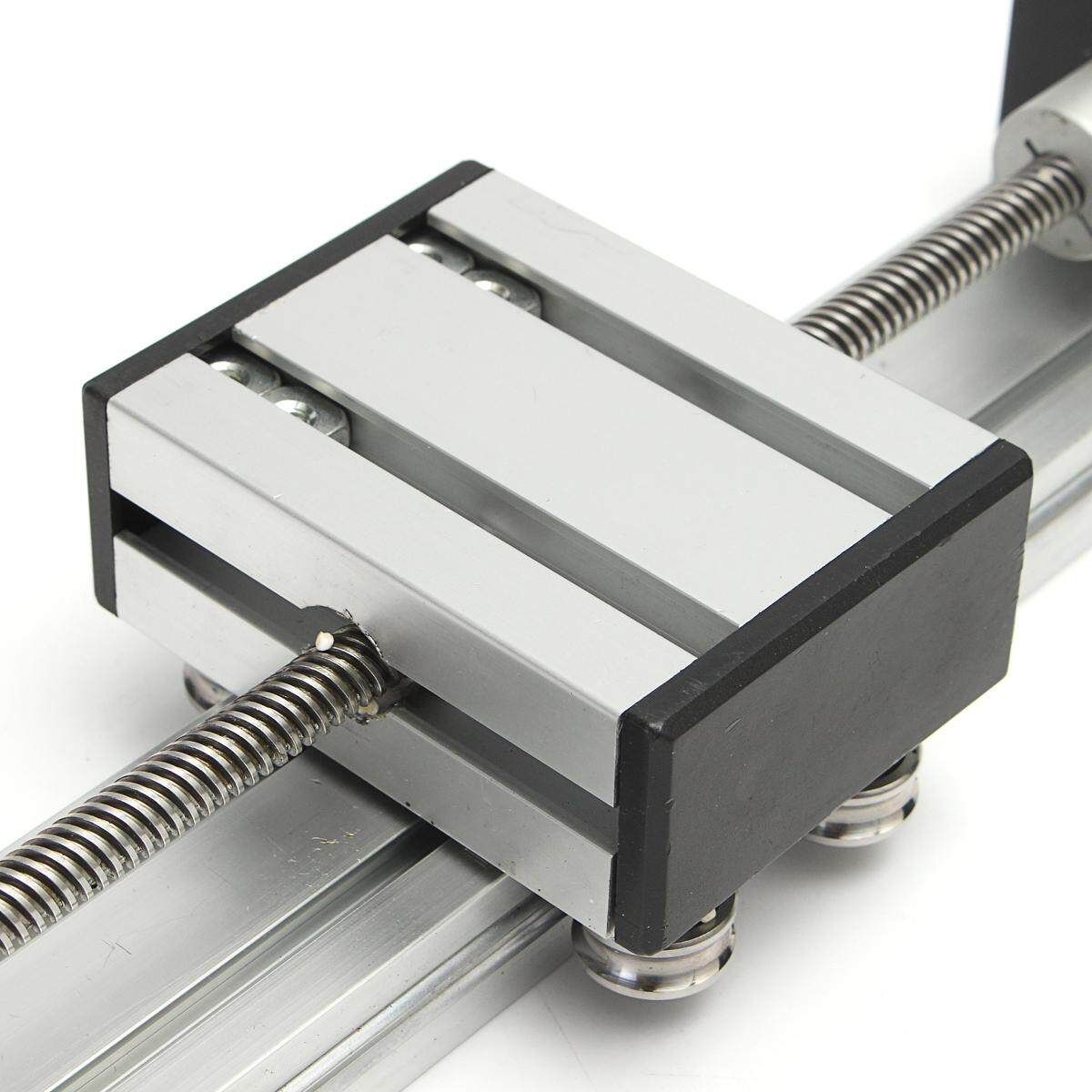

-The ball screw consists of a screw, nut and ball. The rotation movement into a linear motion, with a small frictional resistance.
Note:Due to the manual measurement,there might be some error.
a a a a a
Key Features
:silver+black
Materials:aluminum alloy
Slide Width:78mm
The Number Of Sliders:1
Current:1.2A
Voltage:12V
Torque:45N.cm
Slide Stroke:200mm
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box

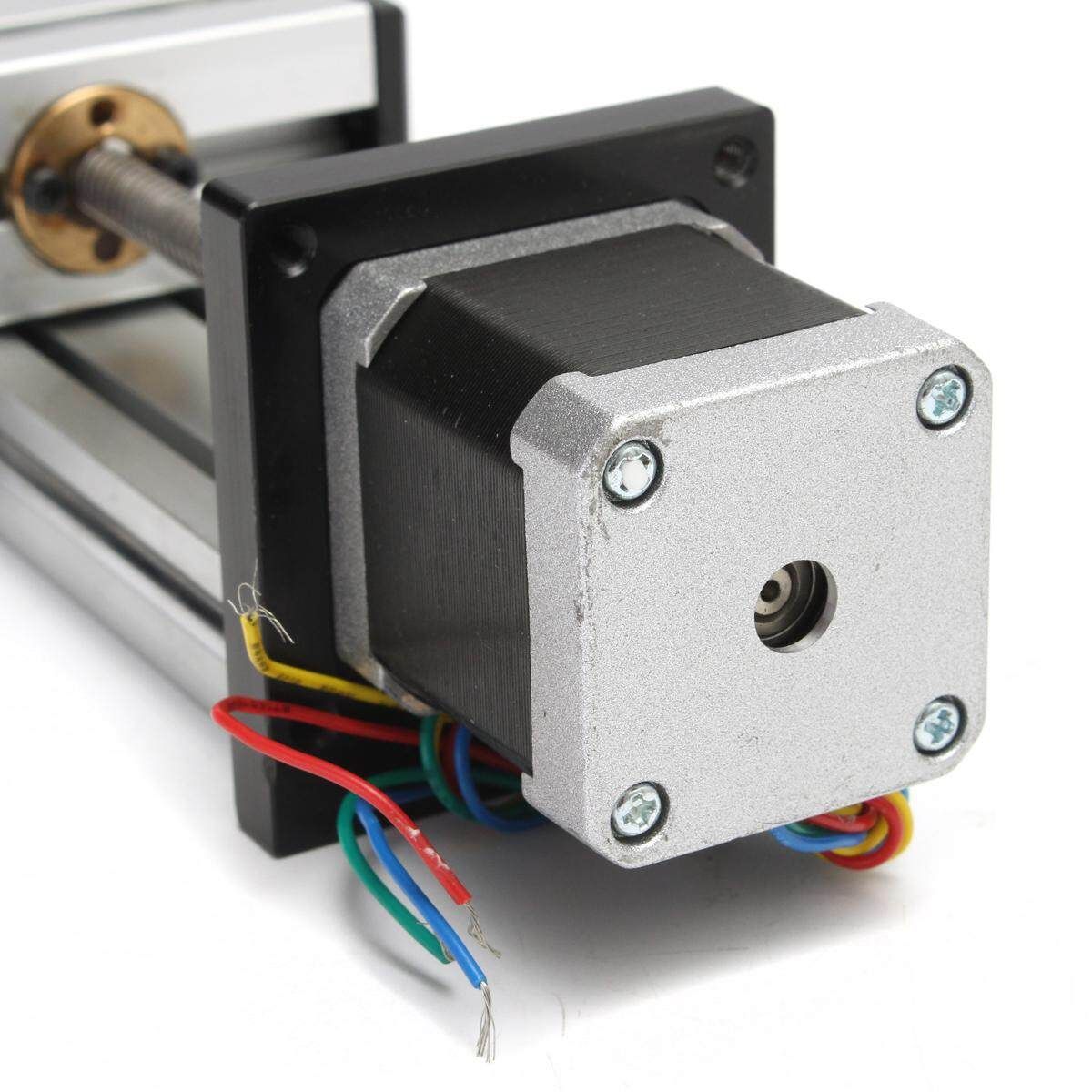

1 x Lead Screw Slide(with a motor)
