Features:
High gain, easy installation and operation.
Full-duplex, single-port design.
Use ALC technology, adjust extent automatically.
LED Light Working Signal Condition Indicators.
Big linear , control intermodulation scatteration stably.
Dependability stand by GB6993-86 standard.
Compatibility of electromagnetism according with ETS300 609-4.
CE and RoHs Approved.
Specification:
Frequency range :
890MHz--915MHz(Up link)
935MHz--960MHz(Down link)
: -70 ~-40 dBm/ FA (1.23MHz)
Gain : (Up link) 50/55/60/65Db/10DB (Down link) 55/60/65/70Db10DB
Signal coverage : Up to cover for 150 square meters use
Impedance : 50
Seclusion : 65dB
supply : AC110/220V(Used AC/ Adapter 12V )
Compact design: Indoor use

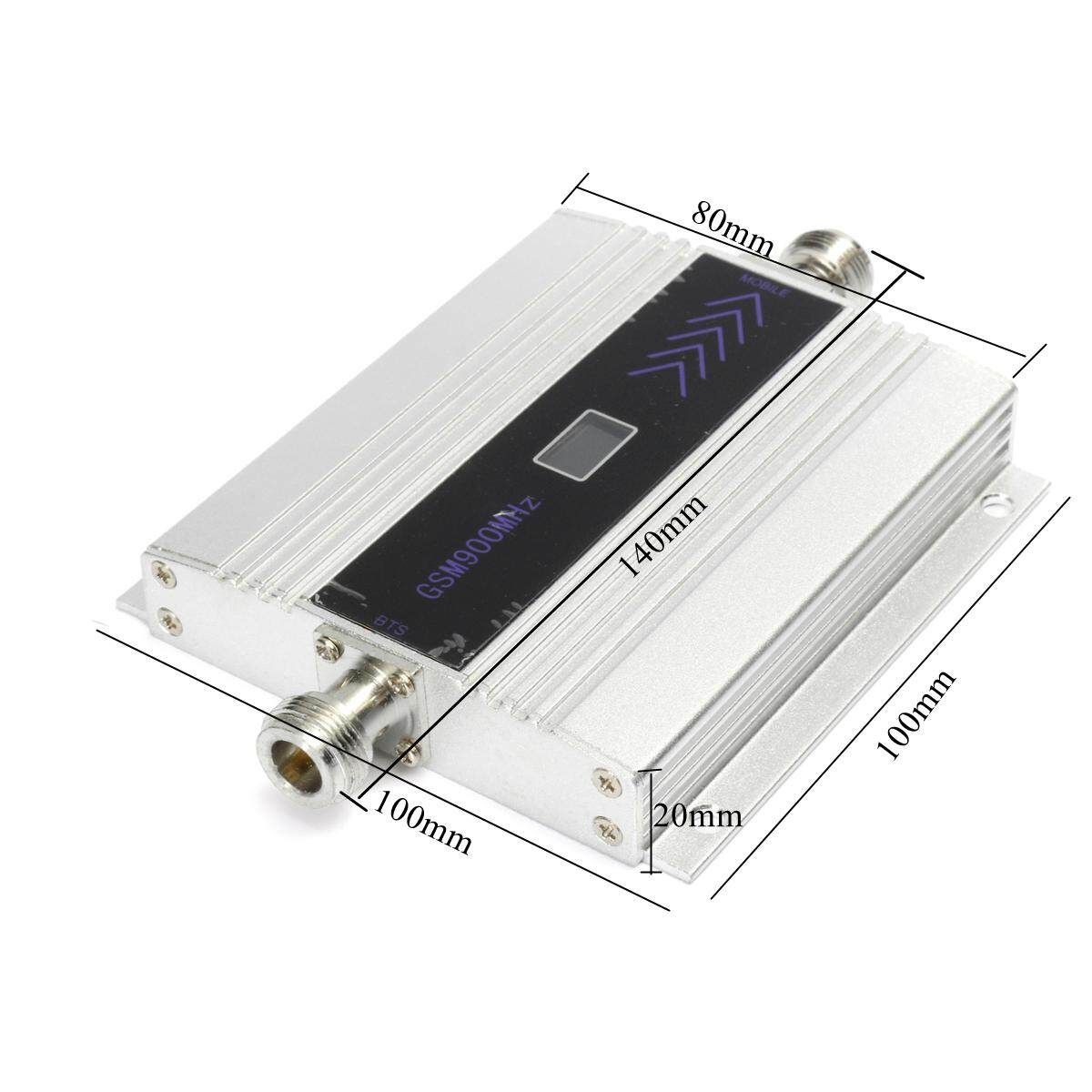

Signal Repeater Size: 140*100*20mm/5.51*3.94*0.79
Installation Approaches
1. Fix up outdoor reception on housetop and point to signal tower.
2. Connect outdoor to BTS port in repeater machine through cable.
3. Connect indoor (s) to MOBILE port in repeater machine through cable also.
4. Plug adaptor into AC socket and finish installation.
Installation note:
1. please make sure distance above 10M between indoor and outdoor , its better divides one from another by a wall.
2. Please try to choose a good signal place to set up outdoor .
3. Please sure that there are good signal 4-5 bars on your outdoor, or it will not work on your room.
a a a a a
Key Features
Frequency range : 890MHz--915MHz(Up link) 935MHz--960MHz(Down link)
: -70 ~-40 dBm/ FA (1.23MHz)
Gain : (Up link) 50/55/60/65Db/±10DB (Down link) 55/60/65/70Db±10DB
Signal coverage : Up to cover for 150 square meters use
Impedance : 50Ω
Seclusion : >65dB
supply : AC110/220V(Used AC/ Adapter 12V )
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

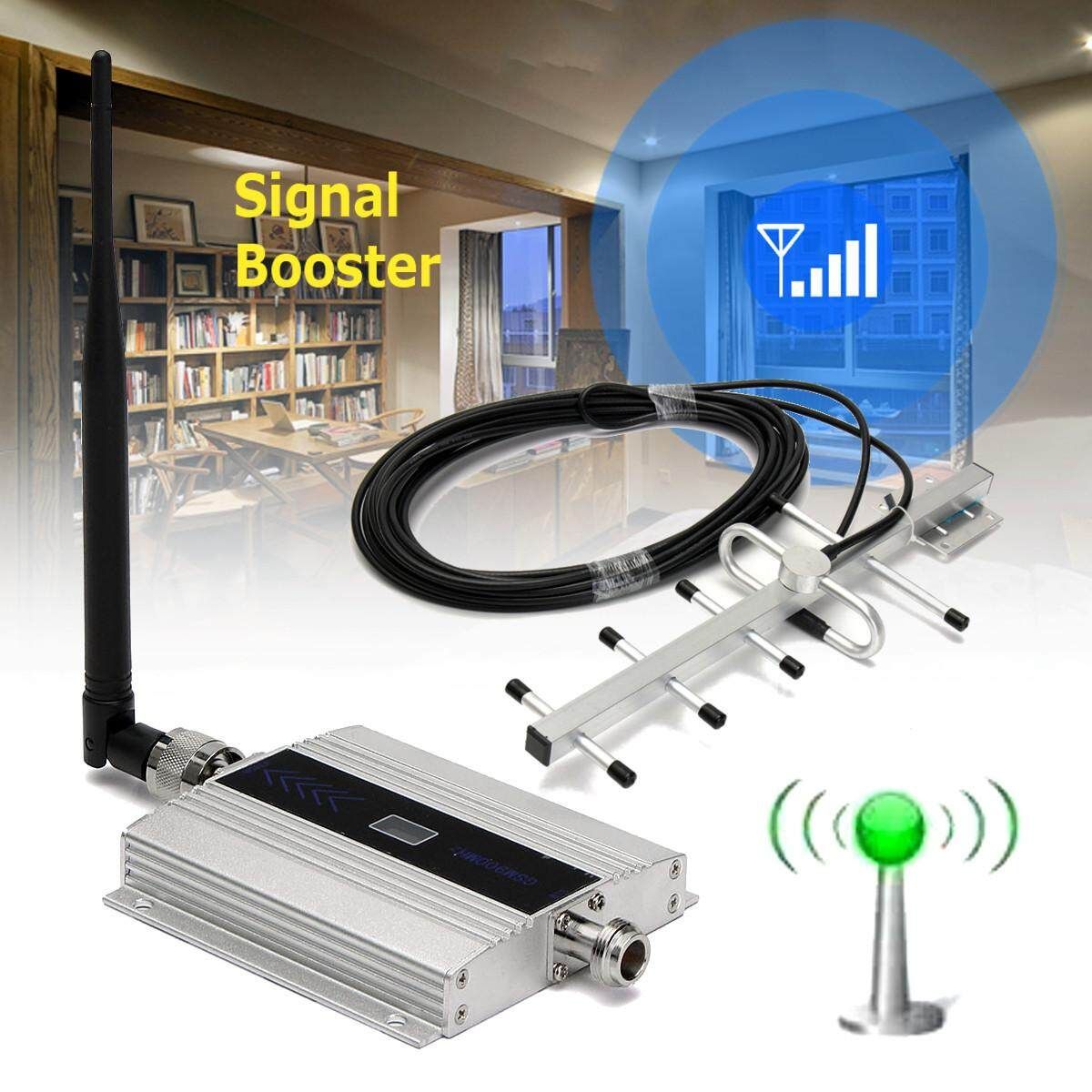

What's In the Box

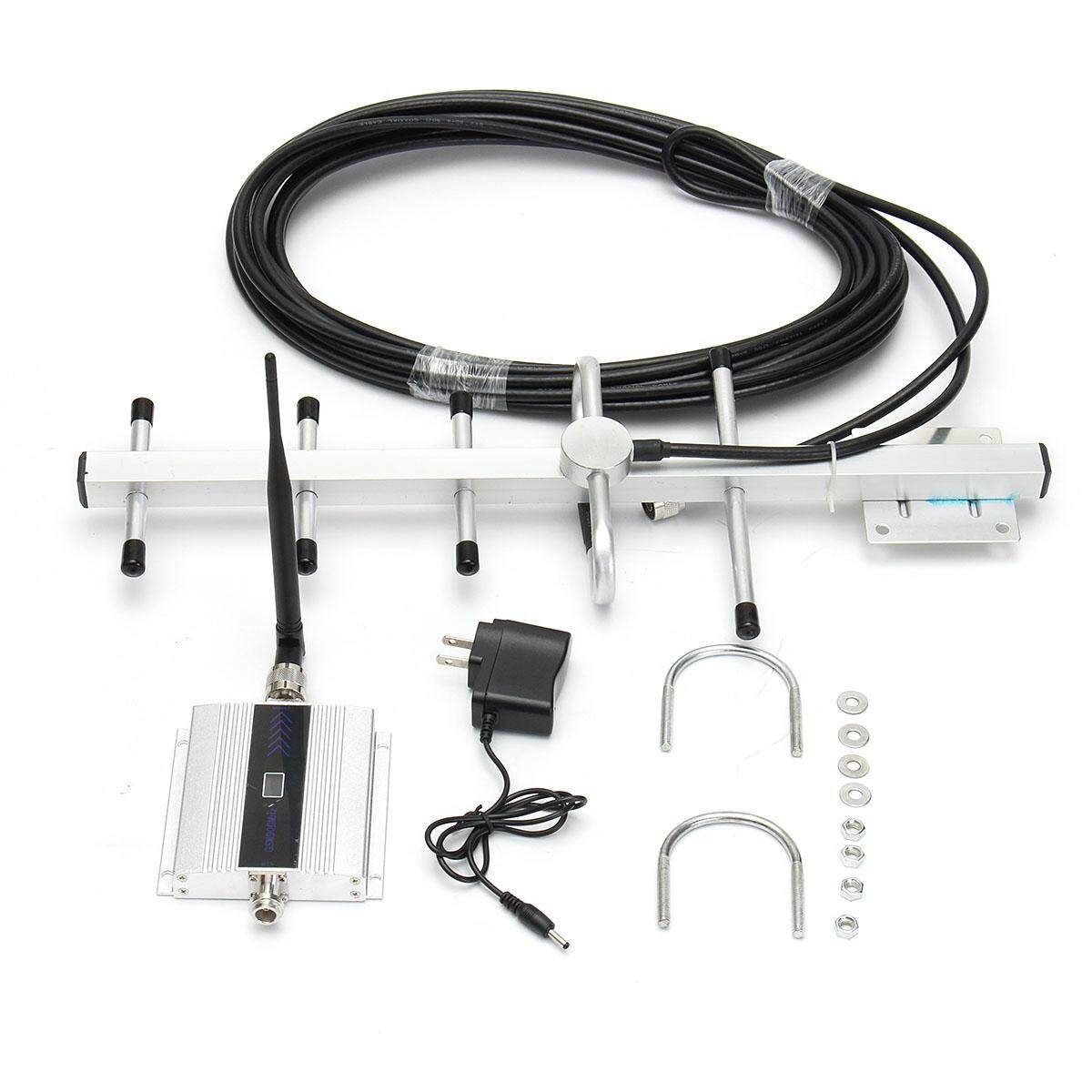

1 x Mobile Signal Repeater 1 x Indoor 1 x Outdoor 5 unit Yagi (with 10m cable) 1 x adapter(EU plug) 1 x User Manual
