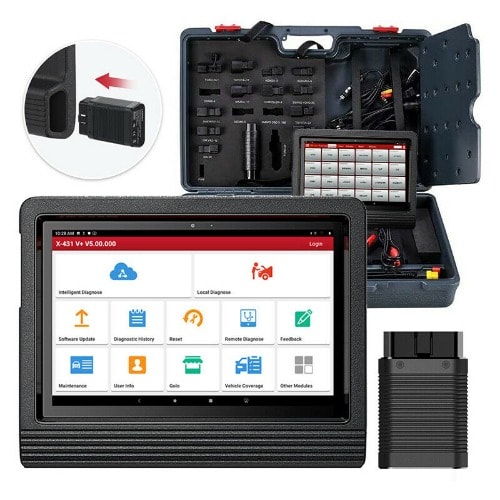

X431 V+ Diagnostic full ECU system Car scan tool with Wifi/Bluetooth accessories
What is advantange of X431 V+?
X-431 V+ taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community. It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application. Launch X431 V+ with Bluetooth/Wifi based on Android system, is a new car malfunction diagnostic device developed by Launch Tech for internet application. X-431 V+ completely substitutes X431 IV and X431 Diagun III.
X431 V+ Highlight:
1. THE MOST ADVANCED UI: Utilizes Android 5.1 which can be upgrade to provide you with an easy to use interface that has powerful functions, quick auto scanning and vehicle diagnosis, and a touchscreen user interface that is easy to learn
2. BEST HARDWARE: The Launch X431 V+ is the newest version of the X431 standard and is the successor to the V, IV and X431 Diagun III versions. This model has a higher hardware configuration, larger storage capacity, faster processor, latest display technology (10 inch capacitive touch screen), and bigger battery for a longer use time between recharging
3. WIRELESS CONVENIENCE: With a Bluetooth OBDII connector module& wifh function, you can wirelessly communicate directly with any vehicle. Since you do not need to be wired into the dashboard when using the Launch X431 V+, you are now free to run the scanning, repair and diagnostic tests while you are working under the hood or while doing other maintenance tasks at your workbench
4. POWERFUL FUNCTIONS: Diagnosis functions include: Read DTCs, Clear DTCs, Read Datastream, Maintenance Recommendations, Special Repair Functions
5. DIAGNOSTIC TOOL FOR EVERY SITUATION: Supports over 98 car brands and 220 car models from America, Europe, Asia
1. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
2. 1GB memory and 8GB storage for data.
3. Contain 72 car brand from USA, European, Asia and so on.

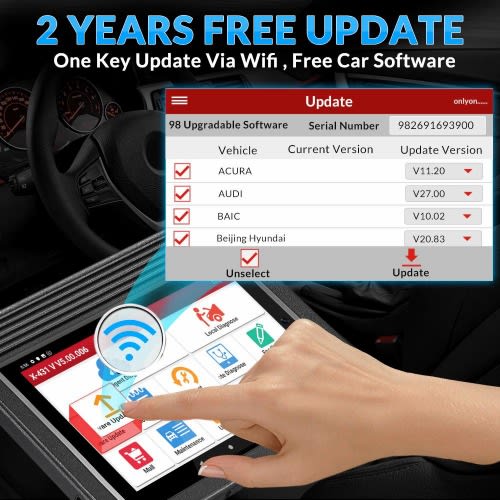

4. Support wifi/bluetooth and one click update, make your update job much easier.
5. 6600mAh Li battery can let you continue work 8 hours.
6. HUAWEI HiSilicon Quod-core 1.2G HZ, speed faster.
7. Original goods with full time technical service and guarantee.
8. 10.1 inch multi touch capacitor screen give you better view for diagnose and data stream.
X-431 V+ Description:
X-431 V+ is taking the advantage of mobile internet, can share maintenance data and case library, provide instant maintenance information, and build public and private maintenance social circle,etc.,thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to diagnostic industry concerning internet application.
X-431 V+ Product Features:
Panel PC: High configuration of hardware , fast running speed
Capacitor Screen: Multi-touch capacitor screen, more smooth operation
WIFI Diagnosis: Wireless communication between intelligent mobile terminal and DBSCar connector via Bluetooth
Portable: Reasonable PDA design, small size for easy carry
Optimized Interface: Brand new operation interface design, interface more friendly and operation much easier
Wifi communication: Support WIFI network
Android System: Users can install and Android software
Numerous Additional Functions: Photo, video, multimedia, other software application,etc.
X-431 V+ Product Parameters:
Pannel Computer Parameters:
CPU: HUAWEI HiSilicon Quod-core 1.2G HZ
Screen:10.1 inch Multi touch capacitor Screen
Screen Resolution:1280X800
Operation system:Android4.0
Memory:1G
Storage:8GB
Battery:Polymer Lithium-ion battery, 6600mAh
Camera :0.3M pixels front , rear 3.2M pixels
Operating Temperature :0°C~+45°C
Storage Temperature :-10°C~+45°C
DBSCar Connector Parameters:
Connection: Standard OBDII Interface, Micro USB 2.0
Typical Power Consumption:(12V)Static current 25 mA,
overall unit average current 35 mA
Working Temperature: - 20 °C~6 0°C
Storage Temperature: -30°C~70°C
Working Voltage: powered by vehicle battery, DC 9V-15V
Package List:
Main Unit:
1pc x X431 V+ American host, RoHS
Connectors:
1pc x Android edition diagnostic connector (10 meters Bluetooth)
1pc x diagnostic connector for BENZ-38
1pc x diagnostic connector integrated for DAEWOO-12
1pc x diagnostic connector linear for AUDI-2*2
1pc x diagnostic connector linear for BENZ-14
1pc x diagnostic connector integrated for BMW-20
1pc x diagnostic connector integrated for CHRYSLER-6
1pc x diagnostic connector linear for DAIHATSU-4
1pc x diagnostic connector linear for FIAT-3
1pc x diagnostic connector integrated for FORD-6+1
1pc x diagnostic connector linear for GAZ
1pc x diagnostic connector integrated for GEELY-22
1pc x diagnostic connector integrated for GM/VAZ-12
1pc x diagnostic connector integrated for HONDA-3
1pc x diagnostic connector integrated for KIA-20
1pc x diagnostic connector integrated for MAZDA-17
1pc x diagnostic connector for MITSUBISHI/HYUNDAI-12+16
1pc x diagnostic connector for NISSAN-14+16
1pc x diagnostic connector linear for SSANGYONG-14
1pc x diagnostic connector integrated for SSANGYONG-20
1pc x diagnostic connector integrated for SUBARU-9
1pc x diagnostic connector linear for SUZUKI-3
1pc x diagnostic connector integrated for TOYOTA-17
1pc x diagnostic connector integrated for TOYOTA-22
1pc x diagnostic connector linear for UNIVERSAL-3
Test Cable:
1pc x OBDII -16 extension 135mm
1pc x OBD I Adaptor BOX switch wiring
1pc x LIGHTER
1pc x CLIPPER
Accessories:
1pc x MicroSD card, SanDisk 32G capacity, RoHS
1pc x X431 PIN envelope
4pcs x Clipper fuse 5*20mm
2pcs x Lighter fuse 6*30mm
