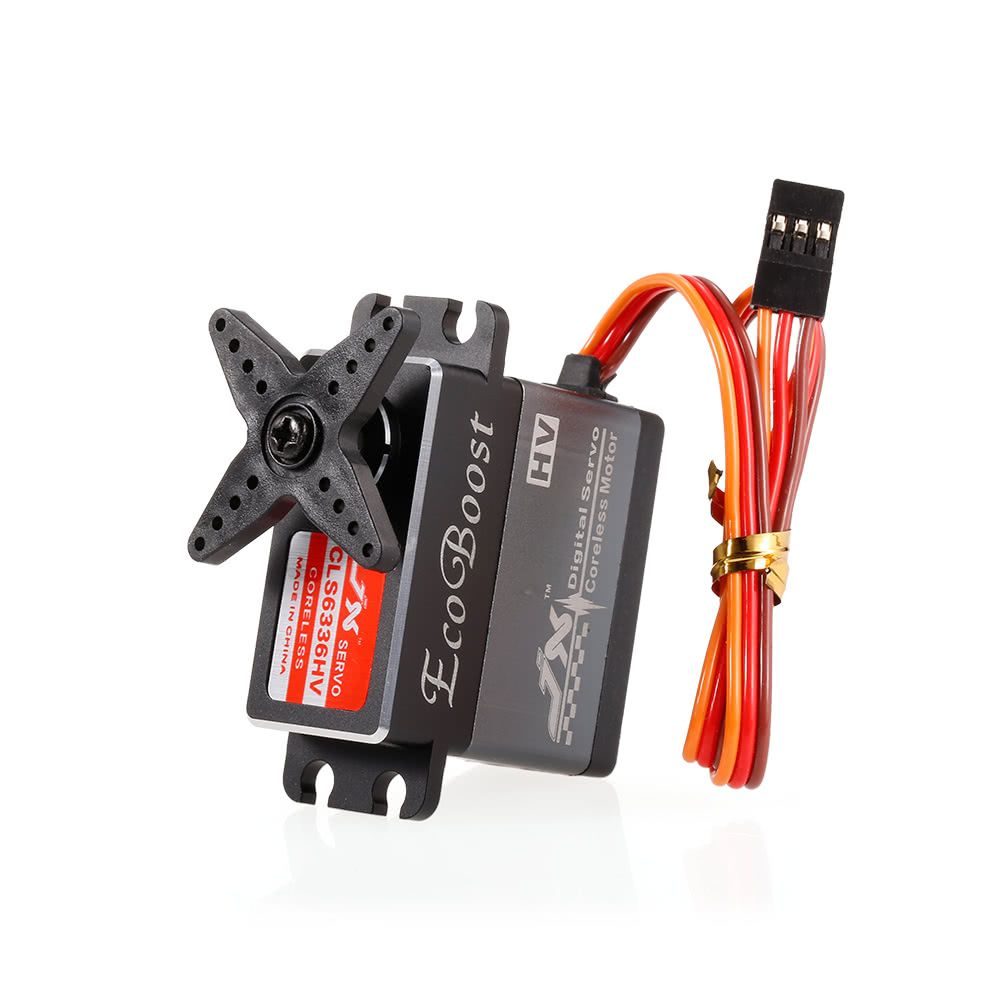

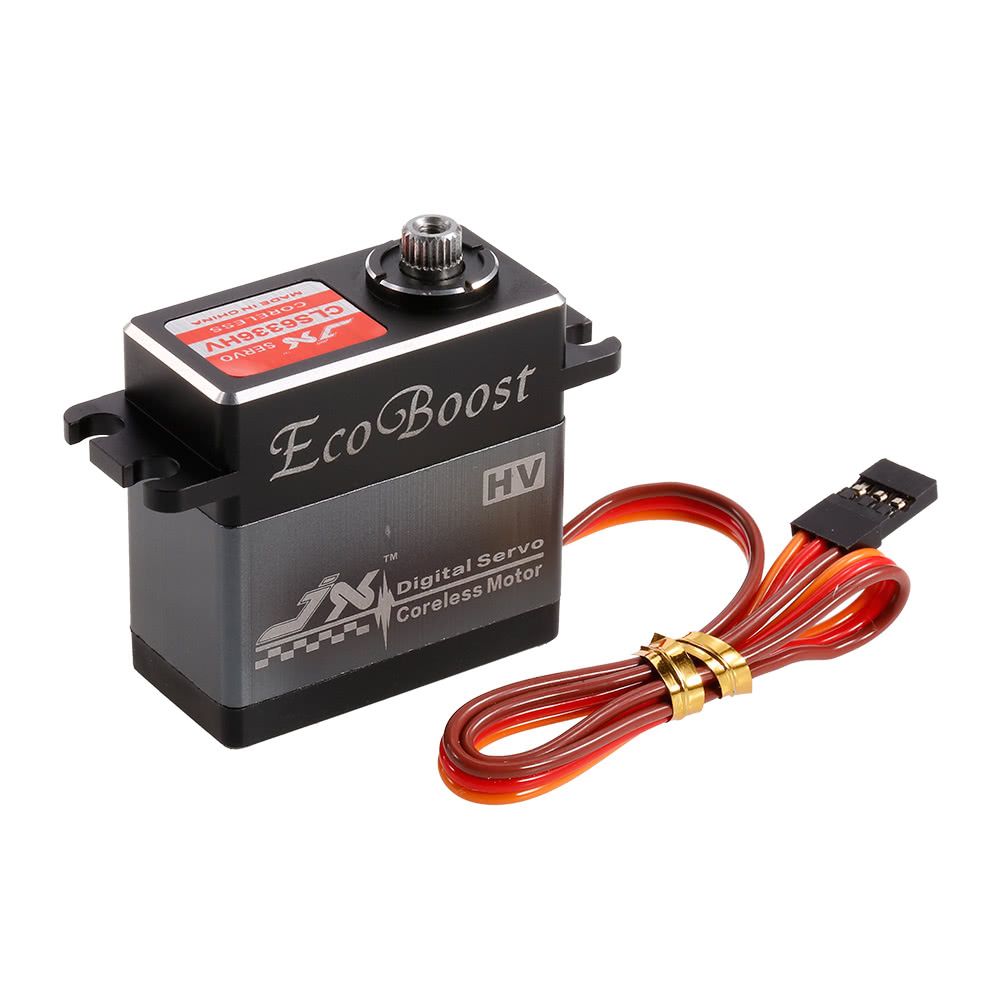

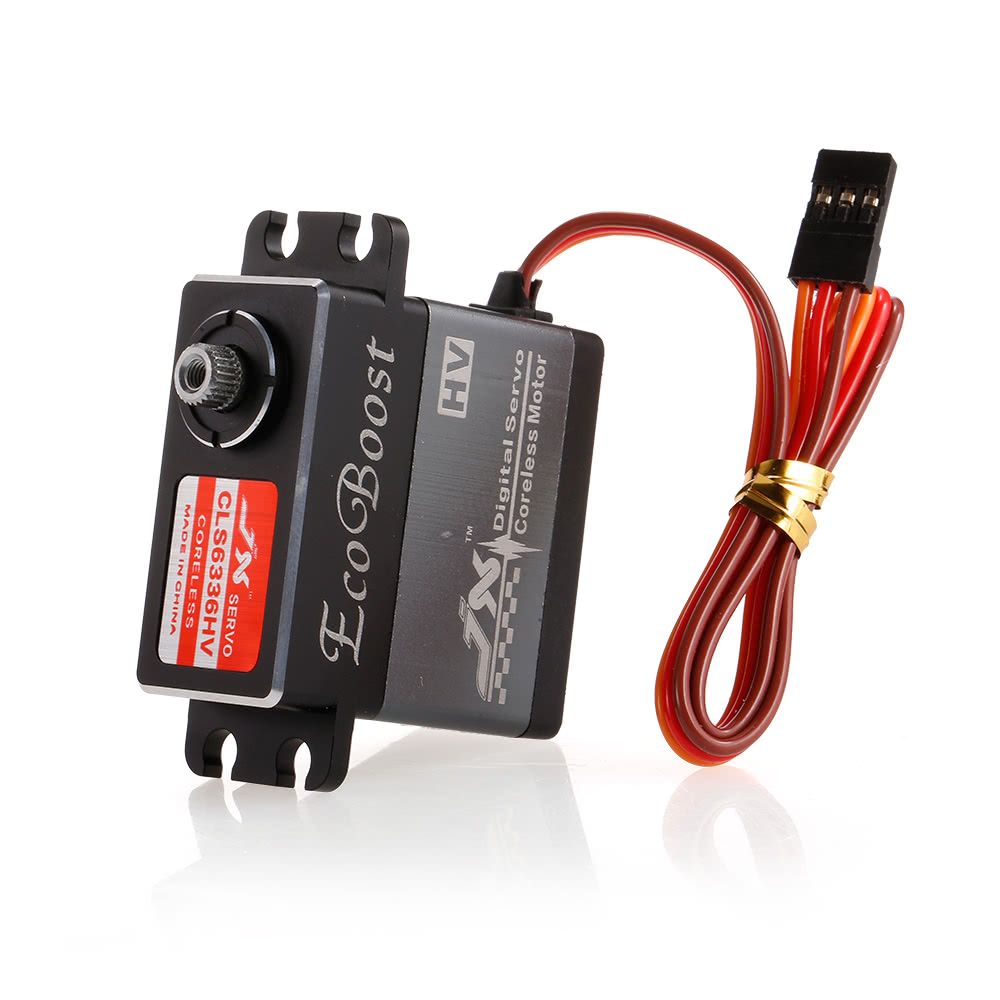

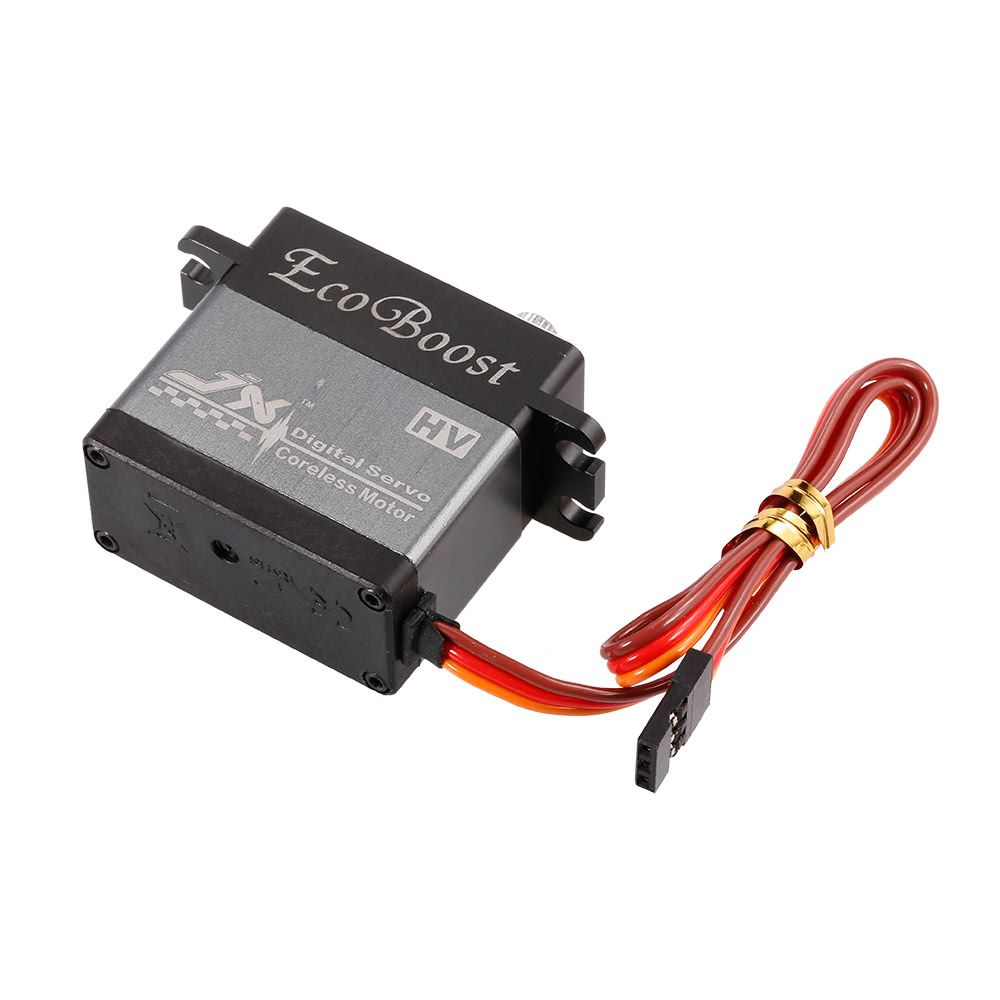

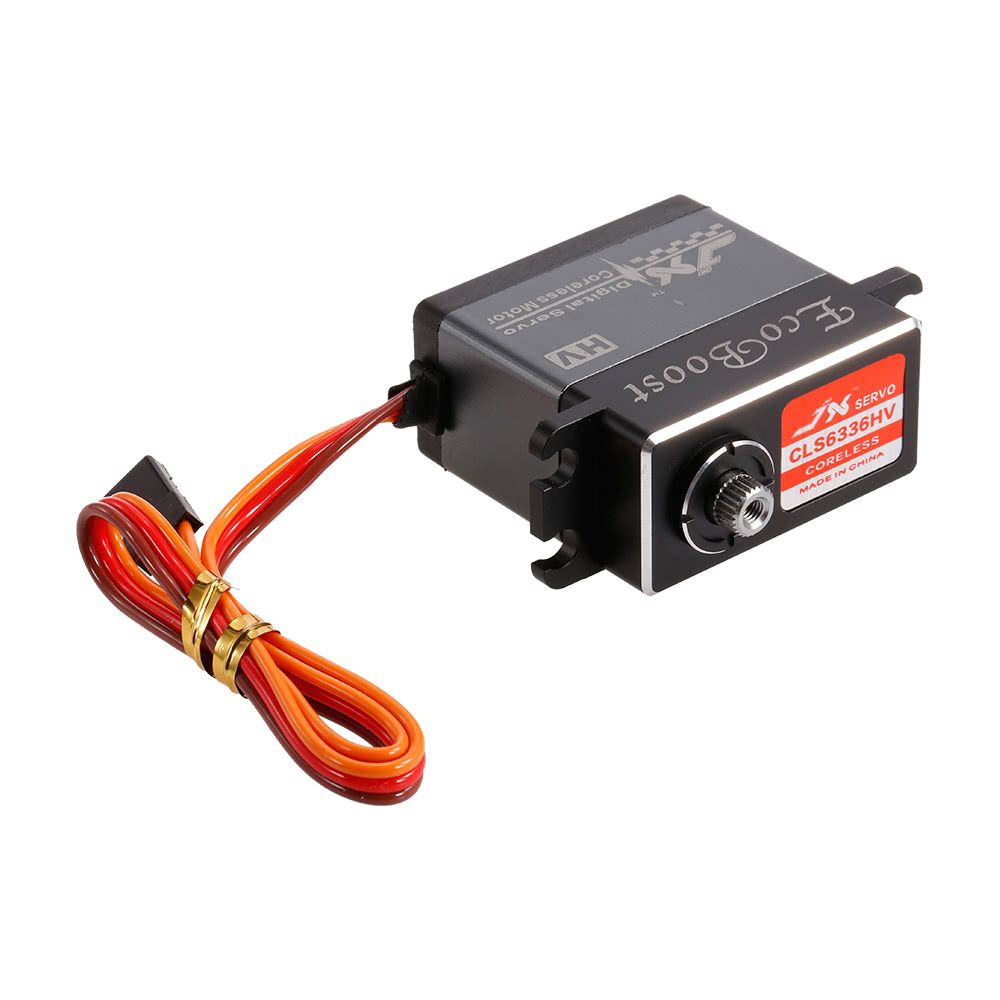

This is JX CLS6336HV 6.0V-7.4V 0.11sec/60 deg; Digital Metal Gear Coreless Motor Servo 35.6kg Torque Aluminums Case for 1/8 RC Car amp; 2000mm Fixed-Wing Aircraft
Features:
Full metal gear. it\\\'s better for accuracy, service life has been greatly increased
Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.
35.6kg large torque.35.6kg middot;cm @7.4V
High Speed 0.11sec/60 @ 7.4v
6V-7.4V High-Voltage
Modified design and high quality
Ideal choice for 1/8 RC Car amp; 2000mm Fixed-Wing Aircraft
Specifications:
Brand: JX
Signal: Digital
Motor: coreless motor
Dead band: 1 mu;s
Working frequence: 1520 mu;s / 330hz
Connector Wire Length: 265 mm / 10.43in
Operating Speed:（6.0V）：0.14sec / 60 deg;
Operating Speed:（7.4V）：0.11sec / 60 deg;
Bearing: 2BB
Stall Torque (6.0V): 27.8kg.cm / 386.06oz.in
Stall Torque (7.4V): 35.6kg.cm / 494.37oz.in
Dimensions: 40.5* 40 * 20.5mm / 1.59 * 1.57 * 0.79in
Weight: 63g / 2.22oz(wires included)
Package Information:
Package size: 19.4 * 6.4 * 3.4cm / 7.6 * 2.5 * 1.3in
Package weight: 111g / 3.92oz
Brand gift box package
There may be some deviation due to manual measurement.
Package List:
1 * Digital Metal Gear Servo

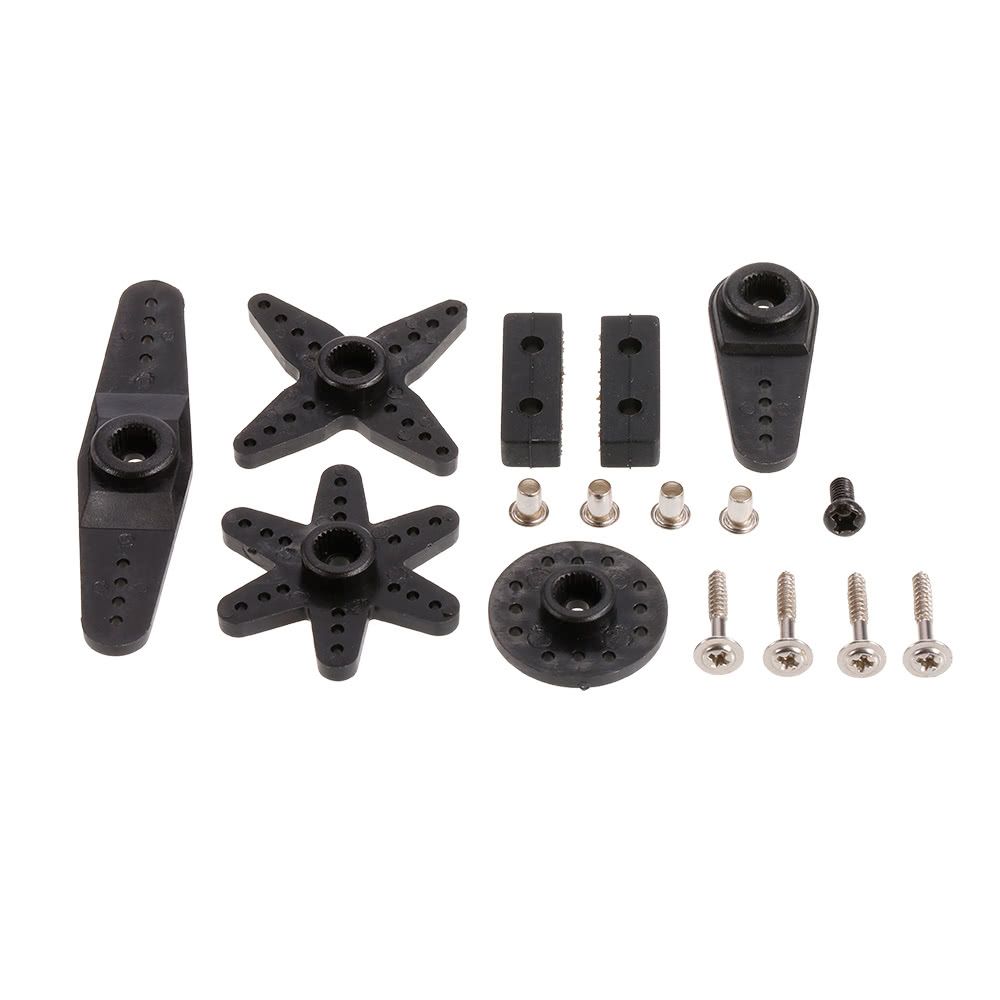

1 * Fittings Set
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
