Can be used in high-end advertising machines, Android industrial computers,smart terminals, industrial tablet computers and other fields

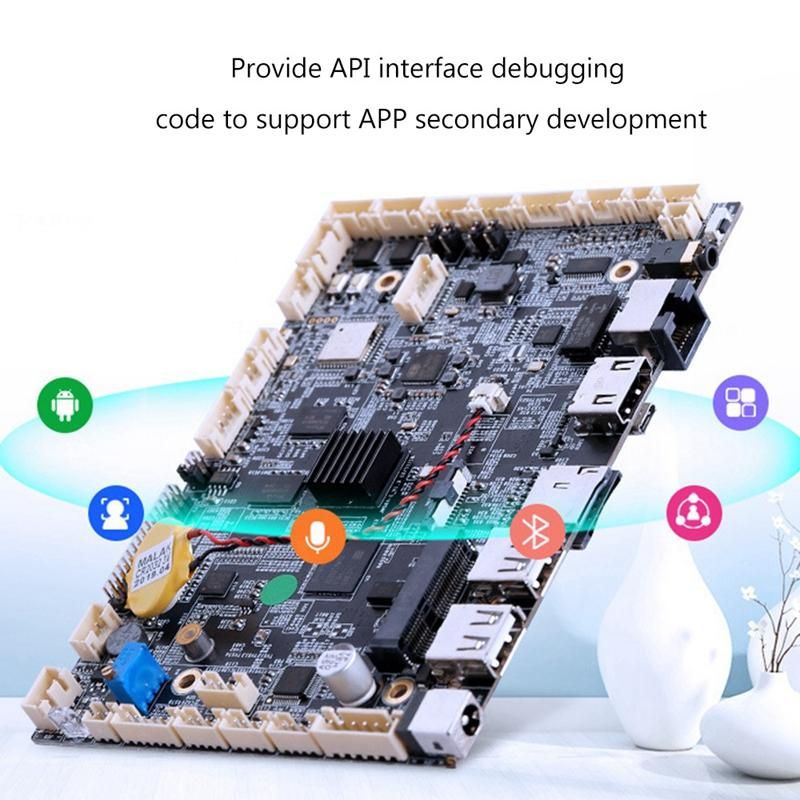

Provide API interface debugging code, support app secondary development, built-in professional remote maintenance software, rich API interfaces, and quickly create your own solution
Gigabit network fast man step, greater transmission capacity, improved network stability, lower processor occupation, full surge protection
A64 cortex-a53 quad core 64 bit CPU, equipped with mali400mp2 chipset and Android 6.0 system, has faster operation speed and stronger performance.
Support remote, TF card, computer and other upgrade methods. The TF card is configured with screen parameters, plug and light, and supports LVDS display screens of various sizes and resolutions.

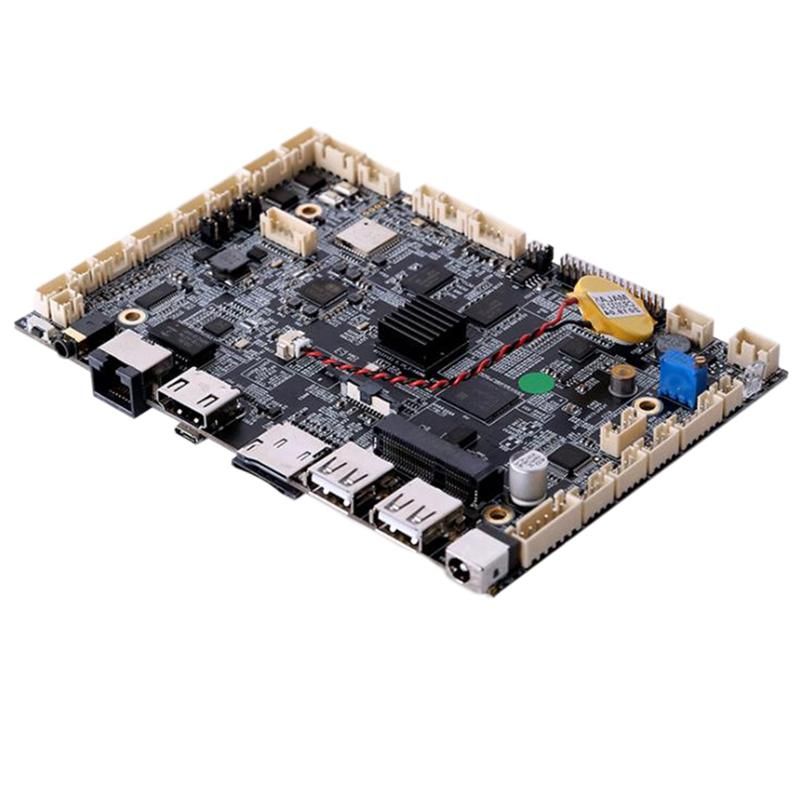

Name:Motherboard
CPU: A64, quad-core, main frequency 1.5GHZ
Memory: LPDDR 1G/2G (4 slices of 8-bit DDR3)
Built-in ROM: 2KB EEPROM
Decoding resolution: HDMI supports up to 4K 3840*2160
Operating System: Android 6.0
Play mode: support multiple play modes such as looping, timing, and insertion
Network support: Ethernet, support WIFI Bluetooth 4.0, wireless peripheral expansion
Video playback: support WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, etc.
Picture format: support BMP, JPEG, PNG, GIF
USB2.0 interface: 4*USB HOST socket, 2*USB type A socket, 1*MICRO-USB (OTG)
Serial port: 2 TTL serial sockets, 3 232 serial sockets
Ethernet: 1, 10M/100M/1000M adaptive Ethernet
TF card: TF card
LVDS output: 1 single/dual channel, can directly drive 50/60Hz LCD screen
MIPI output: can directly drive 50/60Hz LCD screen
Audio and video output: support left and right channel output, built-in dual 4R/20W, 8R/10W power amplifier
RTC real-time clock: support
Time switch machine: support
Feature 1:Android motherboard
Feature 2:Android 6.0 motherboard
Feature 3:Allwinner A64 motherboard
Feature 4:Advertising machine motherboard
System upgrade: support local TF, USB upgrade
Colour:As shown
Material:PCB
Size:146 x 100mm
Package Contents:
1 x Motherboard
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
