| Production Country |
USA |
| Weight (kg) |
0.5 |
Item Details

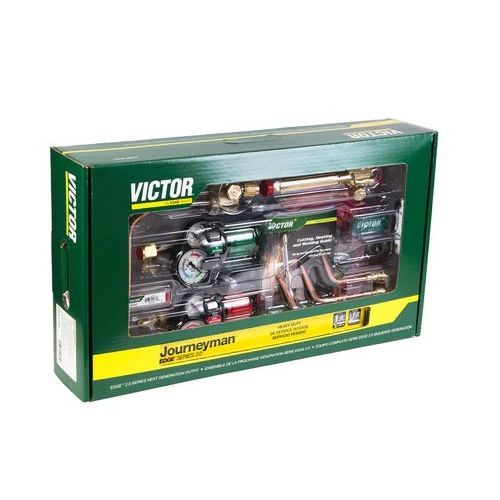

The Victor® Journeyman® Edge 2.0 Plus with CGA-510 acetylene regulator is an extra heavy duty welding and cutting outfit for industrial and commercial use. Includes the new and improved Edge 2.0 oxygen and acetylene regulators as well as the H315FC+ torch handle with built in flash back arrestors and CA2460 cutting attachmen
Victor #0384-2101 Specifications
- Mfr #: 0384-2101
- UPC #: 716352599757
- Item: Cutting Outfit
- Series: Journeyman EDGE 2.0
- Cuts Up To: 8 in
- Welds Up To: 3 in
- Gas Service: Acetylene
- Gauge Size: 1-1/2"
- Delivery Pressure Range: 2-15 PSIG Acetylene, 2-150 PSIG Oxygen
- Cutting Attachment: CA2460+
- Supply Pressure Gauge: 0 to 400 psig Acetylene/0 to 400 psig LPG/0 to 4000 psig All Others
- Torch Handle: 315FC+
- Outlet Connection: 9/16 in -18M RH, 9/16 in -18M LH
- For Use With: Standard Industrial High Pressure Oxygen/Acetylene Gas Cylinders
- Includes: 3, 5 Welding Nozzles, 8-MFA Heating Nozzle, CA 2460 90 Degrees Cutting Attachment, Cutting Goggles, EDGE 2.0 Acetylene Regulator, EDGE 2.0 Oxygen Regulator, Striker, T-Grade Hose, Tip Cleaners, Victor 1-1-101 Cutting Tip, Victor WH 315FC Welding Handle, W-1
- Welding Nozzles: 1, 3, 5
- Max. Inlet Pressure: 360-PSIG-Acetylene, 3000-PSI-All Others
- Stages: 1
- Pressure Regulator: ESS42-15-510 Acetylene, ESS42-150-540 Oxygen
- Inlet Connection: CGA-540, CGA-510
- Heating Head: 8-MFA
- Fu el: Acetylene
- Duty Rating: Heavy Duty
- Standards: AS4267, ASTM G-175, CGA E-4, ISO 2503, UL 252
- Tip Series: Victor 1
- Characteristics: Patented Built In Flashback Arrestors and Check Valves, Stainless Steel Diaphragm
- Cutting Tips: 1 Series
- Application: Cutting, Welding, Heating
- Head Angle: 90 Degrees
- Product Type: Combination Torch & Tip Kit
- Number of Welding Nozzles: 3
- Cutting Attachment Manufacturer Part Number: CA2460
- Welding and Brazing Tip Manufacturer Part Number: W-1, W-3, W-5
- Heating Nozzle Manufacturer Part Number: 8-MFA
- Maximum Welding Capacity (With Included Tip): 1/2 in, 3/16 in, 3/32 in
- Cutting Tip Manufacturer Part Number: 1-1-101
- Number of Regulators: 2
- Hose Fitting Size: B
- Regulator CGA Number (Oxygen): CGA 540
- Number of Cutting Tips: 1
- Compatible Fu el Type: Acetylene
- Torch-Style: Victor-Style
- Maximum Cutting Capacity (With Included Tip): 3/4 in
- Regulator CGA Number (Fu el): CGA 510
- Kit Series: Journeyman Edge 2.0
- Number of Brazing and Soldering Tips: 3
- Torch Style: Victor
- Maximum Cutting Capacity (With Optional Tips): 8 in
- Outfit Type: Torch, Tips & Regulators
- (included torch): WH 315FC+ - CA2460
- (contents): WH 315FC+ (handle) - CA2460 (attachment) - 1-1-101 (cutting tip) - 8-MFA (heating nozzle) - W-1 (welding & Brazing tip) - ESS42-15-510 (fu el regulator) - ESS42-125-540 (oxygen regulator), WH 315FC+ (handle) - CA2460 (attachment) - 1-1-101 (cutting tip) - 8-MFA (heating nozzle) - W-5 (welding & Brazing tip) - ESS42-15-510 (fu el regulator) - ESS42-125-540 (oxygen regulator)
- Maximum Welding Capacity (With Optional Tips): 1-3/4 in
- Regulator Model (Fu el): ESS42-15-510
- Regulator Model (Oxygen): ESS42-125-540
- Hose Length: 20 ft
- Torch Handle Model: WH 315FC+
- Kit Includes: Cutting Attachment, Cutting Tip, Fu el and Oxygen Regulators, Heating Nozzle, Torch Handle, Welding and Brazing Tip
Key Features
Victor Journeyman Edge 2.0 Plus Welding & Cutting Outfit 0384-2101
Welds 3/64 1/2 with included nozzles (or up to 3 with optional nozzles).
Edge 2.0 Series Regulators with Gauge Guards
Cuts up to 3/4 with included tip (or up to 8 with optional tips).
Features Cuts up to 8 in. 203.2 mm, welds up to 3 in. 76.2 mm with accessoriesUp to 1,118,000 BTUs hour heatingESS42 Series regulatorsWH 315FC + torch handle with built-in fl ash arrestors and check valvesCA 2460 + cutting attachment Industries Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Cuts up to 8 in. 203.2 mm, welds up to 3 in. 76.2 mm with accessories
Up to 1,118,000 BTUs hour heating
ESS42 Series regulators
WH 315FC + torch handle with built-in fl ash arrestors and check valves
CA 2460 + cutting attachment
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
