What is a Venturi Fertilizer Injectos?
? A venturi is a device which creates a vacuum when fluid flows through it. The fluid which creates the vacuum is
know as the motive fluid. The motive fluid for irrigation injectos is the irrigation water itself. Vacuum created by the
venturi sucks fertilizer or chemical into motive water.
How to work a Venturi?
? Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline. The energy to run
these devices reduces the irrigation water pressure of the water line.
Applications:
? Fertilizer and chemical injection through drip and sprinkler irrigation systems.
Features:
? Made of engineering plastic.
? Excellent chemical resistance to most of the chemicals.
? Highly efficient and compact differential pressure injection device.
? Economical and low cost option.
? Available in 1" BSP inlet/outlet connection.

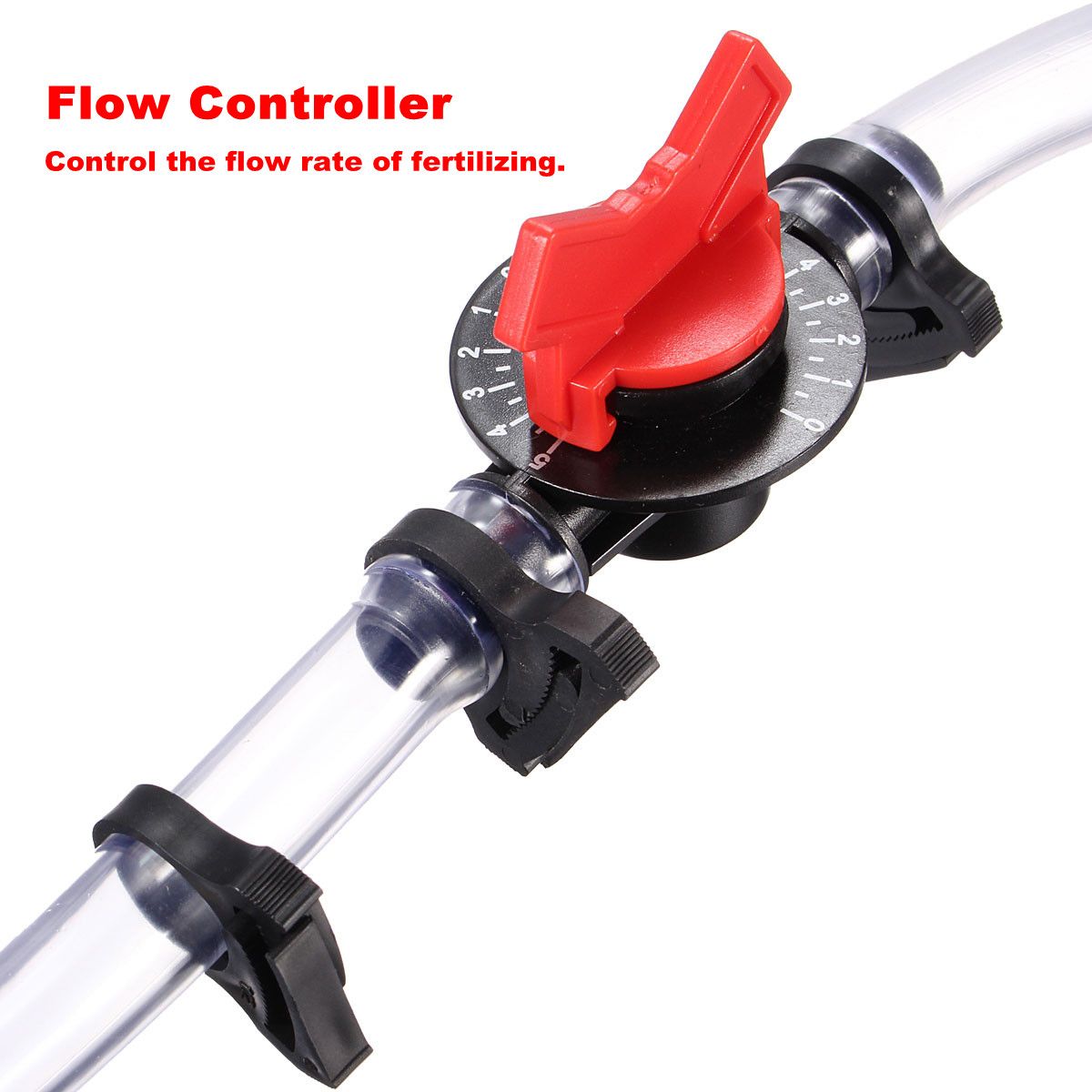

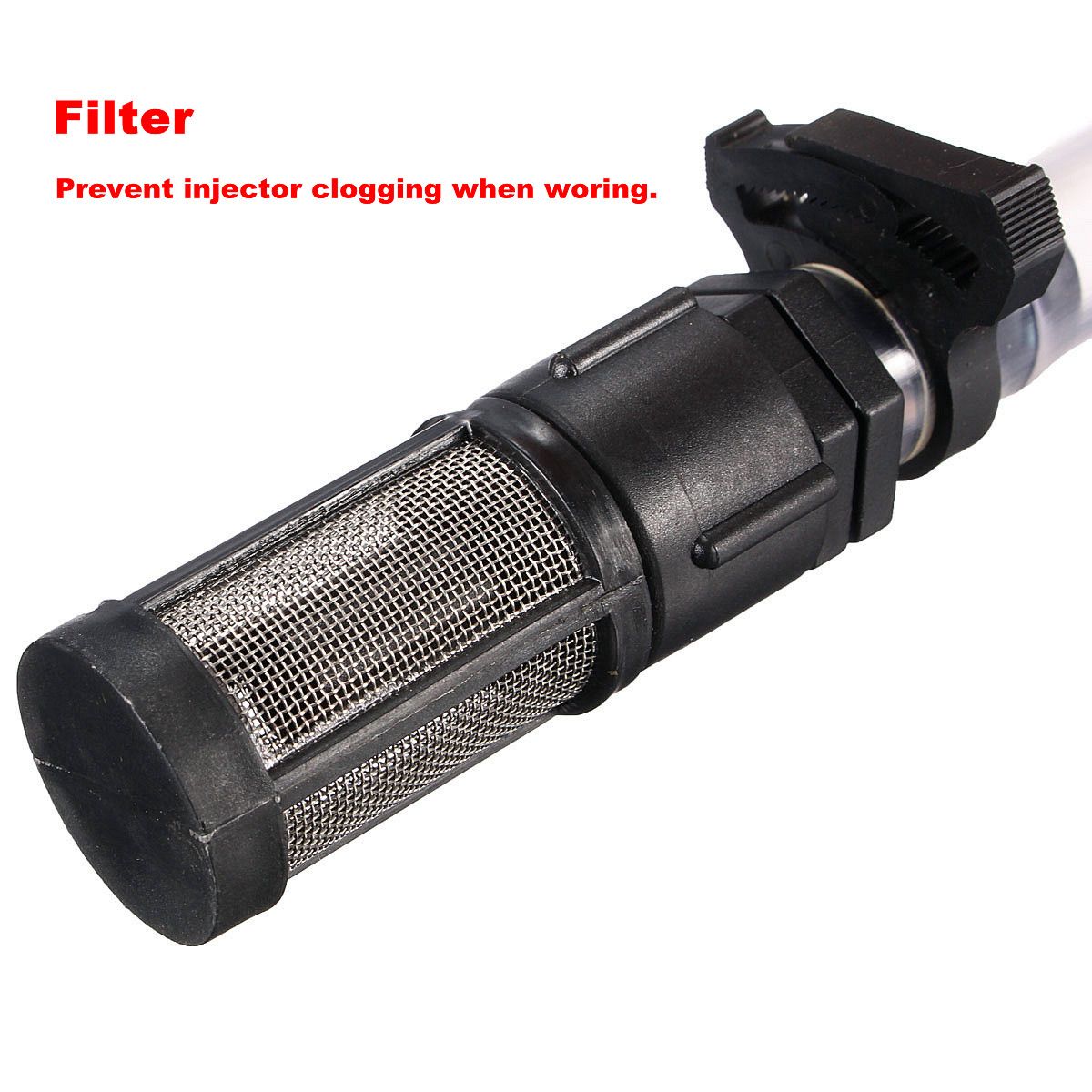

? This kit includes a fertilizer injecto, a piece of water tube, a flow controller and a filter.
Specifications:
? Inlet/outlet thread : 1''
? Material: POM

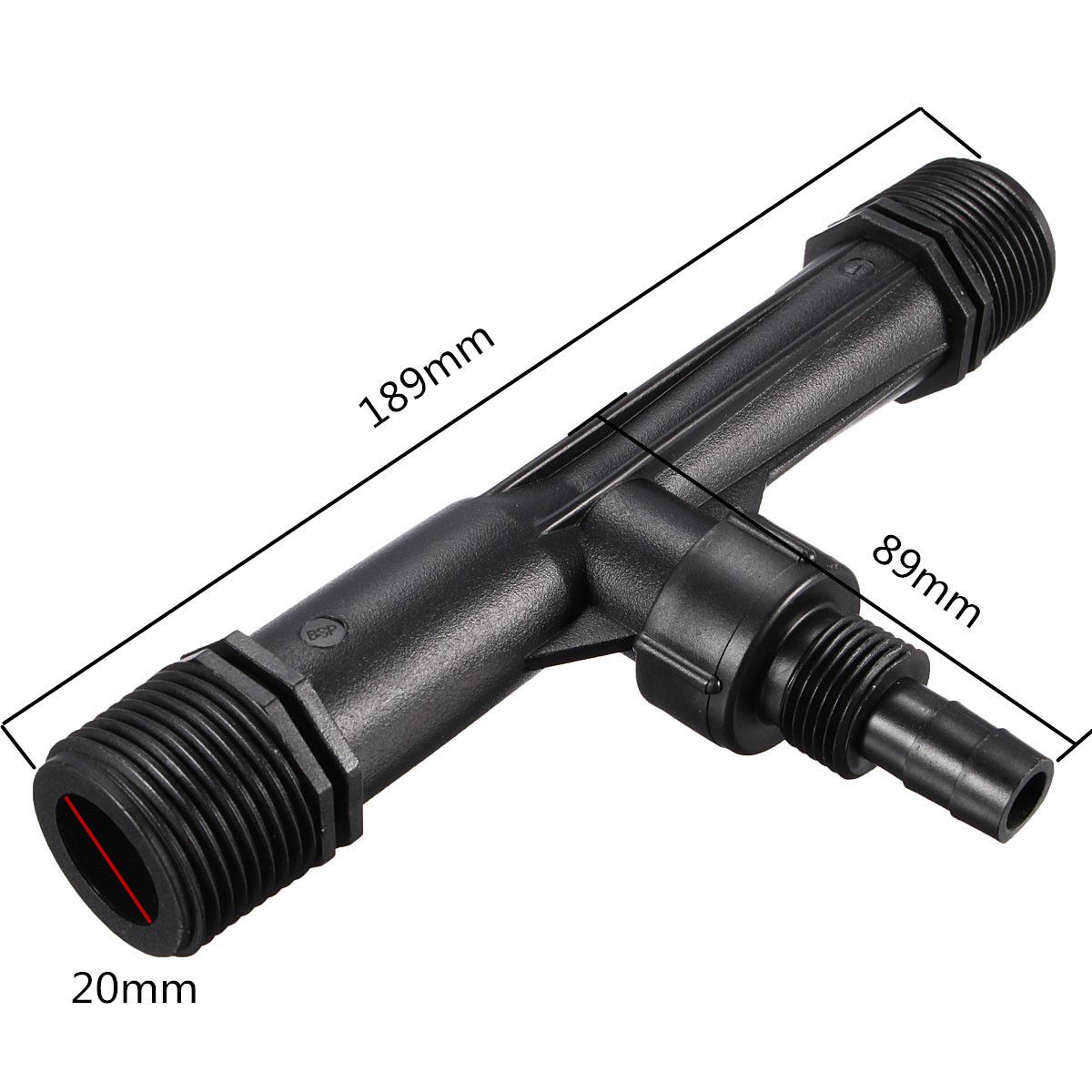

? Size:190*90*30mm
? Tube length: about 2.8m
? Flow range: 1.82-6.34?/h 0.7-9.5bar
? Self-priming capability: 34-279L/h
Package include
1 x 1" Irrigation Venturi Fertilizer Injectos
1 x Water Tube with Switch & Filter
Key Features
? Inlet/outlet thread : 1''
? Material: POM
? Size:190*90*30mm
? Tube length: about 2.8m
? Flow range: 1.82-6.34?/h 0.7-9.5bar
? Self-priming capability: 34-279L/h
What's In the Box
1 x 1" Irrigation Venturi Fertilizer Injecto
1 x Water Tube with Switch & Filter
