Weight (kg) |
0.3 |
Color |
White |
Description:
The thickness gauge is used to measure the thickness of electroplated and coated plates on metals, as well as the thickness of non-ferromagnetic coatings on ferromagnetic metals (such as iron, nickel, cobalt, etc.), such as: paint/enamel/chromium on steel, aluminum /Paint and anodized coating on copper, as well as the thickness of the paint on the car, the surface of metal parts, the thickness of the coating, etc. This product also has a built-in dual-principle probe of magnetic induction and eddy current, which can automatically identify the metal substrate to be tested. Simply place it on the surface to be tested, and the coating thickness can be automatically calculated.
Principle:
1.The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates.
2.The Gauge is designed for non-destructively measuring the thickness of coating and painting.
It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Specification:

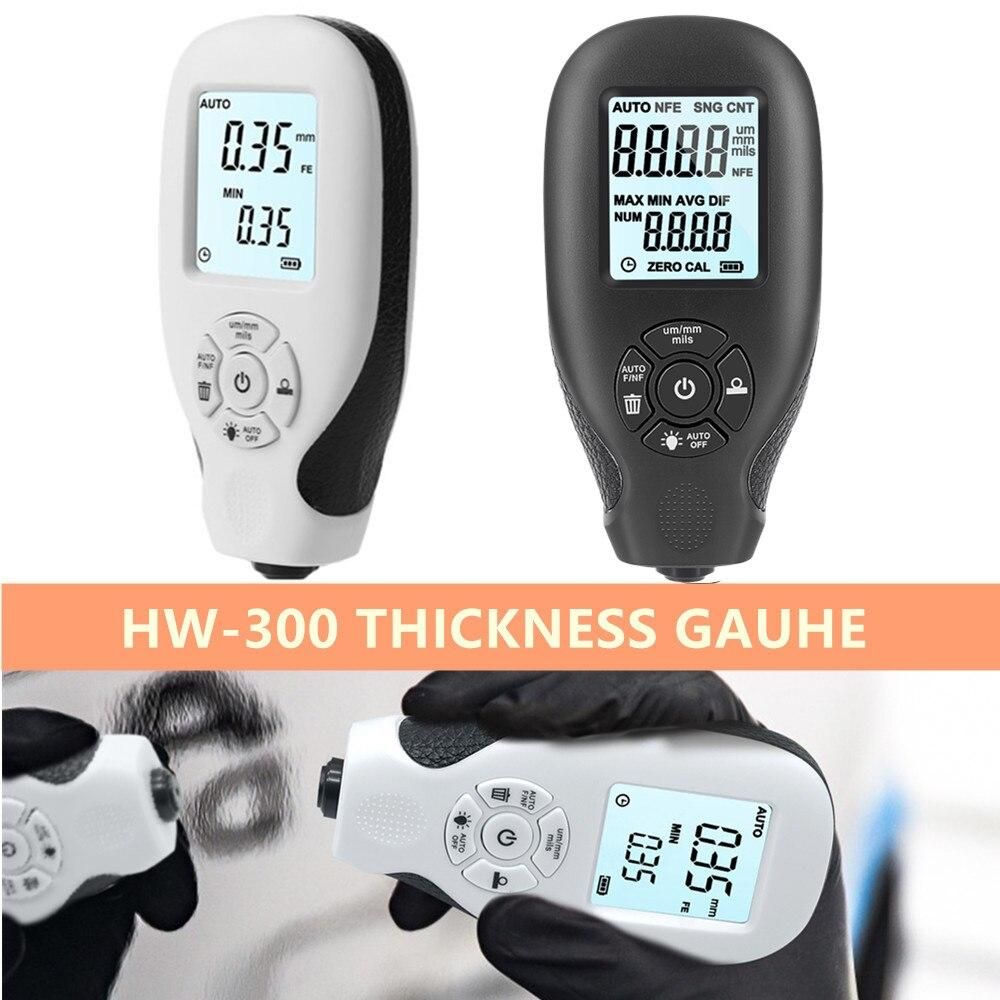

Product name: HW-300 coating thickness gauge
Product size: 110MM*52MM*25MM
Material: ABS
Resolution: 0.01mm/1mil
Measuring range: 0-2000UM
Measurement accuracy: ±(3%+1UM)
Power supply: 2 1.5V AAA batteries (not included)
Operating temperature: -10 degrees Celsius 50 degrees Celsius
Accessories: Thickness gauge 1PCS + manual + calibration sheet, white box packagingPackage List
1 x Thickness gauge
1 x Manual
6 x Calibration sheets
Note:
- There might be little error of size for manual measurement.
- Due to different lighting effects and monitor settings, the actual items color may not exactly reflect the color on pictures.
