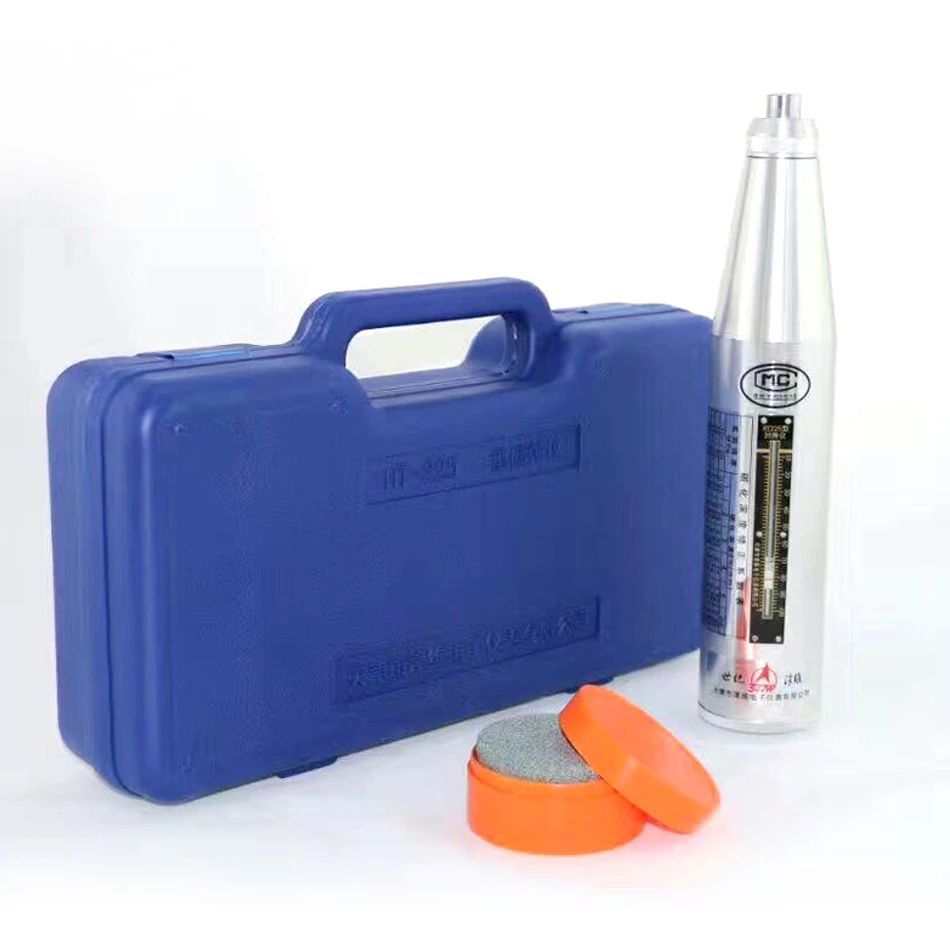

Consistent with GB/T9138-1988 standards and JJG817-93 statutes and JGJ /T23-2001 technical regulations.HT-225B Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
1) Center guide rod using ed materials, high precision, wear-resistant;
2) Use of super-hardEngineering Plastichell to avoid on-site work injury apparatus, to extend the service life;
3) Pointer slider with external spring ring structure, both convenient for the friction adjustment, and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument.Peer-products is relatively high accuracy, quality and , long service life.
Technical Data:
Measuring ranges: 10-60MPa
Impact energy: 2.207J(0.225Kgf.m)
Spring extension: 75mm
The static friction of pointer slider: 0.5N±0.8N
Radius of spherical tip: 25mm±1mm
The average rebound values on steel anvil: 80±2
Housing dimensions:Φ54*278mm
Weight: ≈0.75Kg (unit net weight, not including packing)
Measurement: 345*85*80 mm
Packing: plastic hand case

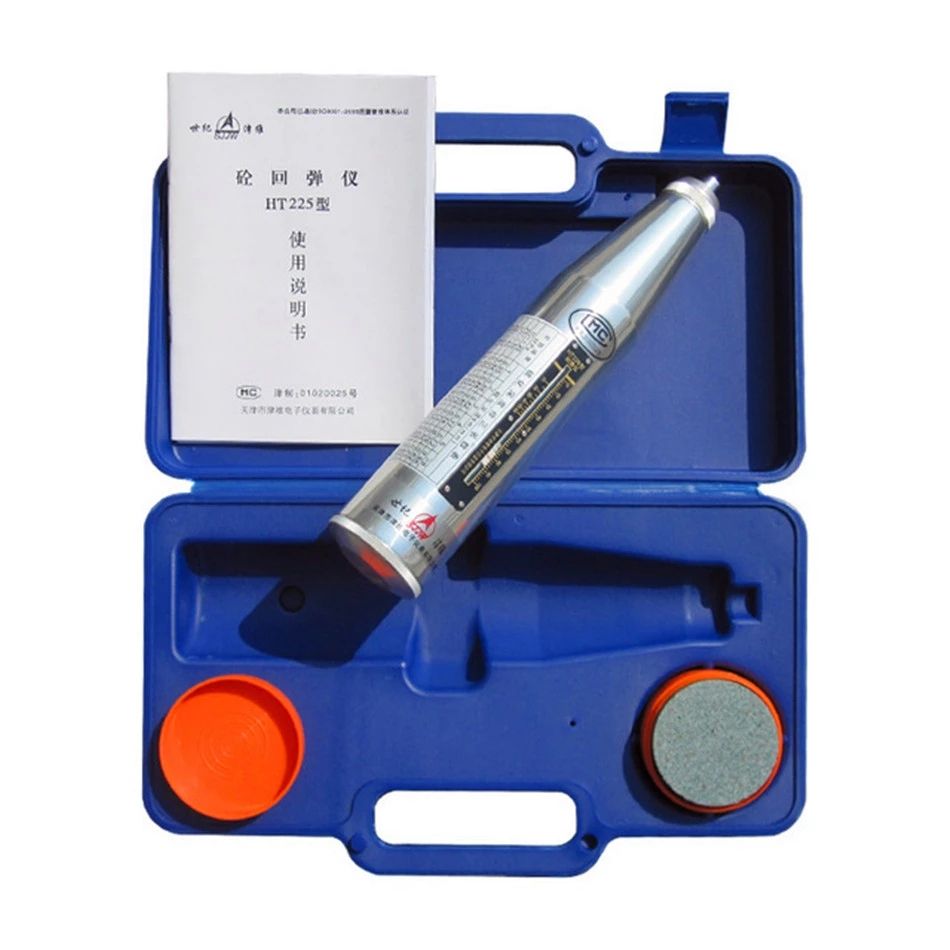

Incidental It with Instrument:
1. HT-225B Concrete Test Hammer
2. Millstone
3. Manual of HT-225B Concrete Test Hammer
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
Certification:CE
Model Number:HT225B
Max Load:500N
Display Type:Analog
What's In the Box
1X HT-225B Digital Concrete Test Rebound Hammer Elasticity Tester Resiliometer Concrete Nondestructive Instrument For Construction
