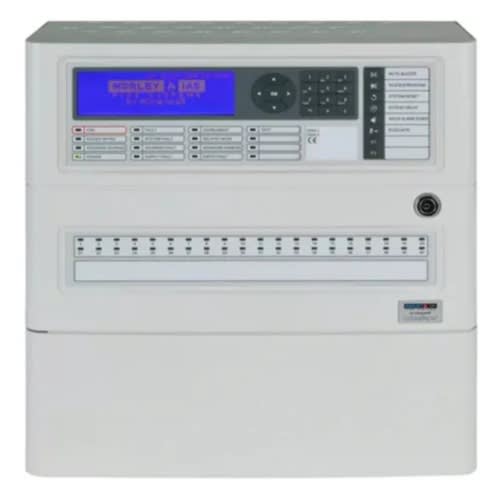

Buy Hon:714-001-115 Morley Dxc1 Addressable Single Loop Panel

Hon:714-001-115 Morley Dxc1 Addressable Single Loop Panel

₦ 1,329,960.00 ₦ 1,430,064.00 -7%

0 No Reviews

Product SKU: RENG500077

Quantity

In Stock

Product Highlights

Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button presses you can have a compliant, working fire alarm system.

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

The Morley-IAS by Honeywell DX Connexion is a compact, high performance, feature rich, economical fire alarm control panel designed to help both the installer and the end user in the protection of small to medium sized buildings. The DX Connexion connects the traditional Morley-IAS qualities of reliability, flexibility and value with advanced features and intuitive functionality. The most powerful and flexible fire alarm control panel in its class. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button presses you can have a compliant, working fire alarm system. The panel’s large graphical display provides a clear menu structure making the whole initial set-up process quick, clear and intuitive.

Networking Features

• Network up to 16 loops (16x1 loop panels, 8x2 loop panels, 4x4 loop panels or any mix up to max 16 loops)

• True peer-to-peer and fault tolerant network for high system reliability

• BS5839 part 1 compliant network

Panel Features

• Disable all relays

• Optional 40, 80 or 160 zone alarm LEDs

• Easy 5 key-press set-up • Large blue LCD display

• Supports USB upload/download

• Alpha-numeric style keypad and navigation keys

• Option to upload a company logo

• 160 zone compact mimic support

• Panel buzzer ‘mute’ in engineering mode

• Up to 72 hour standby

Software Features

• PC configuration software (supplied with panel)

• 80 fire zones (can be used with or without LEDs)

• 7 day timers • Event logging

• Onboard diagnostics

• Class change function

• Coincidence and verification detection for false alarm management

• Sensitivity adjustment e.g. between day and night

• Input/output logic

• Enhanced zone support up to 160 LEDs

• Type B dependency

• Alternative zone referencing scheme

Hardware Features

• Battery backed real-time clock (2 & 4 loop)

• 2 independent sounder circuits

• 500mA multi-protocol loop driver

• 2 x onboard monitored inputs

• Optional programmable key switch for selected functions

• Plug-in connectors
