Description:
Features:
100% high quality!

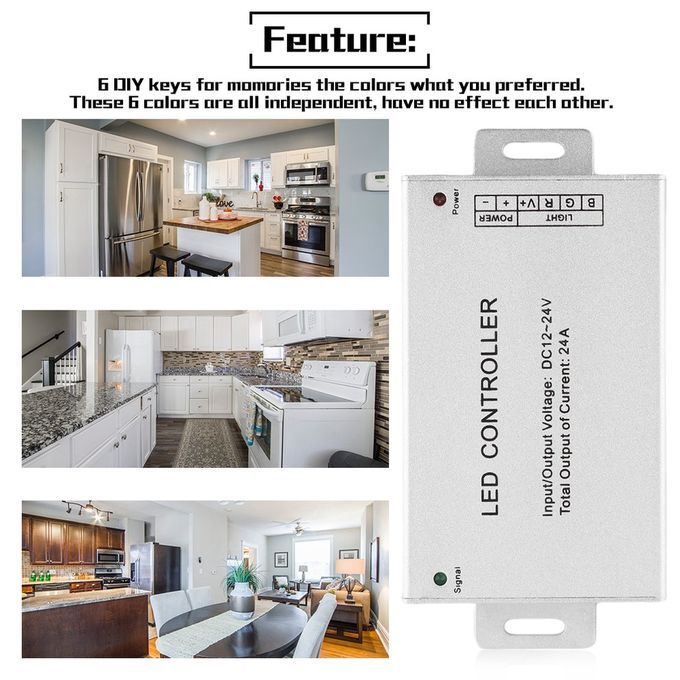

6 DIY keys for momories the colors what you preferred.
These 6 colors are all independent, have no effect each other.
When it's pressed first time, will enter the DIY color mode, you can
adjust the color per the 6 keys at above to increase or decrease the
R/G/B color by yourself freely. And you can save the color which you
have adjusted by pressing the DIY key once again. When next time this key
is pressed, it will show the color you saved last time.

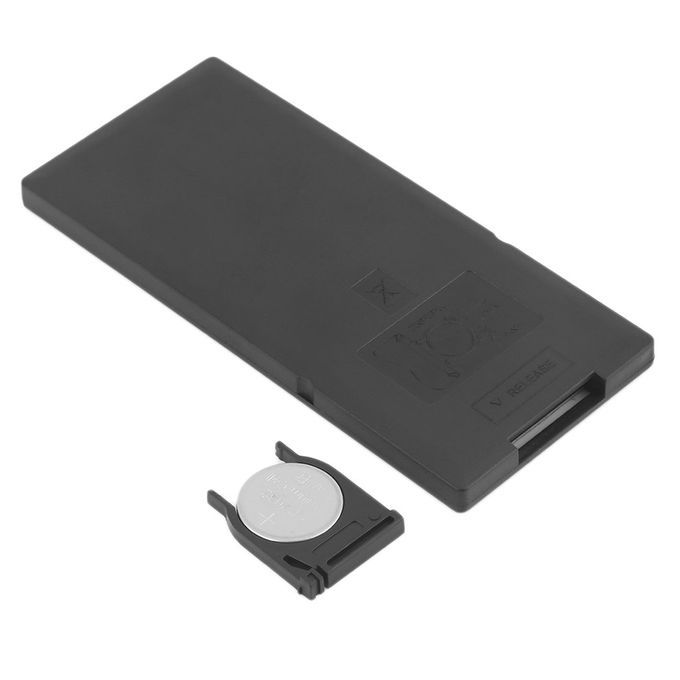

Remote powered by 1 pcs CR2025 lithium battery
Specifications:
Input/output voltage : DC12V
Remote distance MAX : 10 meters
Maximum output current : 8A*3
argest single load : 288W
Connect Mode:Common Anode
Working Temperature: -20 ~ 60°C
Work with 12VDC output power supply

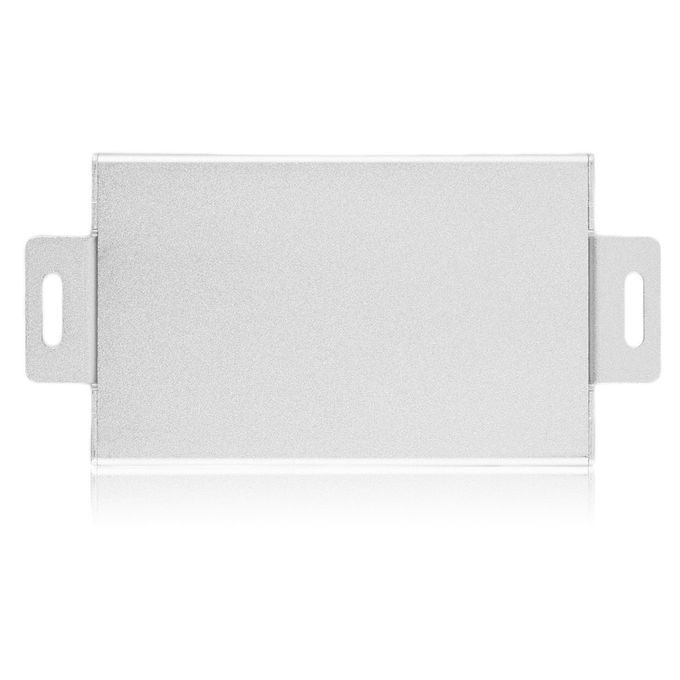

Control box dimension: 127mmx64mmx24mm(5x2.5x0.94inch)
Remote controller dimension: 124mm x 56mm x 6mm(4.88x2.2x0.2inch)

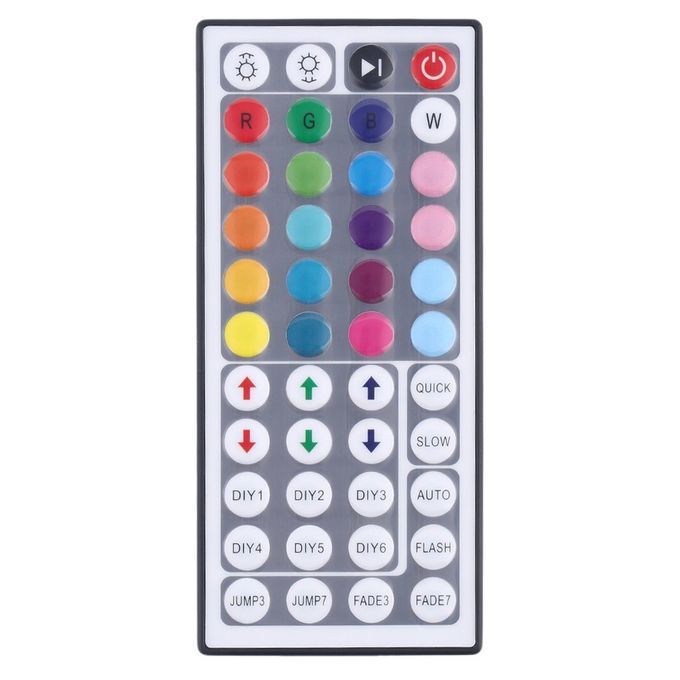

Remote Fuction: 20 colors, 8 Light Pattern: Quick / Slow / Auto /
Flash / 7 color fade change / 3 color fade change / 7 color jumpy change /
3 color jumpy change R / G / B increase and decrease control
Instructions:
1. When inserting the lamp plug in the socket, be sure that the output of
the controller lamp bar (the module) public end (total of Yin or Yang V + V -)
and controller of public end corresponding are connected according
to different light bar for change output wires.
2. When inserting vehicle with DC12V power supply only in remote
controller DC seat, remote controller DC can be manipulated
according to needs to carry on the work.
3. When installing remote controller, be sure receiving tube mounting
in no obstacle place, avoiding remote failure.
Support max:
20 meters SMD5050 30LEDs/M LED Strips
20 meters SMD5050 60LEDs/M LED Strips
40 meters SMD3528 60LEDs/M LED Strips
Package Contents:
1 x IR Control Box KK-LED-04
1 x 44 Keys Remote Controller
