HMC472 is a broadband 6-bit digital attenuator with 0-30dB gain-ranges. It adopts QFN surface mount package, 5V USB power supplys, and the operation frequency is from D-C to 3.8GHz, and insertion loss below 3dB, suitable for various RF and IF applications.
Features:
HMC472 is a broadband 6-bit digital attenuator with 0-30dB gain-ranges.
It adopts QFN surface mount package, 5V USB power supplys, and the operation frequency is from D-C to 3.8GHz.
Insertion loss is 1.5dB typical from D-C to 1.5GHz(1.8dB Max), 2.0dB typical from 1.5GHz to 3.0GHz(2.3dB Max), 2.3dB typical from 3.0GHz to 3.8GHz(3dB Max).
Made of quality electronic component, stable and reliable.
Suitable for a variety of RF and IF applications, like 3G infrastructure and access points, cellular/3G, LTE and UMB, WiMAX, WiBN and fixed wireless, test equipment and sensors, GSM, WCDMA amp; TD-SCDMA.
Specifications:

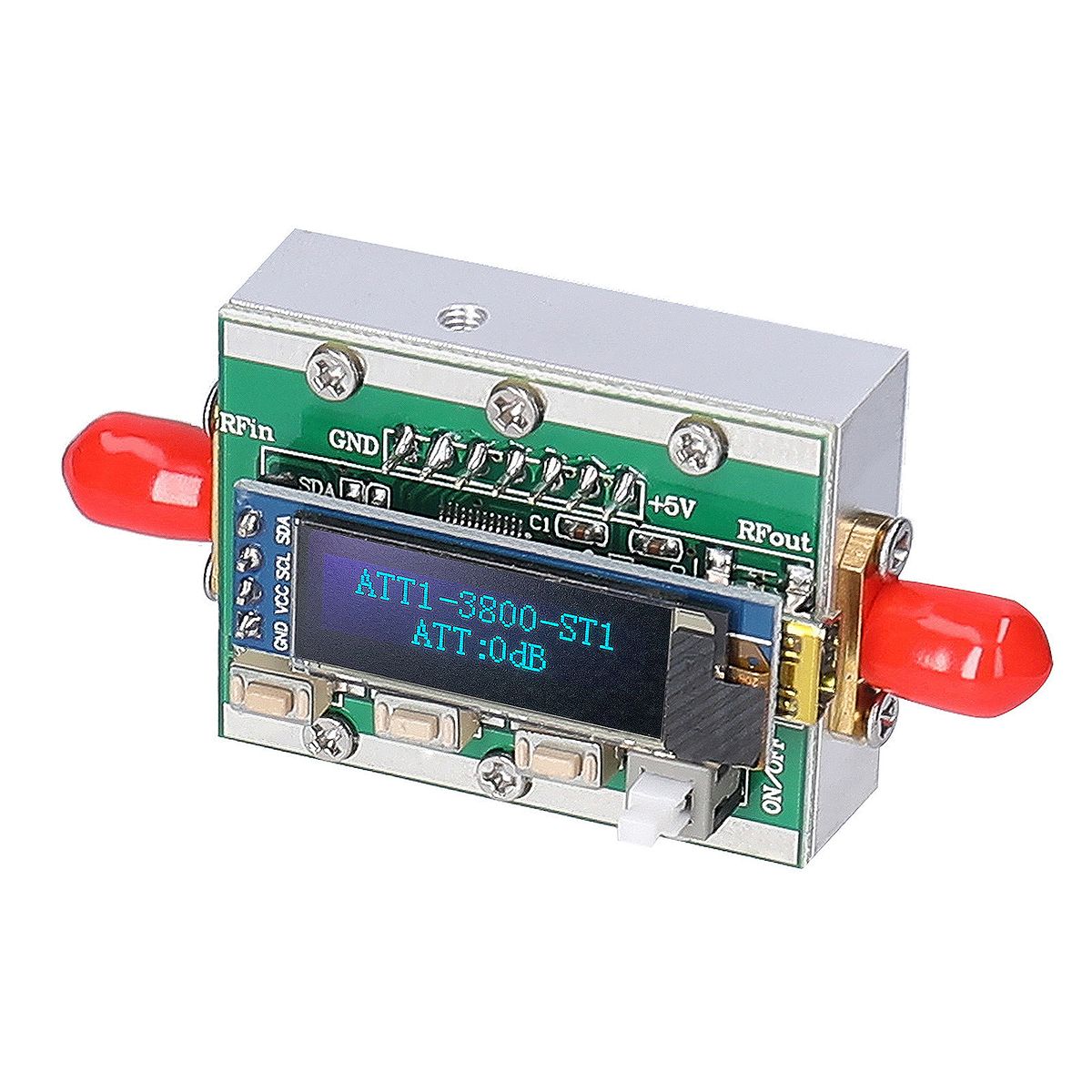

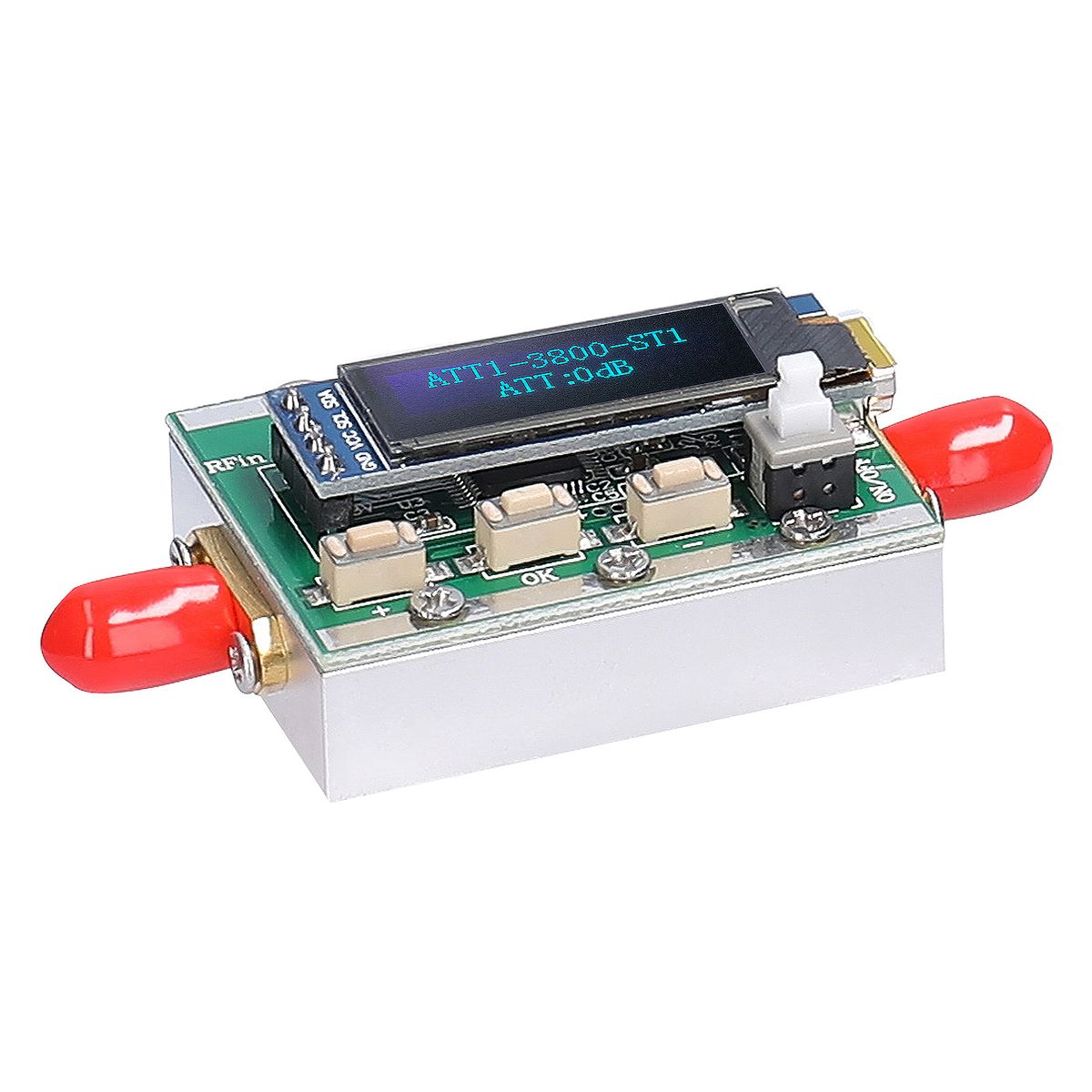

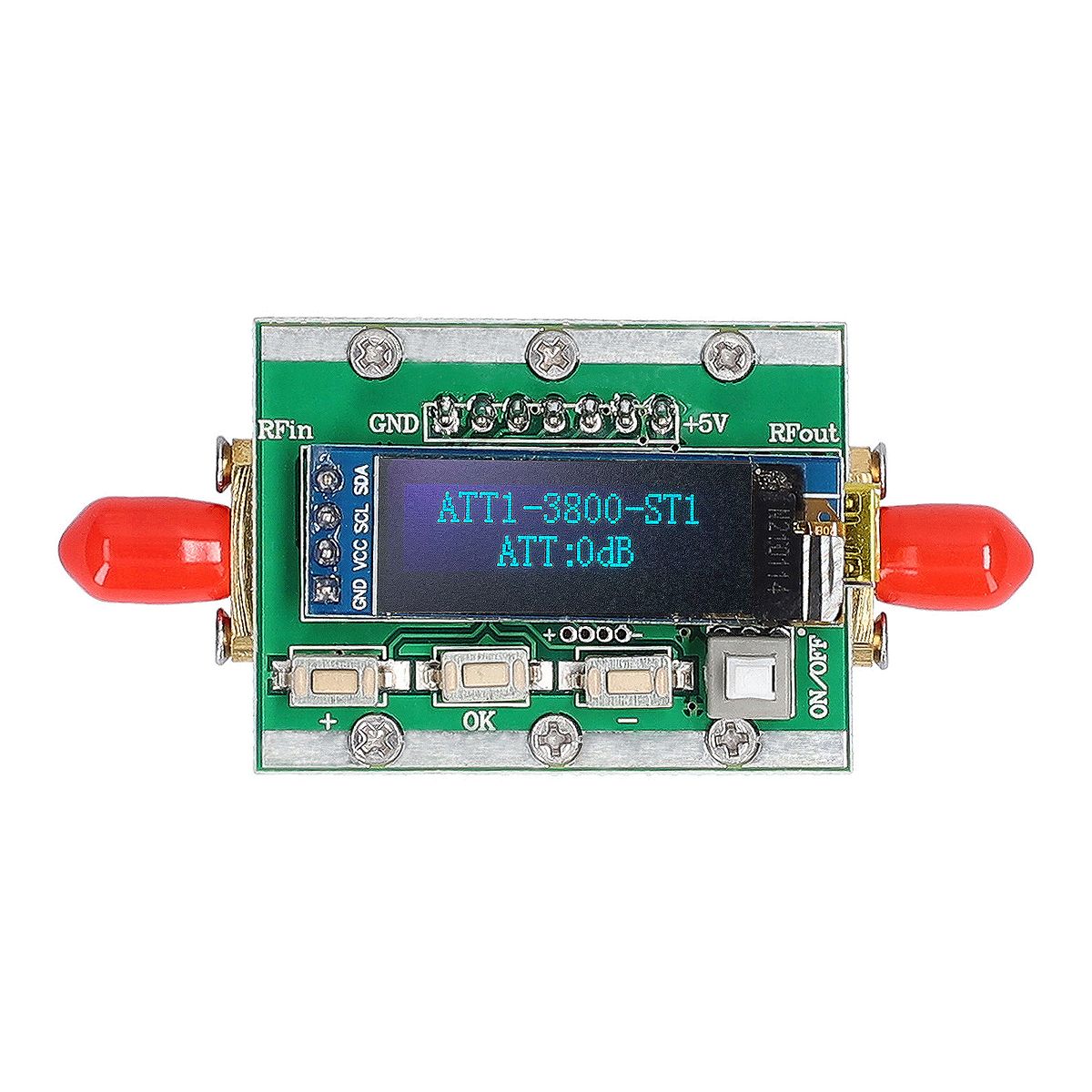

Name: RF Attenuator Module
Operating frequency-range: 1-3.8GHz
Input signal maximum power: 20dBm
Attenuation-range: D-C to 3.8GHz, step 1dB
Insertion loss: 1.5dB typical from D-C to 1.5GHz(1.8dB Max); 2.0dB typical from 1.5GHz to 3.0GHz(2.3dB Max); 2.3dB typical from 3.0GHz to 3.8GHz(3dB Max)
Input and output interface: SMA interface inner screw hole

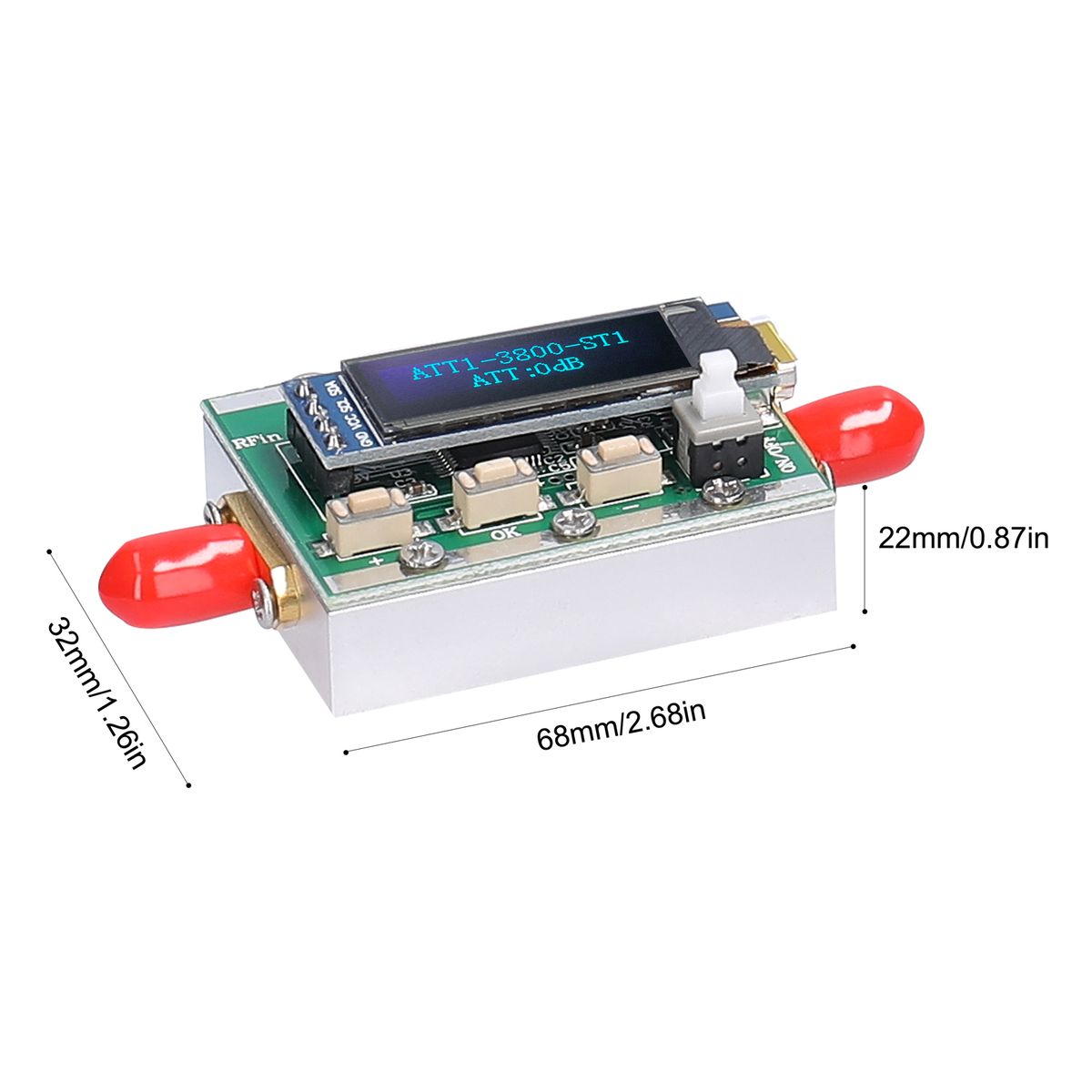

size: 68 * 32 * 22mm / 2.68 * 1.26 * 0.87in
weight: 54g / 1.90ounce
Package size: 98 * 90 * 27mm / 3.86 * 3.54 * 1.06in
Package weight: 72g / 2.54ounce
Packing List:

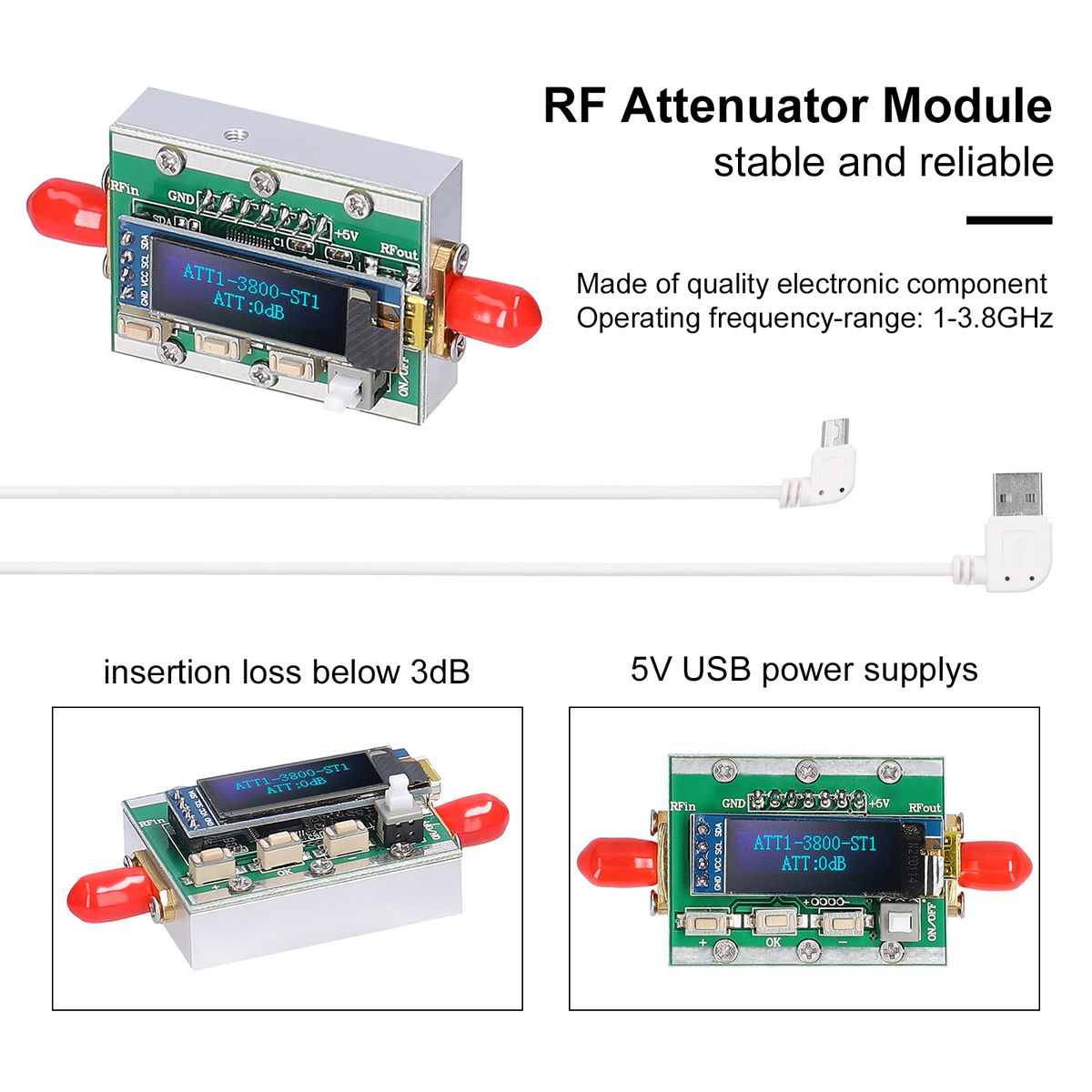

1 * RF Attenuator Module
1 * Cable
