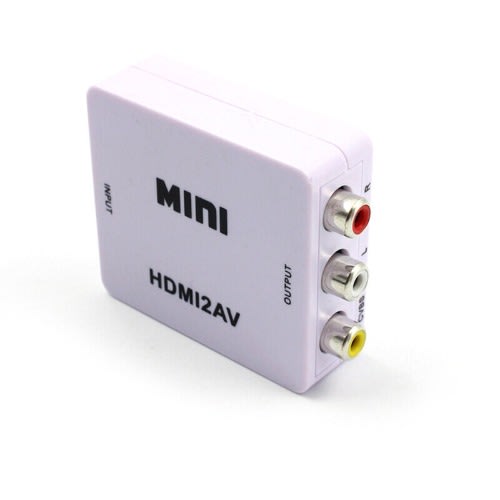

Mini Composite CVBS 3RCA HDMI to AV Video Converter Adapter 1080p 720p Upscaler For Smart TV
Must be installed with HDMI input to AV output..
(high-definition)
Brand new HDMI to AV Converter which will convert HDMI video signal / audio signal to AV (CVBS) composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.Helps users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i,576i). So that you can play on TV,VHS VCR,DVD recorders,etc and support NTSC and PAL two TV format.
Specifications:
1. Input ports: 1xHDMI.

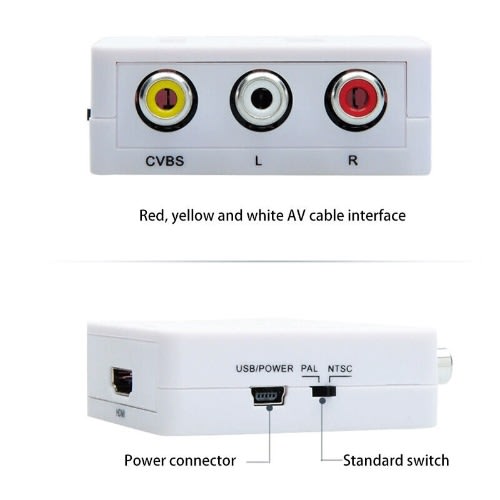

2. Output ports: 1xRCA (Yellow,White,Red)
3. Dimensions(mm): 66(D)x55(W)x20(H)
4. Wight (g): 40
5. HDMI Input Resolution:
640x480@60Hz,800x600@60Hz,
1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x1080@60Hz,
480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,
720p50/60Hz,1080i50/60Hz,1080p50/60Hz.
6. CVBS output: PAL,NTSC_M,(NTSC_J)
Features
1. No need to install drivers, portable, flexible, plug and play.
2. Low power, No power adapter.
3. Support NTSC and PAL two standard TV formats output
4. Compatible HDMI1.3
