Specifications:
Model: HD-3200C

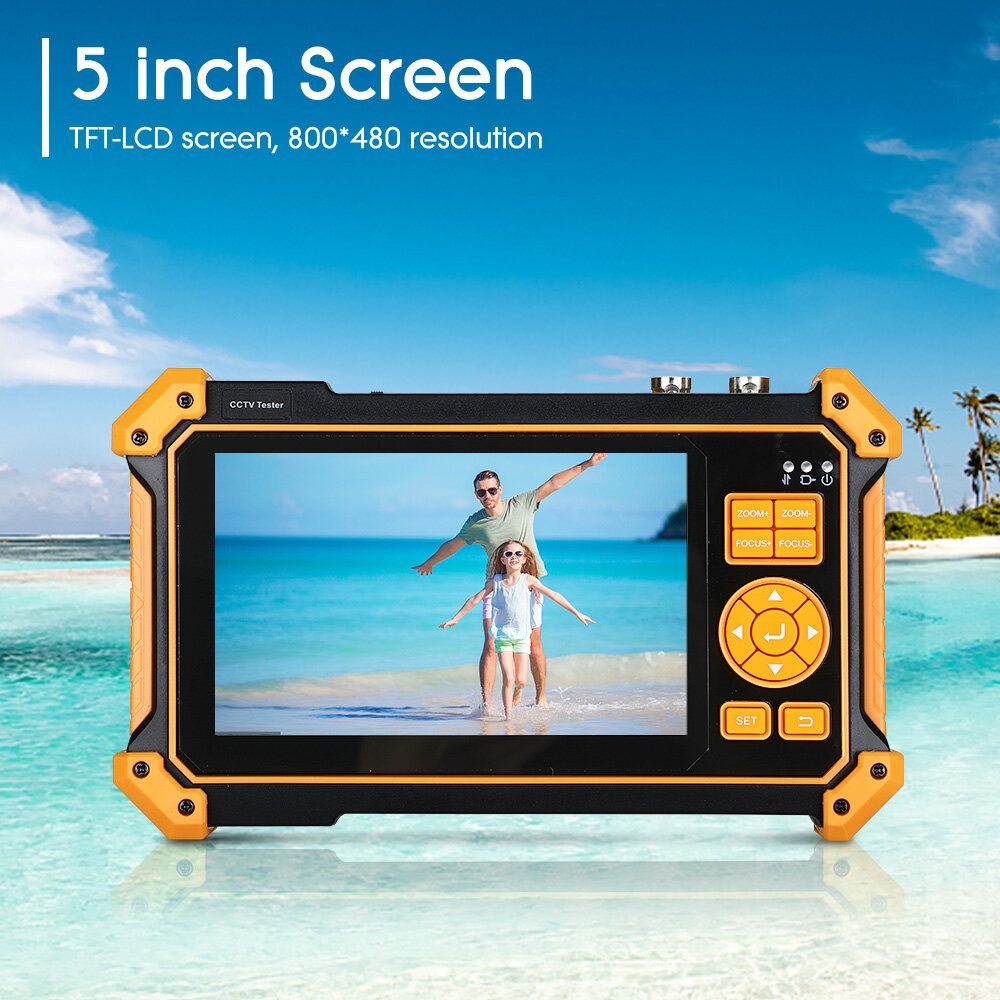

● 5 inch TFT-LCD screen, 800*480 resolution

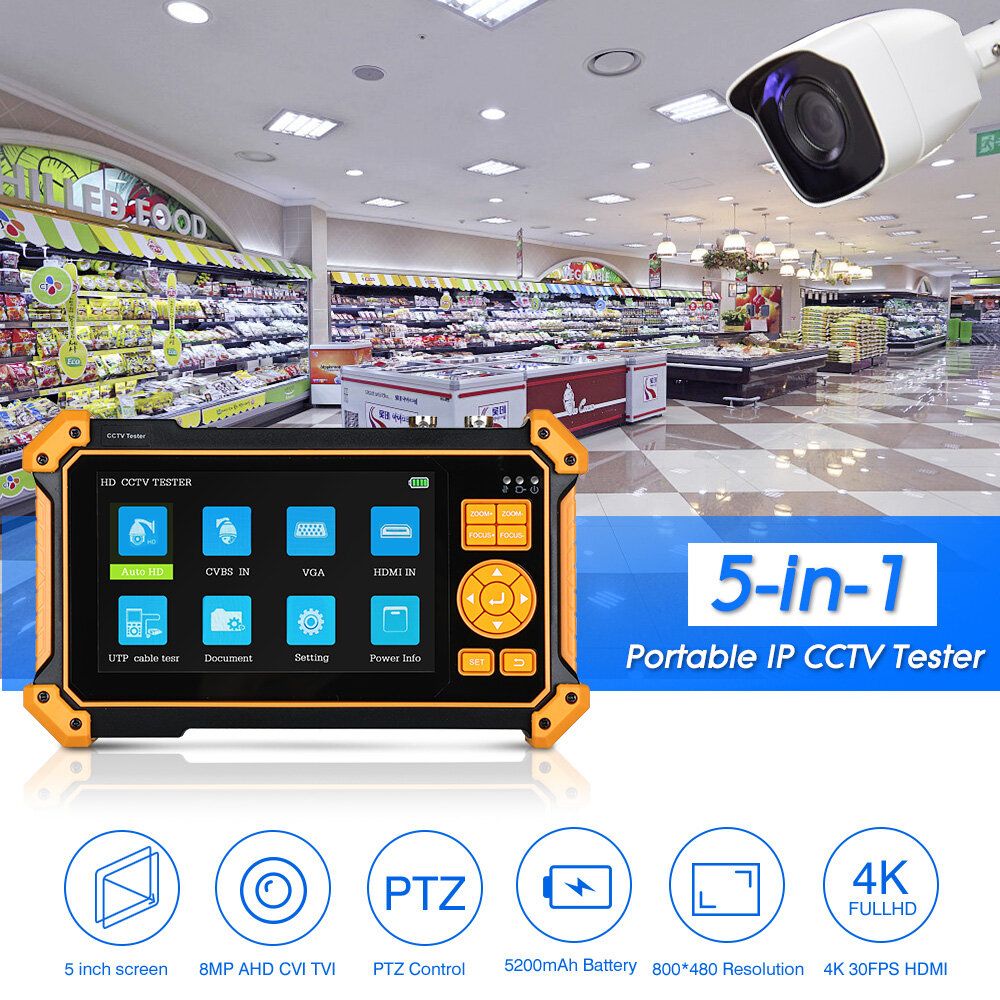

● 8MP CVI/ TVI/ AHD camera test

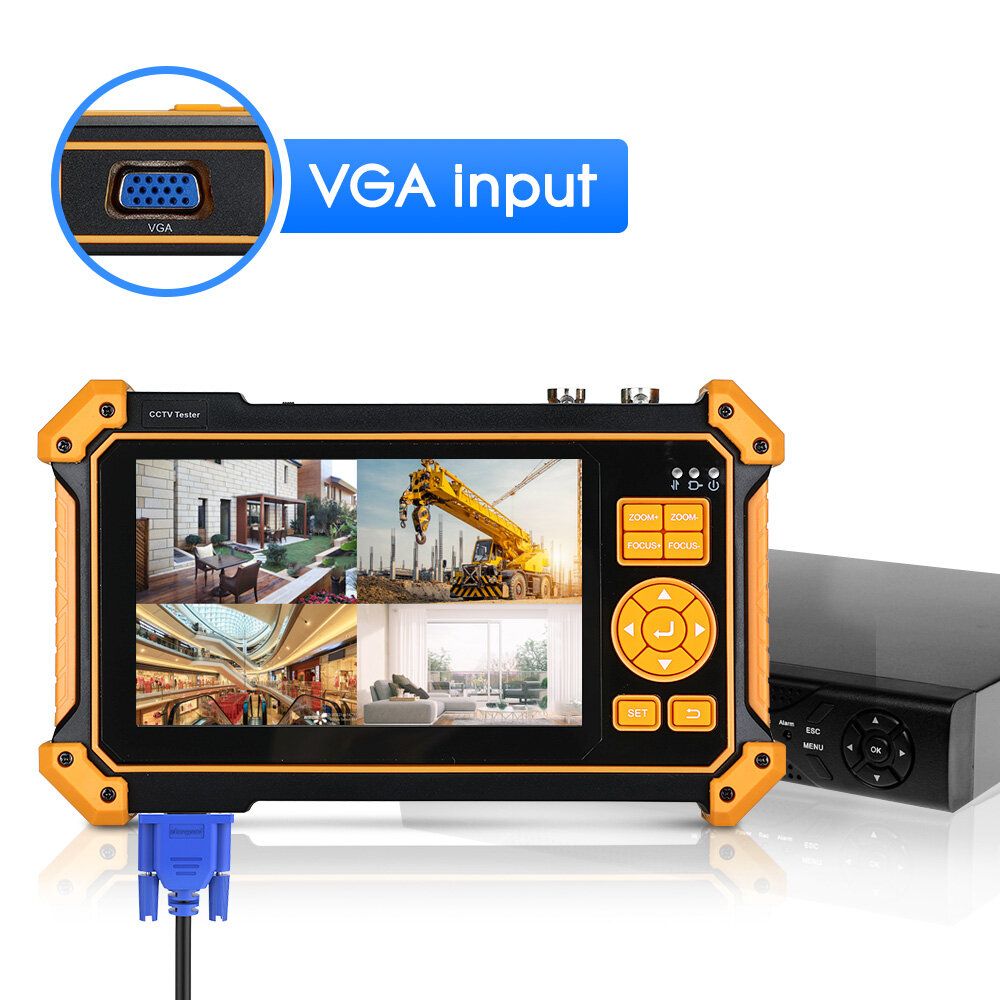

● VGA input, support 1920 x 1200 60FPS
● HDMI input, support 4K 30FPS
● DC12V 1A power output
● DC 5V 1A power output, support reading USB disk
● Auto HD, auto recognize HD coax camera type and resolution
● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Camera test:
● 5 inch TFT-LCD screen, 800*480 resolution
● Analog camera test, PTZ controller
● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record amp; playback, coaxial PTZ control amp; call OSD menu
● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record amp; playback, coaxial PTZ amp; call OSD menu
● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record amp; playback, coaxial PTZ amp; call OSD menu
● Auto HD app, auto recognize HD coax camera type and resolution, support snap, video record amp; playback, coaxial PTZ amp; call OSD menu
● VGA input, up to 1920X1200 60FPS, support snap, video record amp; playback
● HDMI Input, up to 4K 30FPS, support snap, video record amp; playback
● Rapid ONVIF, Auto log in amp; display image, create testing report
● DC12V/1A power output, camera can be powered from DC 12 Voltage
● DC 5V 1A power output, support reading USB disk
Cable test:
● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time
Other Functions:
● Media player, video files and MKV/MP4 media files play
● High brightness LED light
● Audio in, test whether sound normal.
● Power manager function, view 12V supply voltage and power in real time, can detect whether the voltage and power of DC 12V power output is normal.
● 3.7 V /5200mAh Lithium Ion Battery, after 4 hours charging, working time lasts 6.5 hours
Package included:
1 x Tester
1 x Wire Finder
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
● 5 inch TFT-LCD screen, 800*480 resolution
● 8MP CVI/ TVI/ AHD camera test
● VGA input, support 1920 x 1200 60FPS
● HDMI input, support 4K 30FPS
● DC12V 1A power output
