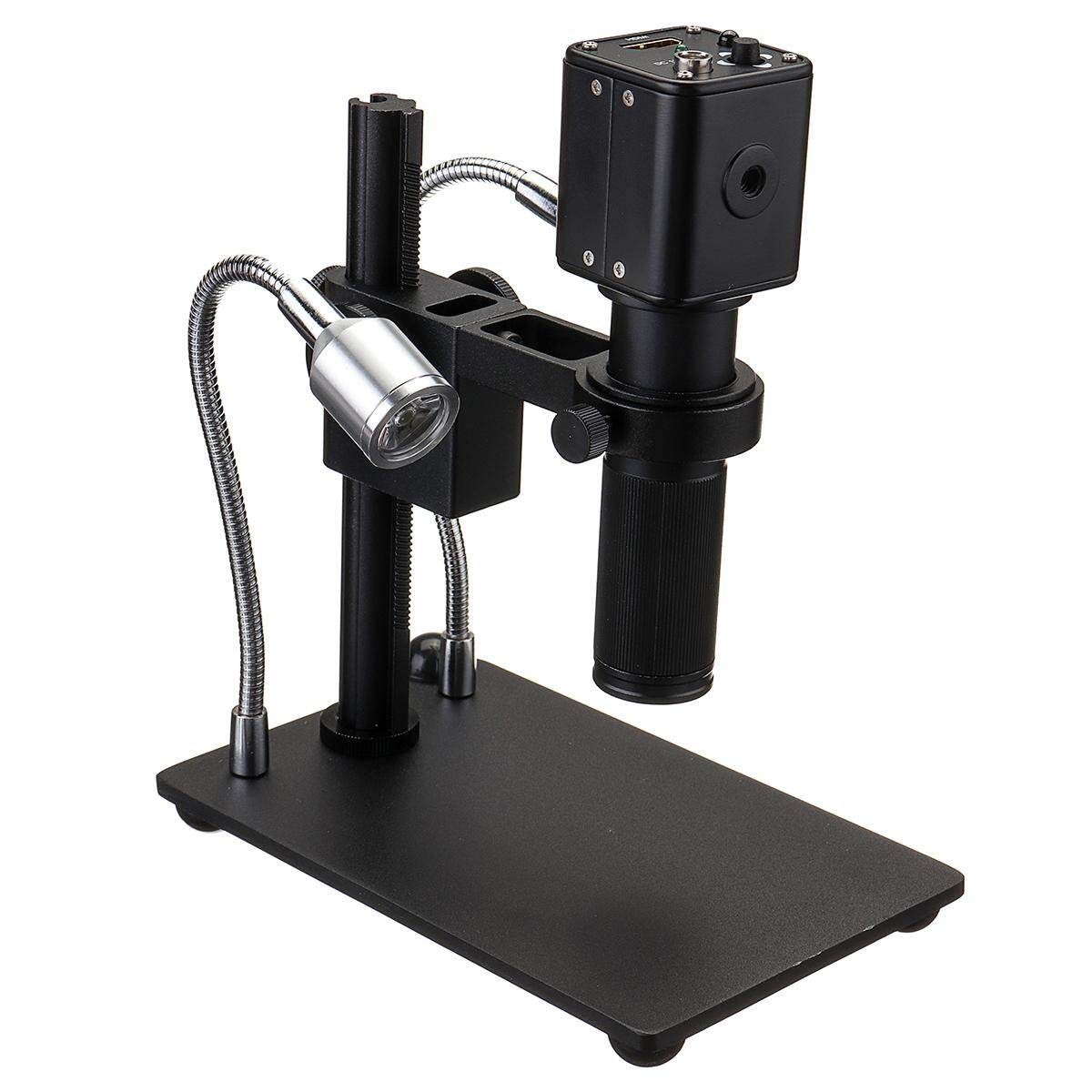

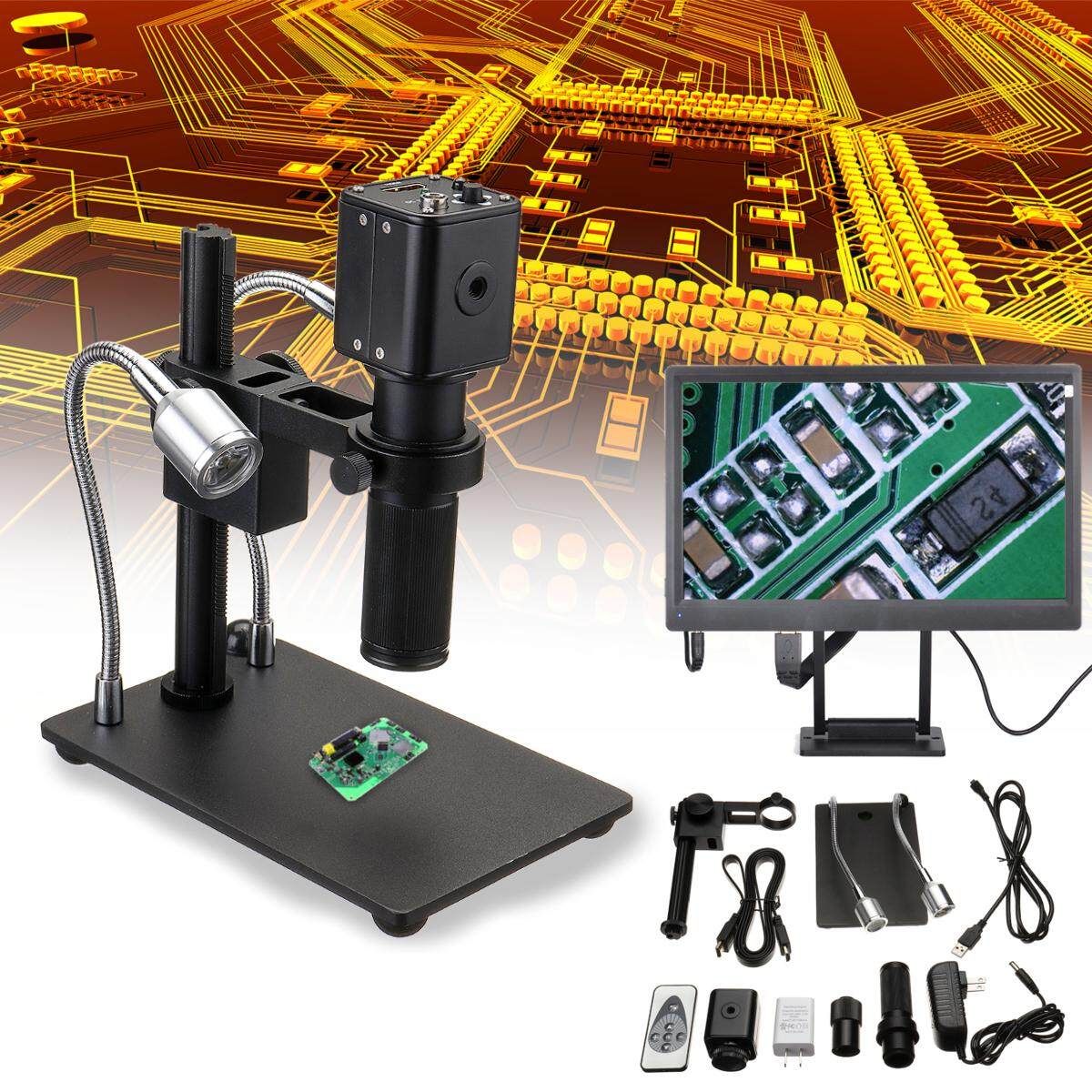

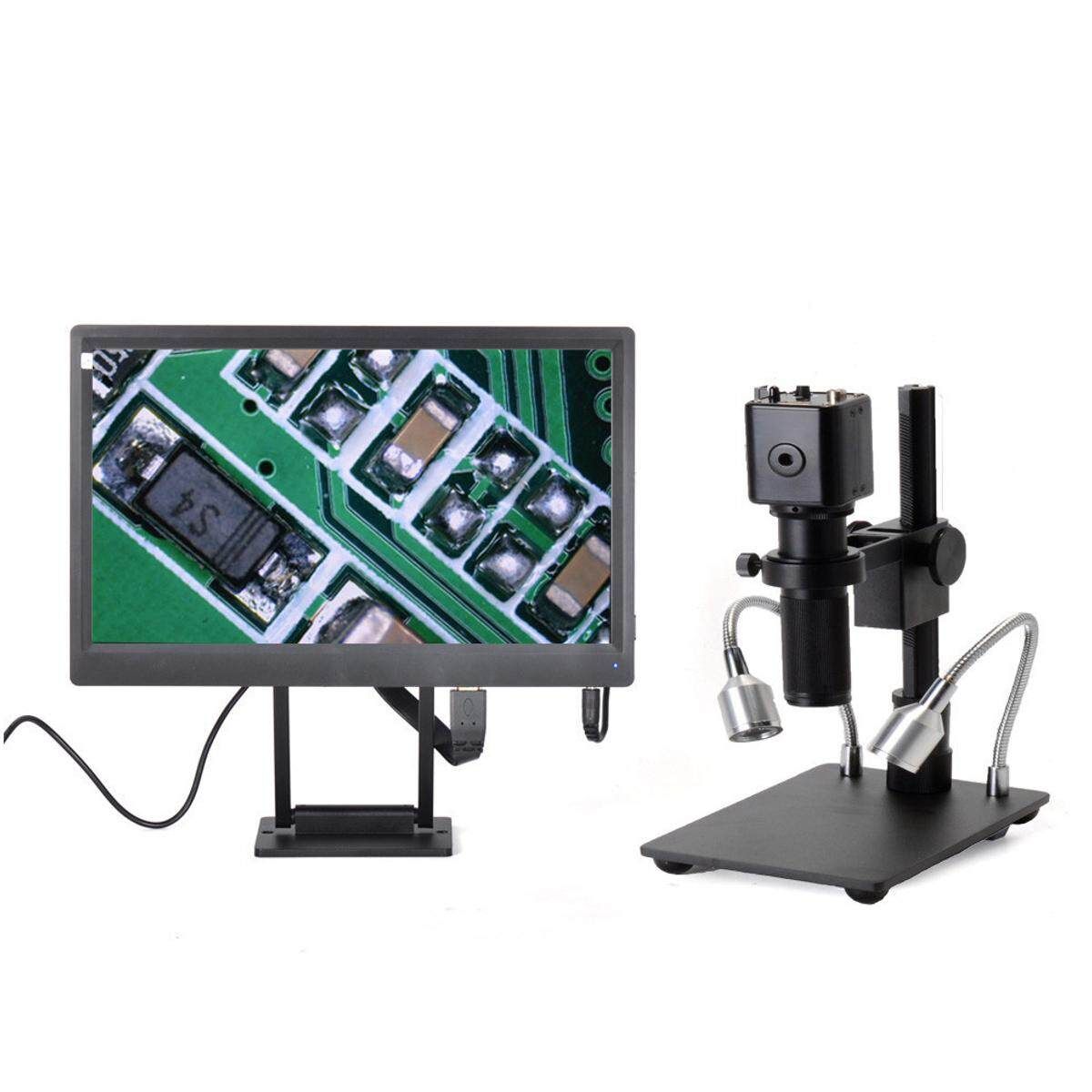

HD 1080p HDMI Industrial Camera Microscope CCD Camera

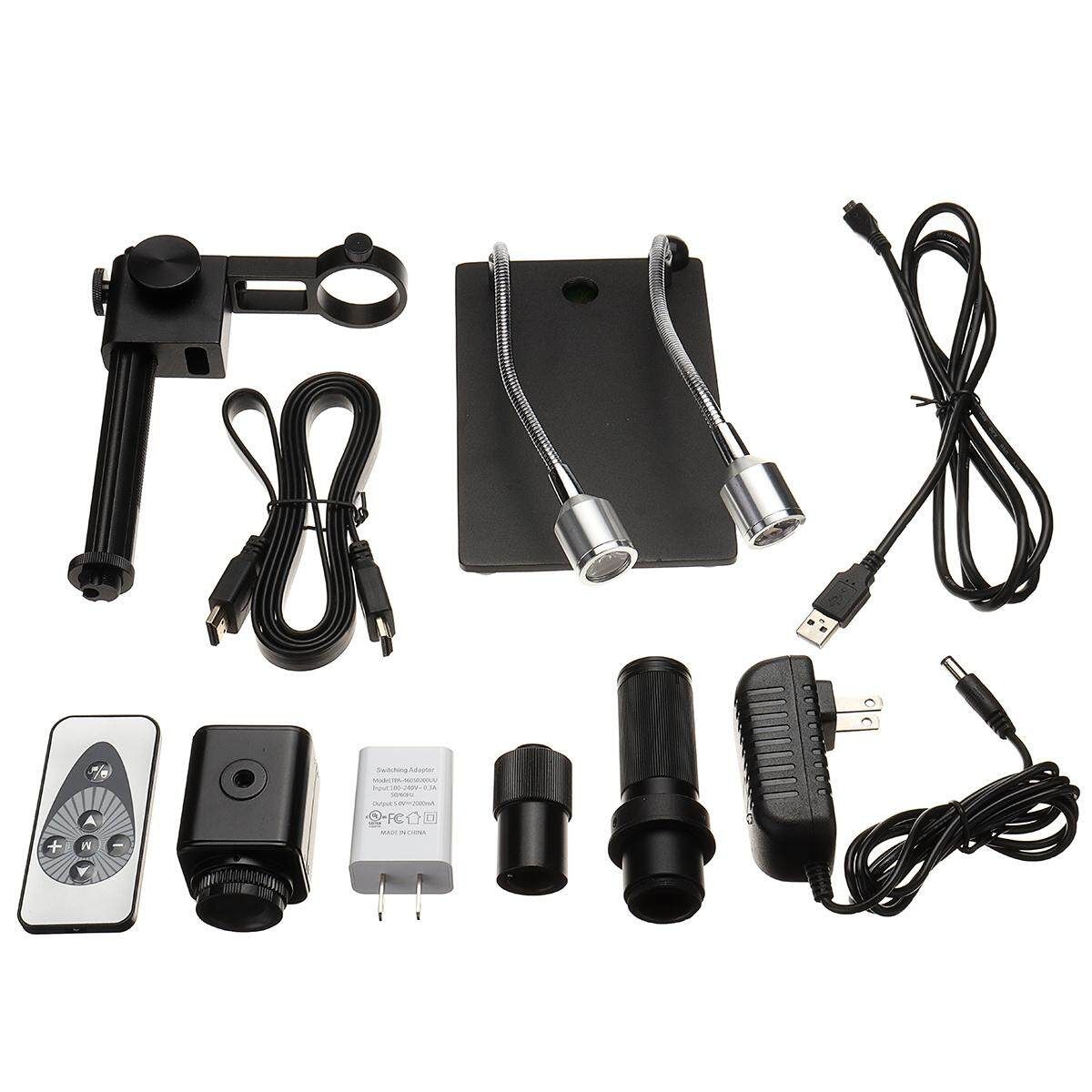

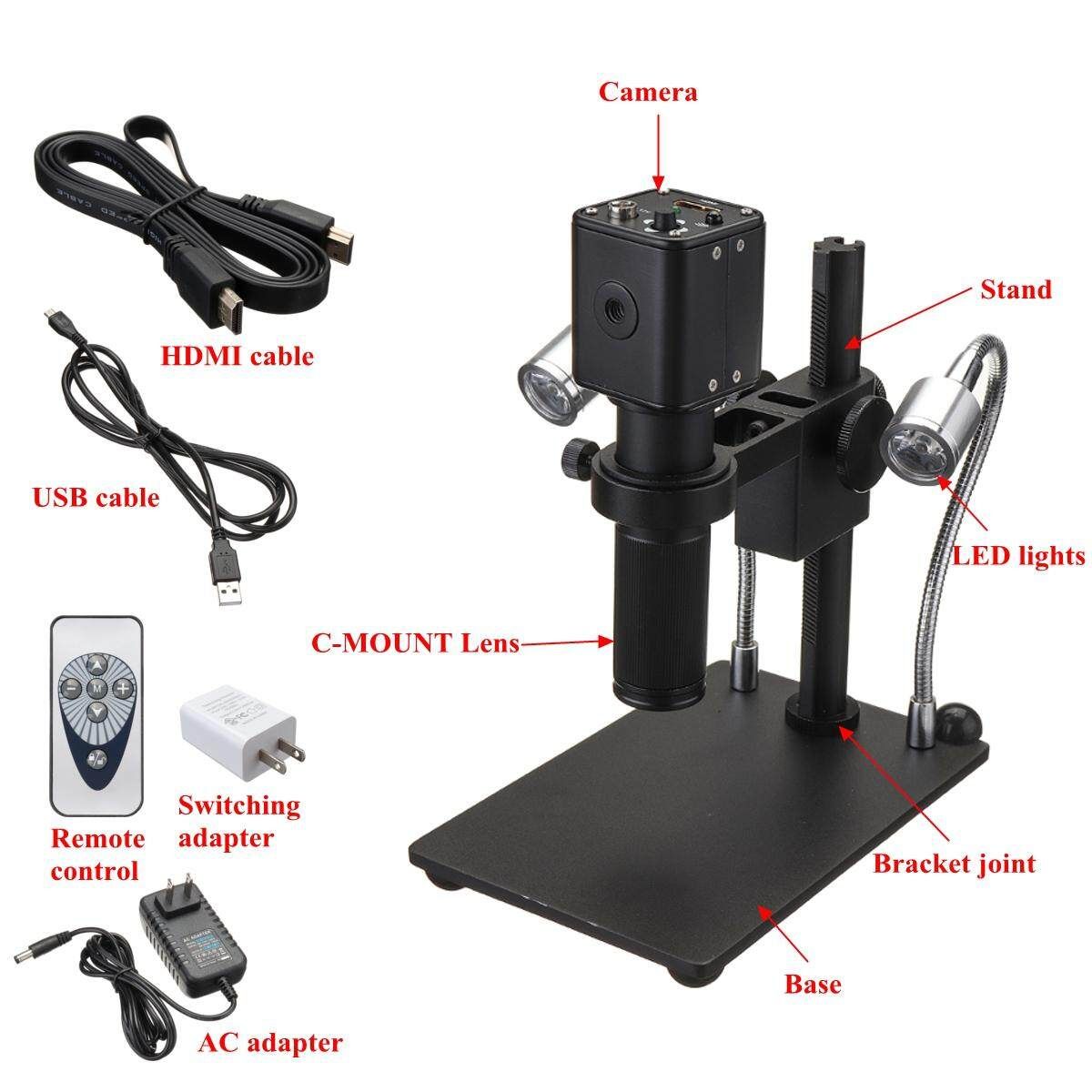

Packagedincluded:
1 x 2.0MP Digital Industrial Camera
1 x Electronic magnifier
1 x AC adapter
1 x Switching adapter
1 x Remote control
1 x USB cable
1 x High Definition Multimedia Interface cable
1 x Bracket joint
1 x Base (with 2 LED lights)

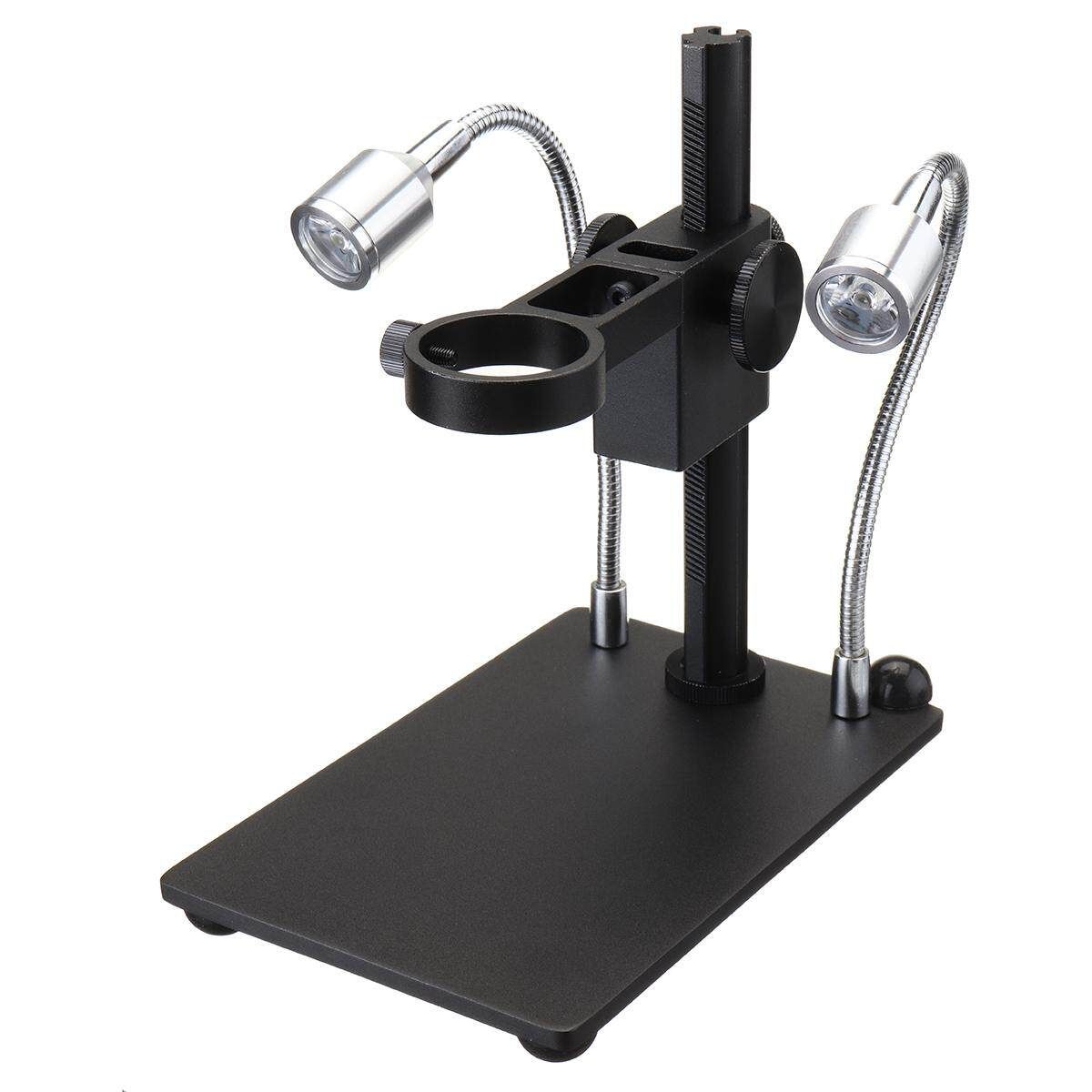

1 x Stand
Specifications:
Model: SHL-021A
Material: Metal Shell
: Black
Input Voltage: 100V-240V
Voltage input: 5-12V
Working current: 150mA
Size: Approx.42x42x60mm/1.7"x1.7"x2.4"
SENSOR: Panasonic
Video output interface: Standard High Definition Multimedia Interface output
Lens interface: /CS interface
USB interface : Standard usb2.0 interface
Effective : 2 megapixel
size: 2.75um * 2.75um
Frame rate: 60fps
Effective Pixels: 1920*1080
Clarity: 1200TVL
Induction size: 1/3"
Dynamic range: 60dB
Signal to noise ratio: 46dB
White Balance: One Button White Balance
Reduce reflection adjustment: adjustable
Suppress light selection: Level 3 selection
Edge enhancement mode: Level 3 selection
adjustment: R, G, B independently adjustable
Removable crosshairs: 8 horizontal and vertical colors/line width adjustable
Line width: 1 pixe
Black and white:
Freeze and thaw:
Mirror: left and right / up and down
Half screen comparison:
for adjustable : image , brightness, contrast, sharpness, saturation
Working temperature: 0-70 ℃
-MOUNT Lens:
Working distance: 55mm-200mm
Field of view: 2.4mm-36mm
by 8X~120X
Size: 100mm(L) * 28m(DIA)
Features:
- High Quality, High Resolution, Clear Images.
- It can Show the live image directly on any High Definition Multimedia Interface , Projector or TV.
- USB2.0 ,High Definition Multimedia Interface HD video,Two output ports.
- the Remote Control function.
- Used in microelectronics, molds, precision machinery, jewelry, watches, jewelry, identification, ticket identification, printing, mobile phone maintenance, archaeological, anatomy, school teaching and fields.
- It is particularly suitable to observe the microstructure of large objects.
a a a a a
Key Features
Model: SHL-021A
Material: Metal Shell
Input Voltage: 100V-240V
Voltage input: 5-12V
Working current: 150mA
Size: Approx.42x42x60mm/1.7"x1.7"x2.4"
SENSOR: Panasonic
Video output interface: Standard High Definition Multimedia Interface output
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x 2.0MP Digital Industrial Camera 1 x Electronic magnifier 1 x AC adapter 1 x Switching adapter 1 x Remote control 1 x USB cable 1 x High Definition Multimedia Interface cable 1 x Bracket joint 1 x Base (with 2 LED lights) 1 x Stand
