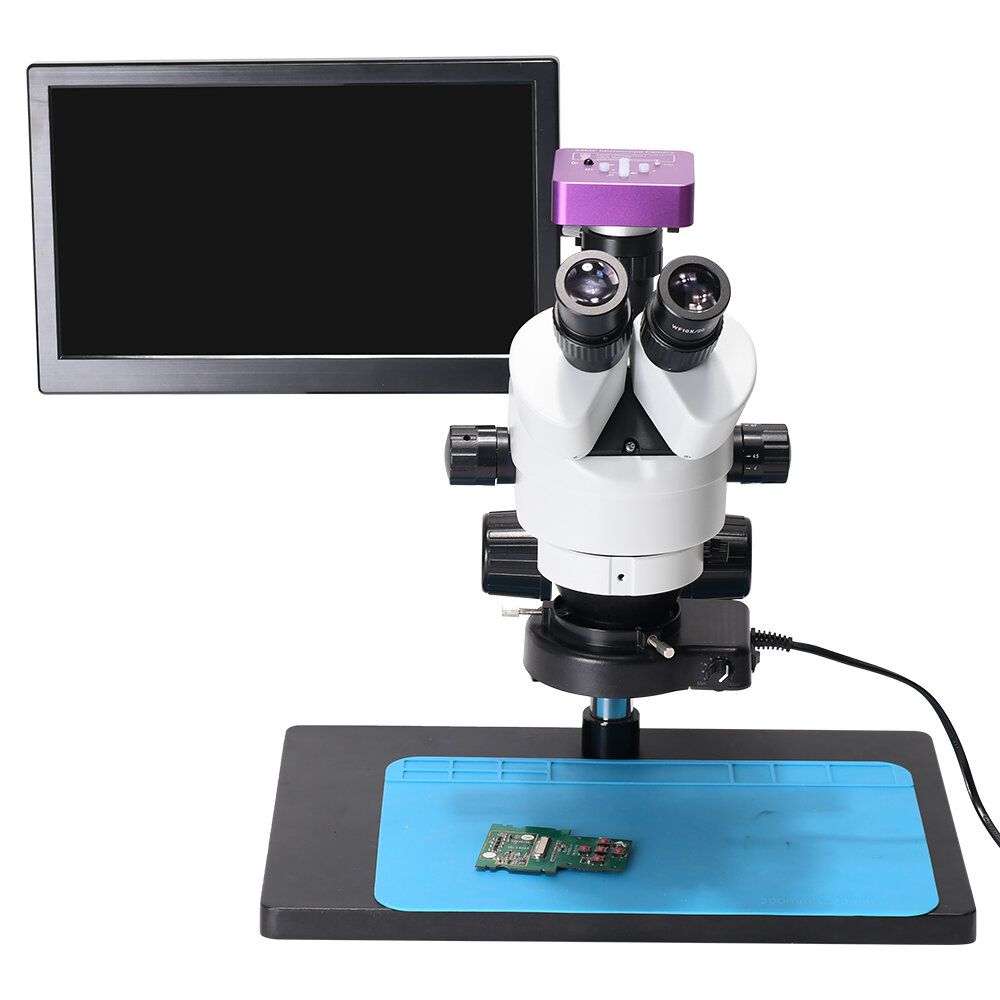

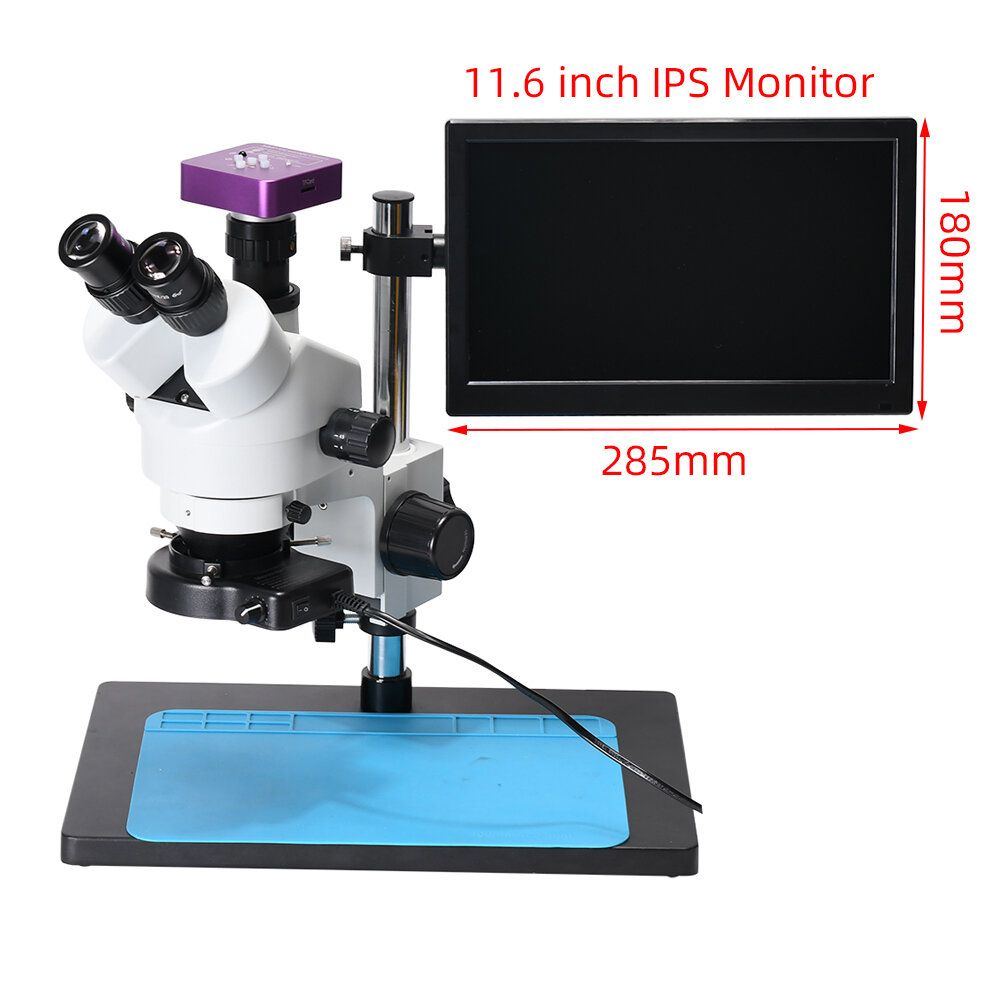

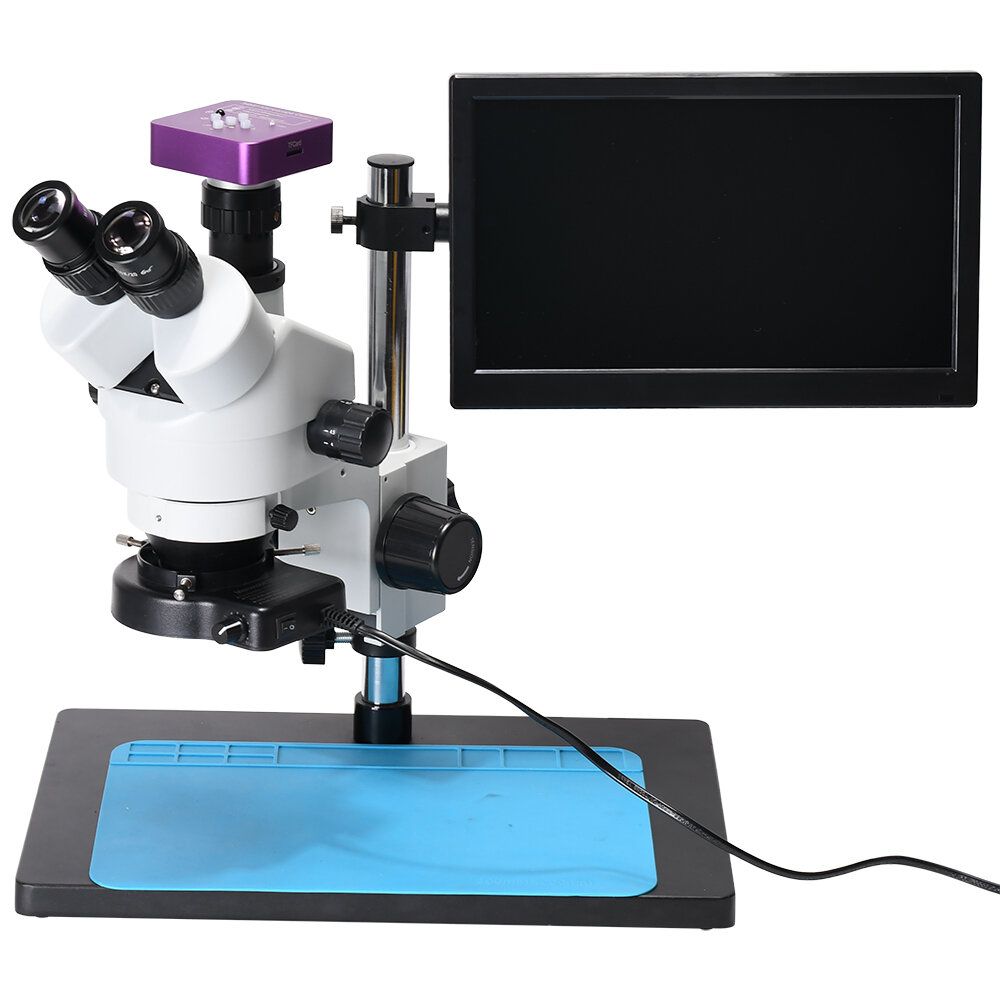

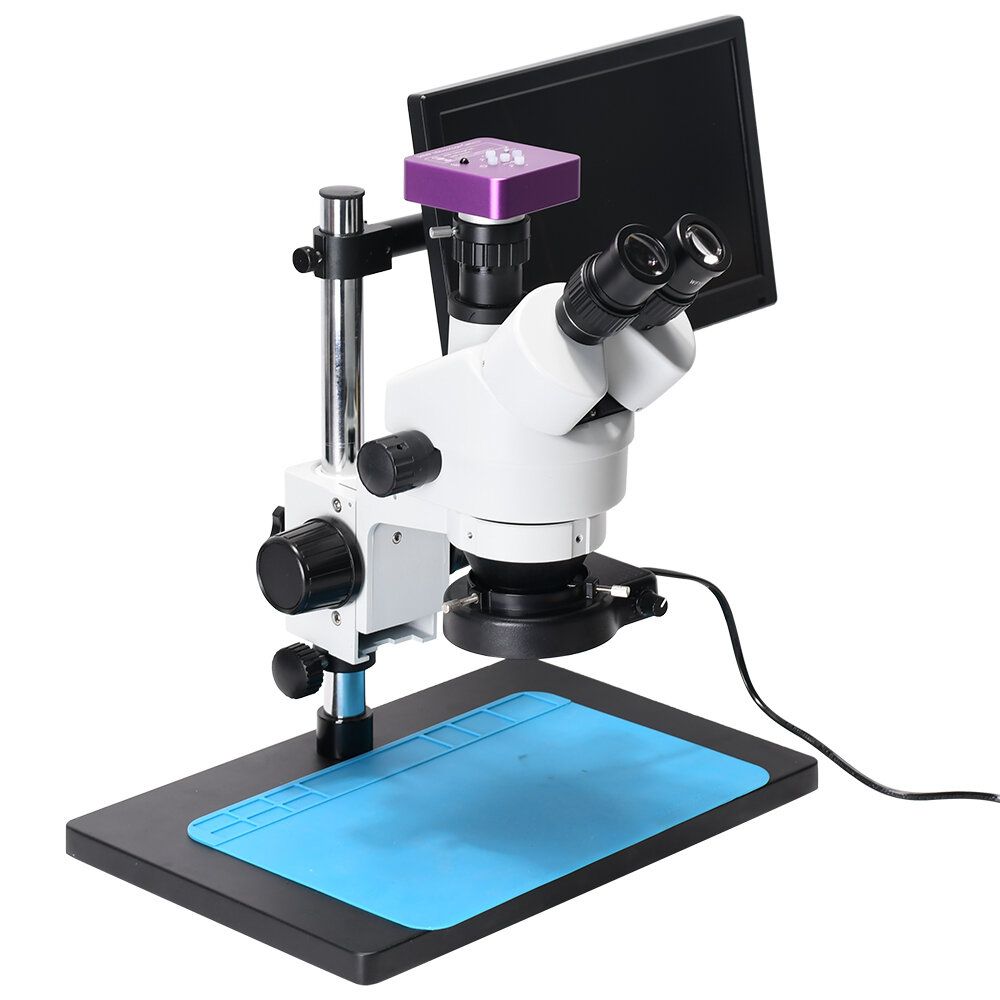

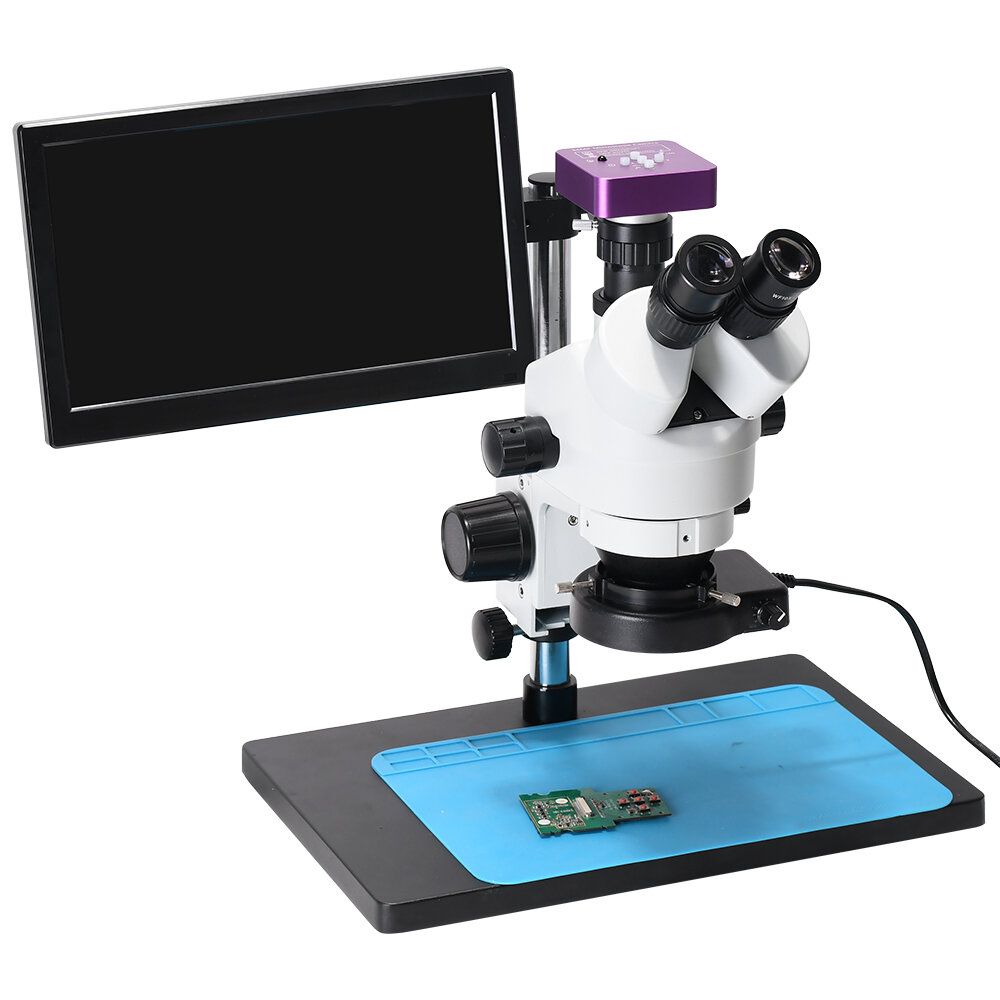

Feature:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects.
3. Using high-quality materials, strong and durable, has a long service life.
4. HD camera with 51 megapixel CMOS sensor 1/2.3 inch, with HDMI USB port.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

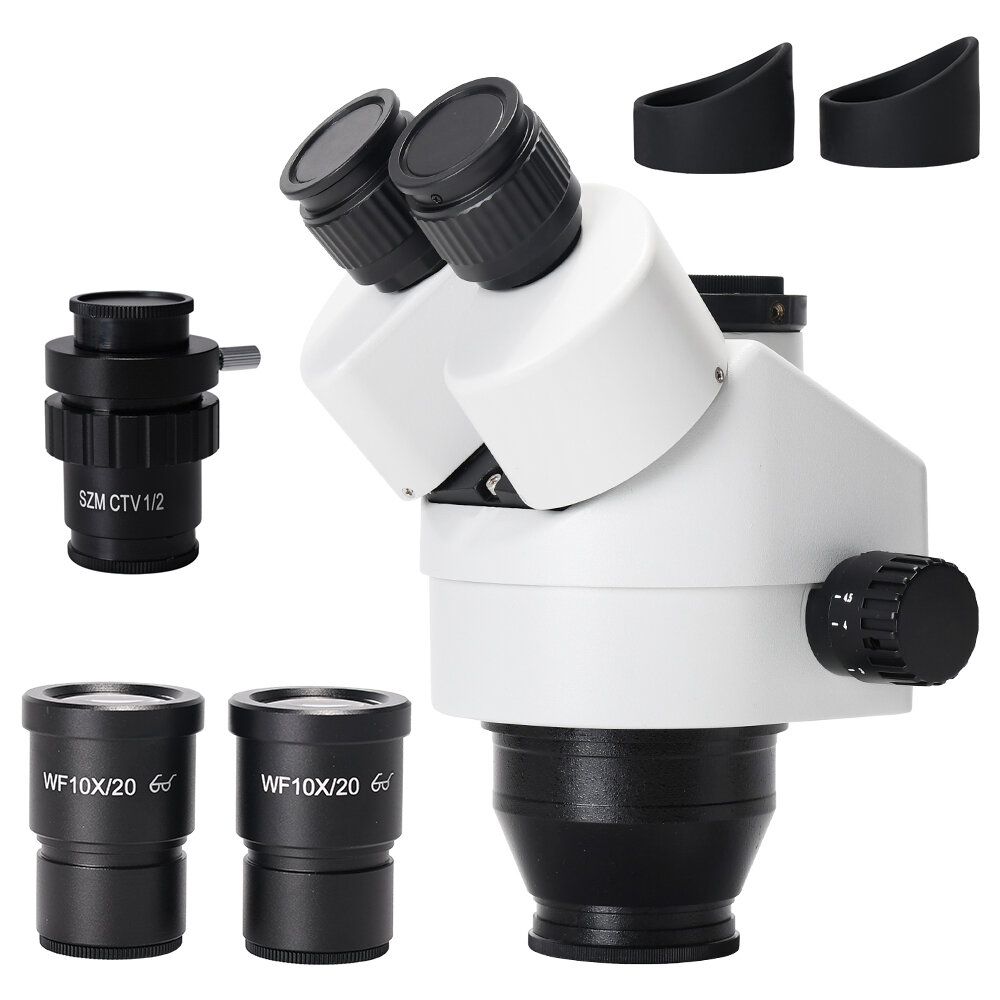

Trinocular Stereo Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8\\\' to 3\\\'(54-76mm)
Field of View: 1-1/4\\\' (33mm)
Working Distance: 7X-45X (100mm)
Head Mounting Size: 3\\\' (76mm) diameter
Accessory Mounting Size: 1-7/8\\\' (48mm female thread) diameter
7X to 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard
Package Size :40*33*24cm
Stand Size :38*20*30cm (LxWxH)
Package Weight:7.5Kg

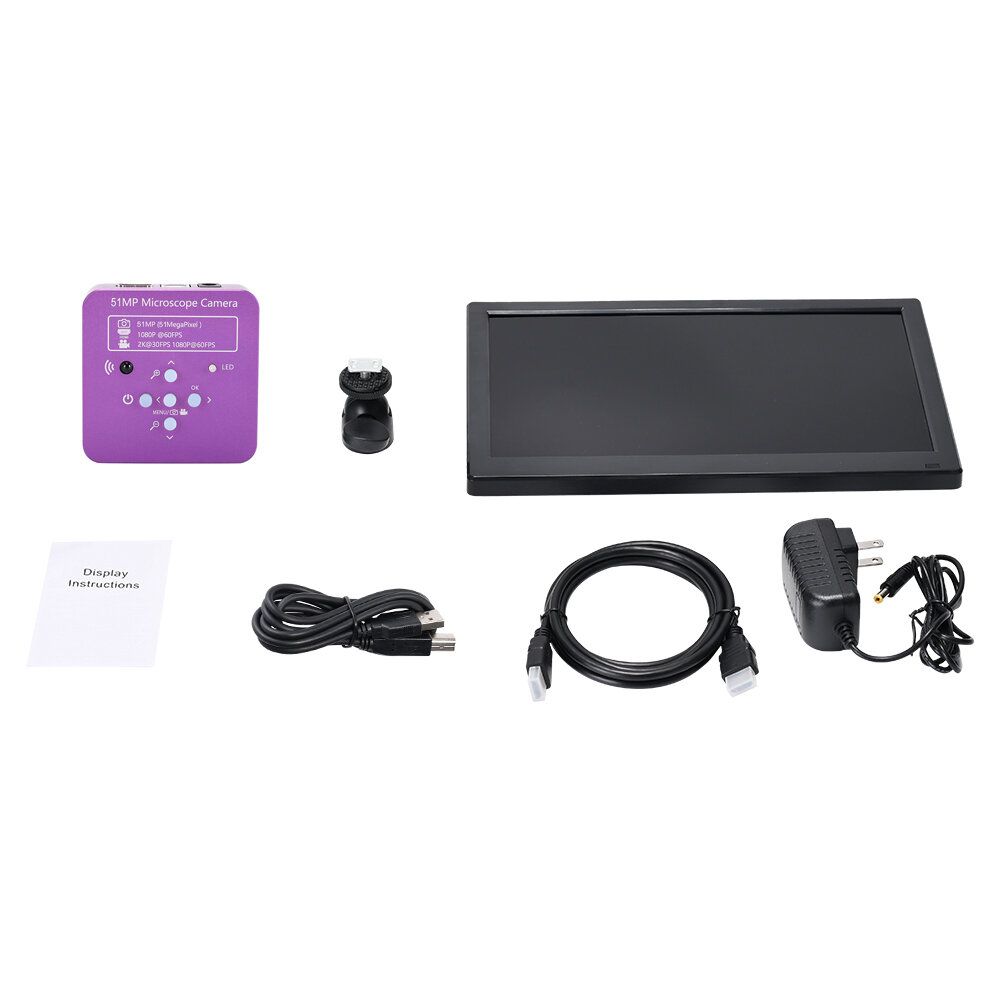

Camera Specification:
Type: Microscope Camera
Module: 5130
Sensor: 51MP CMOS
Optical Format: 1/2.3 inch
Pixel Size: 1.335 mu;mx1.335 mu;m
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 51MP
Video Resolution: 2K at 30FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p 60FPS
HDMI Scale: Support 4: 3,16: 9,16: 10 screen
USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS
Small Memory Card: Up to 128GB (not included)
AWB:?AWB?color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery
144 bright LEDs Specification:
Variable lighting direction
Variable power control
Strong and concentrated shadowless lighting
100,000 hours of life
Power Input: 100-240V, 50-60HZ, automatic switching
The Inner Diameter of The ring Light: Approx. 27mm / 1.1in
Overall Outer Diameter: Approx. 45mm / 1.8in
Working Distance: Approx.27 ~ 120mm / 1.1 ~ 4.7in
Problem Solution:
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
