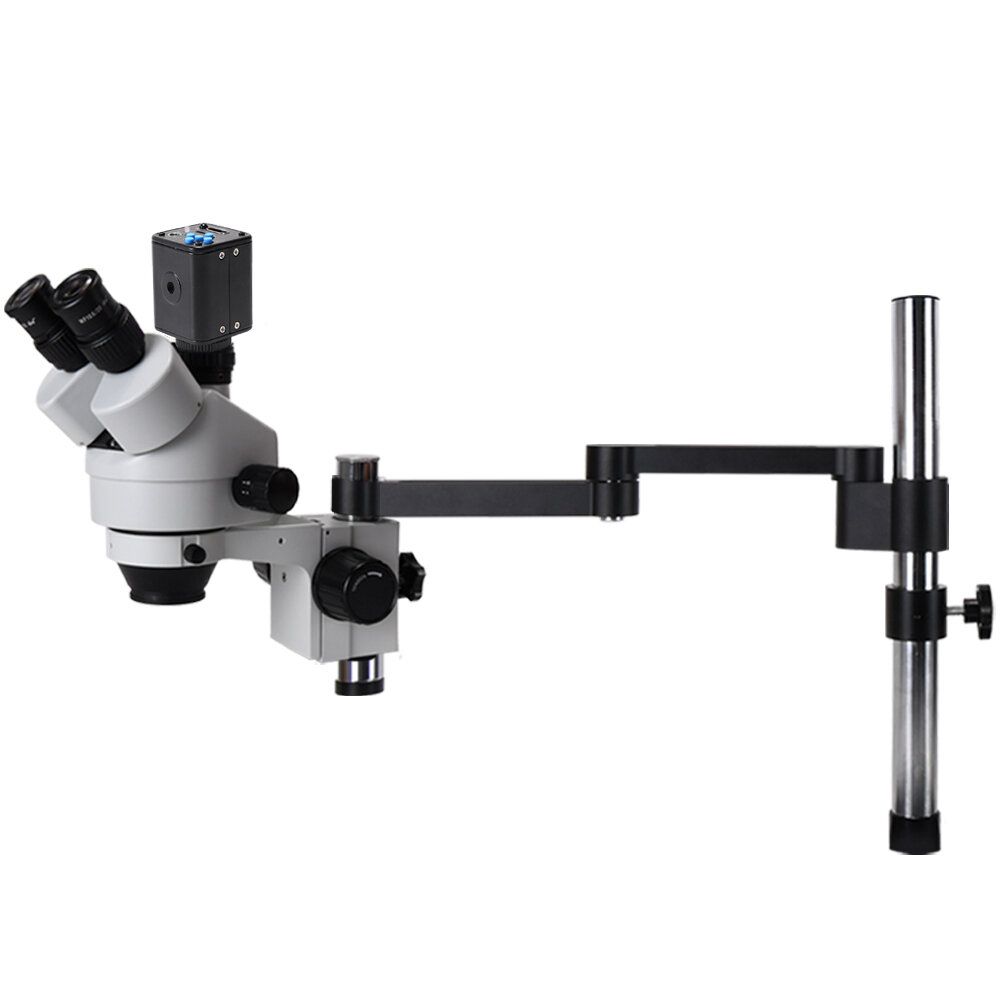

Desktop Folding Stand + Simul Focal 7X-90X Zoom Stereo Trinocular Microscope + 1080P 24MP 2K HDMI TF Video Camera
Microscope Head Feature:
7X - 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard
Specifications:Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 25mm photo port
Interpupillary Distance: 2-1/8\\\' to 3\\\'(54-76mm)
Field of View: 1-1/4\\\' (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(185mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3\\\' (76mm) diameter
Accessory Mounting Size: 1-7/8\\\' (48mm female thread) diameter

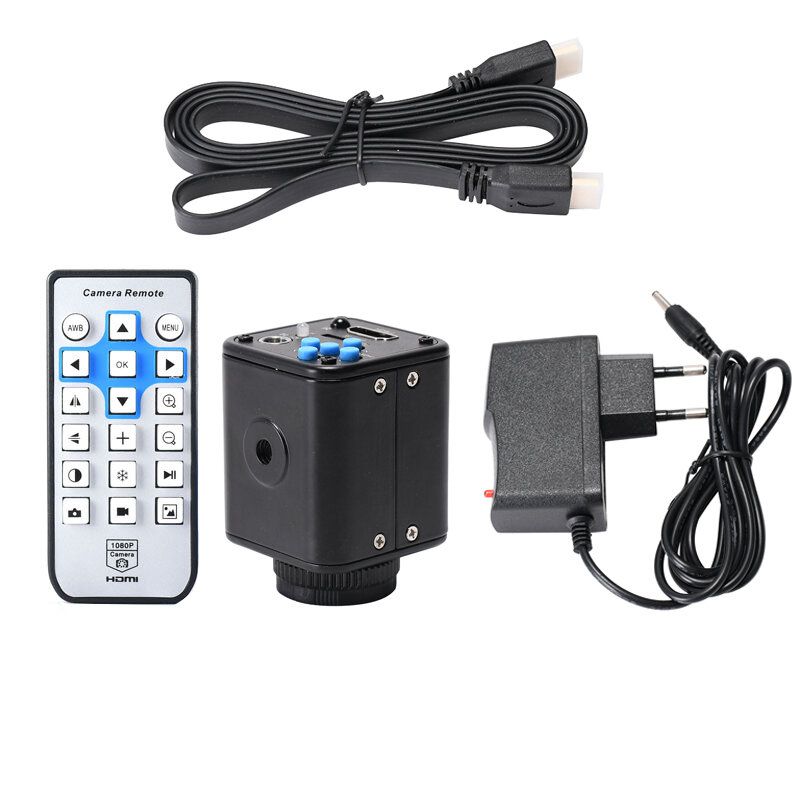

Camera Specification:
Type: Microscope Camera
Module: HY-5199-7045W
Sensor: 24MP CMOS
Optical Format: 1/2.9inch
Pixel Size: 2.85 mu;mx2.85 mu;m
Interface: HDMI (Type A). Small memory card
HDMI Image Resolution: 24MP
Video Resolution: 2K at 60FPS 1080p at 60FPS
HDMI Resolution: 1920 x 1080p
HDMI Scale: Support 4: 3,16: 9 screen
Small Memory Card: Up to 64GB (not included)
AWB:?AWB?color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery (delivered without battery)

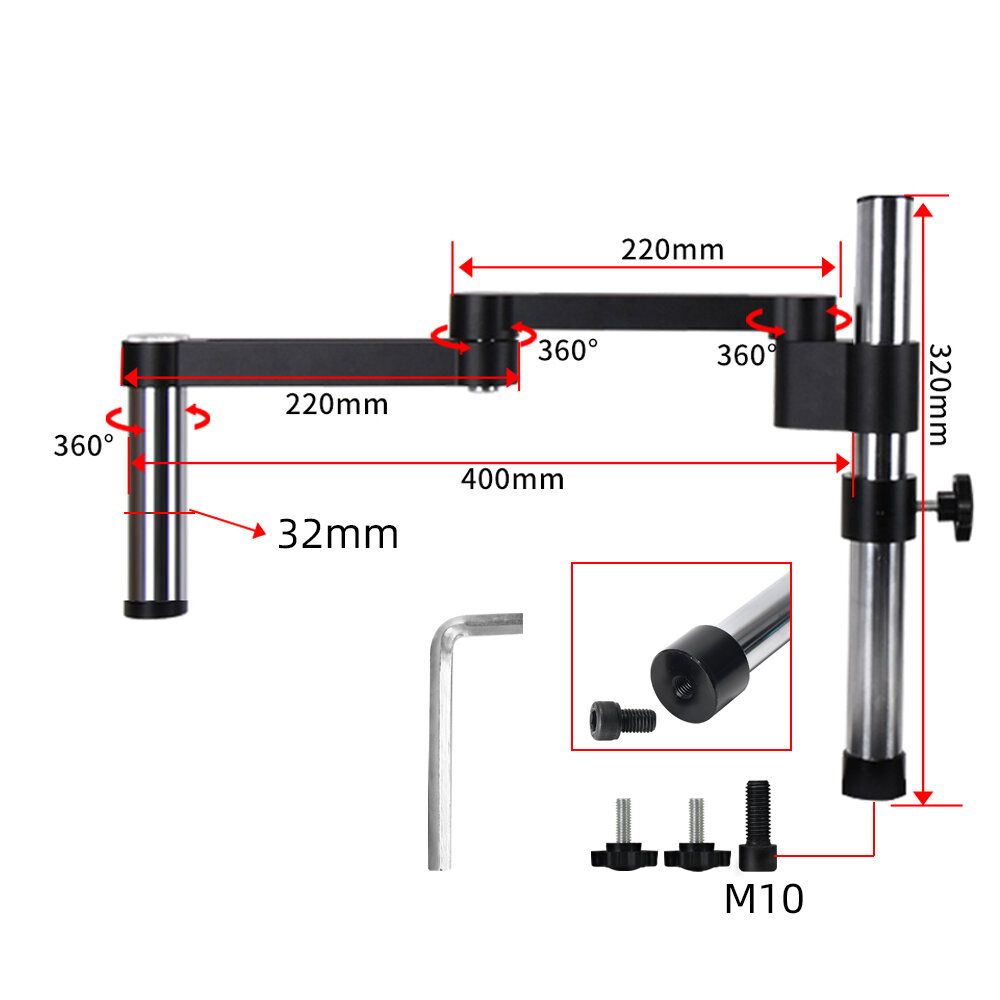

76mm Microscope Stand Features:
Expand the scope of operations,any orientation and angle observed the objectives.
Vertical Height : 320mm
Horizontal Distance:400mm
Fix: Screw
Applicable: 32mm focusing
Maximum working distance: 260mm
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
76mm apply stereo microscope
144 LED Microscope Ring Light：
144 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0\\\' (27mm)
Overall outside diameter: 1.77\\\' (45mm)
Working Distance: 27mm-45mm

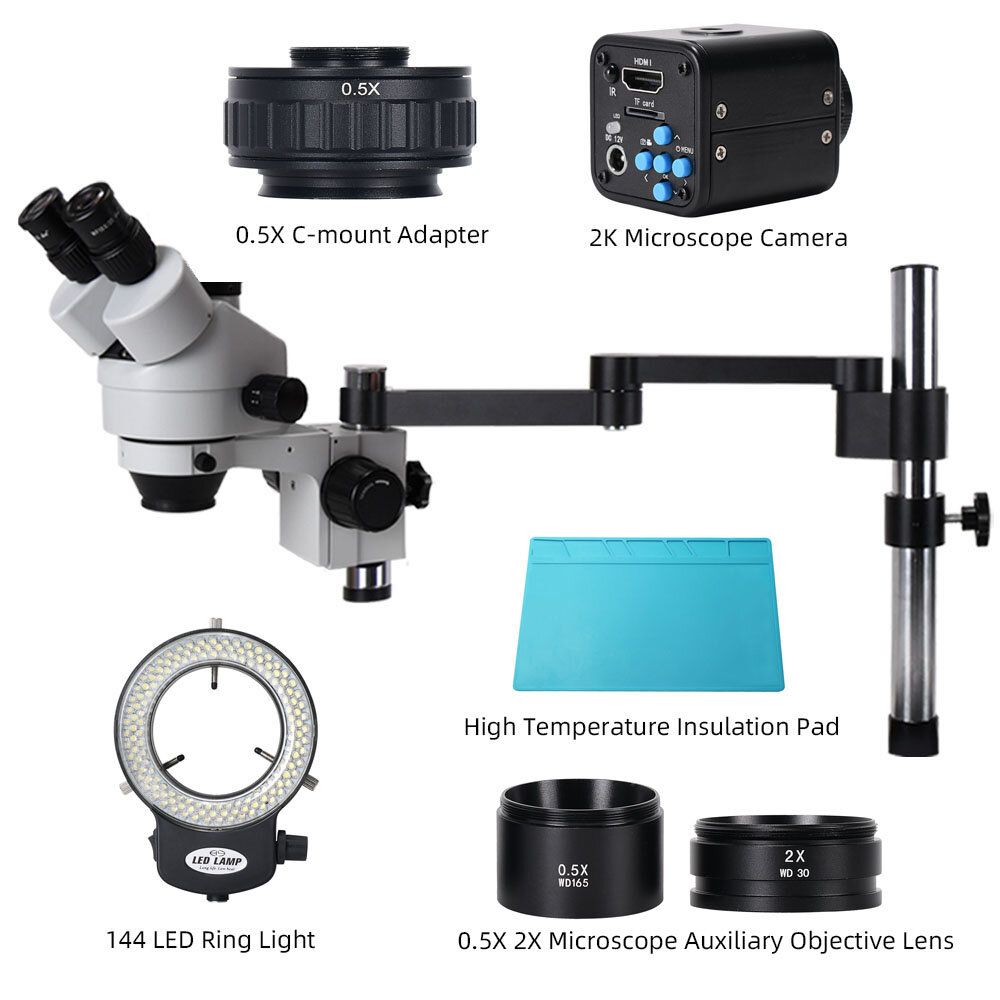

Package Included:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x Pair of Eye-Guards
1 x Dust Cover
1 x 0.5X C-mount Adapter
1 x 144-LED Ring Light with Adapter
1 x High Temperature Insulation Pad
1 x Articulating Arm Set
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
