?Specification:
Image sensor: 4K SONiYi IMX sensor 1/2.33 inch
Effective Pixels:SONiYi 12MP CMOS 1/2.33 IMX 4K SENSOR
Resolution:4K/2K/1080P 1080P（USB）
Sensor Size:1/2.33inch
Pixel Size:1.55 times; 1.55 mu;m
Image Resolution:4032 times; 3024 (12MP) (16:9)
Frame rate:60@FPS (4K)
Image Format:JPEG
WaveLength[nm]:400nm~700nm
Frame Rate:3840 times;2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS
Lens Fype:C / CS
Timing Photo/Record:Support Timing Photo/Record
Storage:TF Card, Max 256G
PC Support:Windows / Miac / Linux System PC Software with Measuring Function
Image Measurement：Support HAYEAR Measurement
Language:EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP
Output Interface:HDMI/USB Standard usb2.0 interface (Type B)
Image Scaling :7-Fold zoom
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable
Different color,5 horizontal line , 5 vertical line,any positions
Encode:H.264 /H.265 (High Profile)
Video format:MP4

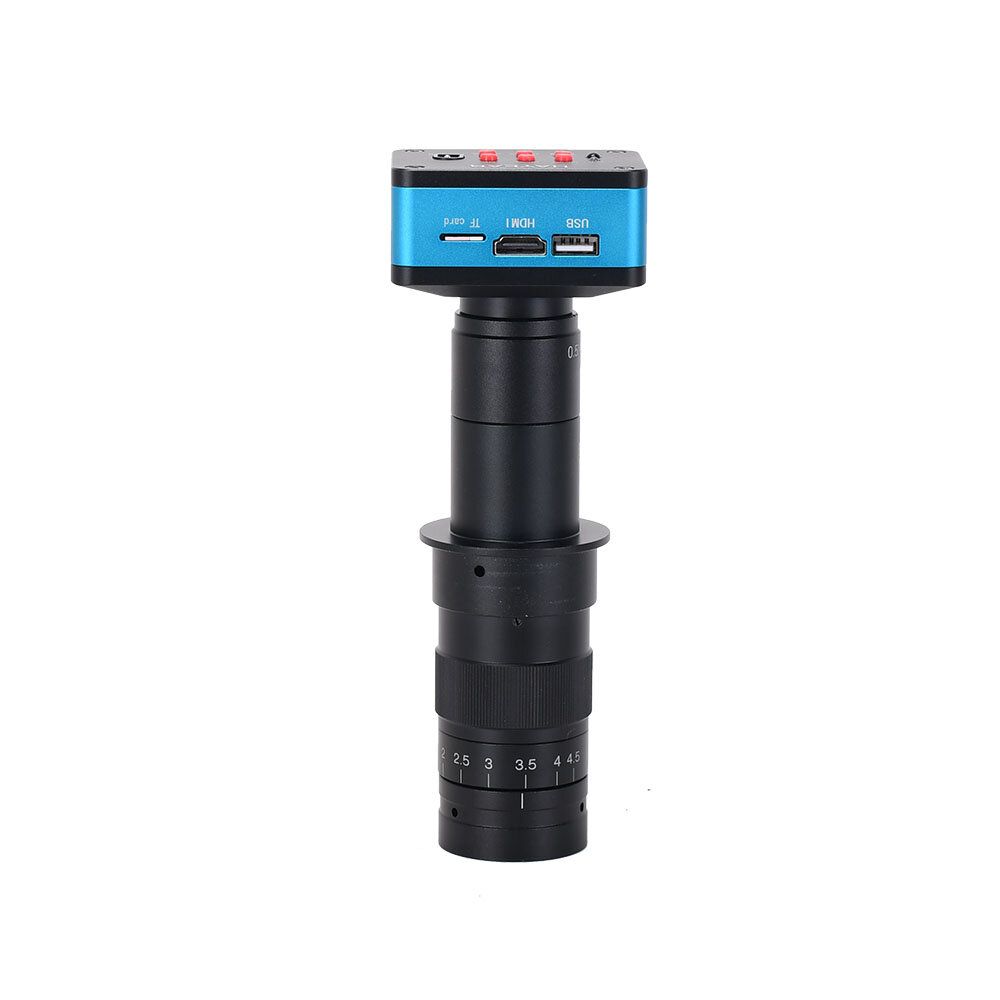

180X C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)

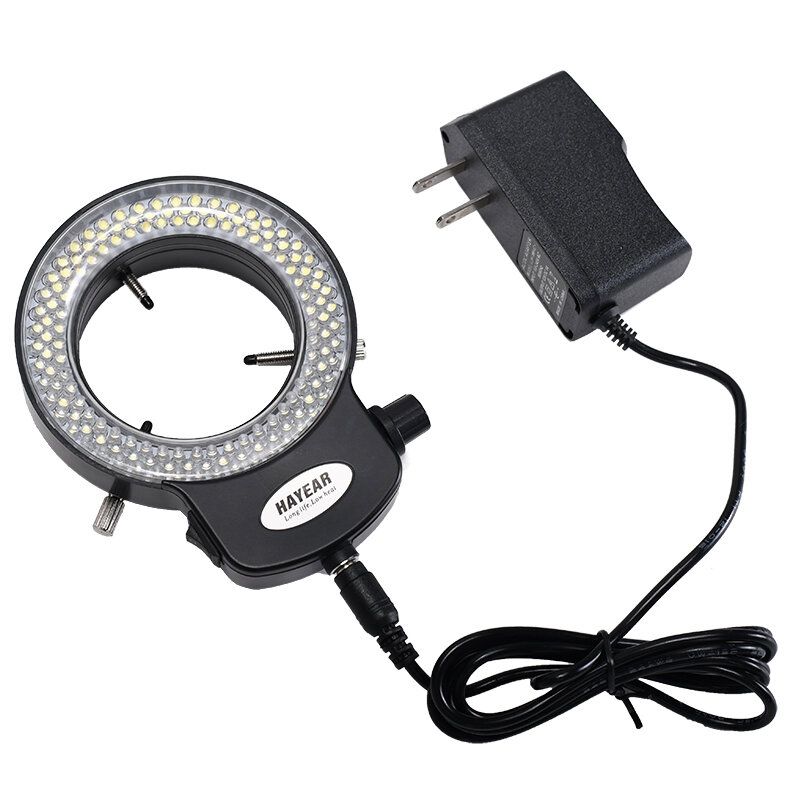

144 LED Ring Light:
Provides intense and focused shadow-free illumination
144 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0\\\' (27mm)
Overall outside diameter: 1.77\\\' (45mm)
Working Distance: 27mm-45mm

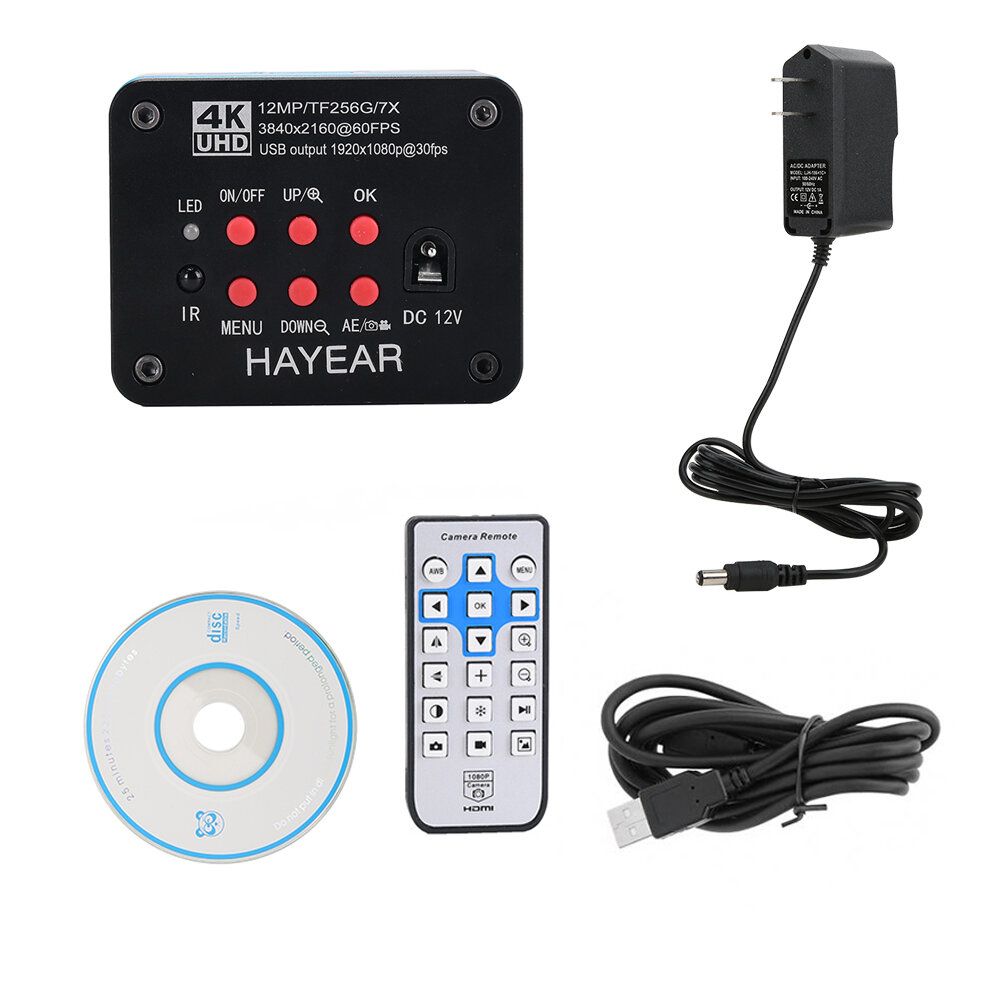

Package includes:

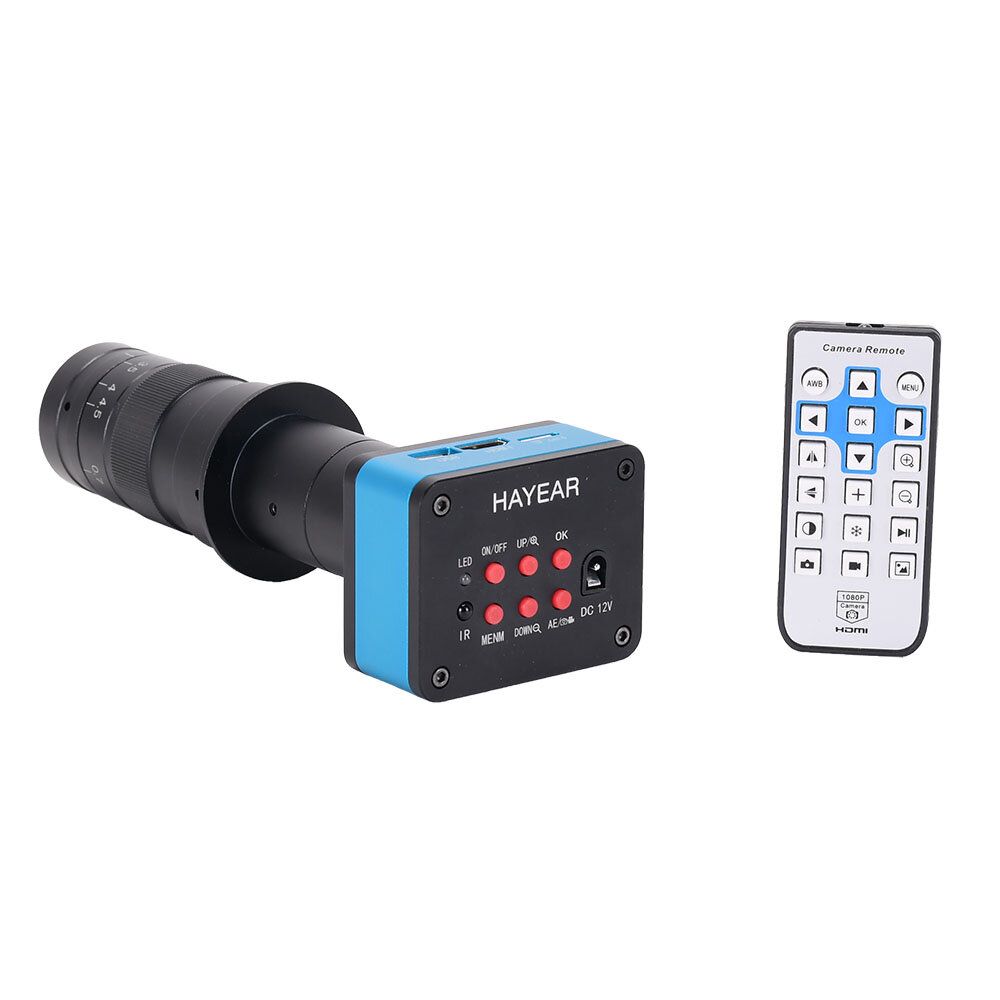

1 x 4K Microscope Camera
1 x 180X C-mount Lens
1 x 144 LED Light
1 x Power Supply
1 x USB Line
1 x Remote Control

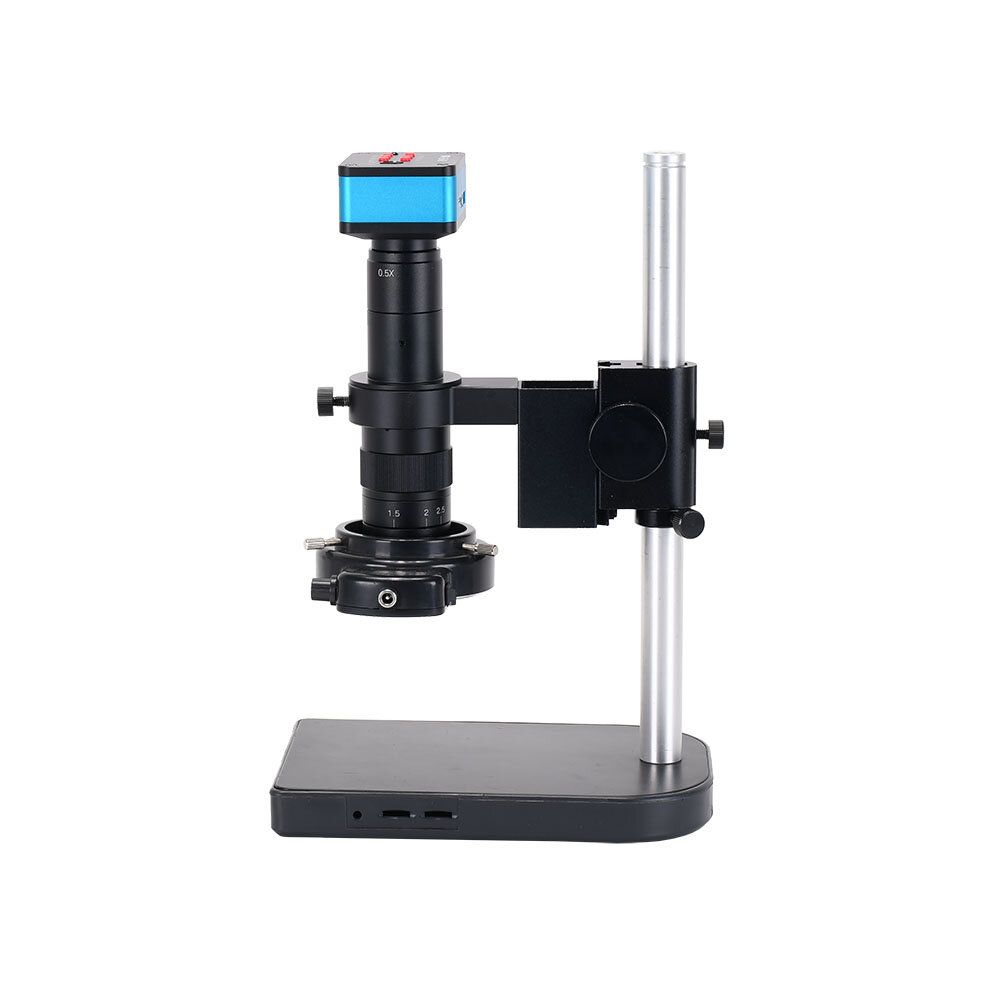

1 x Stand
1 x HDMI Line
Details picture:
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Image sensor: 4K SONiYi IMX sensor 1/2.33 inch
Effective Pixels:SONiYi 12MP CMOS 1/2.33 IMX 4K SENSOR
Pixel Size:1.55 times; 1.55 mu;m
Image Resolution:4032 times; 3024 (12MP) (16:9)
Frame rate:60@FPS (4K)
