Description:

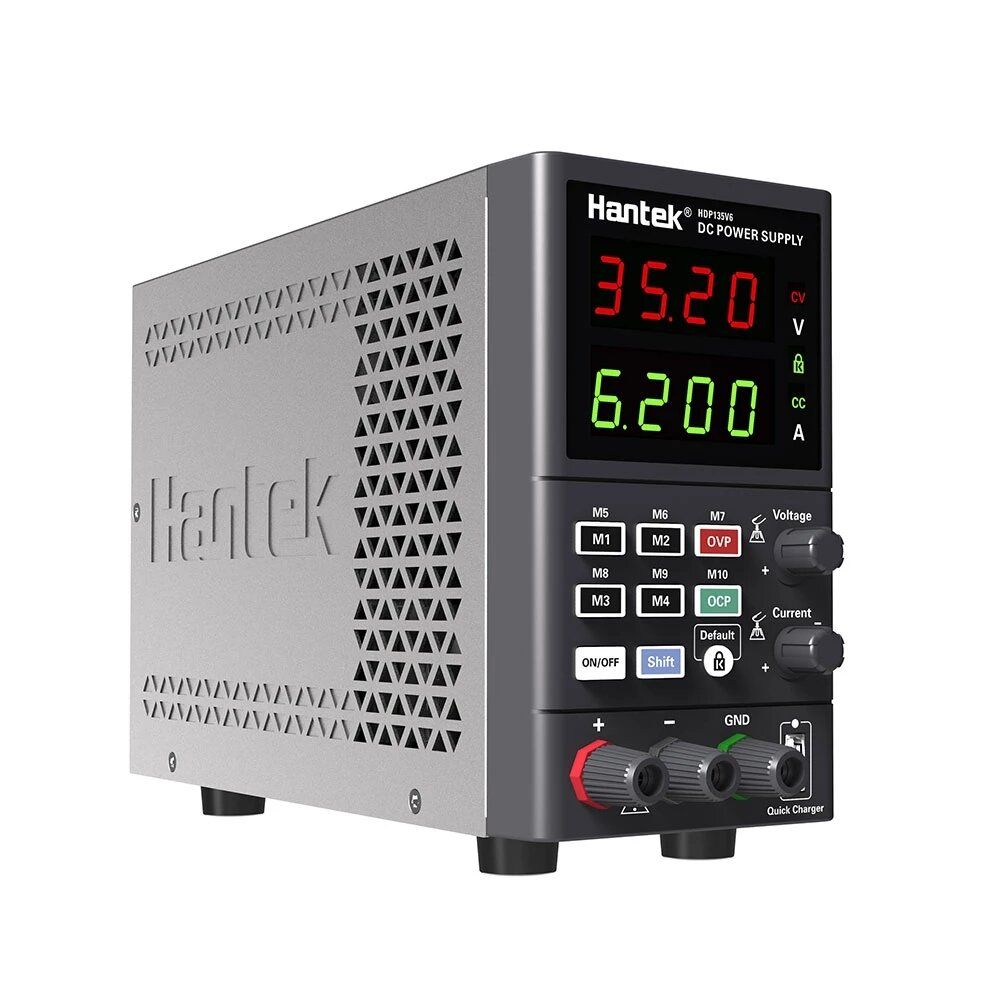

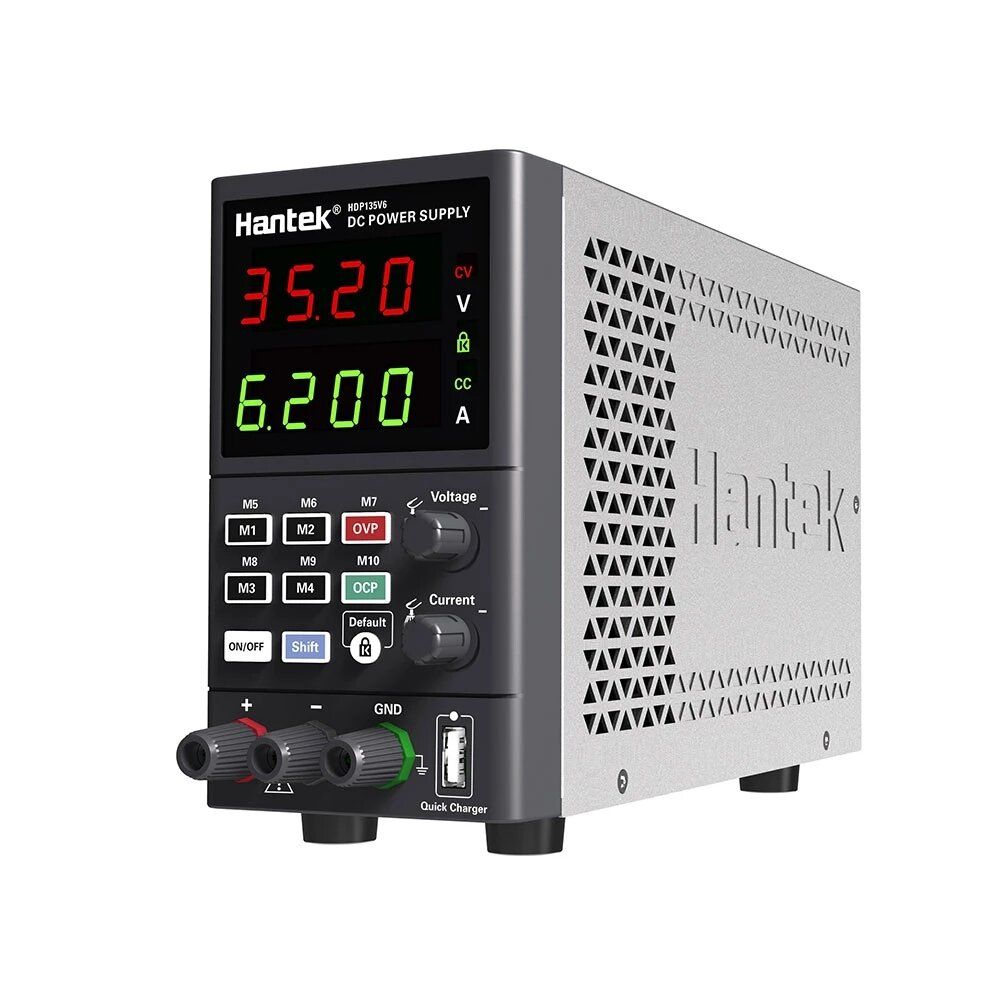

HDP10000 Series
Four-digit display voltage and current, resolution up to 10mV/1mA; Standard USB quick charge function, support a variety of quick charge protocols; Storage functions up to 10 groups; AC input voltage 230/115V switch, universal; Fully isolated serial port , software support multiple power supply control, easy to set up measurement and control or aging system; Over voltage, over current, overload, overheating, short circuit protection functions; Low noise temperature control fan, quiet and durable; 35V/6A output is stable and pure; On/Off output control, one-button panel lock function to prevent misoperation. It is an ideal power supply for laboratory, production line and home appliance maintenance.
Features:
-Four digit display voltage and current, resolution up to 10mV/1mA;

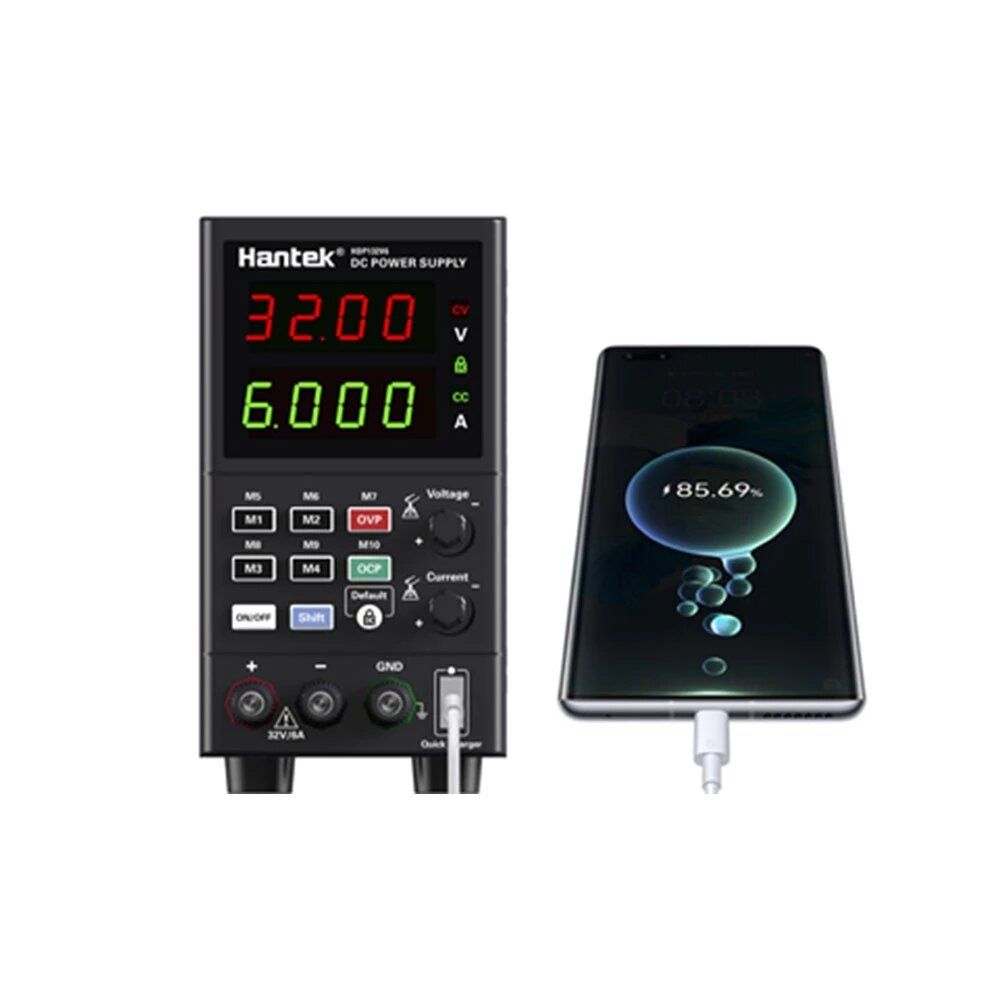

-Standard USB quick charging function, 5-12V output, supporting a variety of quick charging protocols;
-10 groups of data storage/retrieval functions;

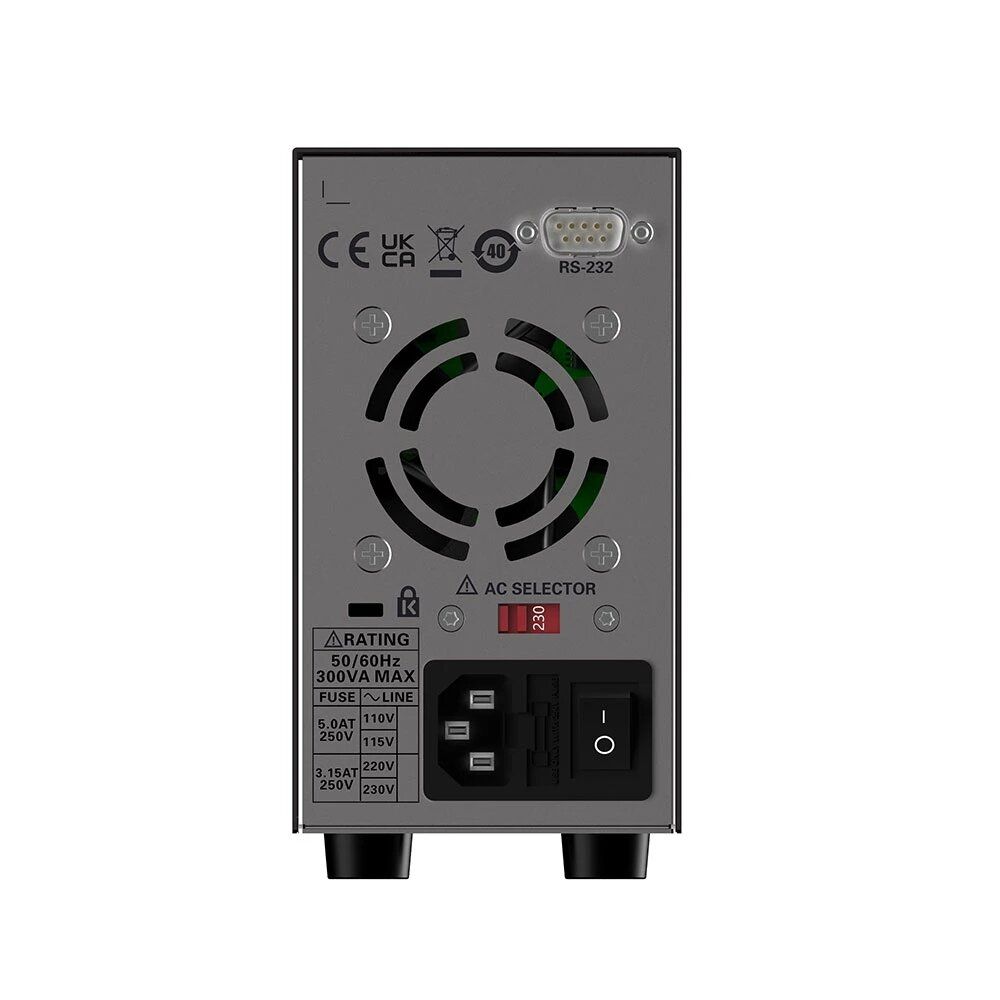

-AC input voltage 230/115V switch, universal;

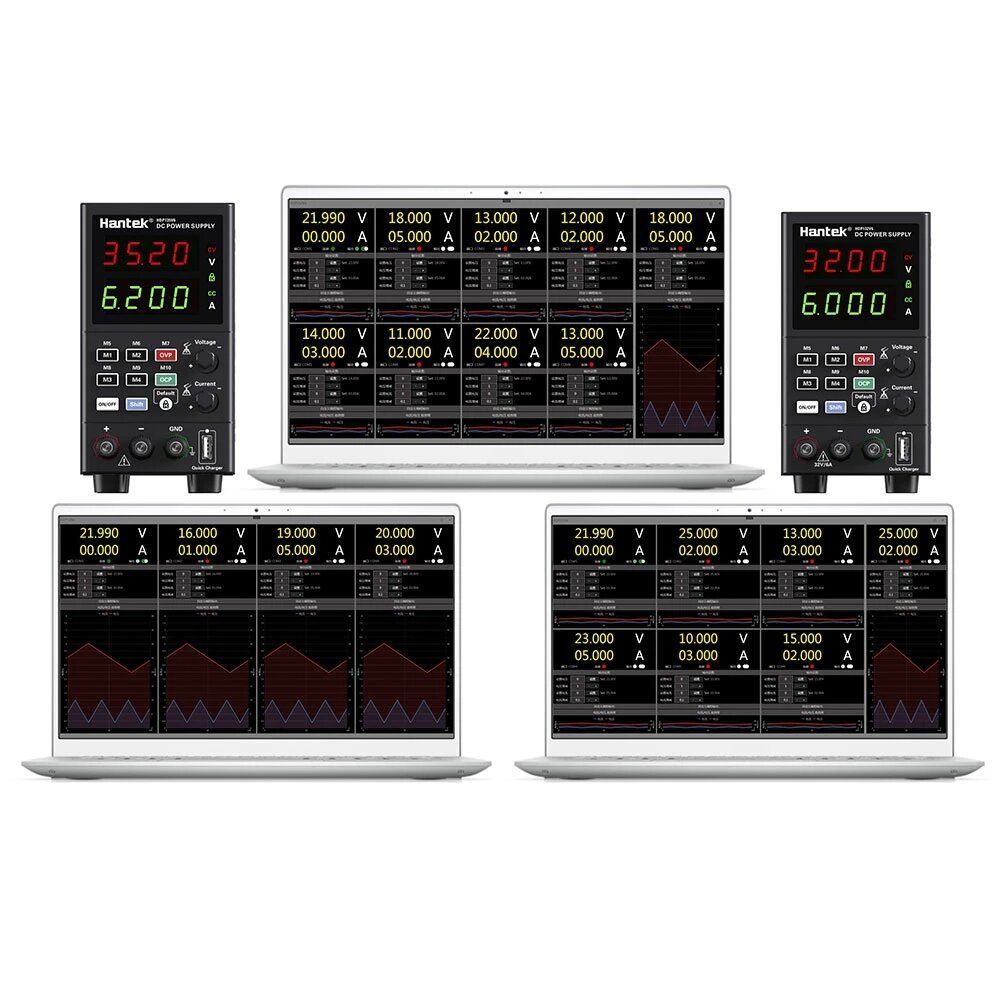

-Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system;
-Over voltage, over current, overload, overheating, short circuit protection functions;
-Low noise temperature control fan, quiet and durable;
-35V/6A output is stable and pure; On/Off output control, one-key panel lock function to prevent misoperation;
-Constant voltage (CV)/ constant current (CC) mode automatic switch, effectively protect the circuit;
-Two-stage adjustment topology, no impact on the load when the power is turned on;
-Ultra-thin body, light and easy to carry, excellent indicators, excellent quality, stable performance, strong durability.
Specification:
Model
HDP135V6
HDP135V6S
HDP135V6A
HDP135V6B
Channel
1CH
Storage
10 Groups of data
Output voltage/current
35V/6A
Input voltage
120 Vac plusmn; 10%, 220 Vac plusmn; 10%, 50/60Hz
220 Vac plusmn; 10%, 50/60Hz
110 Vac plusmn; 10%, 50/60Hz
Maximum output power
210W
Communication interface
None
RS232
None
None
Voltage
Load regulation
le;0.1% + 5 mv
Linear regulation
le;0.01% + 5 mv
Set resolution
10mV
Set precision
le;0.1% + 1 digits
Read back resolution
10mV
Read back accuracy
le;0.1% + 1 digits
Ripple
10mVrms
Current
Load regulation
le;0.2% + 3mA
Linear regulation
le;0.2% + 3mA
Set resolution
1mA
Set precision
le;0.2% + 3mA
Read back resolution
1mA
Read back accuracy
le;0.2% + 3 digits
Ripple
5mArms
