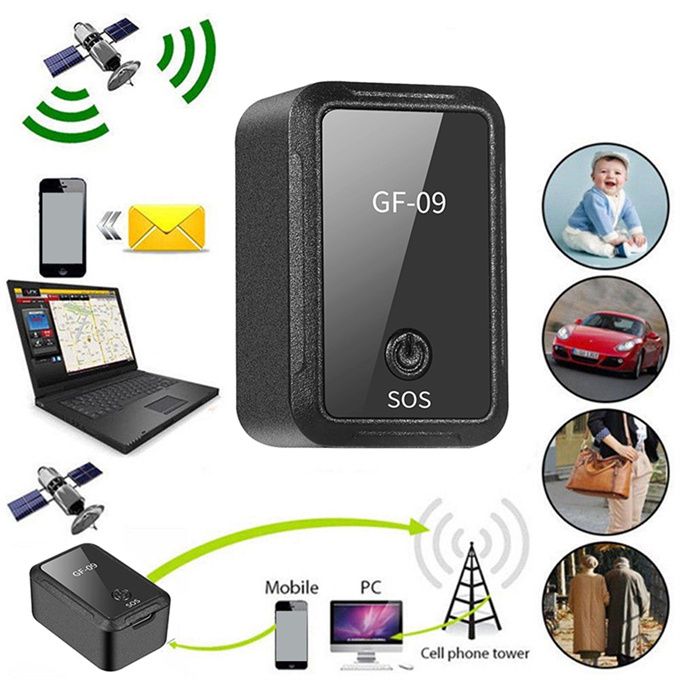

GF09 GPS Tracker Real Time Car Vehicle Locator
Note: Based on WIFI or reference signal positioning accuracy, the signal difference will affect the positioning accuracy
GF09describe:
multifunctional design
Remote pickup, remote recording, APP
Listening, recording, voice-activated callback, real-time tracking,
Shocking anti-theft alarm, SOS one-key help, historical track
Full support for WiFi, LBS, GPS and Beidou
HD Silicon Microphone
electric fence
Supports multiple power saving modes
Low battery reminder
Remote control switch
Built-in strong magnet
定位精度:10-50米
Memory support: TF card 32GB (not included)
Recording area: 80 square meters
Platform view: SMS + APP + computer
Communication frequency: 850 / 900 / 1800 / 1900MHz
Charging input: 5V voltage
Operating temperature: -20 - 85 degrees Celsius
Network standard: GSM/GPRS
Body memory: 1024M
Package Included:
1 GPS Tracker
1 x USB cable
1 x English manual
1. Preparation before use
1. Prepare a nano sim card compatible with 2G GSM network. If it is a new SIM card, it will take 24 hours to activate normally; you also need to set the PIN code of the sim card
2. Open sim card GPRS and caller ID services
3. Scan the QR code on the homepage to download the 365GPS APP
2. Power on
Insert the nano sim into the tracker's sim slot (the sim and slot are missing angular alignment), the power button is the black button next to the sim slot.
Power on: press and hold for 3 seconds
SOS: Press and hold for 3 seconds in the power-on state
Power off: long press for 10 seconds (with sim card)
Power off: long press for 3 seconds (without sim card)
3. Account login
Each device has a label, 15 digits - this is the IMEI number, just the login ID. Open the 365GPS APP:
Login ID: IMEI number
Password: 123456
4. LED lights
Red: battery, slow normal, fast low battery, charging light
Yellow: GSM, slow normal, fast search signal, no card
Blue: GPS, slow normal, fast search, bright get GPS without sim
5. SMS instructions
8.1 Query IMEI number: ''imei#''
8.2 Restore default password: ''pwrst''
8.3 Factory reset: ''1122''
8.4 Set the upload interval: ''Time#Minute'' (minute range 1-120 minutes); ''MD#Second'' (second range 10-60 seconds)
8.5 Turn LED on/off: ''LED#ON/LED#OFF''
8.6 APN setting: ''APN#parameter#account#password#''
8.7 Remote reboot: ''SYSRST''
8.8 Vibration alarm: ''6666#on# / 6666#off#''
8.9 Modify IP address: ''DOMAIN# IP#Port ID#''
6. SMS operation
000#Number#Number#Number# (bound to three mobile phones)
111 (SMS recording pause for 10 minutes)
222 (Pause recording for 10 minutes, if there is a sound, it will automatically record for 10 minutes, 10 minutes each time)
333 (voice-activated callback bound number)
444 (delete all contents of memory)
555 (off all functions)
666 (vibration alarm SMS to bound number)
777 (Vibration alarm call binding number)
888 (play memory recording - this requires speakers)
999 (SMS Coordinate Positioning)
Key Features
multifunctional design
Remote pickup, remote recording, APP
Listening, recording, voice-activated callback, real-time tracking,
Vibration anti-theft alarm, SOS one-key for help, historical track
Full support for WiFi, LBS, GPS and Beidou
HD chip microphone
electric fence
Supports multiple power saving modes
Low battery reminder
Remote control switch
Built-in strong magnet
What's In the Box
Package included:
1 x GPS Tracker
1 x USB Cable
1 x English Manual
1. Preparation Before Use
