Please Leave a Message about the Model and Inform the Customer Service to Modify the Price.
Duplex piece | GFC200-06 | 65.52 |
Duplex piece | GFC200-08 | 65.52 |
Duplex piece | GFC300-08 | 124.02 |
Duplex piece | GFC300-10 | 124.02 |
Duplex piece | GFC300-15 | 124.02 |
BbpToThe High-Precision Numerical Control Equipment Imported from Japan Is Used for Processing. the Main Parts Are Aluminum Die Castings and the Oil Cup Is Made of Polycarbonate. The Structure Is Compact and the Appearance Is Beautiful.
BbpTo the Size Is the Same as That of the Yadeke Type, Which Can Be Replaced
○Standardized Module Design Is Adopted, Which Can Be Combined and Decomposed Arbitrarily. The Product Design Is Reasonable and Easy to Use, and Can Meet the Use Requirements of Various Pneumatic Systems.
○ Transparent Inspection Cover, You Can Directly Observe the Amount of Oil Dripping and Water Accumulation.
○ High Strength Resin (Polycarbonate) Protective Cover, Safe and Reliable to Use.
※Product Specifications ·Technical Parameters※

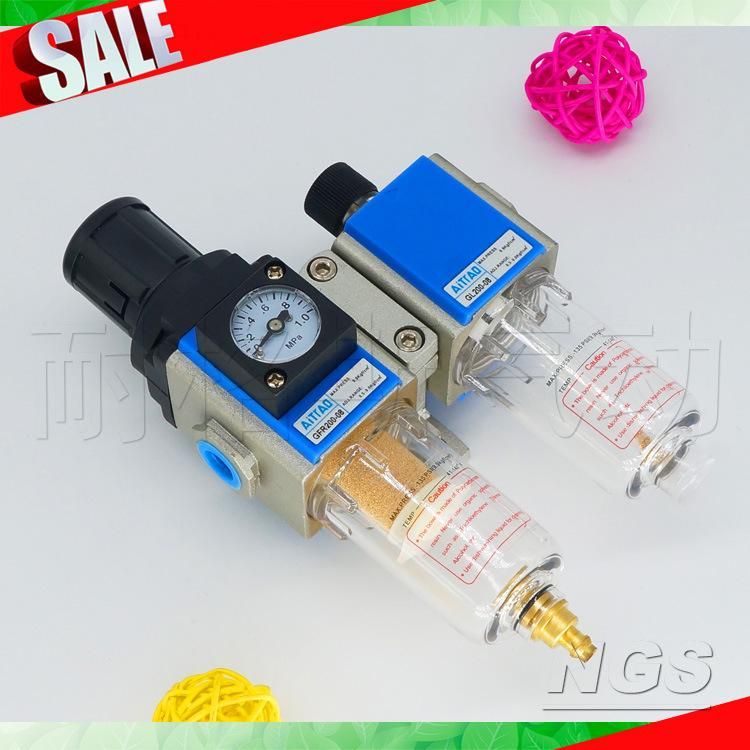

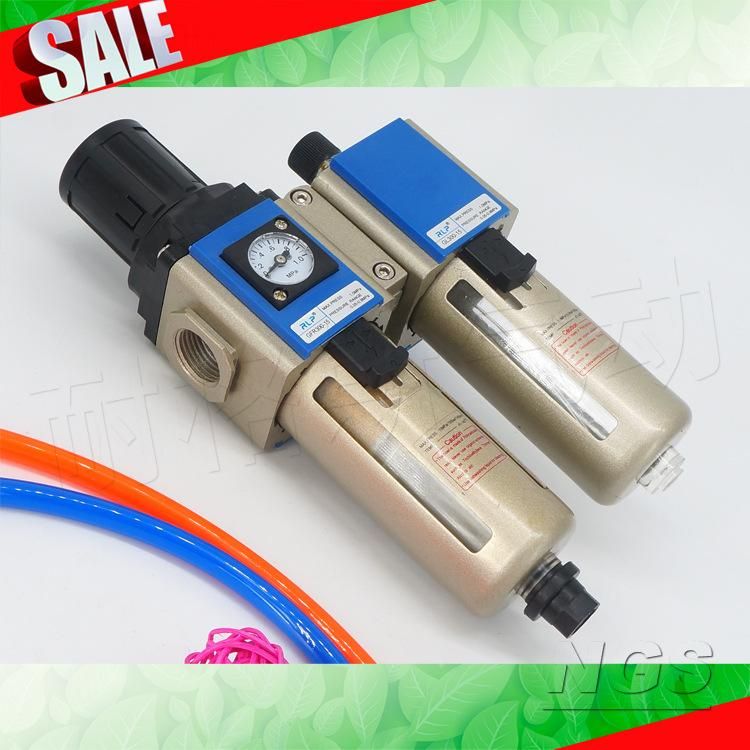

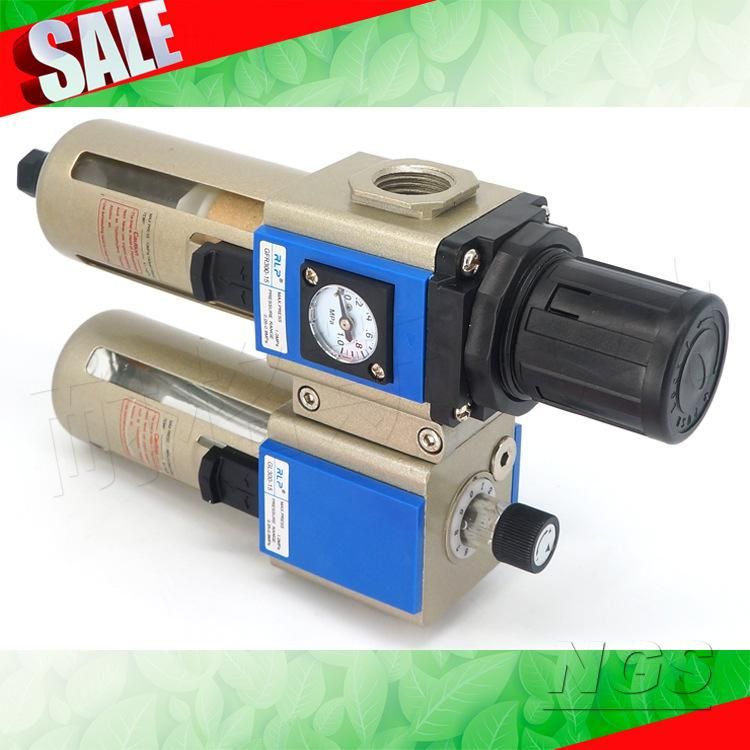

※ Product Big Picture ※
※ Product Application ※
Air Treatment Components Are the Basis for the Normal Use of Pneumatic Components and the Guarantee for the Performance and Service Life of Pneumatic Systems!
the Integrated Design of Filtering and Voltage Regulation Is Convenient and Small in Size. Pneumatic and Hydraulic Transmission Are Different, the Compressed Air Output by One Air Compressor Station Can Usually Be Used by Multiple Pneumatic Devices. the Air Pressure of the Air Compressor Station Is Higher than That Required by Each Device, and the Pressure Fluctuates Greatly. Therefore, the Air Supply Pressure of Each Pneumatic Device Needs to Be Decompressed with a Pressure Reducing Valve and Kept Stable.
Impurities Contained in Compressed Air Include Solid Dust Particles Sucked into the Air Compressor Together with Air, Rust and Other Solid Impurities Falling off from the Inner Wall of the Pipeline. in Addition, after the Air Sucked into the Air Compressor Is Compressed and Boosted, It Is Sent out through the Aftercooler and Air Storage Tank. When the Temperature of the Air Drops, Oversaturated Water Will Be Precipitated. Most of the Moisture Is Separated by the Aftercooler, but a Small Part Still Enters the Control Circuit and Components, Causing Corrosion of Parts and Washing Away the Lubricating Oil Film. at the Same Time, the Compressed Air Also Contains Deteriorated Harmful Oil Mist, Which Is Suspended in the Air and Is Easy to Adhere to the Sliding Parts and Mix with Other Impurities to Form Sludge, Which Is Often Accumulated in the Narrow Air Channel Gap, the Device Does Not Work Properly.Therefore, before the Compressed Air Enters the Control Circuit, the Air Filter Is Installed to Remove These Harmful Impurities.
Atomized Lubricator Function: Reduce the Friction between Relative Moving Parts, Reduce the Wear of Sealing Materials, Prevent Leakage, Prevent Corrosion of Pipelines and Metal Parts, and Prolong the Service Life of Components.
※ Installation and Use ※
Install the Filter to Make the Drainage Mechanism Vertically Downward and Keep a Certain Distance from the Ground for Drainage and Replacement of the Filter Element. Filters Are Used to Filter Solid Impurities and Water Droplets in Compressed Air. They Cannot Filter out Air Sols and Water Vapor. Therefore, the Filter Position Should Be Set after the Air Dryer, as Close as Possible to the Pneumatic Components of the Required Air Supply. Condensate in Filter Cup Should Be Discharged Regularly. If Manual Operation Is Inconvenient, It Should Be Considered to Choose the Filter with the Mechanism of Automatic Placement. Check the Blockage of the Filter Element Regularly. When the Pressure Drop Value Is Greater than 0.05mpa, Replace It in Time. for the Washable Filter Element, Continue to Use It after Cleaning. for Filter Cup Cleaning, Neutral Cleaning Agent Should Be Selected for Cleaning, and Solvent Cleaning Is Strictly Prohibited.
Key Features
Order Number: Gfc
Brand: NGS
Item No.: Gfc
Model: Gfc200
Voltage Regulation Range: 0.05-0.85mpa
Maximum Operating Pressure: 1.0mpa
Caliber: G1/4mm
Recommended Oil: Turbine No. 1 Oil Isovg32
Material: Alloy
Filtering Accuracy: 40u
Weight: 0.7kg
Operating Temperature: 60℃
Whether Cross-Border Export Is Exclusively Available: No
Product Specifications: GFC200-06 1 Point, GFC200-08 2 Points, GFC300-08 2 Points, GFC300-10 3 Points, GFC300-15 4 Points, GFC400-15 4 Points
Specification: G1/4
Scope of Application: Filter Pressure Regulating Spray Mist
Structure: Ordinary
