The

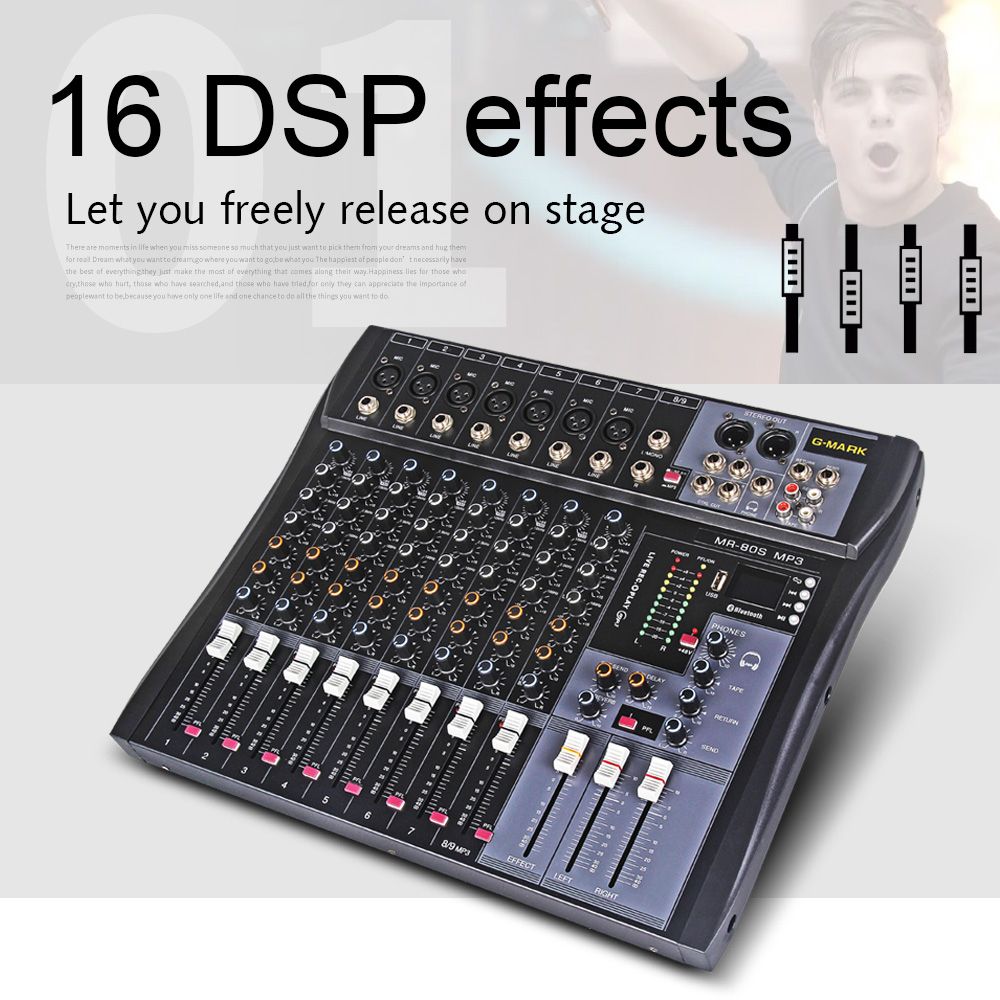

G-MARK MR80S system is a 9-channel audio mixer with a truly user-friendly yet pleasing sound. The MK800MP3 consists of all the important mixer functions. Built-in DSP sound effect processor Built-in MP3 player supporting various music formats LED display to show playing statusUltra Musical 3-band EQ on all channels Microphone line input Peak LED indicator for all channels High precision level indicator Phantom power switch (+ 48V)Sealed rotary control knob to resist dust and dirt Robust steel chassis Multi-voltage power supplies used worldwide

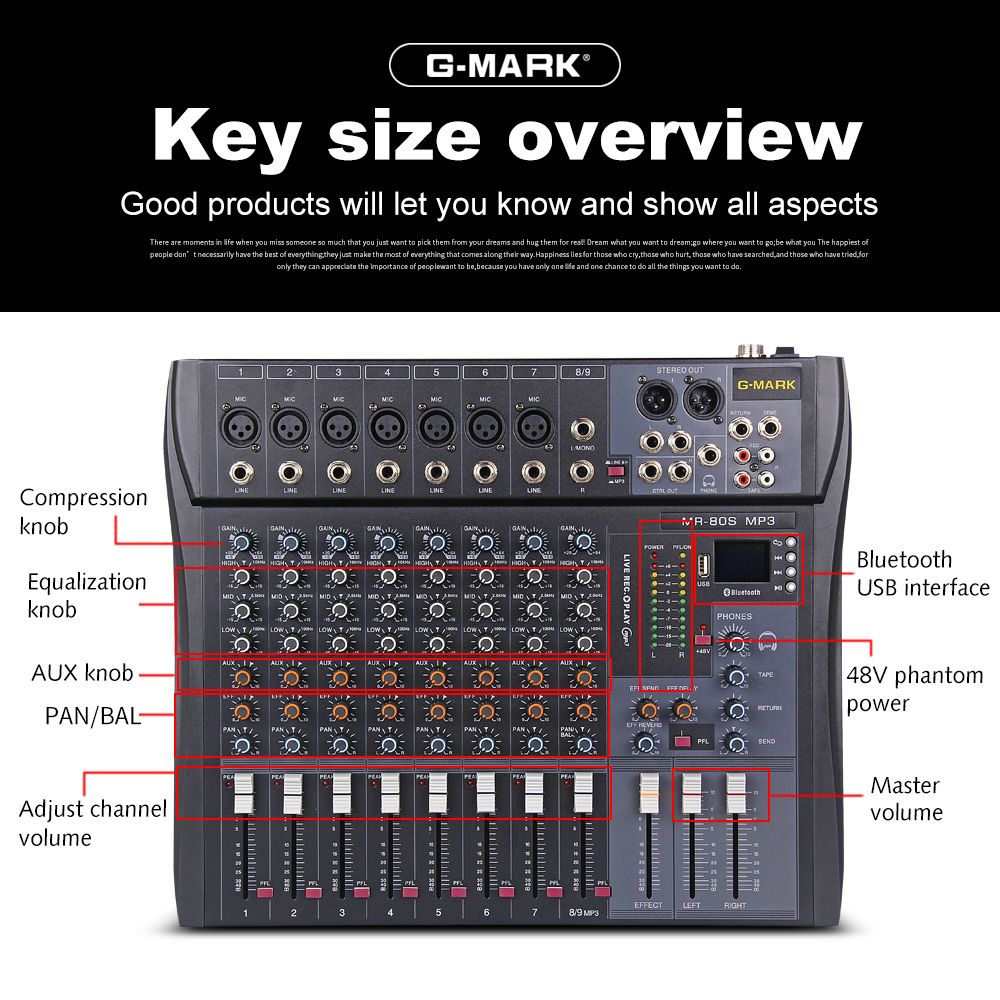

FEATURES ON PANEL
1. BLANCED INPUT
Electronically Balanced inputs acceptable a standard XLR male connector.
2. MONO INPUT
This is MONO input channel. The socket make up of two 1/4 jack that let"LEFT","IGHT" input.

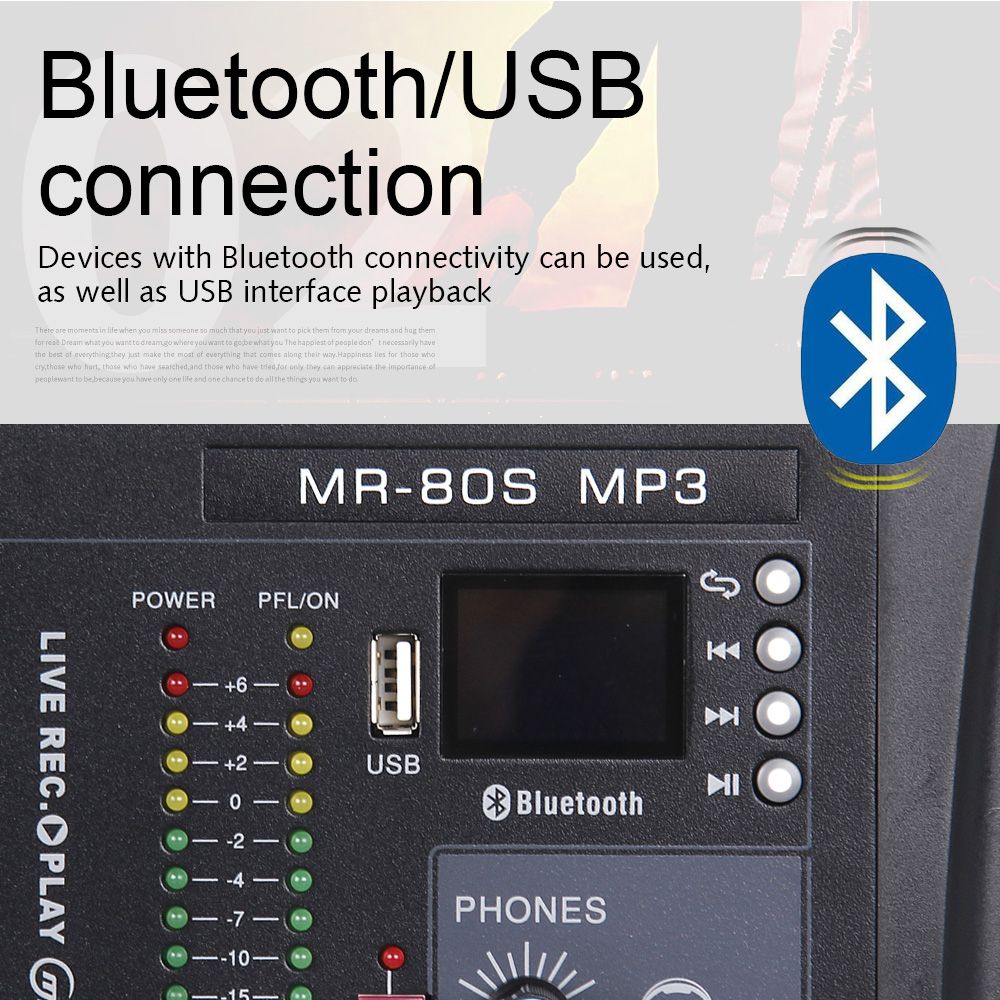

3.STEREOI USB transform button
This button is use for control STEREO or USB.When it is use for STEREO, you should turn to SETEREO state, When it is use for USB, you .should turn to SETEREO state.
4.LINE INPUT
The unbalanced Mic input is provided for the use of a unbalance mic and is designed to accept a unbalanced high impedance input signal.
5. GAIN CONTROL
Adjusts input sensitivity from -60dB to -20dBwith the -20dB pad switch in the out position.and -40dB to 0dB when the -20dB pad switch is pushed.

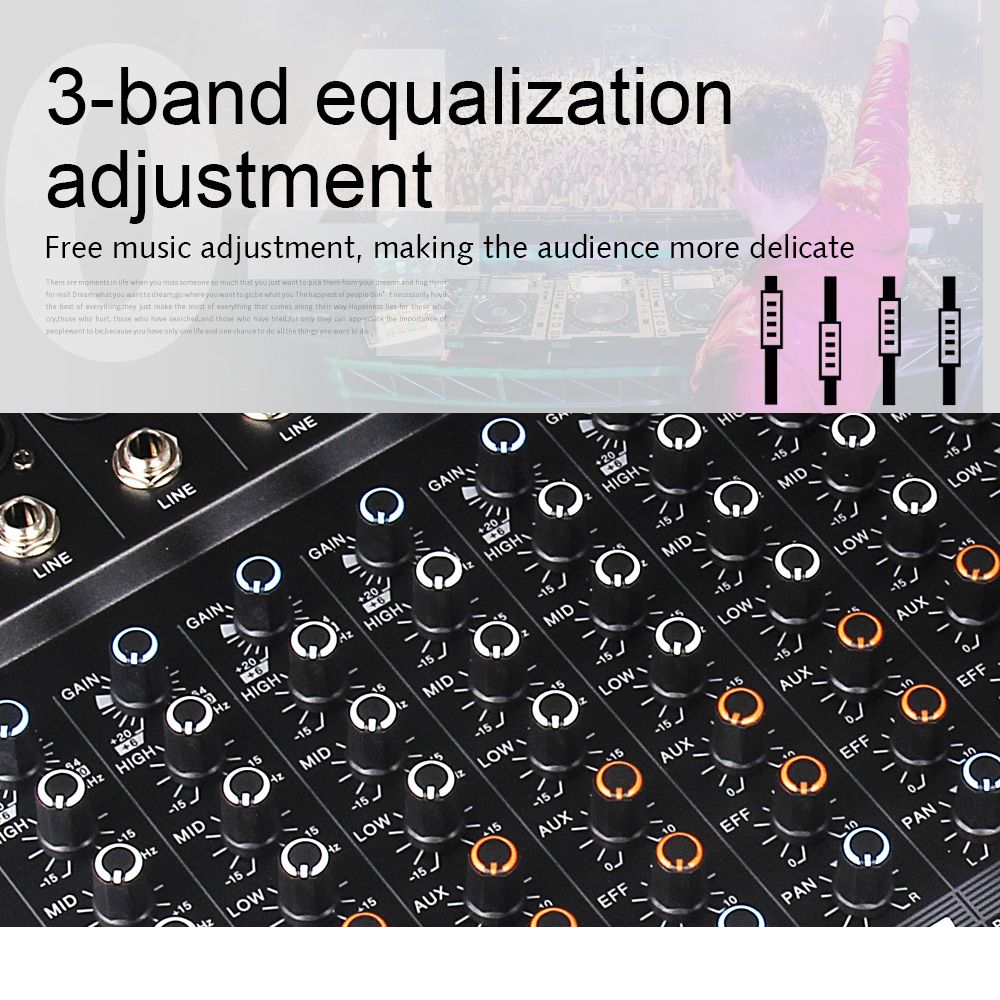

6. HIGHT
Control the hight frequency tone of each channel.
7.MID
This has a function which controls the middle frequency tone of each channel.
8.LOW
Control the low frequency tone of each channel.
9.AUX OUT CONTROL
This button control electrical level in order to reduce impact on mix signal.
1 0.EFFECT CONTROL.
11.PAN CONTROL.
This has a function which distributes the signal level between left and right channels to make a stereo sound effect.
12.PEAK INDICATOR
Indicate the output signal level of the left and right channels, Power on red when level lesson 3dB.
13.FADER
The push faders are used to adjust the output signal level from each channel.
14. PFL
Press the button you can monitor the signal of present channel

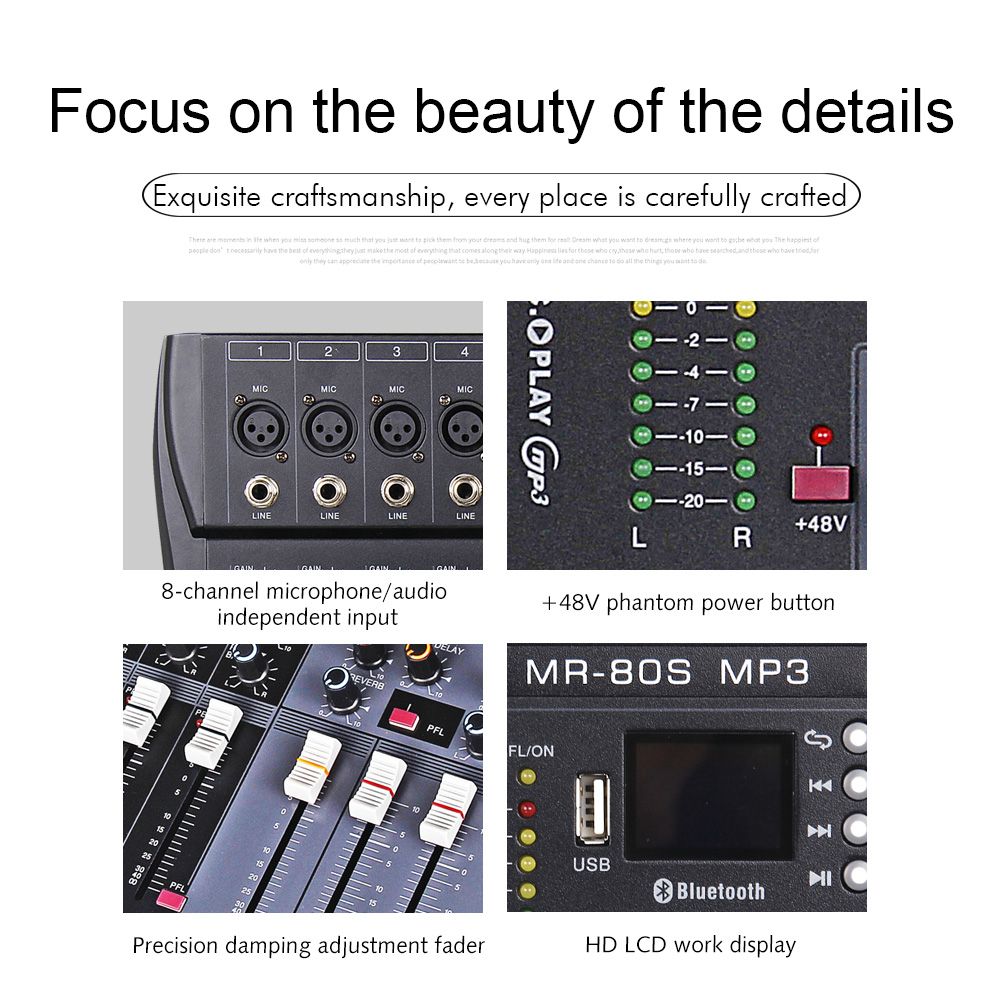

15.+48V phantom power
What's In the Box
mixercable
