FT232RL USB TO DMX512 DMX 512 Controller RS485 Dongle

₦ 52,103.65 ₦ 54,845.95 -5%

0 No Reviews

Product SKU: RENG164964

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Size (L x W x H cm)	10×6×3
Weight (kg)	0.078
Main Material	plastic

Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled on the chip - No USB-specific firmware programming required. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity. Fully assisted hardware or / X-Off software handshaking. Data transfer rates from 300 to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 to 1 Megabaud (RS232).
In-built support for event characters and line break condition. New USB FTDIChip-ID? feature. New configurable CBUS I/O pins. Auto transmit buffer control for RS485 applications. Transmit and receive LED drive signals. New 48MHz, 24MHz,12MHz, and 6MHz clock output signal for driving external MCU or FPGA. receive and transmit buffers for high data throughput. 256 receive buffer and 128 transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout. Synchronous and asynchronous bit bang mode interface with RD# and WR# strobes. New CBUS bit bang mode option. Integrated 1024 bit internal EEPROM for I/O configuration and storing USB , , serial number and product description strings. Device supplied preprogrammed with unique USB serial number. Support for USB suspend / resume. Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O . Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic. True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input. High I/O pin output drive option. Integrated USB resistors. Integrated power-on-reset circuit. Fully integrated clock - no external crystal, oscillator, or resonator required. Fully integrated AVCC supply filtering - No separate AVCC pin and no external filter required.
UART signal inversion option. USB bulk transfer mode. 3.3V to 5.25V Single Supply Operation. Low operating and USB suspend current. Low USB bandwidth consumption. UHCI / OHCI / EHCI host controller compatible. SB 2.0 Full Speed compatible. -40°C to 85°C extended operating temperature range.

material:plastic
Color as shown
Drivers are available which allow devices to work with the following operating :

Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows ME
Windows 98

OS 9
OS 8
Windows .NET (Version 4.2 and greater)
Android
Windows RT
Support for WinCE7.0
NOTE: have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not certified.
Differences in Driver API
For most of these operating two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a interface.

Package Contents:

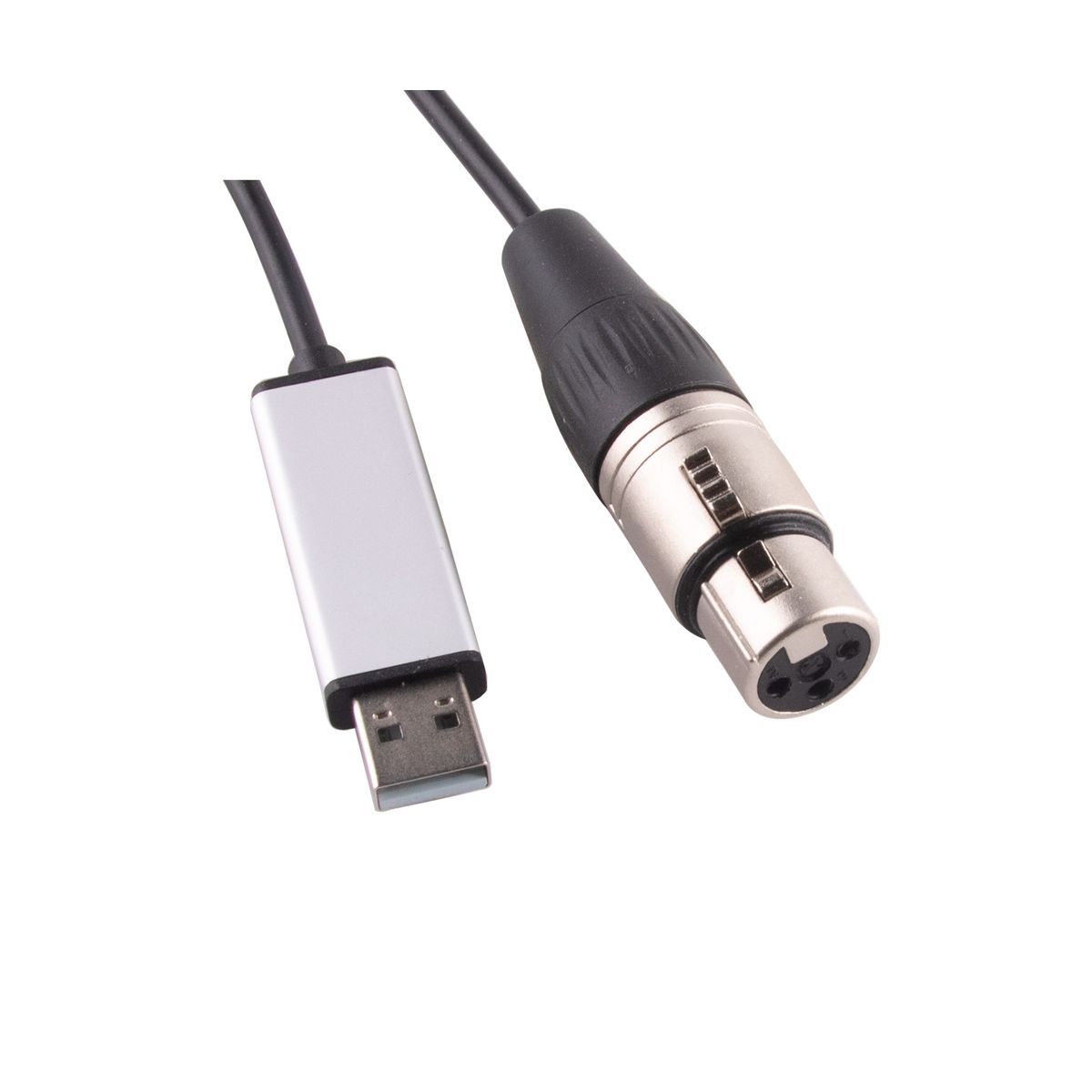

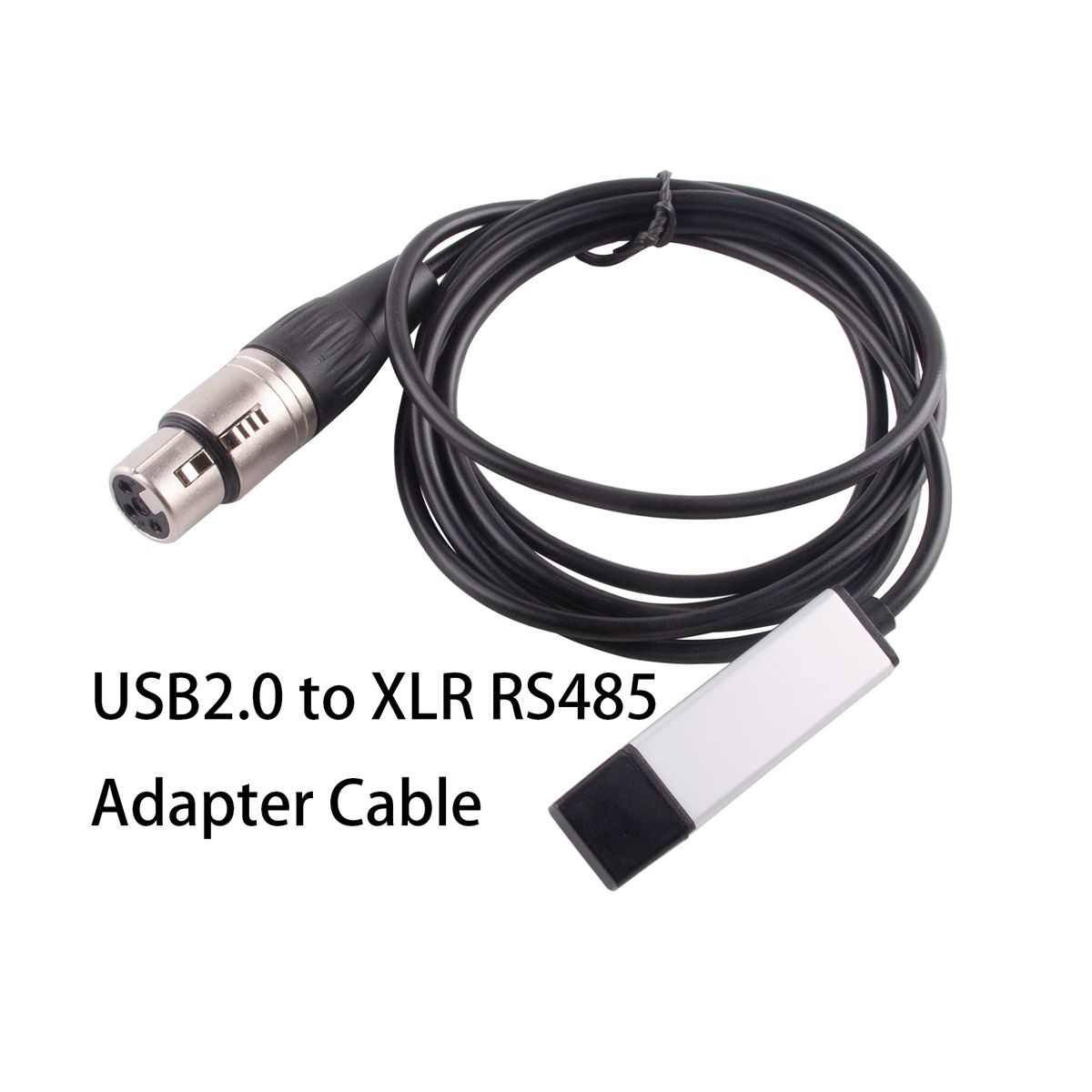

1 X USB to rs485 adapter dmx interface cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
3. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! ! !

Key Features

FT232RL USB TO DMX512
FT232RL USB TO DMX512
DMX 512 Controller
RS485 Dongle Interface Adapter
or Freestyler Lightkey

What's In the Box

1 X USB to rs485 adapter dmx interface cable
