Buy Free Ship Domoticz On Raspberry Cable P1 Kabel Smart Slimme

Free Ship Domoticz On Raspberry Cable P1 Kabel Smart Slimme Meter DSMR Dutch FTDI USB To RJ11 RJ12 TTL For Kaifa Iskra Kamstrup

₦ 26,305.87 ₦ 41,755.35 -37%

0 No Reviews

Product SKU: RENG372131

Brand: Generic

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Delivery Information

Shipped from overseas and normally delivered between 20-35 days

Have one to sell? Sell on rehmie

Product Specifications
Description

Model	RONjsqlianjieqi4482
Production Country	China
Size (L x W x H cm)	101010
Weight (kg)	0.2
Color	Multicolor
Main Material	PVC

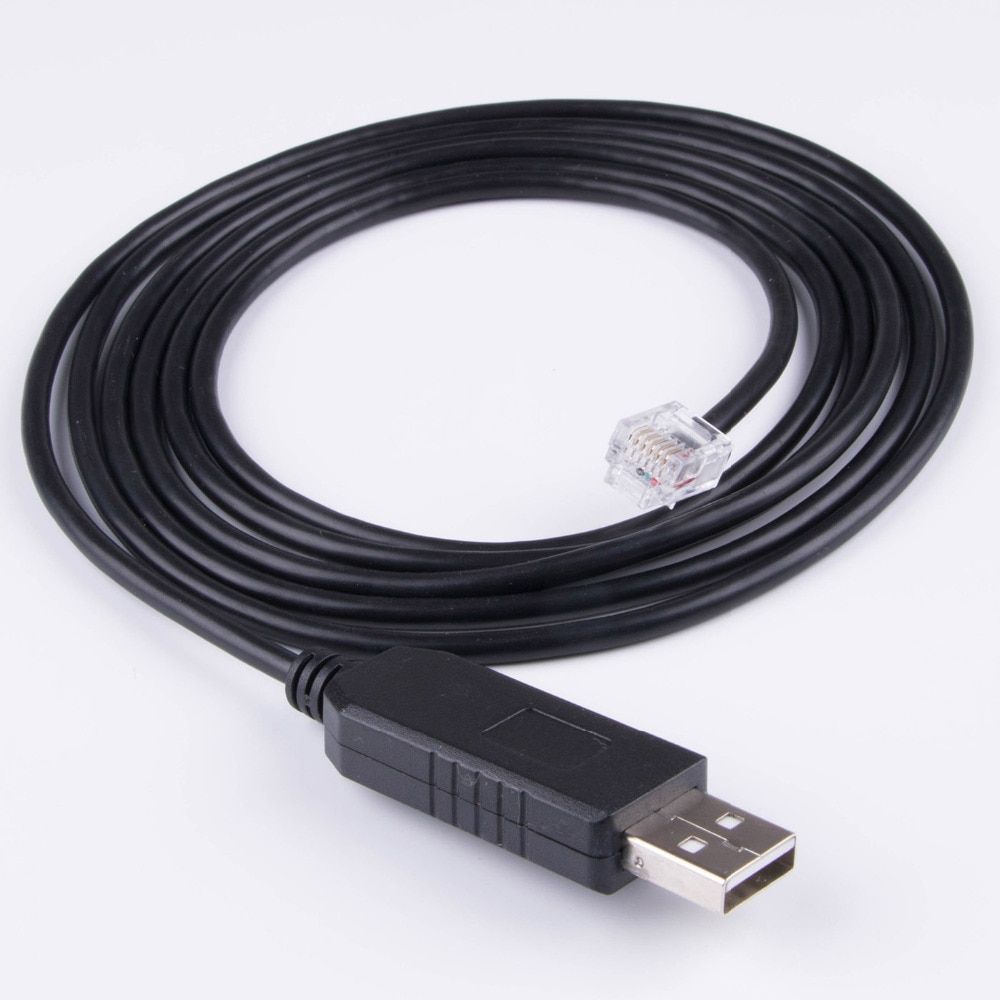

Domoticz on Raspberry Cable P1 Kabel Smart Slimme Meter DSMR Dutch FTDI USB to RJ11 RJ12 TTL for Kaifa Iskra Kamstrup Landis

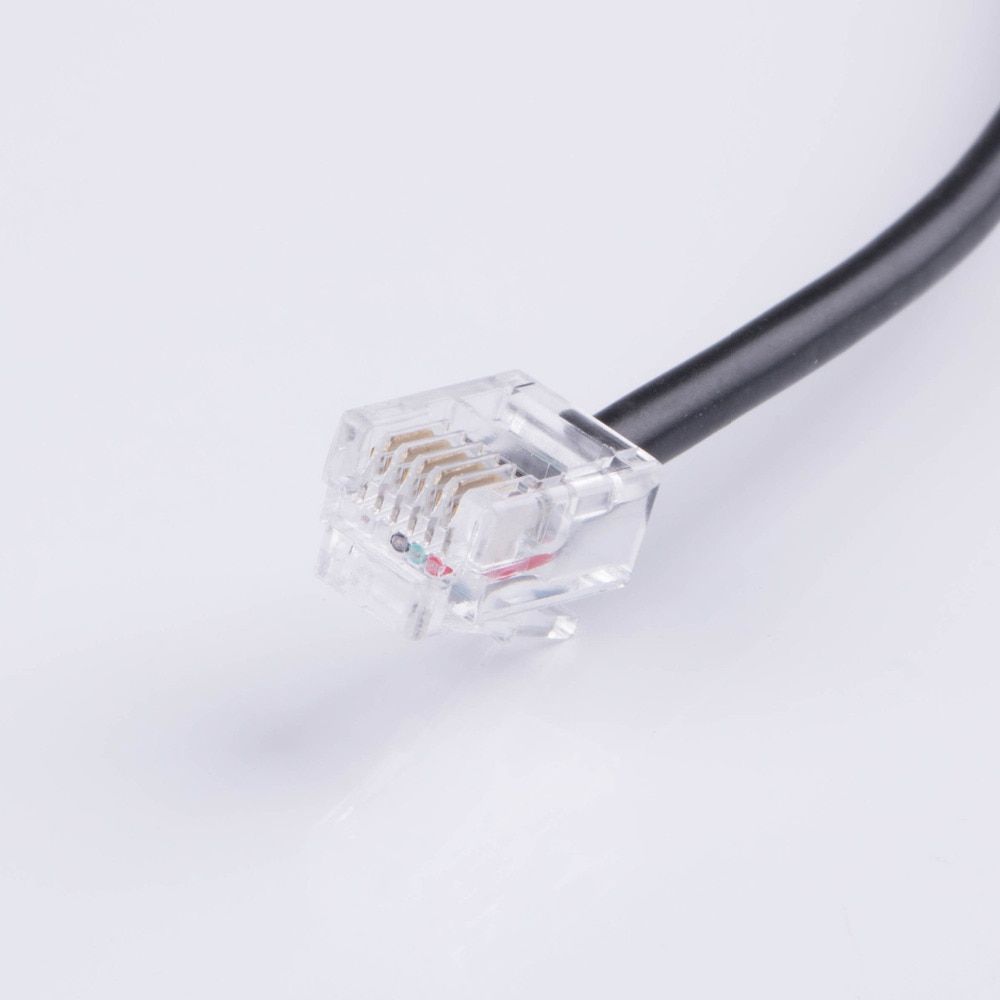

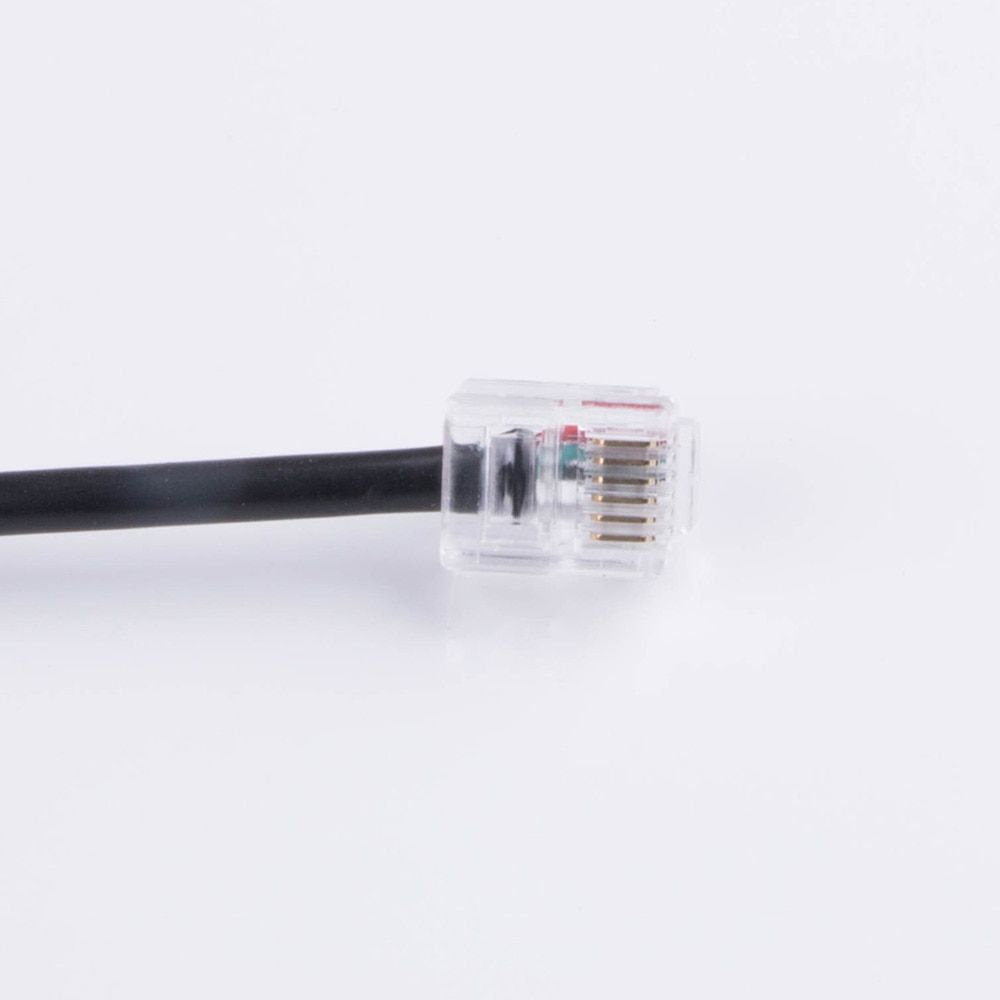

ftdi ft232r usb ttl 5v to rj11 rj12 6p6c for dutch kaifa smart meter dsmr p1

Please be kind to read the following information before you buying this cable, this cable is specially for the dutch kaifa smart meter communication with Domoticz on Raspberry.

for ISKRA AM550 please select the second type, it is need to add one 10K resistor.

Works with Kaifa KWH smart meter. Readouts Energy +T1/+T2/-T1/-T2 and Gas connected to Synology Nas with Domoticz

For Kaifa MA105A, please selection the first type, it donot need pull up resistors.

Pinout - P1-poort - Kamstrup 162, 382 en 351

1 RTS (Request to Send) 2 GND (Ground) 3 NC (Not Connected) 4 TxD (Transmit data)

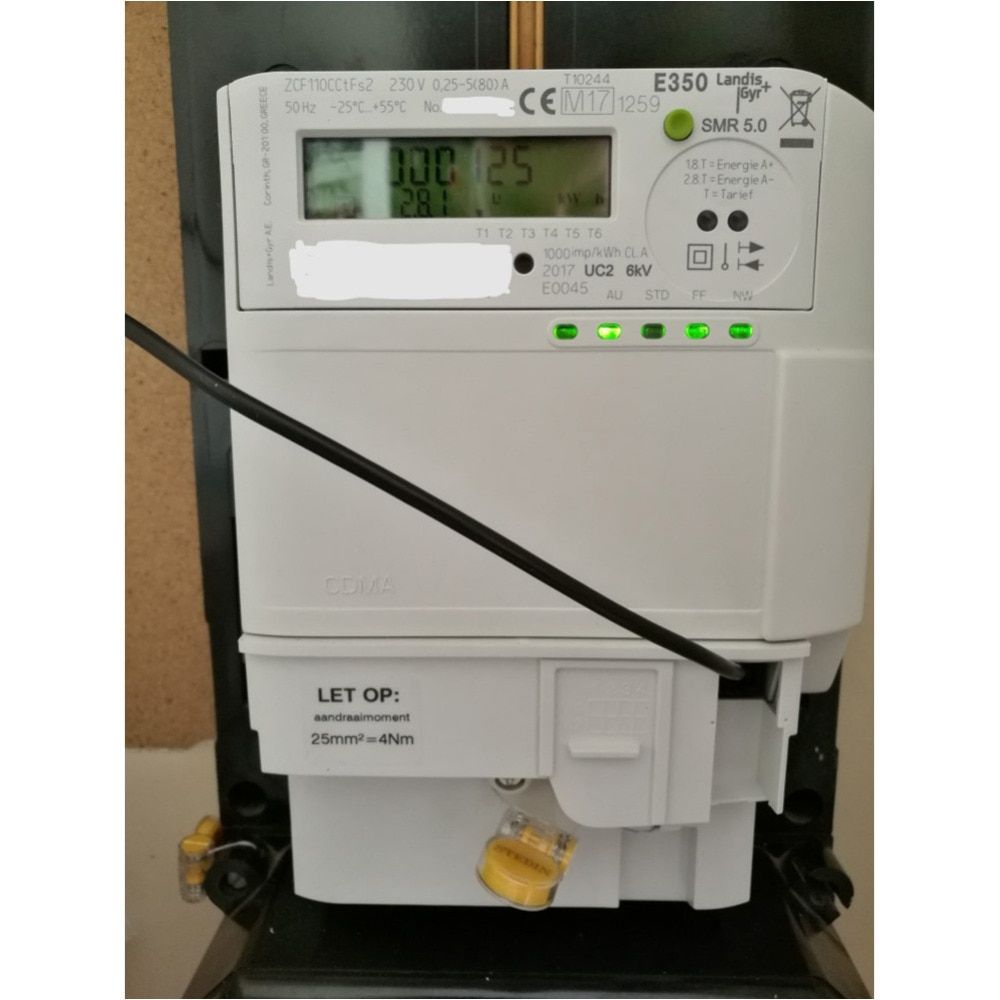

Read data from the Landis E350 smart meter(add 2K pull up resistor)

For FTDI Driver, Please click here !

See the product vedio here :

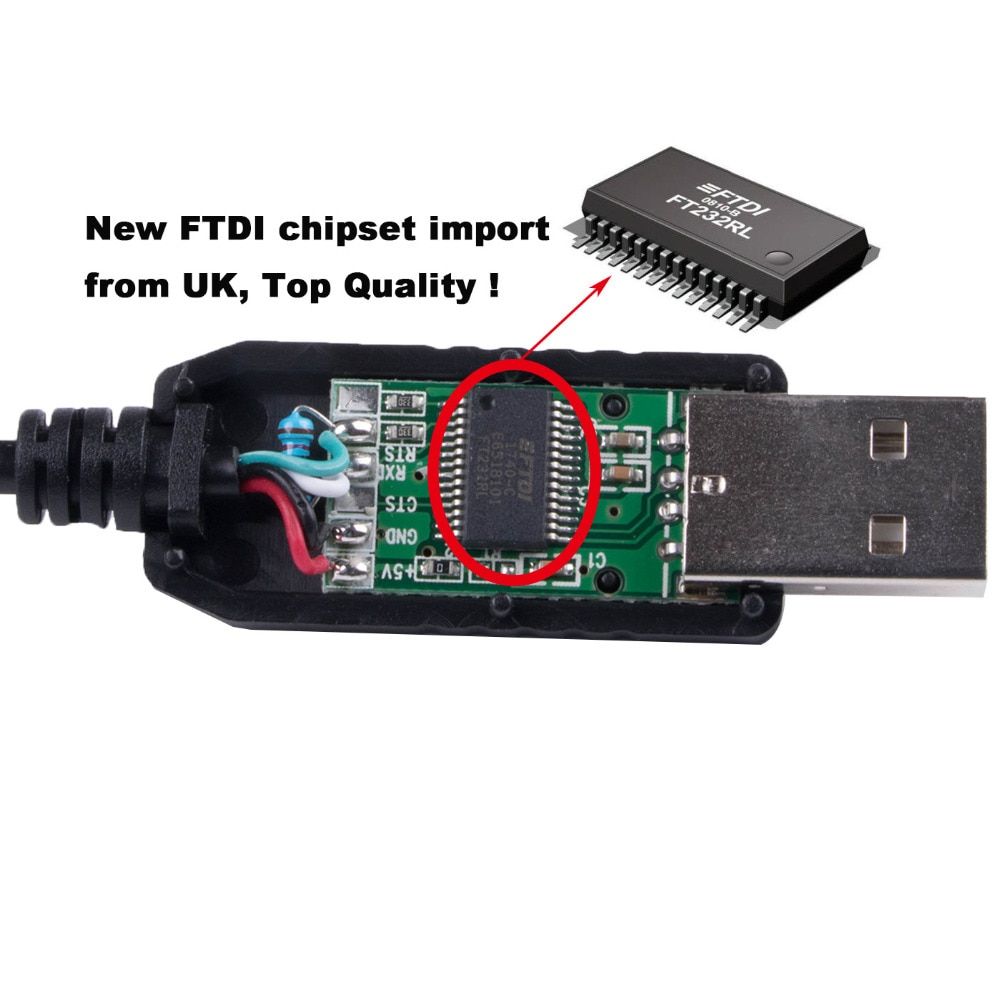

About FT232RL

The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.

The FT232R adds two new functions compared with its predeceors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.

Single chip USB to asynchronous serial data transfer interface.

Entire USB protocol handled on the chip - No USB-specific firmware programming required.

UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

Fully aisted hardware or X-On / X-Off software handshaking.

Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).

In-built support for event characters and line break condition.

New USB FTDIChip-ID? feature.

New configurable CBUS I/O pins.

Auto transmit buffer control for RS485 applications.

Transmit and receive LED drive signals.

New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.

FIFO receive and transmit buffers for high data throughput.

256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.

Adjustable receive buffer timeout.

Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.

New CBUS bit bang mode option.

Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.

Device supplied preprogrammed with unique USB serial number.

Support for USB suspend / resume.

Support for bus powered, self powered, and high-power bus powered USB configurations.

Integrated 3.3V level converter for USB I/O .

Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.

True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.

High I/O pin output drive option.

Integrated USB resistors.

Integrated power-on-reset circuit.

Fully integrated clock - no external crystal, oscillator, or resonator required.

Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.

UART signal inversion option.

USB bulk transfer mode.

3.3V to 5.25V Single Supply Operation.

Low operating and USB suspend current.

Low USB bandwidth consumption.

UHCI / OHCI / EHCI host controller compatible.

USB 2.0 Full Speed compatible.

-40°C to 85°C extended operating temperature range.

Drivers are available which allow FTDI devices to work with the following operating systems:

Windows 8.1

Windows 8.1 x64

Windows 8

Windows 8 x64

Windows Server2012

Windows Server 2008 R2

Windows 7

Windows 7 x64

Windows Server 2008

Windows Server 2008 x64

Windows Vista

Windows Vista x64

Windows Server 2003

Windows Server 2003 x64

Windows XP

Windows XP x64

Windows ME

Windows 98

Linux

Mac OS X

Mac OS 9

Mac OS 8

Windows CE.NET (Version 4.2 and greater)

Android

Windows RT

Support for WinCE7.0 Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0

Support for older versions of Windows Desktop

NOTE: have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not certified.

Differences in Driver API

For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct acce to a USB device via a DLL interface.

To locate the drivers you want to install for a device, select which of the driver types you wish to use ( VCP or D2XX ) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.

If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android

Smart Meter Description DomotiGa support reading telegrams from Dutch Smart Meters. A Dutch Smart Meter (using the NTA8130 standard) has a data-port (also called P1) on which it dumps the data from connected utility meters every 10 seconds (DSMR 4 and older) or every 1 second (DSMR 5). Not only electricity usage but also other connected meters (through MBus) like Gas, Heating, Cooling, Water. Also power generated from Sun/Wind which is delivered back to the net by the client is logged. Requirements Smart Meter support has the following requirements: P1 (RJ11) connected via serial cable Supported DSMR Versions The following DSMR version have been succefully validated with DomotiGa: DSMR VersionStatusDefault Speed* 2.XNot tested9600 7E1 2.2.XSupported9600 7E1 3.0Supported9600 7E1 4.0.XSupported115200 8N1 4.2.XSupported115200 8N1 5.0.XSupported115200 8N1 The Default Speed is the most common used serialport settings for baudrate, databits, parity and stopbits, but please consult your device manual first. Some vendors use different settings. Disclaimer: Build and use this at your own risk! The P1 port is usually present in the form of a RJ11 socket. It's half duplex serial port with TTL level (0-5V) signals, 3 out of 4 pins are connected. The following table shows the RJ11 pin layout, signal description and the optional DB9 pin layout when using a USB to RS232 cable. RJ11 Pin #SignalDB9 Pin # 2REQUEST (RTS)4 3GROUND (GND)5 4NOT CONNECTED (NC)NOT CONNECTED (NC) 5DATA (RxD)2 You need to build a special serial cable, you must make sure that the REQUEST pin must be kept HIGH before it starts dumping data. And the signals are inverted so 0 = 5V and 5V = 0 volt, if you use an FTDI converted (needed to convert levels from 0-5v to -12/+12v) you can tweak it so it will invert the signals for you. Additional information about FT_Prog [[http://www.ftdichip.com/Support/Utilities.htm]] can be found here: [[http://www.maartendamen.com/2012/04/new-smart-meter-installed-iskra-me382-and-landis-gyr-gasmeter-e06140/]] DomotiGa stores all info in 3 or more devices (depending on how many connected MBus meters it finds) Power Usage: Device with id 36 displays Electricity Usage It's addre is 'P1-PowerUsed' and it displays: Live power usage (2130Watt), meter readings High and Low tariff, and the current Tariff. Default the power usage is reported in kWh too, but you can use a calibrate value of 'Value * 1000' to get Watts. Power delivered: Device with id 37 displays generated power delivered to the net by the client (Sun/Wind) It's addre is 'P1-PowerDelivered' and it displays: Live power delivered, meter readings High and Low tariff, and current Tariff. The power delivered is not converted to Watts here. Gas usage: Device with id 35 displays data from Gas meter. It's addre is 'P1-MBus1' because it's connected to the main meter via MBus channel1. It displays the Gas meter read of last hour (timestamp in value4), the valve position and type of meter (Gas, Heat, Cooling etc)

>> Shipping & Handling 1. Proceing Time: 2-5 days for all orders. 2. Special Requests: Please list your special requests (color, package, etc) in the Notes Section when check out. 3. Shipping Way: Most orders(le than 2KG) are shipped by Aliexpre standard shipping / Netherland Post / Swi Post Under $5 orders are shipped by Seller Method Shipping. Any other requirements about the shipping way, please contact us. 4. Delivery Time: Normally 15-60 days to get the order, except Brazil.Sometime the transit time may be long and vary,particularly during the holiday season. Please contact us if you need help for the tracking. 5. Duties: duties, taxes and charges are not included in the item price or shipping charges.

>> Return & Return Policy: We accept Aliexpre return policy; Buyer pays return shipping. Policy: We provide reliable service policy. • If you receive the goods broken. Contact us for Full money or replacement. • If you don't receive the goods in stated delivery time. Contact us for Full money or replacement. • If you receive the goods with quality problem, contact us for half or full amount . • Any disatified with the product, please contact us first instead to open dispute or leave negative feedback. >> Feedback If you are satisfied with the item while it is in good condition, we sincerely to invite you to leave us all 5-star rating positive feedback. If you are disatisfied with the item or service, please contact us first, we will supply the best solution and work harder to give you more excellent service.

About shipping
Shipping and Packaging All items will be double checked and well packed before sending.Items will be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).

Special Announcement:
Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties or taxes. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .

Your 100% satisfaction is very ant to us
If the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

Origin:CN(Origin)
Type:Serial Cable
Certification:CE
Certification:RoHS
Package:No
Products Status:STOCK
Model Number:UG-615
Length:6ft
Chipset:FT232RL
Color:Black
Connector:USB to RJ11/12
Application 01:Kaifa MA105 Iskra ME382 AM550 Landis GYR E350 Kamstrup Sagemcom162 382
Signal:5V uart ttl
Feature 01:Domoticz on Raspberry cable
Feature 02:Kaifa smart meter cable
Feature 03:Iskra dutch smart cable
Feature 04:landis dutch dutch cable
Feature 05:DSMR P1 port cable
System Support:Win10/8/7/XP/vista/mac/android/Linux
Quality Warranty:1 Year
Connector B:6P6C/6P4C cable
Connector A:USB 2.0 A male
Feature 06:kamstrup smart meter cable
Feature 07:Landis GRY E350 Iskra AM550 Kamstrup etc
Material:Environment PVC & Bare Copper Wires

What's In the Box

1X Free Ship Domoticz on Raspberry Cable P1 Kabel Smart Slimme Meter DSMR Dutch FTDI USB to RJ11 RJ12 TTL for Kaifa Iskra Kamstrup
