Model |
B19103S7N=CAR2125 |
Production Country |
China |
Size (L x W x H cm) |
16 x 16 x 9cm |
Weight (kg) |
0.39 |
Color |
Multicolor |
Main Material |
Multi-Material |

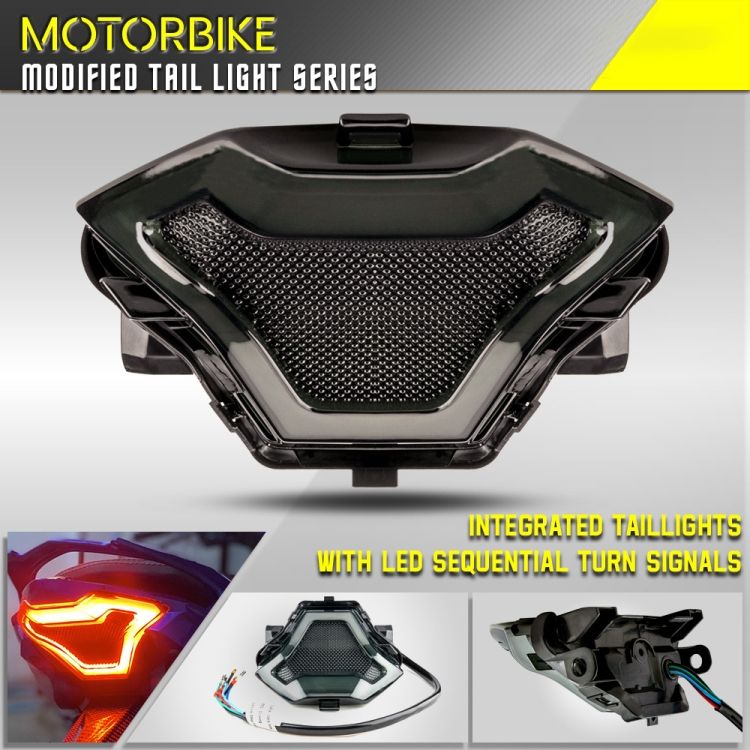

For Yamaha R3R25 Motorcycles LED Taillight
1. Smoked lens, 108 high-brightness LED lights
2. Strong futuristic design, coupled with a very sporty exterior vision and the beauty of the motorcycle complement each other.
3. Good energy saving level. It has high brightness, low heat, low energy consumption, high efficiency, and no filament structure.
4. Waterproof, durable, low temperature, low power consumption, high performance.

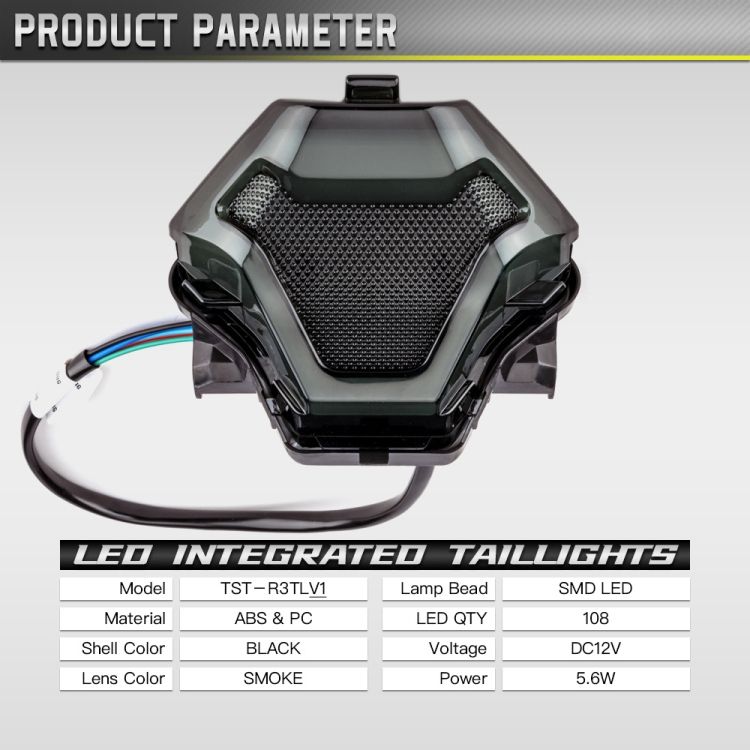

5. Parameters:
- Material: 108 high-brightness SMD lamp beads, high-strength ABS plastic shell.
- Light source type: LED
- Input voltage: DC 12V
- Lens Color: Smoked
- Waterproof level: IP6X
6. For Yamaha:
- YZF-R3 2015-2022
- MT-03 2015-2022
- YZF-R25 2015-2022
- MT-25 2015-2022
- MT-07 2014-2017
- FZ-07 2014-2017
- Y15ZR 2015-2020
- MXKING150 2015-2020
- EXCITER150 2015-2020
- SNIPER150 2015-2020
7. Wiring method:
- Black wire harness to ground/negative (-)
- Red wire harness to run light positive (+)
- Green wire harness to brake light positive (+)
- Light blue harness to left turn signal positive (+)
- Dark blue wire harness to right turn signal lamp positive (+)
Key Features
For Yamaha R3R25 Motorcycles LED Taillight
For Yamaha R3R25 Motorcycles LED Taillight
For Yamaha R3R25 Motorcycles LED Taillight
For Yamaha R3R25 Motorcycles LED Taillight
For Yamaha R3R25 Motorcycles LED Taillight
What's In the Box
1 x package
