Size (L x W x H cm) |
10x6x3 |
Weight (kg) |
0.35 |
Color |
white |

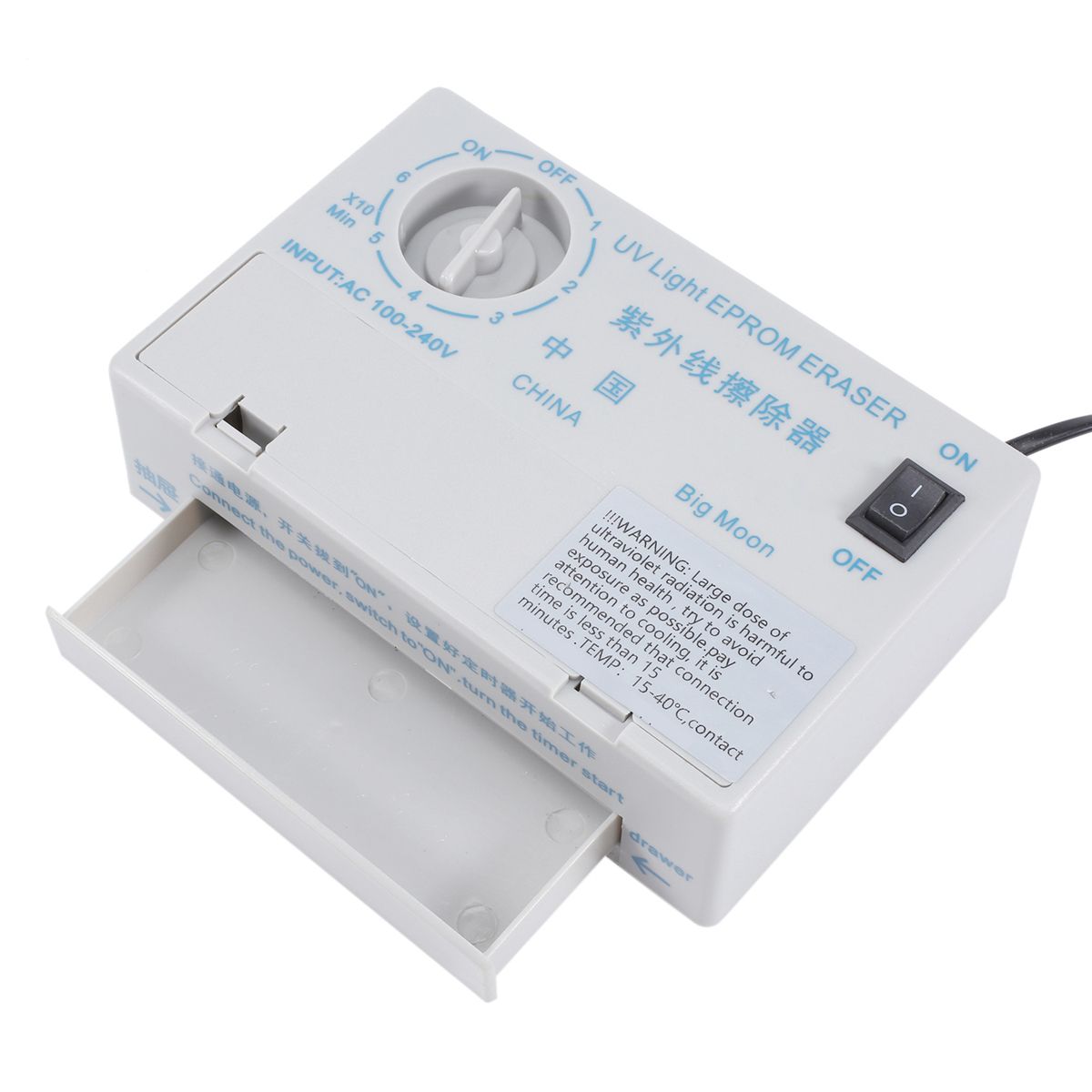

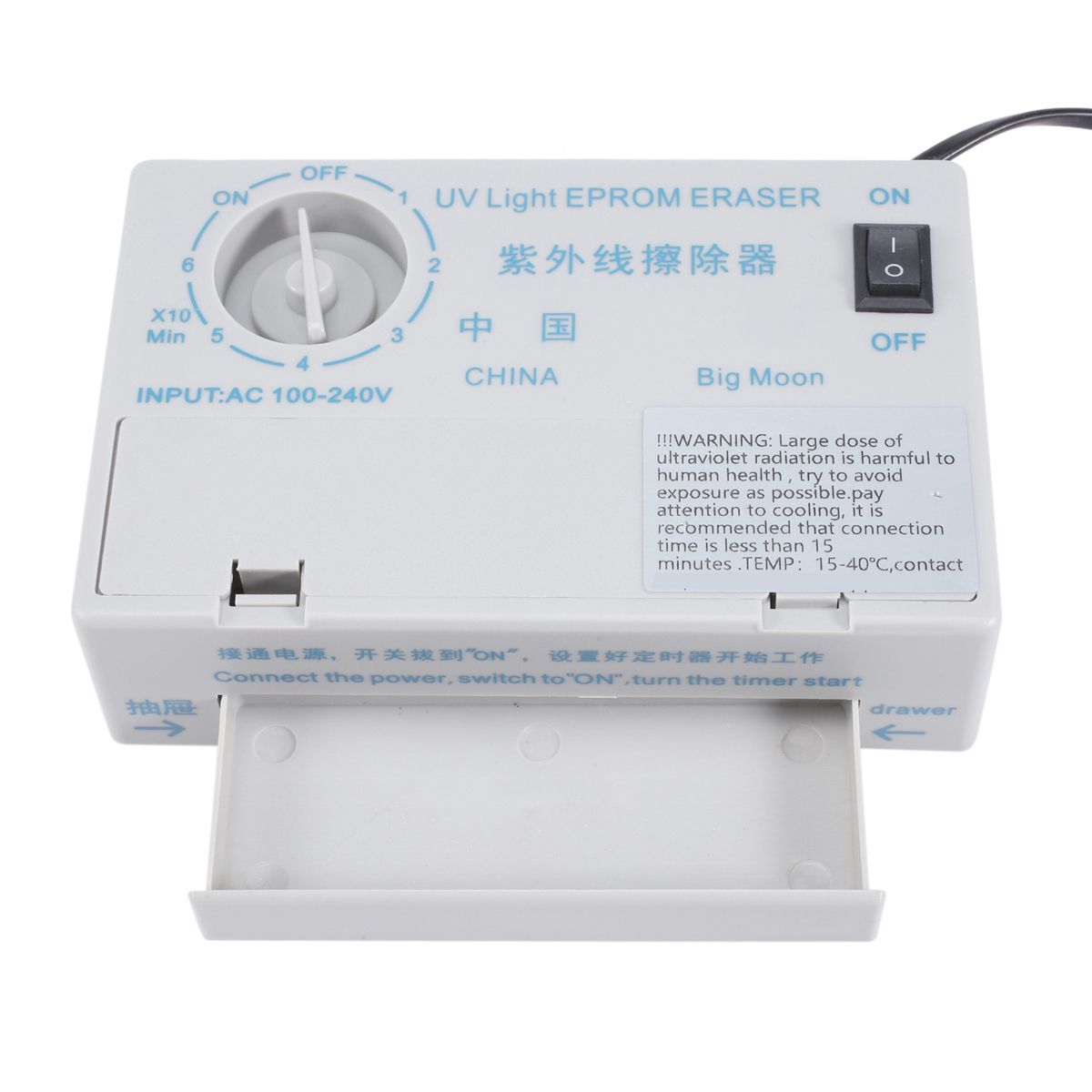

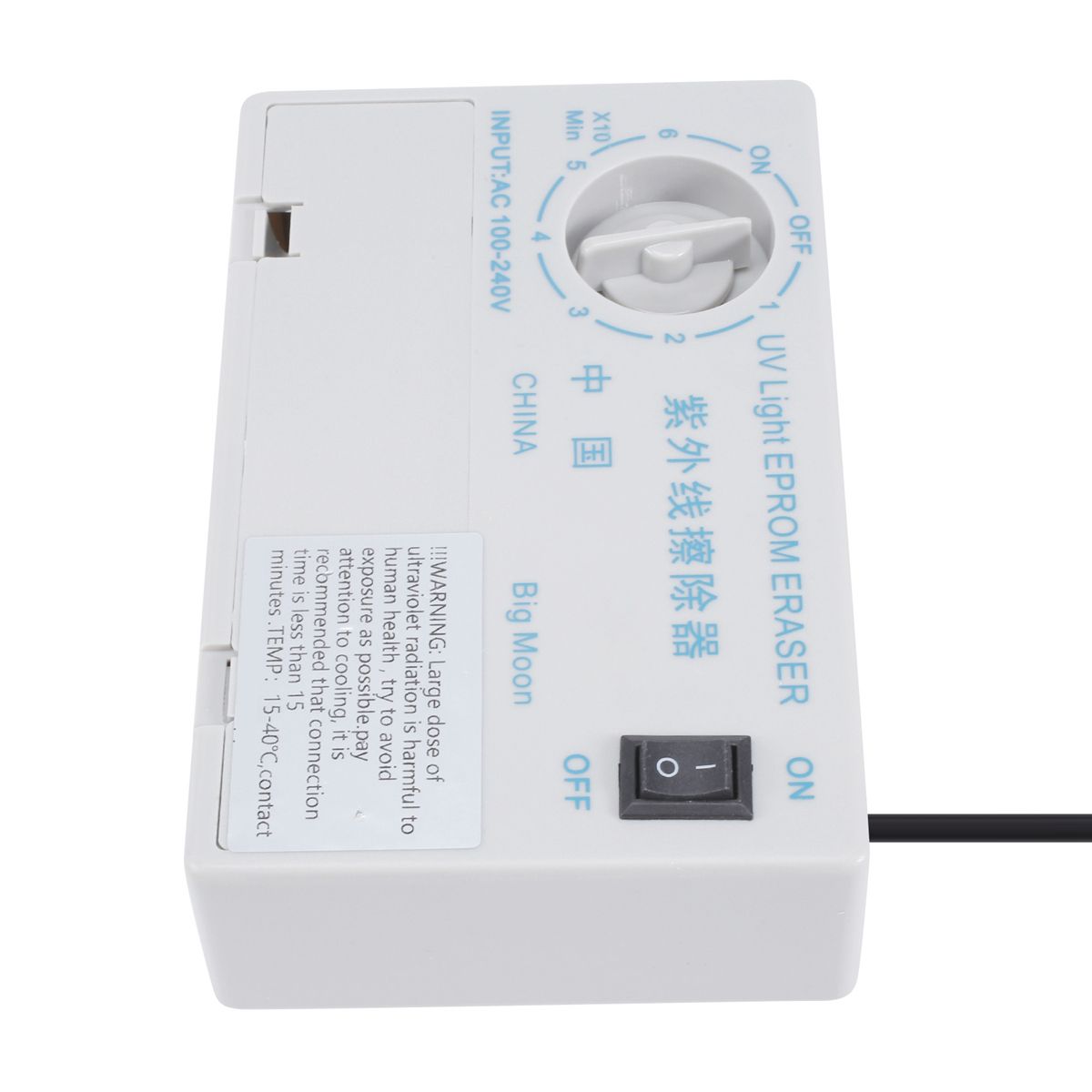

Description: This product can be used to erase programmable IC'S such as EPROM's and -controllers, which can be erased, when exposed to high intensity UV light.
Specifications: Voltage: AC100-240V
Power Consumption(Max): 5W
Device Size: 169X111X54mm. Drawer Capacity: 43X116X11mm

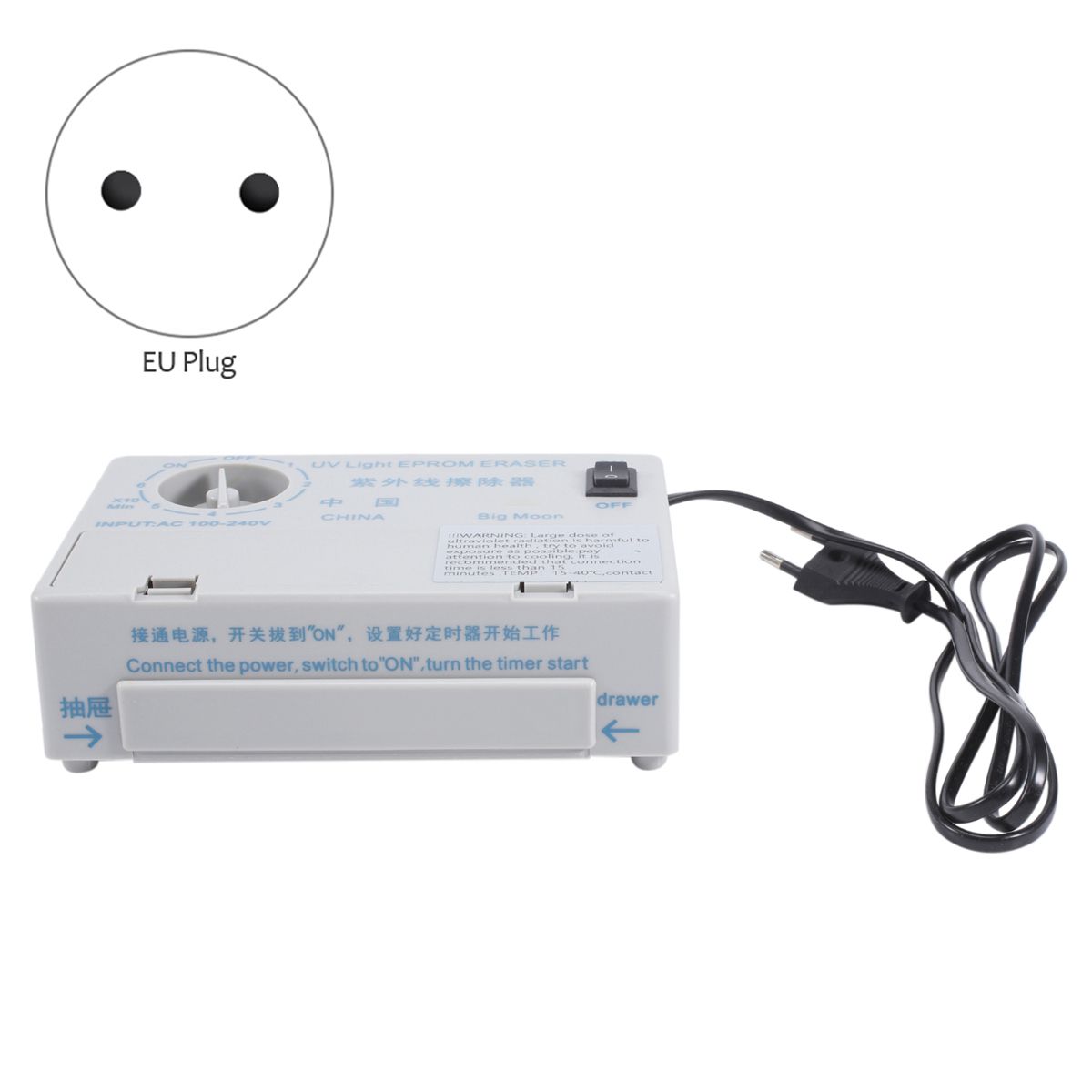

60- Machanical Timer Plug Type:EU Plug,it applies to Indonesia, , , , and so on
Safe Issues:
Do not look directly into the UV tube while the UV eraser is turned on. High intensity UV light can cause serious damage to eyes and .
Always place the UV Eraser on a safe and shockproof place, to prevent the UV eraser from falling on the ground accidentally.
Keep children from this device, it is not a toy.
Use the UV eraser in dry only.
Leave changing the UV tube to qualified people only.
Operation:
1. using the UV eraser, be you have read the safety issues.
2. To power the UV eraser- The power indicator will .
3. Open the drawer and put in the UV erasable IC. A maximum of 8PCS chips can be synchronously erased at a time. The IC window must be placed face upwards.
4. Turn the timer to set the time. The datasheet of the IC specifies the required time. Generally, 5-10 is suitable.
5. the drawer. The UV eraser will erasing. When the device is working, do not look directly into the UV tube.
6. The UV tube turns off automatically when the time has .
Color: white
Material: plastic Package Contents:
1 x UV light EPROM Eraser Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
