Description:

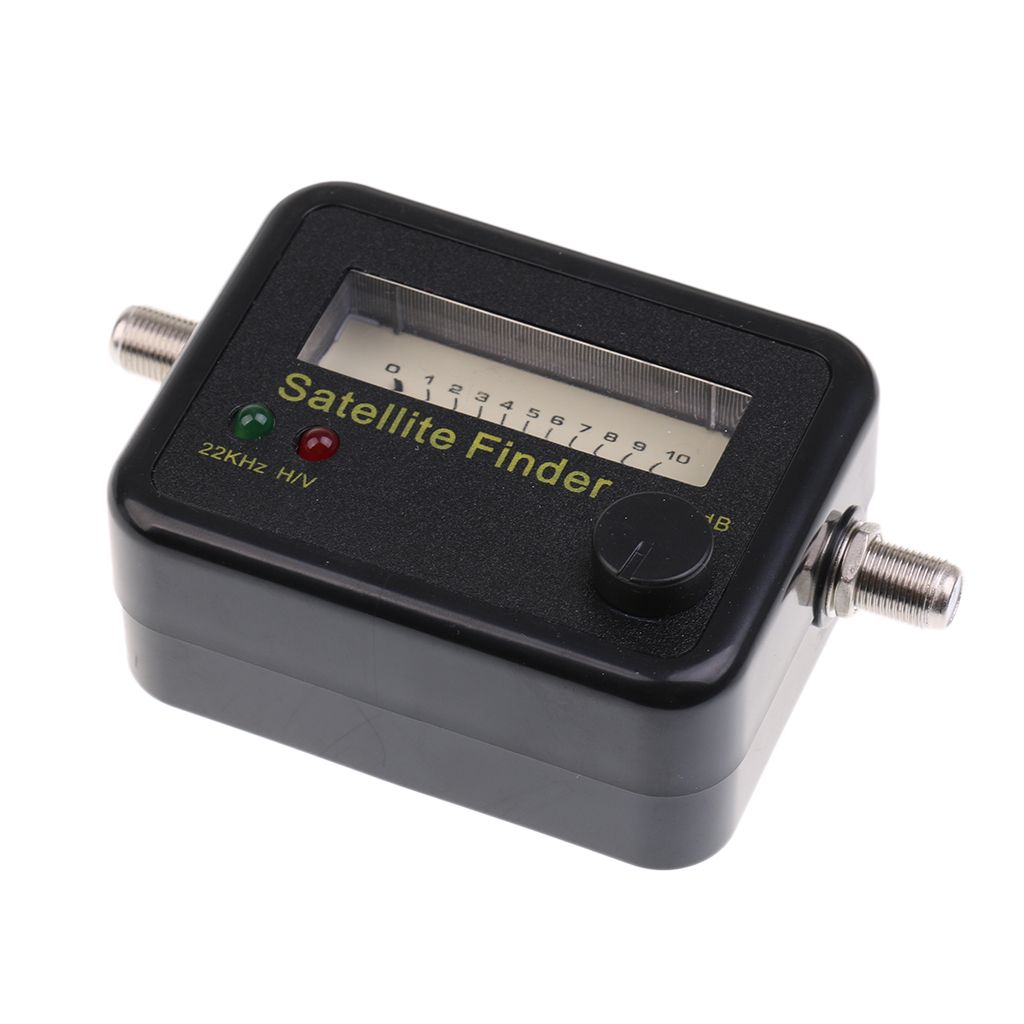

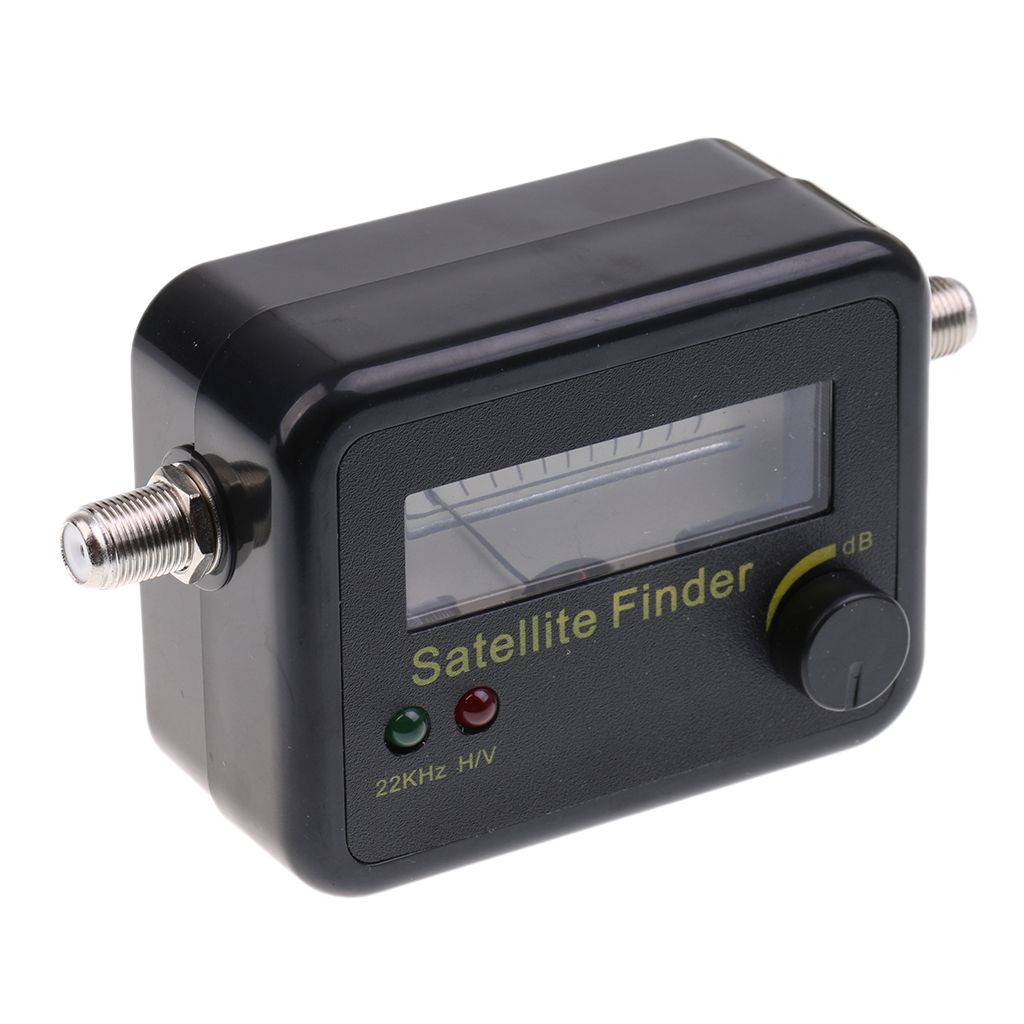

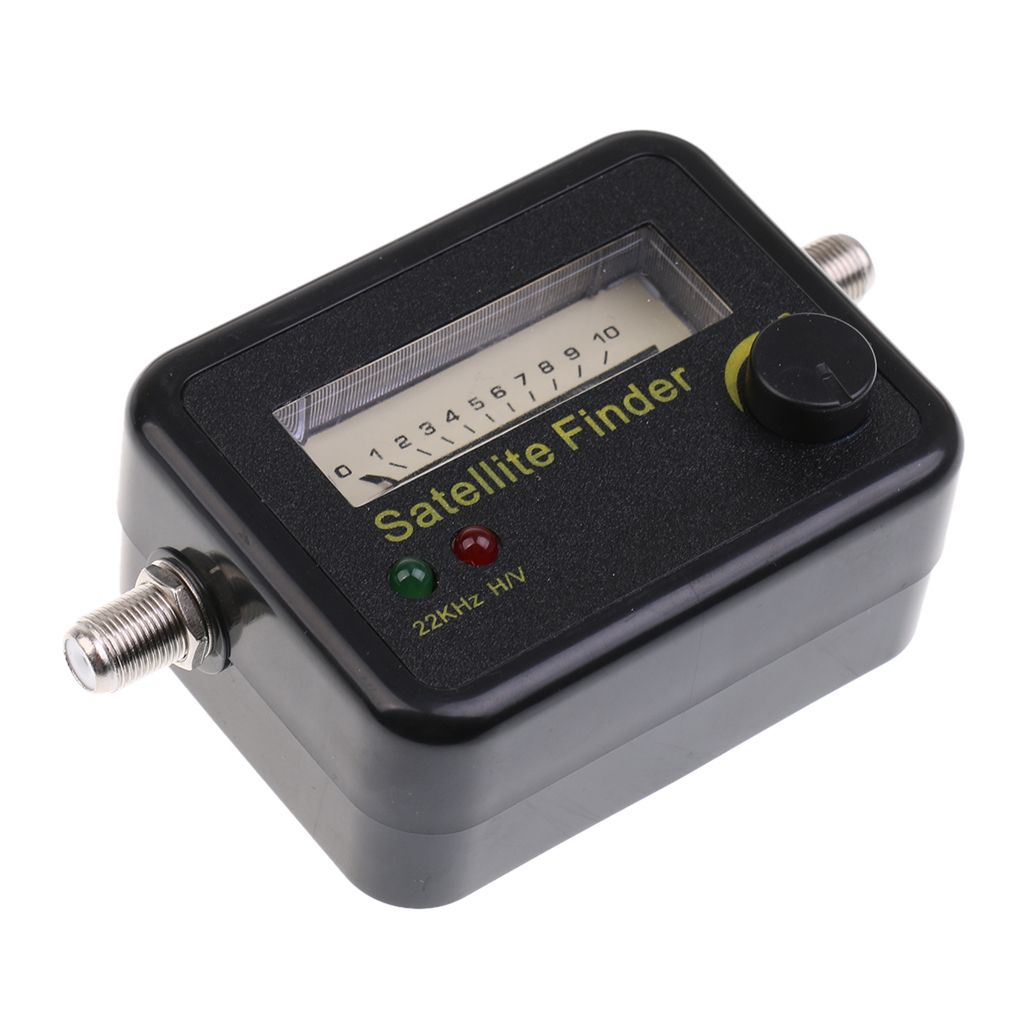

Connect the between the star receiver and the antenna LNB.

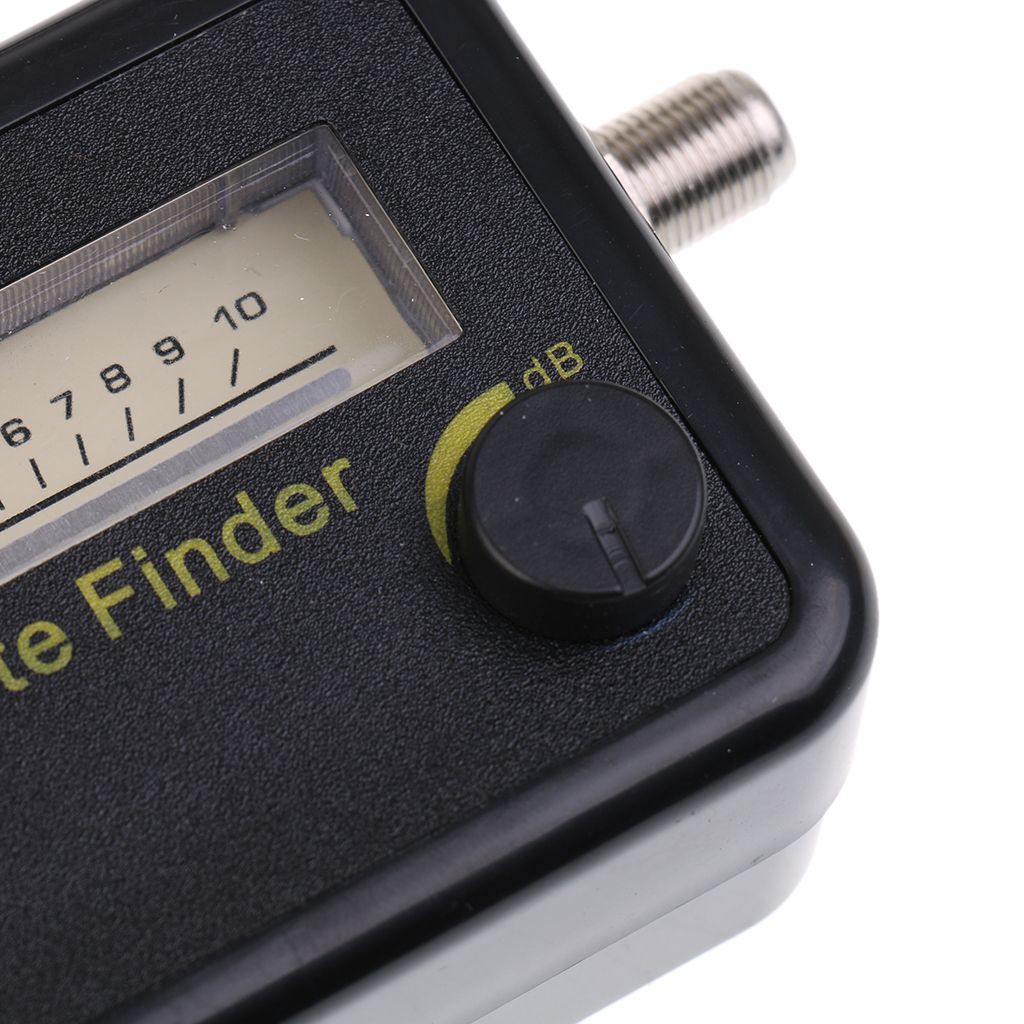

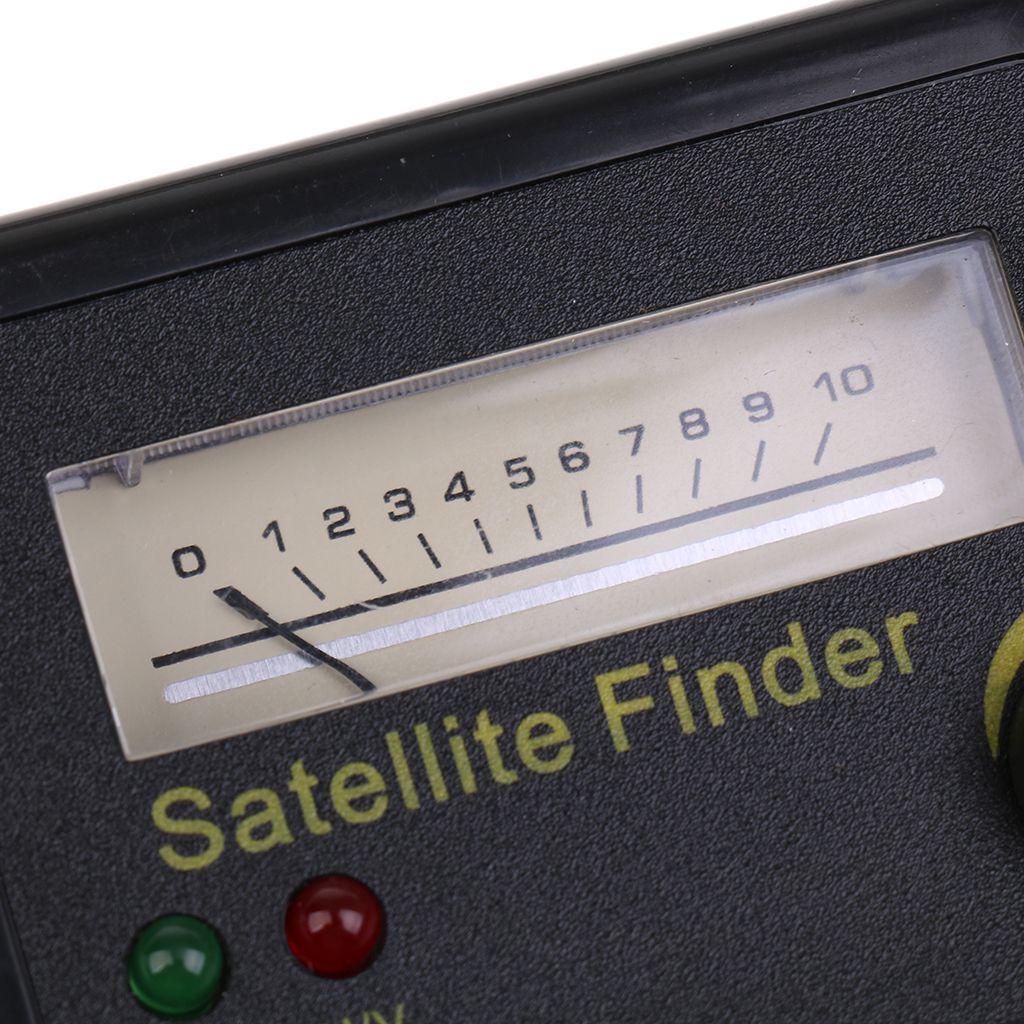

Adjust the knob on the front panel of the so that the pointer on the dial points to the "5" position.
Adjust the azimuth and of the antenna. When the pointer is deflected to the maximum angle, adjust the knob on the front panel counterclockwise to attenuate the received signal and adjust the azimuth, and polarization angle of LNB . Until the pointer of the is no longer so far.
Combined with the receiver to determine whether the signal is the required star signal. If it is, remove the and reconnect the receiver with the LNB. If the received signal is not the desired star signal, repeat the above work.
is just an Auxiliary equipment,it is only a preliminary judgment whether the antenna direction exists in the presence of a star
Specification:
Size:Approx.110*60*33mm/4.33*2.36*1.3inch

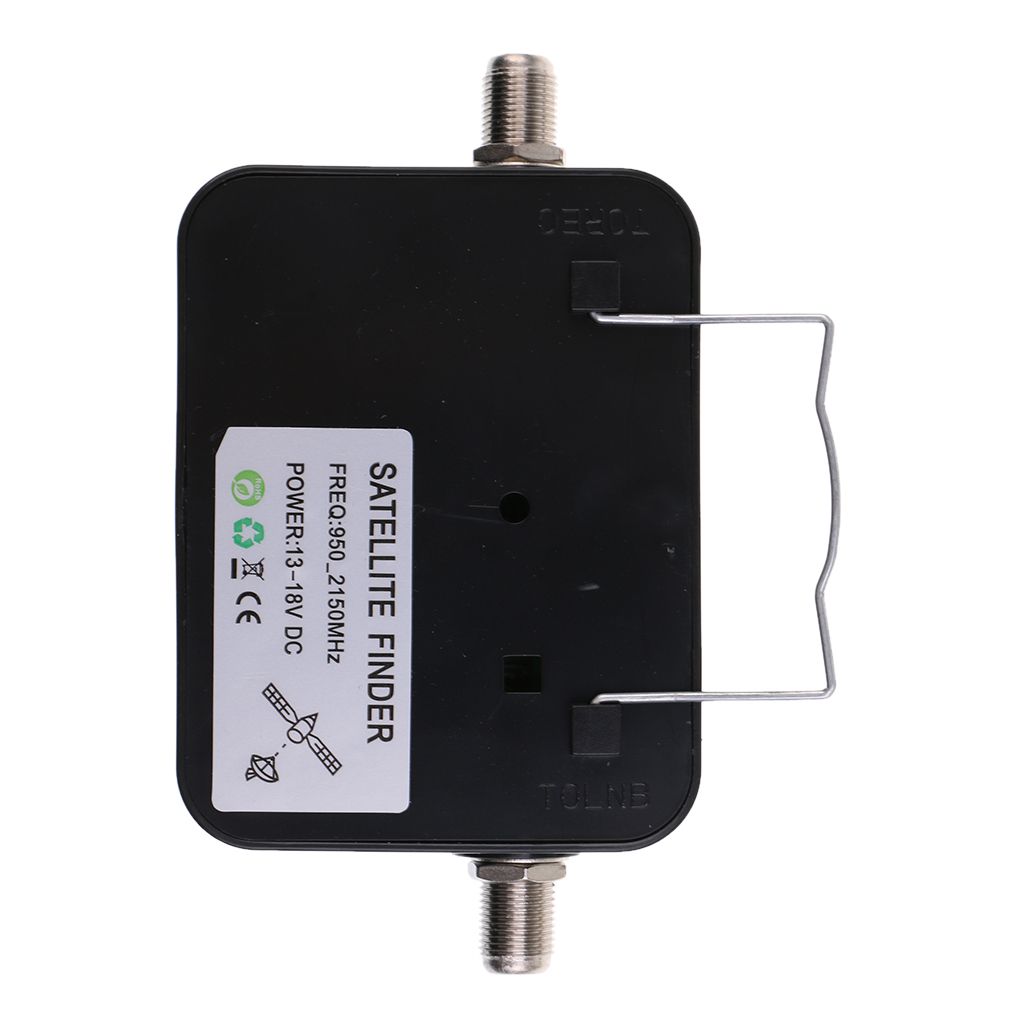

Frequency Range:950-2150MHz
Input level Range:-40~-10dBm
Impedance:75Ω
Insertion Loss:≤5.0dB
Power Supply:13-18V DC
Operating Temperature:0~40℃
Package Includes:
1 Piece
1 Piece User Manual
RCA Video Cable;Car Extension Cable;RCA Extension Video Cable; Cable;Detection Wire ;Car RCA Video Extension Cable
Key Features
Connect the between the star receiver and the LNB.
Adjust the knob on the of the so that the pointer on the dial points to the "5" position.
Adjust the azimuth and of the . When the pointer is deflected to the maximum angle, adjust the knob on the counterclockwise to attenuate the received signal and adjust the azimuth, and polarization angle of LNB . Until the pointer of the is no longer so
Combined with the receiver to determine whether the the required star signal. If it is, remove the and reconnect the receiver with the LNB. If the received not the desired star signal, repeat the above work.
is just an Auxiliary equipment,it is only a preliminary judgment whether the direction exists in the presence of
What's In the Box
1 Piece 1 Piece User Manual
