| Model |
N/A |
| Production Country |
China |
| Size (L x W x H cm) |
20.40×16.40×5.70 |
| Weight (kg) |
0.51 |
| Color |
Grey |
| Main Material |
N/A |

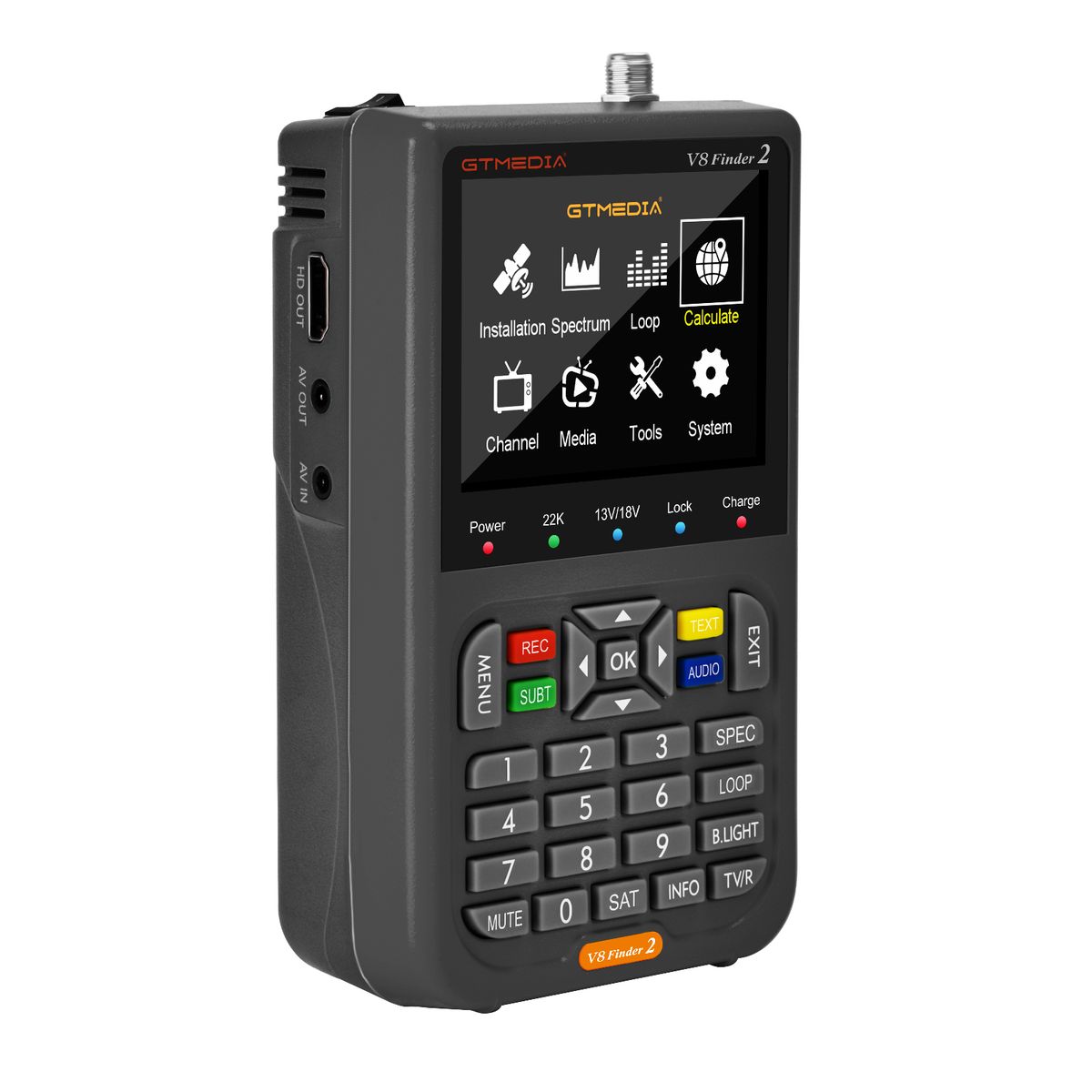

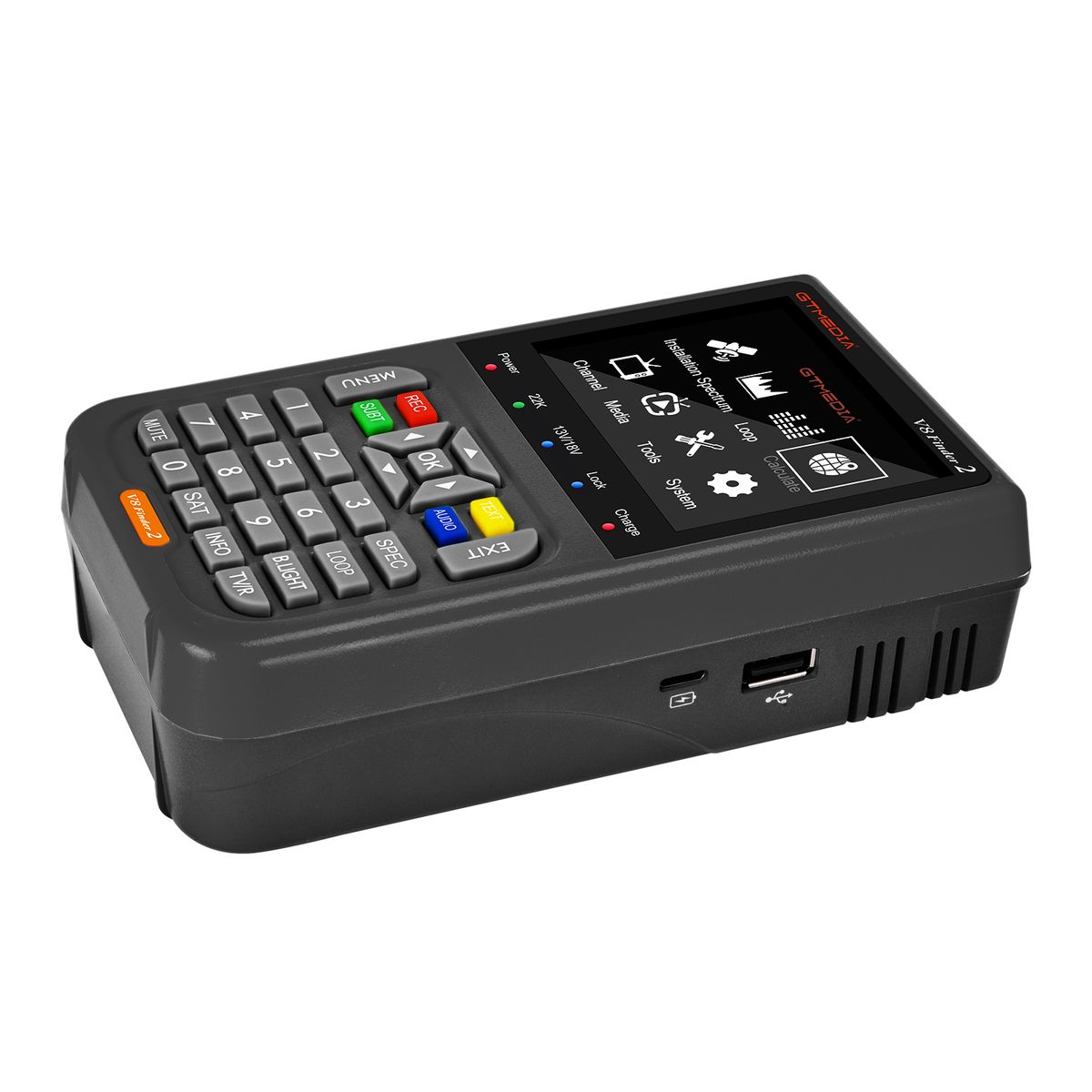

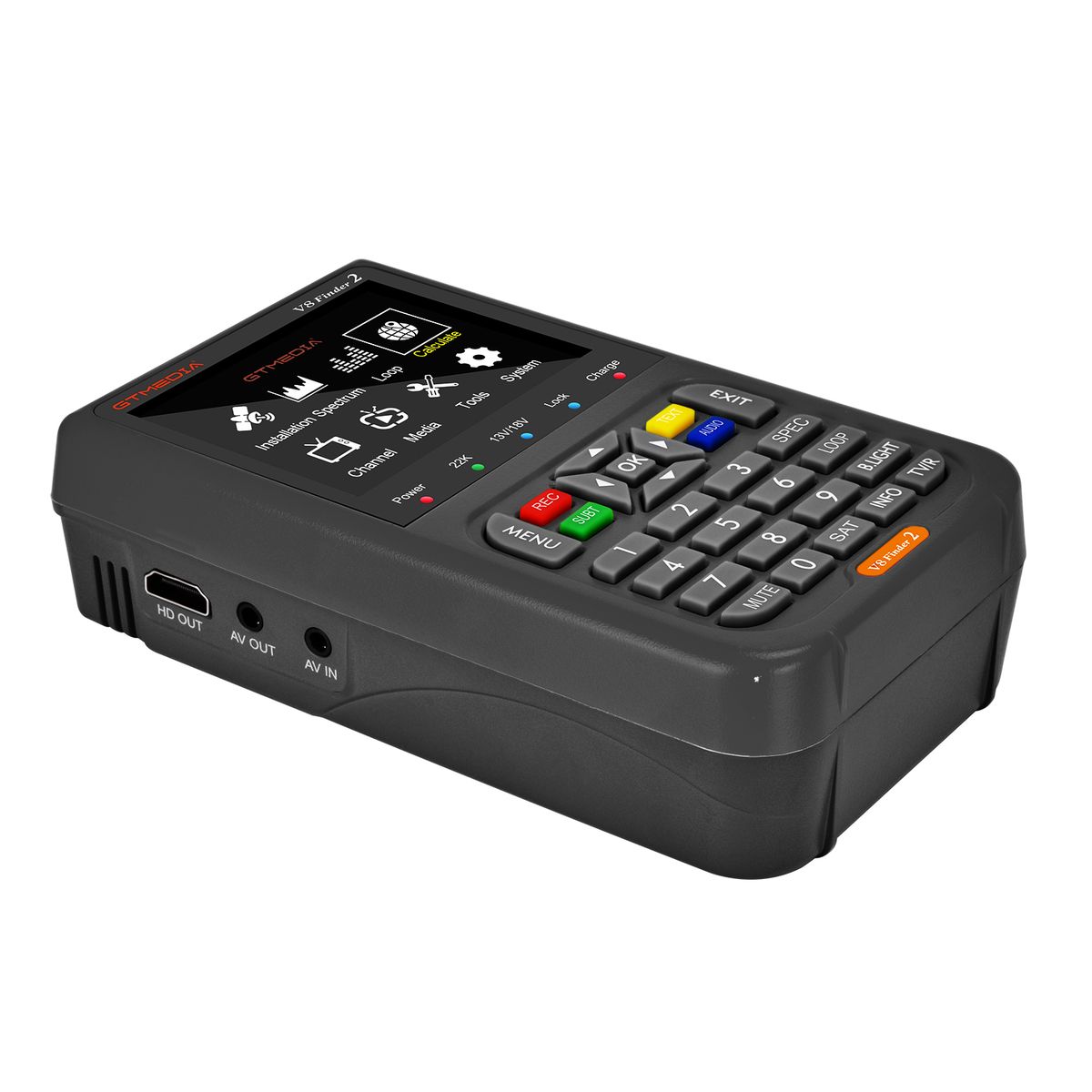

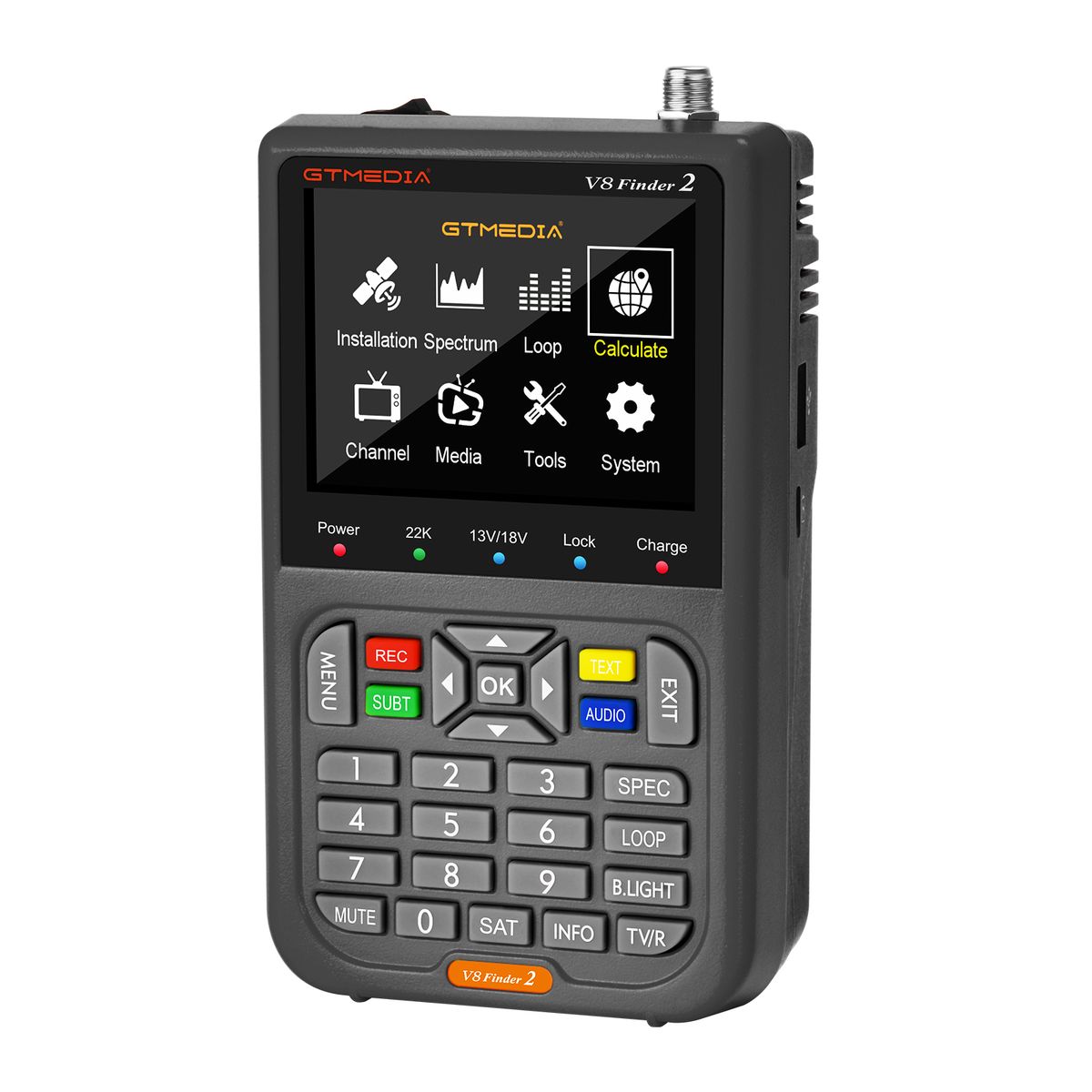

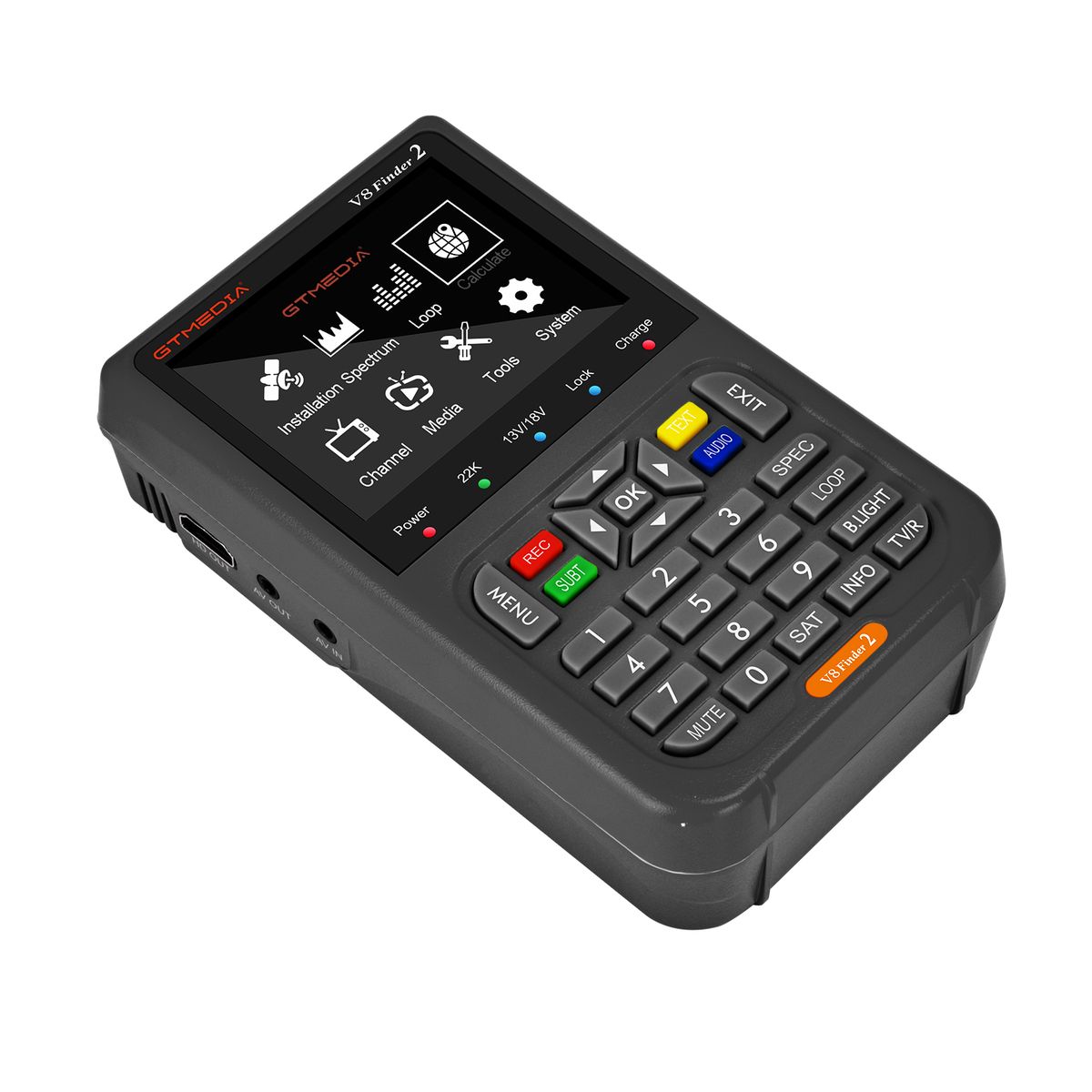

Overview:GTMEDIA V8 Finder 2 is a D V B-S/S2/S2X and MPEG-2/4 H.264 (8 Bit) compliant handheld signal finder meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital TV service to residential homes or multi-dwelling units.
Features:- 3.5 Inch High Definition LCD Screen
- Fully D V B-S2X/S2/S, MPEG-2/MPEG-4 compliant
- Support H.264 (8 Bit) Hardware decoding
- Digital measuring device for signal strength and quality
- Support Loop Search
- Spectrum analyzer
- Supports scan of Auto, Blind, Manual or NIT
- Sound for Locking Signal
- Auto Calculate Angle of AZ,EL
- Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
- Speaker Integrated
- Support both AV out and AV in
- Support both HD out
- Support real-time power display, with low power reminder
- Supports Youtube for USB wifi 2.4G
- LNB short protect
- 7.4V/4000mAh Li-ion Battery Included
- Support Type-C charging interface, support multi-protocol fast charging
- Support Type-C reverse charging
- Software upgrade via USB port
- Easy to carry
Specifications:- Connector Type: F Type
- Input Frequency: 950 to 2150 MHz
- Signal Input Level: ‐65 to ‐25 dBm
- Band Switch Control: 22KHz
- LNB Supply: 13V/18V, Max 350mA
- Demodulation Type: D V B-S2 QPSK, D V B-S2 QPSK/8PSK/16APSK/32APSK, D V B-S2X QPSK/8PSK/16APSK/32APSK/64APSK
- Symbol Rate: 2
- LCD Type: TFT Transmissive
- Number of Dots: 320 RGB*240
- Active area (W*H): 70.08(H)*52.56(V)MM
- Connector Type: 3.5 mm jack
- Video Output: CVBS
- Audio Output: Stereo Audio L/R output
- HD Output Connecter: HD 1.3a
- AV Input Interface: 3.5 mm jack
- Video Input: CVBS
- Audio Input: Stereo Audio L/R input
- Video Decompression: MPEG-2 MP @HL, MPEG-1 Decoding, MPEG-4 ASP @l5 HD resolution, H.264 MP&HP @L4, HW JPEG decoder
- Resolving Rate: PAL-25 frame @720*576, NTSC -30 frame @720*480
- Singnal Compatibility: Support conversion for different video formats
- Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion
- Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
- Audio Output Mode: Stereo, Mono, R/L
- DATA SERVICE PORT Conector: USB
- Data Protocol: USB 2.0 interface
- File Management System: NTFS, FAT32, FAT16
- File Format: Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
- Audio: wma, mp3
- Photo: jpg, jpeg, bmp, img
- PVR Option: Support recording TS files
- WiFi Option: Support networking via USB WiFi
- Li-Lon Battery Capacity: 7.4V/4000mAh
- Power Consumption: Rated 8W (No external equipment)
- Temperature: Operation 0～+45 "℃"; Storage -10~+60 "℃"
- Humidity: 20~90%, non-condensed
- Item Size(W*D*H): 155*95*45mm/6.10*3.74*1.77in
- Item Weight: 317g/11.18oz
- Package Size: 204*164*57mm/8.03*6.45*2.24in
- Package Weight: 451g/15.90oz
Package List:- 1 * V8 Finder 2
- 1 * USB Cable

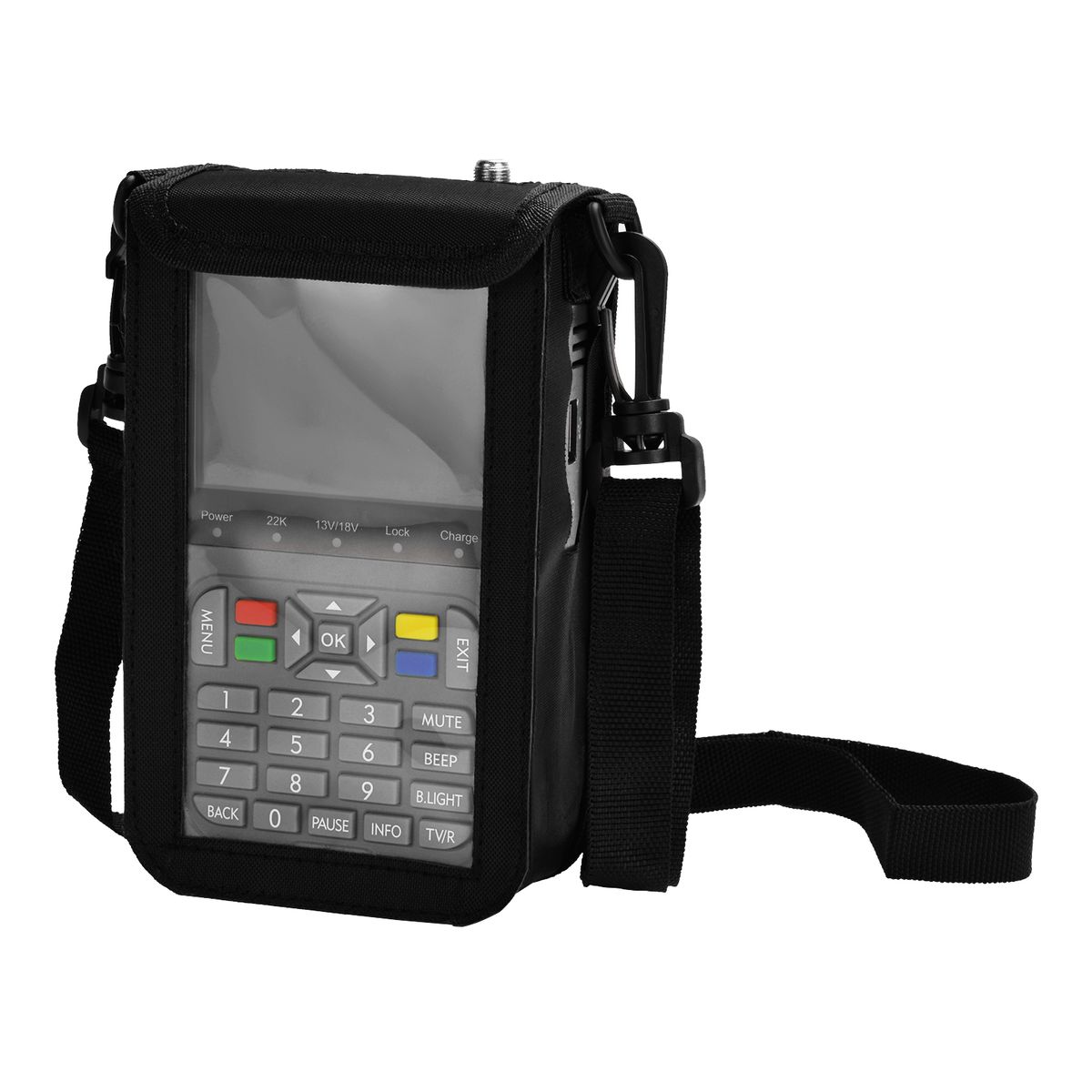

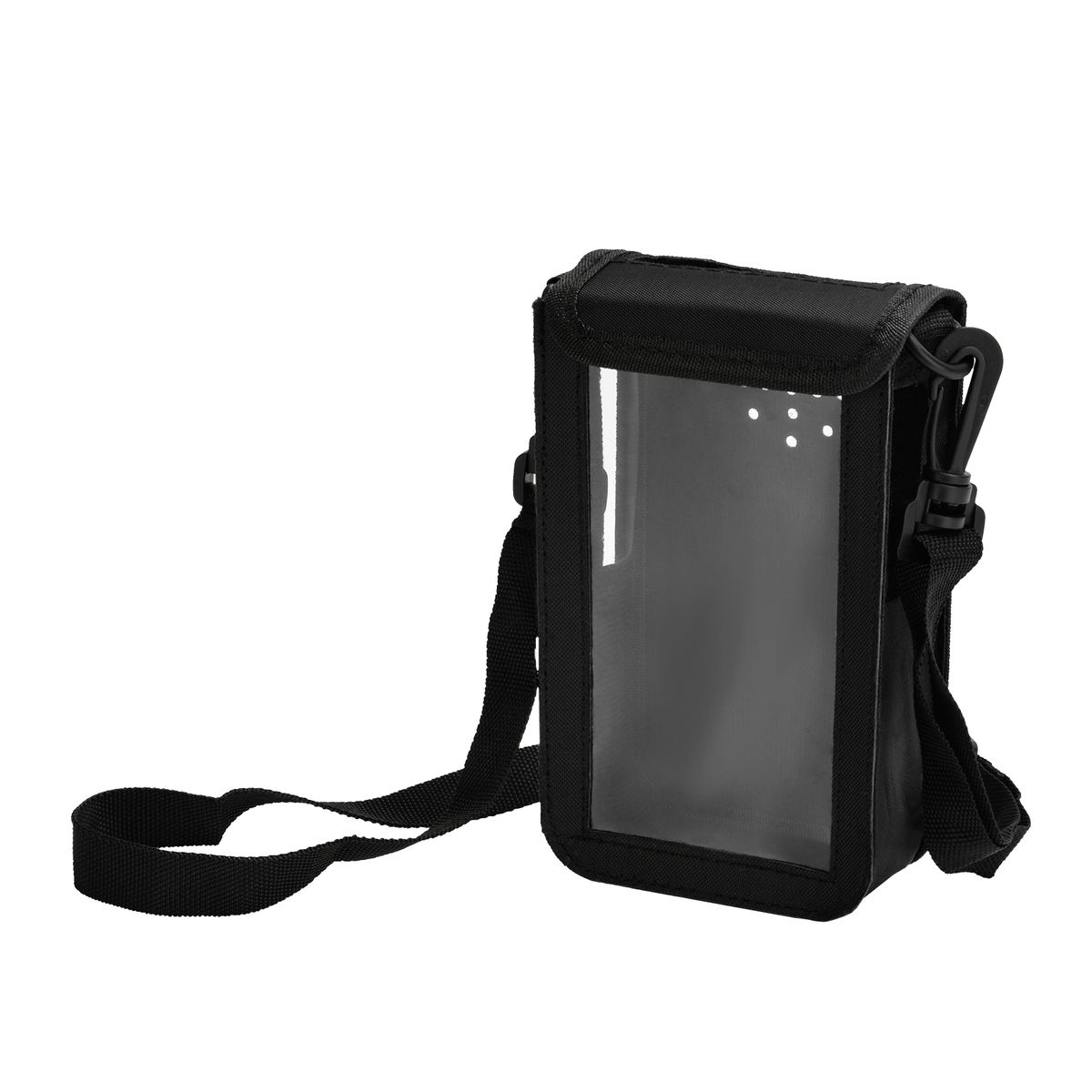

- 1 * Storage Bag
- 1 * User Manual (EN/DE/FR/ES/IT/PO)
Dear customer:Hello, we are a global seller.(Name:Technego)
Our owner specializes in 3C products such as computers and networks, video and audio, mobile phone accessories, as well as musical instrument accessories, tablet, game accessories and other products.
Together with many brands, We hope to devote ourselves to bring you a high-quality shopping experience with high cost performance and rich product series, and hope to collect more needs and opinions from African friends, so as to gradually improve products and bring you better services. Please leave more messages. or email to retell11@outlook.com,We will check and collect your valuable opinions regularly.
In addition, we will continue to launch new products every week,bless you all!
Key Features
x3.5 Inch High Definition LCD Screen
xFully -S2X/S2/S, MPEG-2/MPEG-4 compliant
xSupport H.264 (8 Bit) Hardware decoding
xDigital measuring device for signal strength and quality
xSupport Loop Search
xSpectrum analyzer
What's In the Box
- 1 * V8 Finder 2
- 1 * USB Cable
- 1 * Storage Bag
- 1 * User Manual (EN/DE/FR/ES/IT/PO)
