Features:Light & Slim Design: F6 PLUS Monitor is small and lightweight, only 235g, it is the ideal size and weight for live shooting. Made of high quality ABS material, compact and sturdy, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer, easy to deal with all kinds of shooting environment.

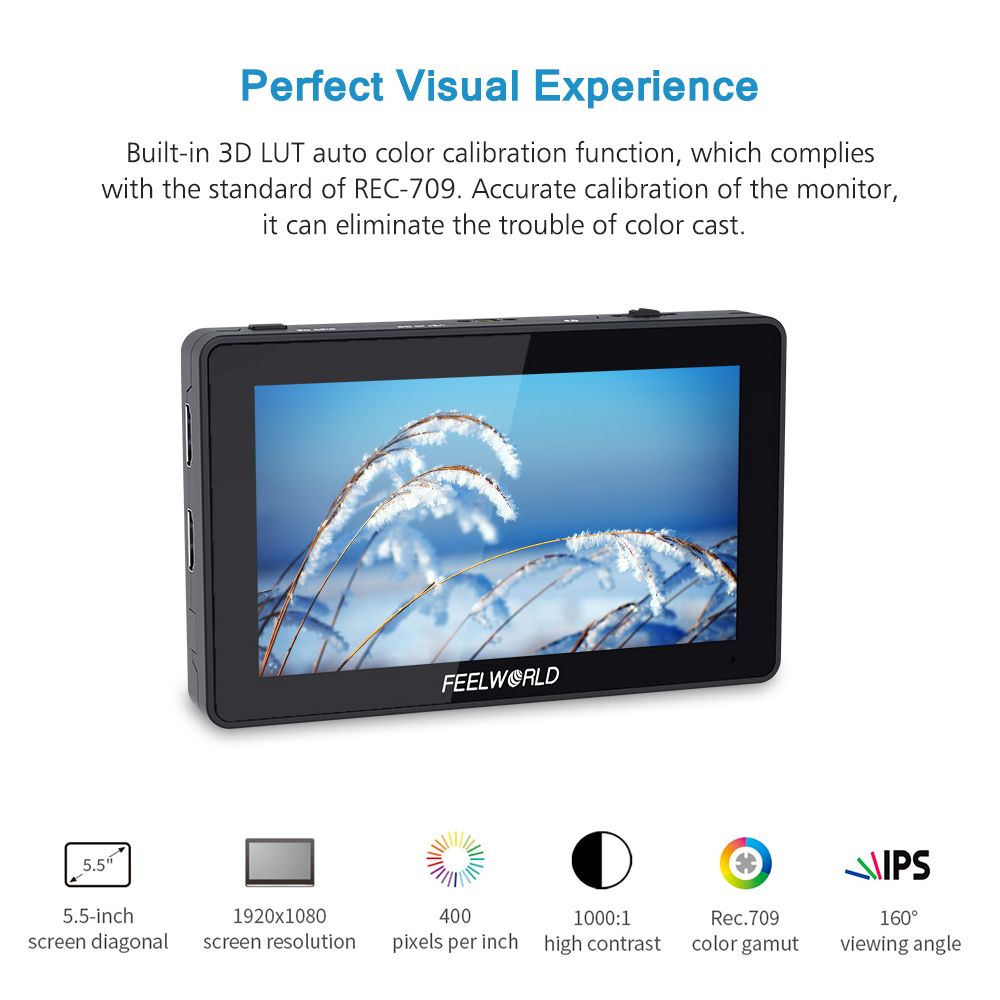

5.5 Inch IPS Screen: 1920*1080 Full HD resolution, 400 pixels per inch, 1000:1 high contrast ratio, 500cd/m² brightness, 160°wide viewing angle, provides you a perfect visual experience. Built-in 3D LUT auto color calibration function, which complies with the standard of REC-709.

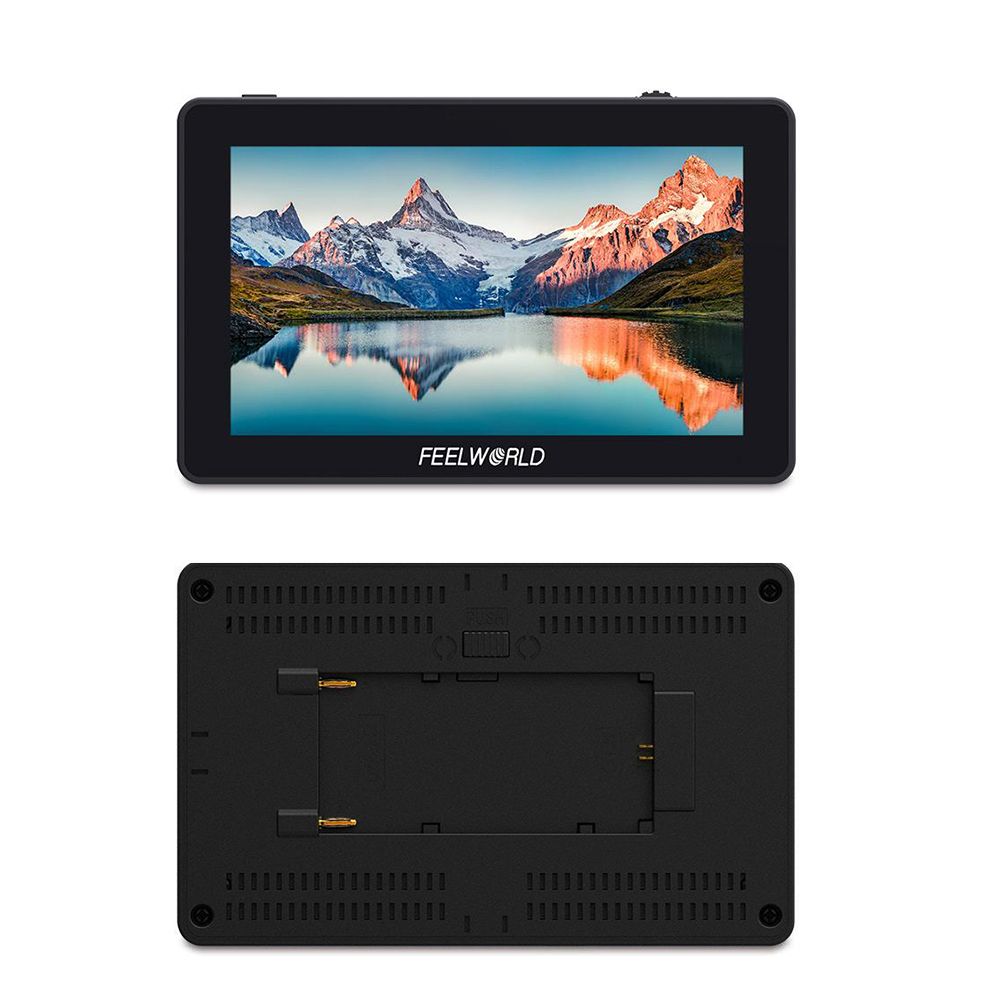

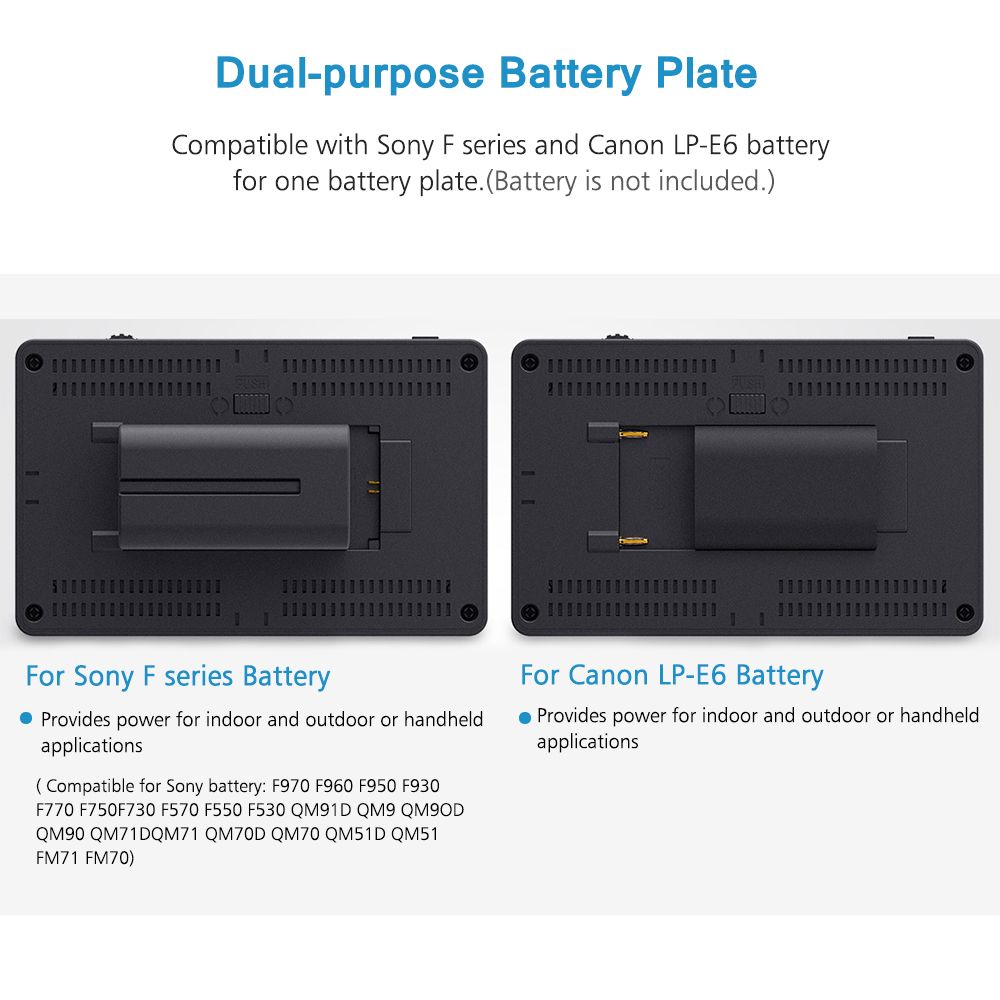

OCR Full-fit Screen & Dual-purpose Battery Plate: FEELWORLD F6 PLUS adopts full touchscreen design, can directly open the main functions on the screen, very convenient to use. Touchscreen support zooming in and out of the image. Compatible with Sony F series and LP-E6 battery for one battery plate, battery is not included.

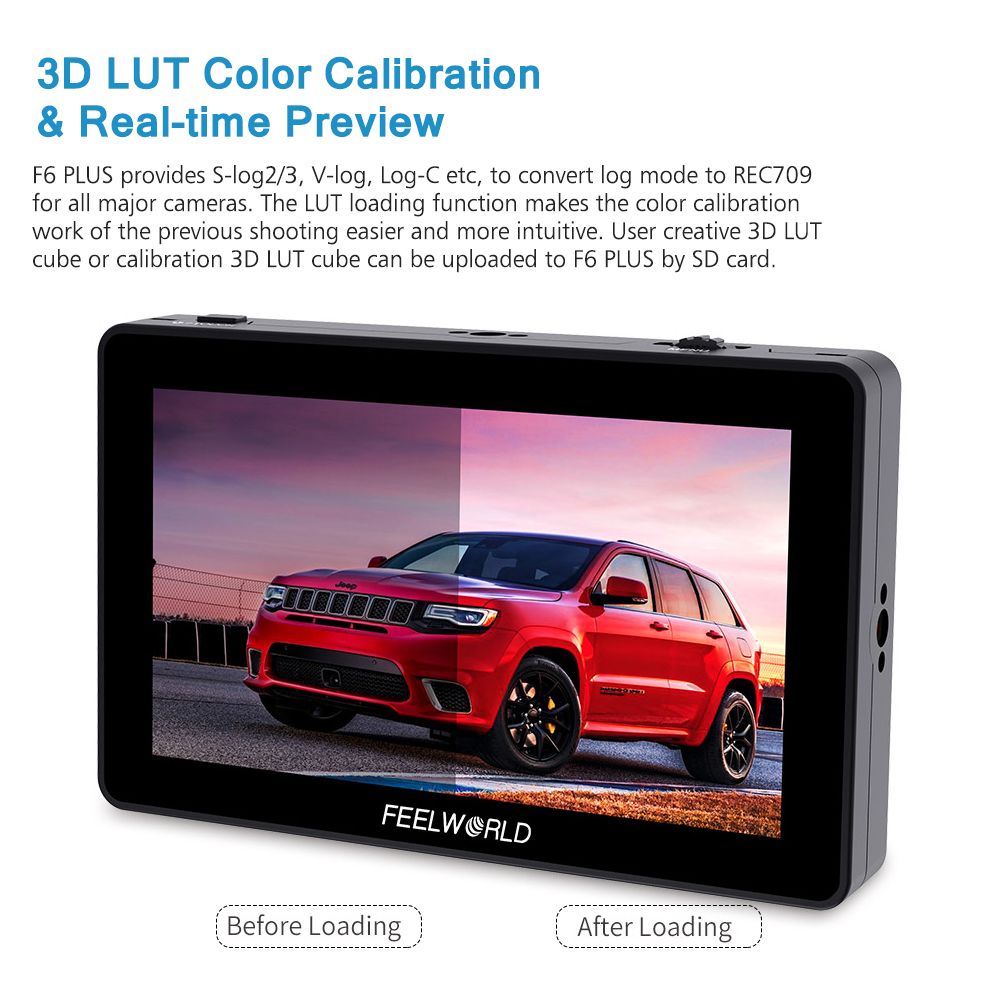

3D LUT Color Calibration & Real-time Preview: F6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 PLUS by SD card.

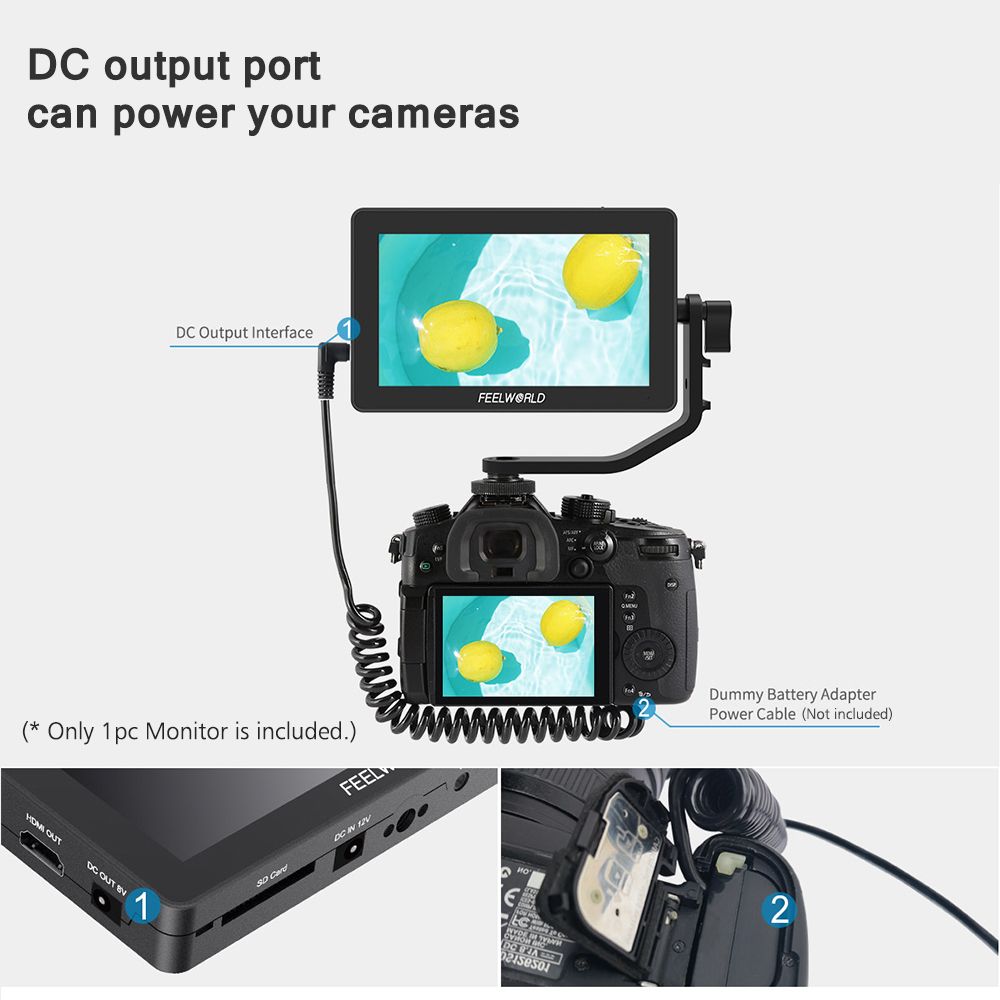

More Functions: With 4K HD input and loop-out port, allowing it to not only display live signals, but also send them out to other monitors simultaneously; 3.5mm stereo headphone jack for monitoring audio; DC output port can your cameras, battery adapter cable is not included.
Tilt Arm & Sunshade: Comes with a portable sunshade, flexible installation, avoid the interference of the daylight, create an effective monitoring environment; An extended bracket is also included, can be used to mount the monitor and other shooting equipment.
Specifications:Brand: FEELWORLD
Model: F6 PLUS
Material: ABS
Screen Size: 5.5 Inch Touch-Screen
Resolution: 1920x1080 pixels
Pixel Pitch: 0.0639(H) * 0.0213(W) mm
Aspect Ratio: 16:9
Brightness: 500cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input: HD
Output: HD/DC Output
Audio: 3.5mm Stereo Headphone
HD Input/Output Support Format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
Input Voltage: DC7～24V
Consumption: ≤9W
Connector: DC
Working Temperature: -20°C~55°C
Storage Temperature: -30°C~65°C
Install Way: 1/4-20 thread points (top, bottom, right)
Battery Plate: Support for Sony F Series Battery(F970,F960,F950,F770 & etc) / LP-E6 Battery (Battery is not included)
Item Size: 14.8 * 9.3 * 2.0cm / 5.8 * 3.7 * 0.8in
Item Weight: 235g / 8.3oz
Package Size: 18.5 * 12.5 * 10.5cm / 7.3 * 4.9 * 4.1in
Package Weight: 640g / 22.6oz

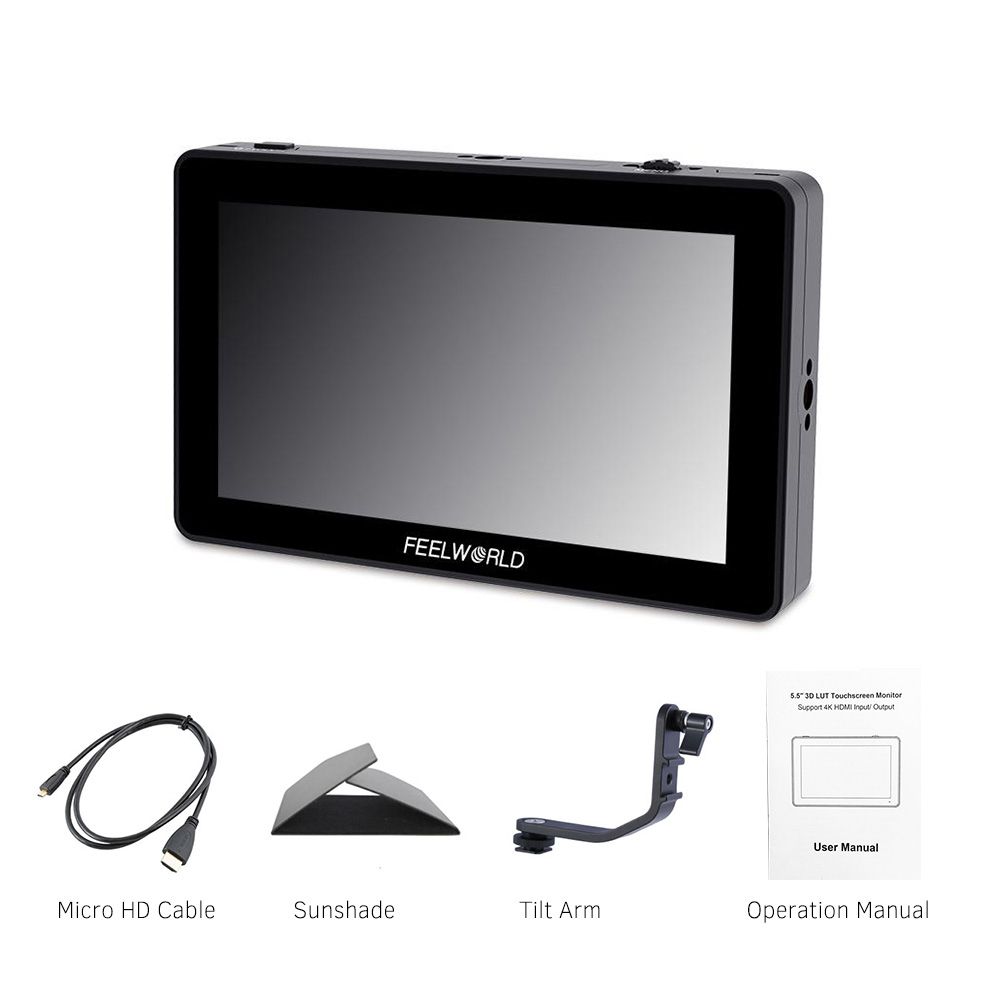

Package List:1 * Monitor
1 * Micro HD Cable
1 * Sunshade
1 * Tilt Arm
1 * Operation Manual(English)
