KEY FEATURES
2-Way Passive System
Polypropylene molded enclosure
FBTcustom 12"LF woofer / 2" voice coil
FBT1" throat / 1,4" voice coil HF compression driver
300W RMS recommended amplifier
30° or 45° monitor taper
M10 rigging points
90°H x 60°V constant directivity horn
Sold per unit
PRODUCT DESCRIPTION

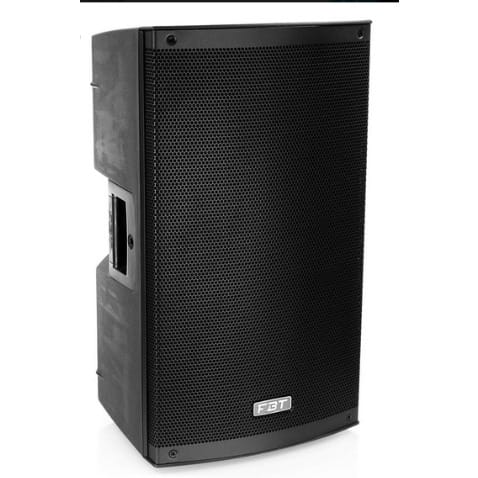

The FBTX-LITE 12 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction.
Available in black finish the FBTX-LITE 12 series speakers modern cabinet appearance provides fixed installations with an elegant

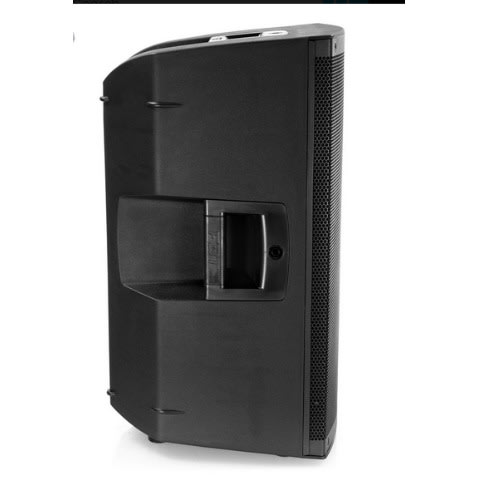

design that blends into any decor. The asymmetrical shape of the FBTX-LITE 12 cabinet also allows use as a floor stage monitor.
The FBTX-LITE 12 is two way design incorporating an 12" low frequency woofer and 1" HF compression driver coupled to a 90°H x
60°V constant directivity horn. With a frequency range of 56Hz - 20kHz the FBTX-LITE 12 speakers provide high fidelity sound for
both speech and music applications with a maximum SPLof 125dB. Ideal for small fixed installations the FBTX-LITE 12 speaker
have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 2kHz. The control panel features 2 x NL4 Neutrik
speakon. 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow the FBTX-LITE 12 speaker to
be surface mounted on walls or ceilings. Astandard 1,38" speaker stand socket allows the FBTX-LITE 12 to be mounted on
speaker stand. Afront face steel grille protects the speaker from external damage.
