Features:Light & Slim Design: F6 PLUS Monitor is small and lightweight, only 235g, it is the ideal size and weight for live shooting. Made of high quality ABS material, compact and sturdy, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer, easy to deal with all kinds of shooting environment.

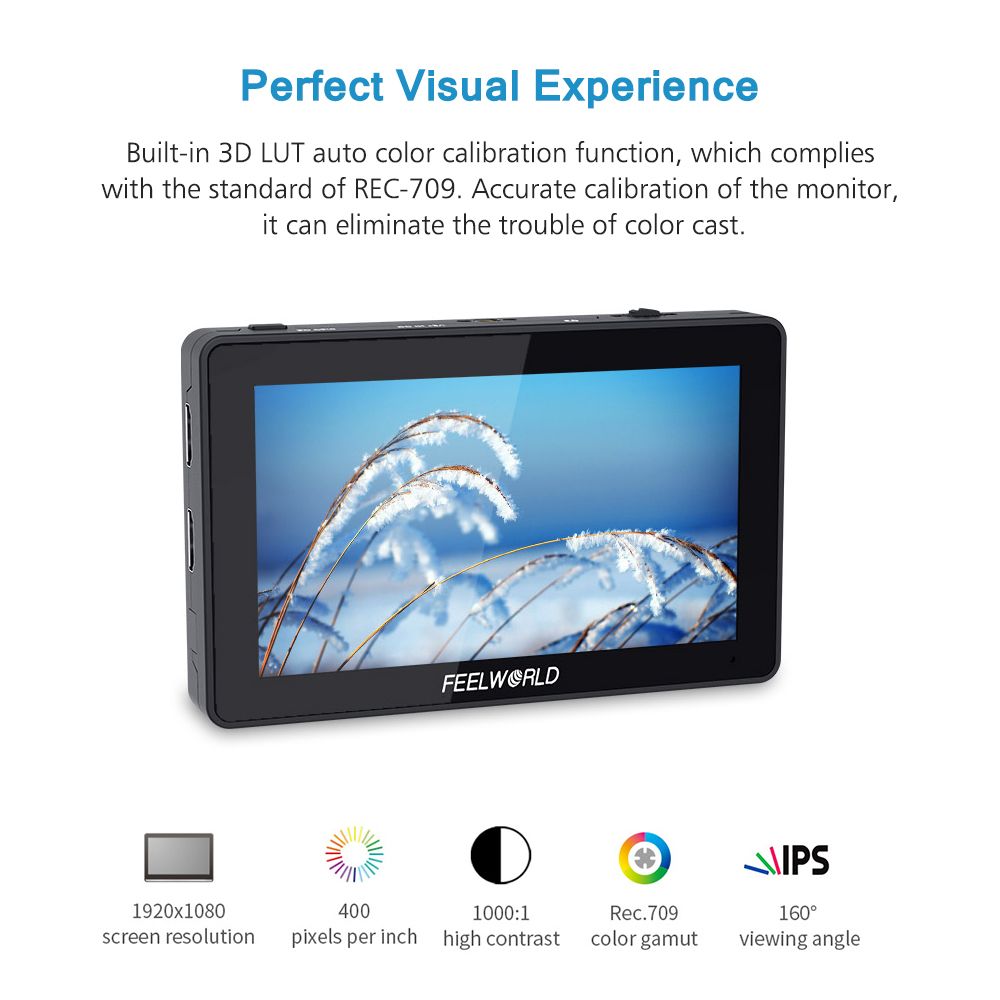

6 Inch IPS Screen: 1920*1080 Full HD resolution, 400 pixels per inch, 1000:1 high contrast ratio, 500cd/m² brightness, 160°wide viewing angle, provides you a perfect visual experience. Built-in 3D LUT auto color calibration function, which complies with the standard of REC-709.

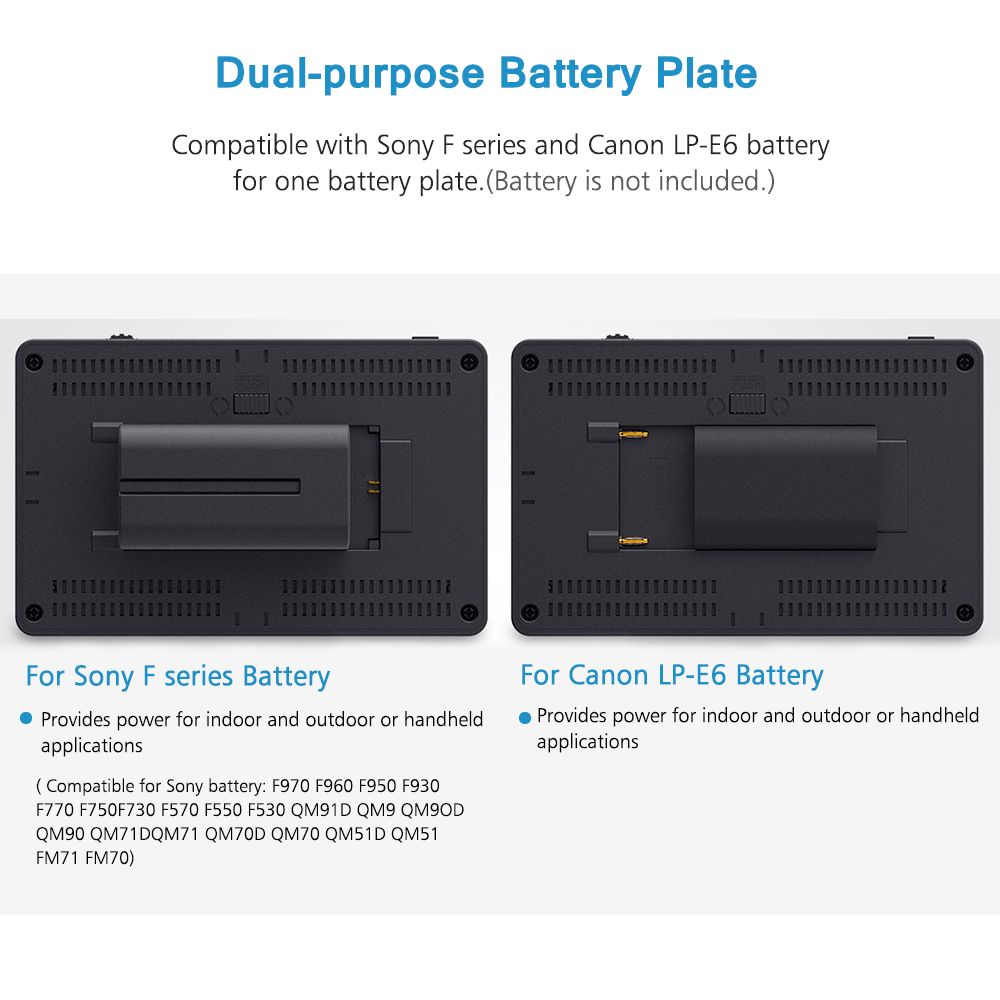

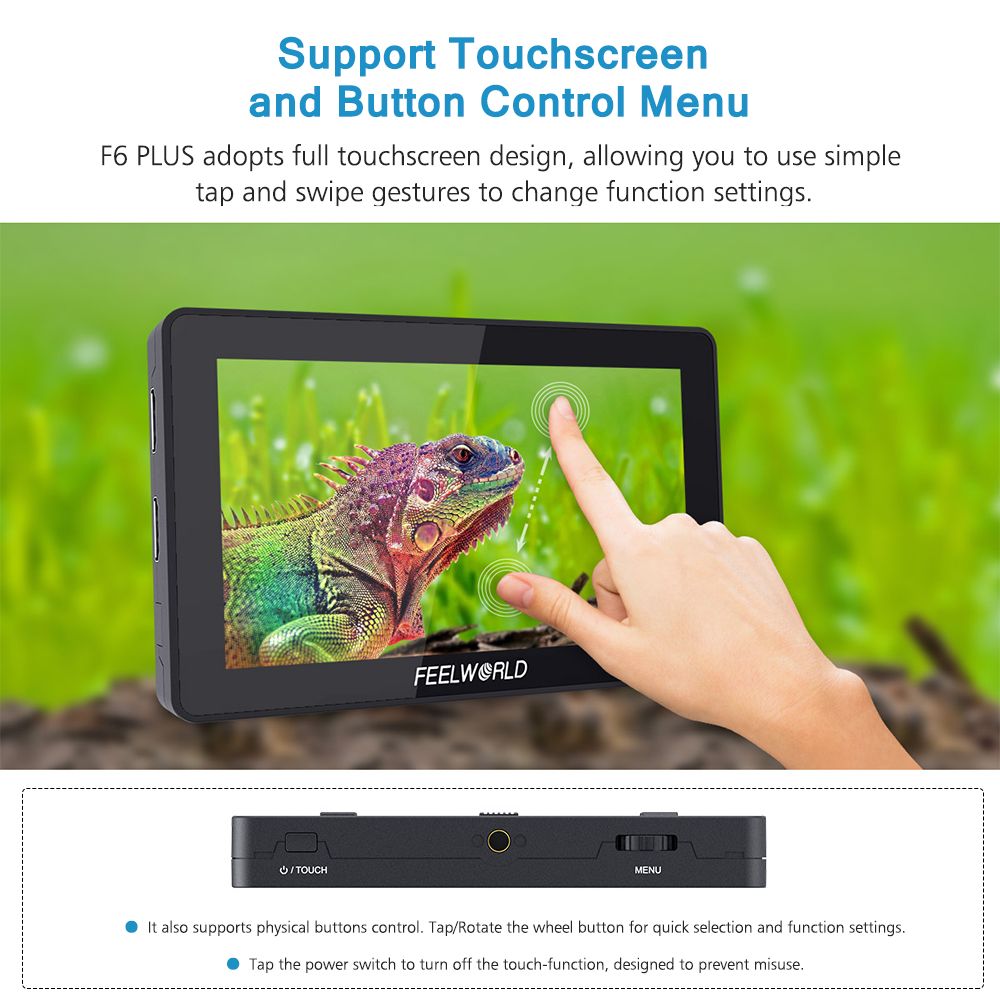

OCR Full-fit Screen & Dual-purpose Battery Plate: Adopts full touchscreen design, can directly open the main functions on the screen, very convenient to use. Touchscreen support zooming in and out of the image. Compatible with Sony F series and Canon LP-E6 battery for one battery plate, battery is not included.
3D LUT Color Calibration & Real-time Preview: F6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 PLUS by SD card.

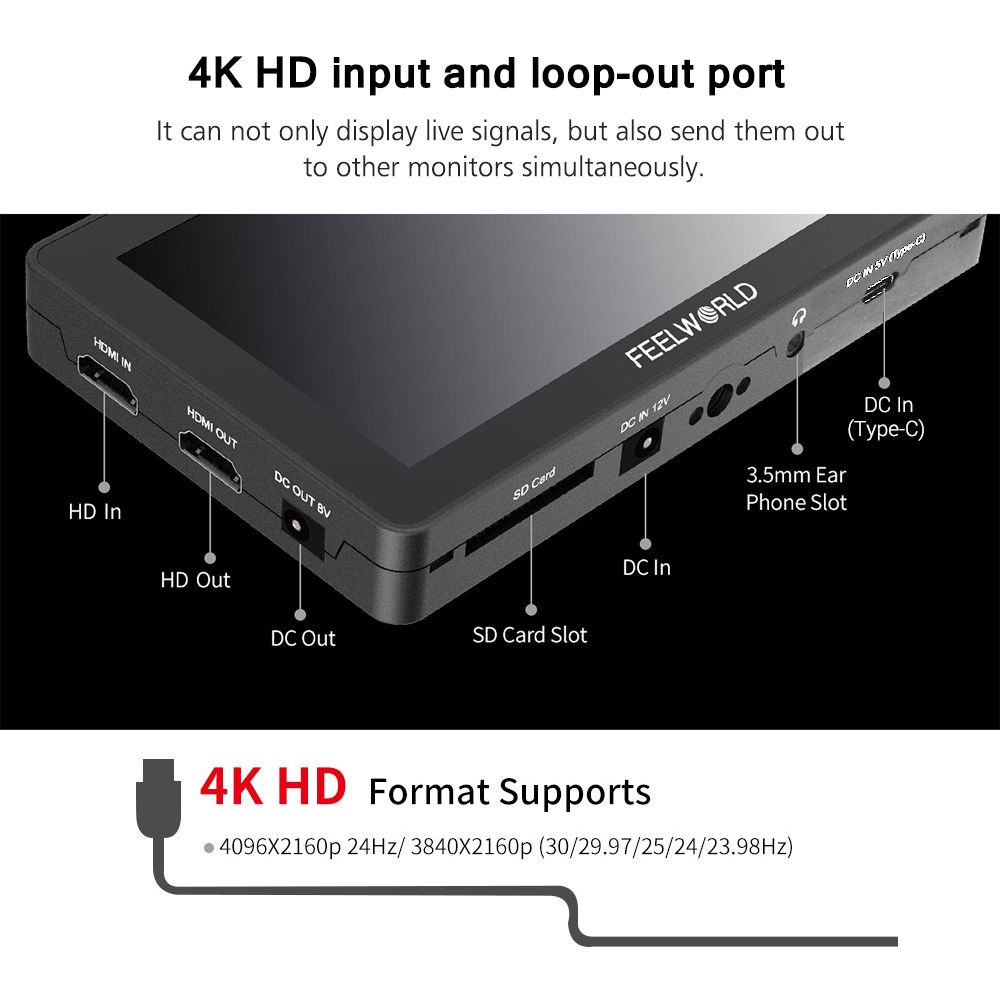

More Functions: With 4K HD input and loop-out port, allowing it to not only display live signals, but also send them out to other monitors simultaneously; 3.5mm stereo headphone jack for monitoring audio; input port(Type-C) makes it convenient to by mobile phone, and more; output port can your cameras, battery adapter cable is not included.
Tilt Arm & Sunshade: Comes with a portable sunshade, flexible installation, avoid the interference of the daylight, create an effective monitoring environment; An extended bracket is also included, can be used to mount the monitor and other shooting equipment.
Specifications:Material: ABS
Screen Size: 6 Inch
Resolution: 1920x1080 pixels
Pixel Pitch: 0.0639(H) * 0.0213(W) mm
Aspect Ratio: 16:9
Brightness: 500cd/m²
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input: HD
Output: HD/ Output
Audio: 3.5mm Stereo Headphone
HD Input/Output Support Format:
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
Input Voltage: DC7~24V
Consumption: ≤9W
Connector:
Working Temperature: -20°C~55°C
Storage Temperature: -30°C~65°C
Install Way: 1/4-20 thread points (top, bottom, right)
Battery Plate: Support for Sony F Series Battery(F970,F960,F950,F770 & etc) / Canon LP-E6 Battery (Battery is not included)
Item Size: 14.8 * 9.3 * 2.0cm / 5.8 * 3.7 * 0.8in
Item Weight: 235g / 8.3oz
Package Size: 18.5 * 12.5 * 10.5cm / 7.3 * 4.9 * 4.1in
Package Weight: 640g / 22.6oz
Package List:1 * Monitor
1 * Micro HD Cable
1 * Sunshade
1 * Tilt Arm
1 * Operation Manual(English)
Key Features

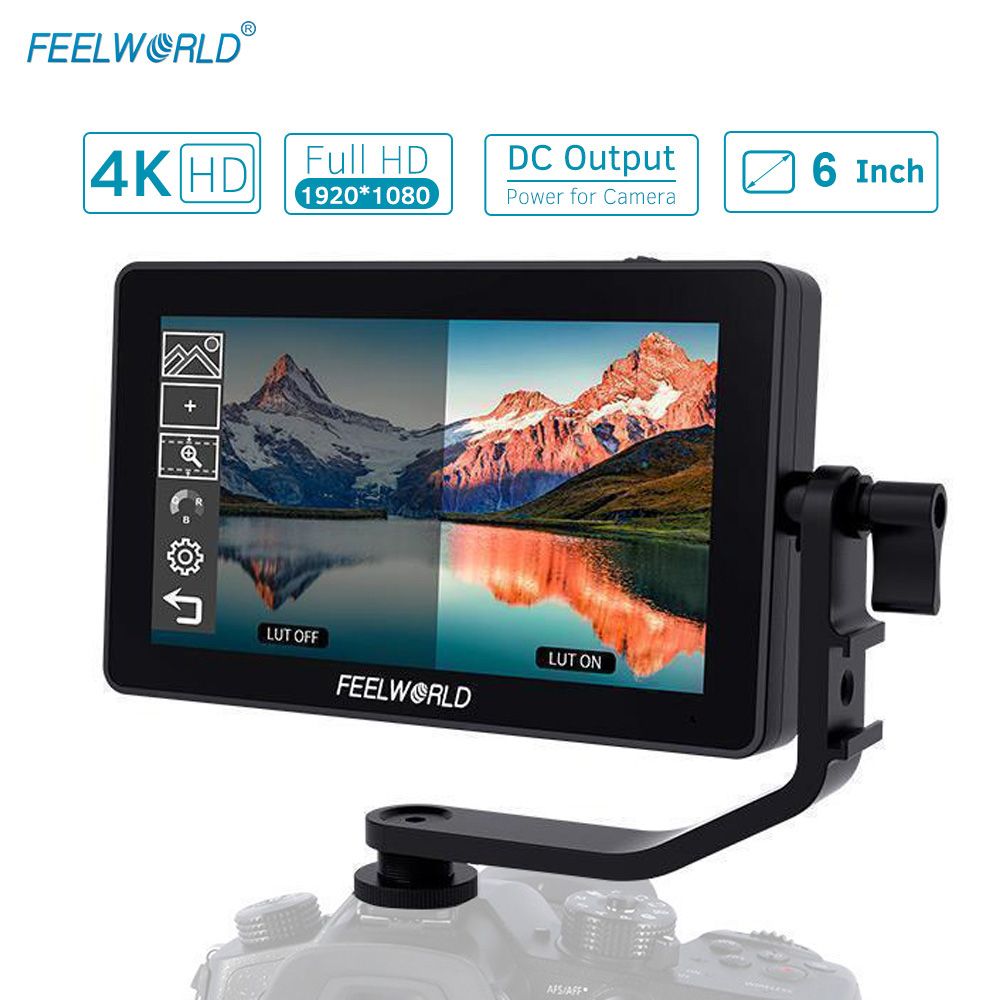

FEELWORLD F6 PLUS 6 Inch On-Camera Field Monitor Kit 3D LUT Video Assist with Sunshade Tilt Arm Support 4K HD Input & Output 1920*1080 Pixels HD IPS Touchscreen
FEELWORLD F6 PLUS 6 Inch On-Camera Field Monitor Kit 3D LUT Video Assist with Sunshade Tilt Arm Support 4K HD Input & Output 1920*1080 Pixels HD IPS Touchscreen
FEELWORLD F6 PLUS 6 Inch On-Camera Field Monitor Kit 3D LUT Video Assist with Sunshade Tilt Arm Support 4K HD Input & Output 1920*1080 Pixels HD IPS Touchscreen
FEELWORLD F6 PLUS 6 Inch On-Camera Field Monitor Kit 3D LUT Video Assist with Sunshade Tilt Arm Support 4K HD Input & Output 1920*1080 Pixels HD IPS Touchscreen
FEELWORLD F6 PLUS 6 Inch On-Camera Field Monitor Kit 3D LUT Video Assist with Sunshade Tilt Arm Support 4K HD Input & Output 1920*1080 Pixels HD IPS Touchscreen
FEELWORLD F6 PLUS 6 Inch On-Camera Field Monitor Kit 3D LUT Video Assist with Sunshade Tilt Arm Support 4K HD Input & Output 1920*1080 Pixels HD IPS Touchscreen
What's In the Box
1 x Monitor,1 x Micro HD Cable,1 x Sunshade,1 x Tilt Arm,1 x Operation Manual(English)
