Specifications:

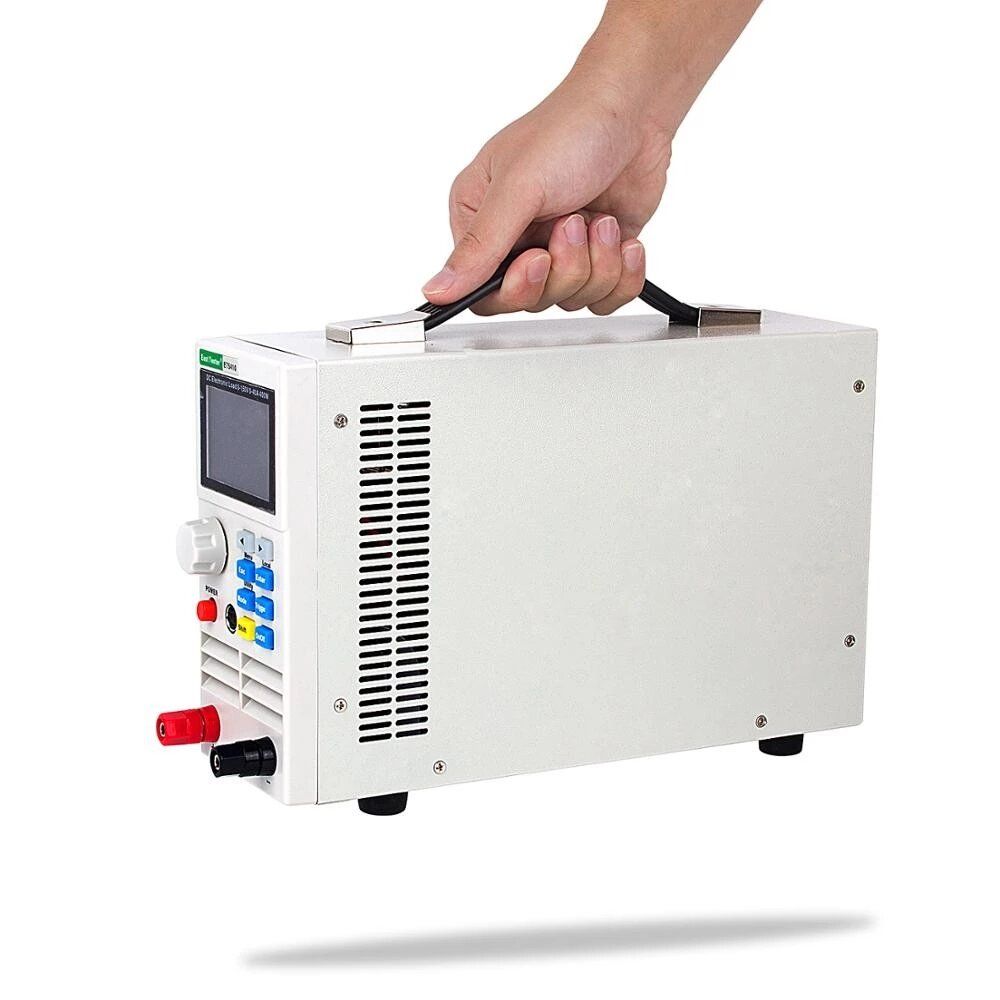

ET54A+ programmable DC electronic load provides 1mV/ 1mA high resolution and precision with superior performance, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing, as well as the research institutions and other research and development fields.
Features:
-User-friendly Design:
1.It adopts 2.8-inch TFT LCD screen with rich display contents; Support Chinese and English;
2.The operation process is simple and convenient, and with visual interface display system, it is easy to get started.
3.Key lock function to prevent misoperation;
High Performance Load
4.It provides CC, CV, CR, CP and CC+CV, CR+CV，Six basic measurement function modes; six professional measurement function modes;
5.It provides professional Battery test mode;
6.It provides professional LED test mode;
7.It provides professional Tran test mode, can test the dynamic output performance of the power supply;
8.It provides professional scan test mode, can test the continuity of power output within a certain range;
9.It provides professional list test mode, can simulate a variety of loading status changes;
10.It provides professional short circuit test mode, can be used to simulate load short circuit;
11.Provide battery/power internal resistance test function;
12.Provide conformity testing function;
13.Built-in buzzer alarm;
14.Maintain data storage in case of power failure;
15.Remote operation via USB;
16.Equipped with software remote compensation
-Multiple safety protection:
1.It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage
and overcurrent parameters can be set flexibly, so as to effectively protect the load;
2.It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working.
3.With input polarity reverse prompt;
General technical specifications:
4.Power supply voltage: 100Vac~240Vac，50/60Hz
5.Display: 2.8-inch TFT LCD screen with resolution of 320 times;240
6.Operating temperature: 0℃ to 40℃
7.Storage temperature: -10℃ to 70℃
8.Relative humidity: lt; 80%
9.Interface: standard USB
10.Size: 90mm times;190mm times;300mm (width times; height times; depth)
11.weight：2.9kg；
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
ET54A+ programmable DC electronic load provides 1mV/ 1mA high resolution and precision with superior performance, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing, as well as the research institutions and other research and development fields.
1.It adopts 2.8-inch TFT LCD screen with rich display contents; Support Chinese and English;
2.The operation process is simple and convenient, and with visual interface display system, it is easy to get started.
3.Key lock function to prevent misoperation;
High Performance Load
