Product Specifications
Description

Model	Development Board
Production Country	China
Size (L x W x H cm)	4x3x3
Weight (kg)	0.015
Color	multicolor
Main Material	PCB

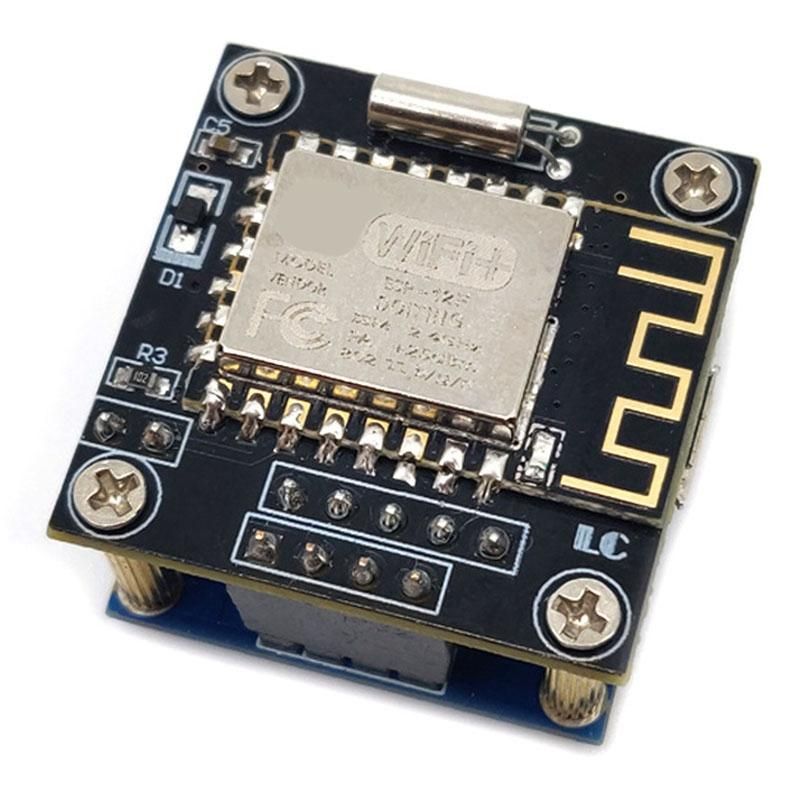

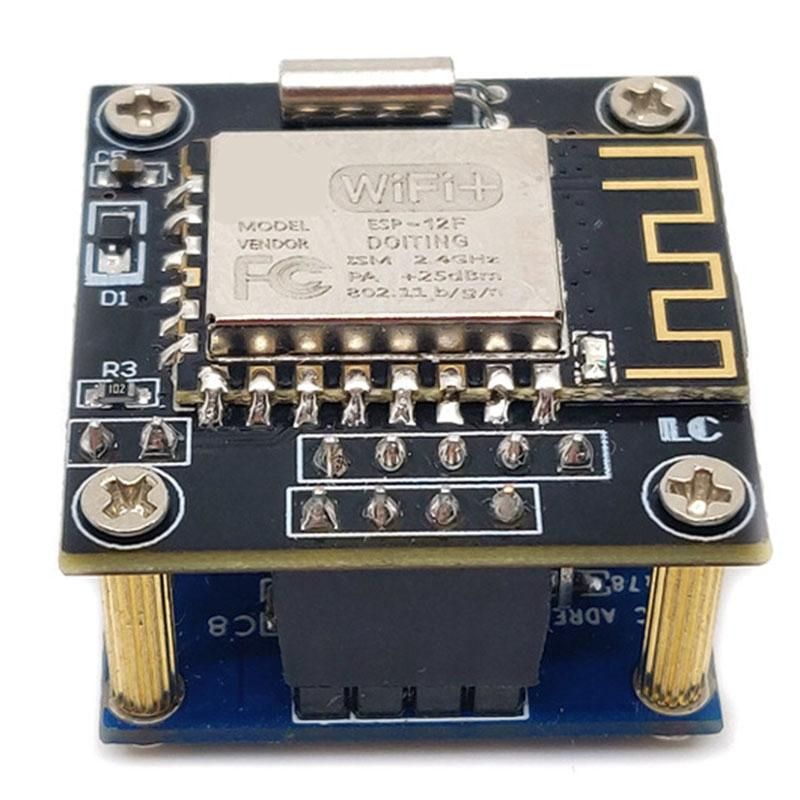

1. Onboard mature and stable ESP-12F WIFI module, capacity 4M FLASH; Onboard l2C communication interface 0.96 inch OLED display;
2. reference codes and documents in OLED display 51, STM32 and other environments; The onboard PCF8563T clock circuit can operate normally even if the power is off;
3. Extend the ESP8266UART interface to support secondary development and burn your own firmware; ESP8266 firmware, schematic ;
4. Power supply mode: Mini USB5V power supply; Double-layer structure design, small size and better appearance, it is the for DIYWIFI clock. 1.0.96 inch OLED screen: the driver IC is ;
2. ESP-12F WIFI module: the flash memory capacity is 4MBYTE;
3. Mini USB 5V power interface;
4. PCF8563T clock chip;
5. CR1220 button battery: power supply for the clock circuit after power off
6. UART download interface: short-circuit IO0 and GND when downloading, connect 3V3, TXD, RXD, and GND to 3V3, RXD, TXD, GND of the external TTL serial port module (called FT232 module), and insert the download I00 and GND link after completion;

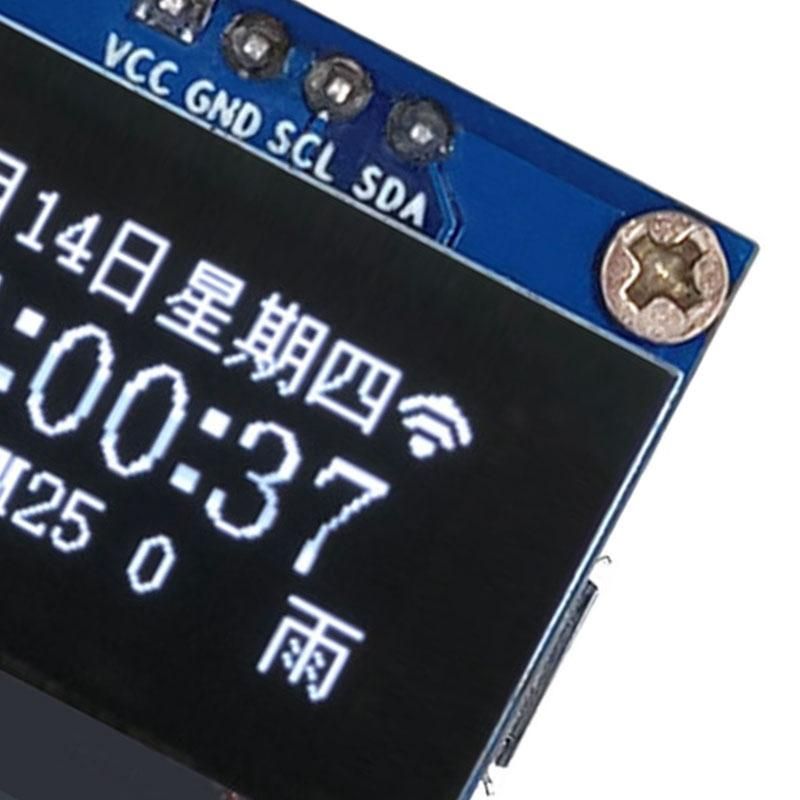

7.0 LED interface: SDA, SCL, GND, 3V3;
OLED -luminous, no backlight
Voltage: 3.3V-5V DC
Viewing angle: 160 degrees or more
Working temperature: -30 degrees Celsius to 70 degrees Celsius
I2C interface:
GND: Ground wire
VCC: 3.3V-5V
SCL: I2C serial clock (: A5; : 21)
SDA: I2C serial data (: A4; : 20)

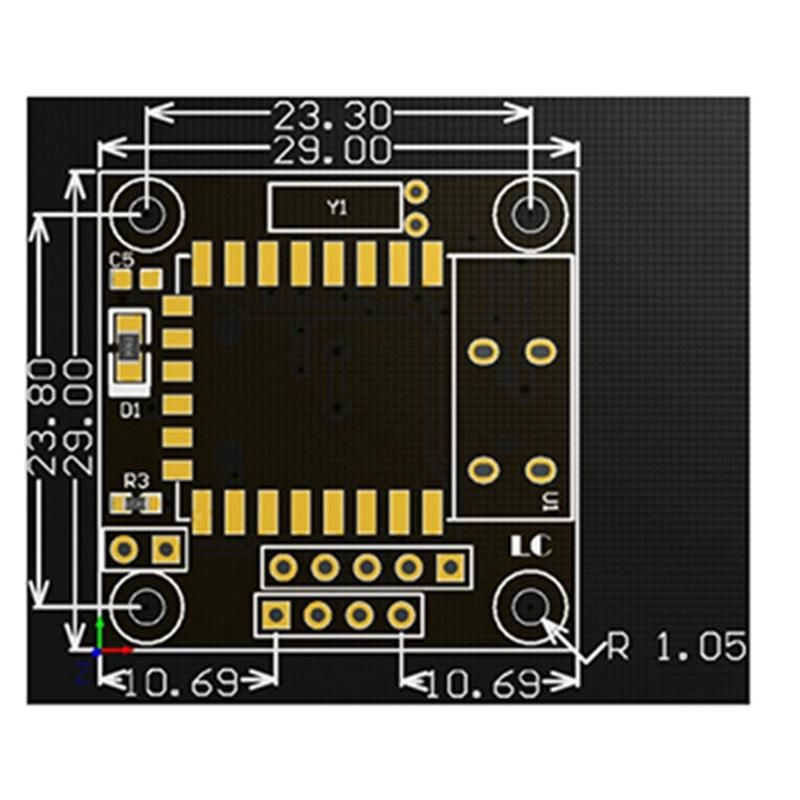

size:29 x 29mm
Material:PCB
colour:Blue+black Package Contents:
1 x 0.96 Inch OLED Display Module Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.

Key Features

Durable and good quality
For
0.96 Inch OLED Module
Development Board
-Luminous Display Board
for ESP-12F Development Board
The details are as described above

What's In the Box

1 x 0.96 Inch OLED Display Module
