Size (L x W x H cm) |
22x15x3 |
Weight (kg) |
0.19 |
Color |
As Shown |

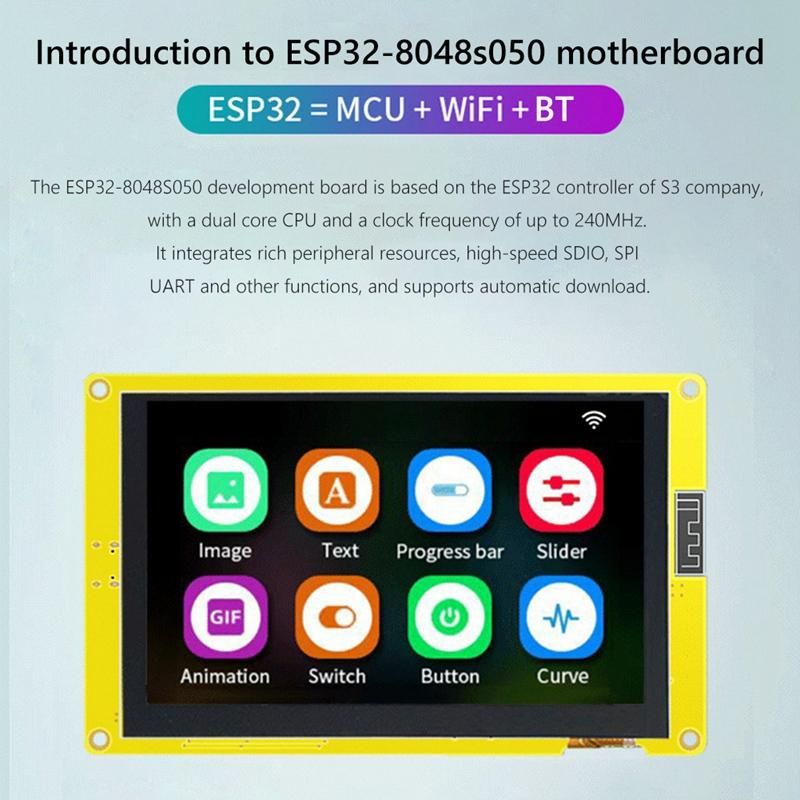

1. Dual-Core CPU and Integrated WiFi/Bluetooth-compatible: The ESP32-S3-WROOM-1 module is equipped with a dual-core MCU that can reach up to 240MHz and includes WiFi and Bluetooth-compatible capabilities.
2. Memory and High-Resolution Display: With 8M PSRAM and 16MB Flash, this development board also has an 800X480 resolution IPS LCD TFT Intelligent Display Module, providing color display.

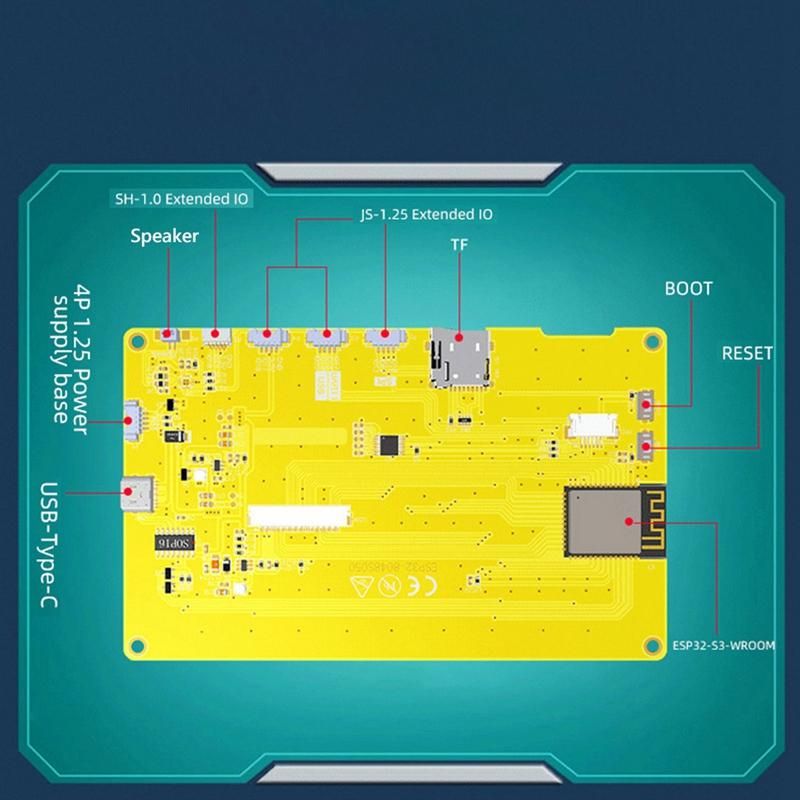

3. Easy to Use and Expand: This board comes with pre-loaded sample programs and supports one-click downloads, as well as expandable storage with a TF card slot.
4. Flexible Development Environment: Supporting for IDE, ESP IDE, Micropython, and Mixly, this module provides plenty of for developers to choose from.
5. Comprehensive Library Functions: A library of functions and example programs is available for developers to quickly begin their projects. Type:TFT
Driver chip:St7262
Resolution:800x480 (pixels)
Display color:16 BIT RGB 65K
Effective display area:108.00x64.80 (mm)
Perspective:IPS
Working temperature:-20 ℃-70 ℃
Storage temperature:-30 ℃-80 ℃
Working voltage:5V
Power consumption:About 320mA
Weight:About 150g
Colour:As Shown
Material:ABS

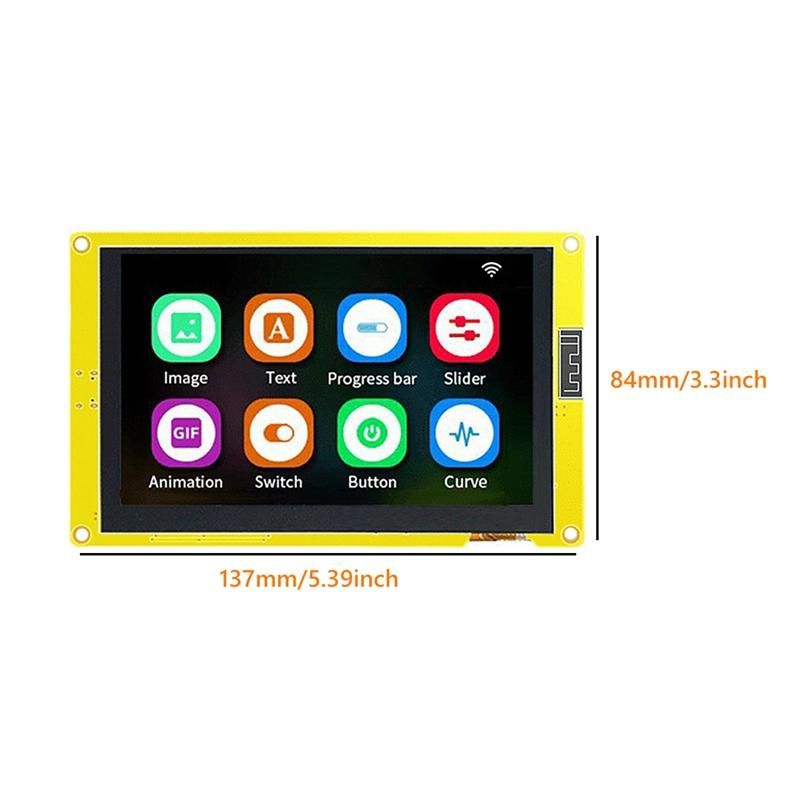

Size:Module size:About 137x84mm/5.39x3.31inch Package Contents:
1 * Touch Screen Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
