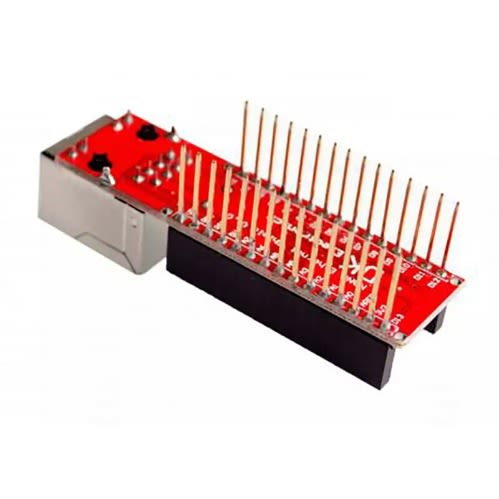

This Nano Ethernet Shield allows you to connect the Arduino Nano to a network. It is assembled with long stackable pin headers, and don’t need to solder the headers separately.
The Nano Ethernet Shield is based on the ENC28J60 Ethernet chip which provide a network (IP) stack capable of both TCP and UDP. Use the Ethernet library EtherCard.h to write sketches which connect to the internet using the add-on module.
ENC28J60 is a 10BASE-T stand alone Ethernet unit with on board MAC & PHY, 8 Kbytes of Buffer RAM and an SPI serial interface for 3.3V and 5V logics. With a small size the Nano Ethernet Shield minimizes complexity, board space and cost. Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation.
Shield use power 5V from Nano board and convert to 3.3V (on shield have 3.3V LDO).
Features & details
- FOR ARDUINO IDE: Use the Ethernet library EtherCard.h to write sketches which connect to the internet using the add-on module
- ETHERNET NANO SHIELD: allows you to connect the Arduino Nano to a network. It is assembled with long stackable pin headers, and don’t need to solder the headers separately.
- THE ETHERNET NANO SHIELD: is based on the ENC28J60 Ethernet chip which provide a network (IP) stack capable of both TCP and UDP.
- NANO ETHERNET SHIELD SPECS: Ethernet Bandwidth— 10Base-T PHY— Yes Interrupt— Pin 1Ethernet Ports 1— RJ45 Ethernet protocol— TCP/IP MAC— Yes TX/RX RAM— Buffer(Bytes) 8Kb Max Speed (MHz)— 25MHz Power In— 5V.
- COMPATIBLE WITH ARDUINO NANO: ThisEthernet Nano Shieldallows you to connect the Arduino Nano to anetwork. It is assembled with long stackable pin headers, and don’t need to solderthe headers separately.
