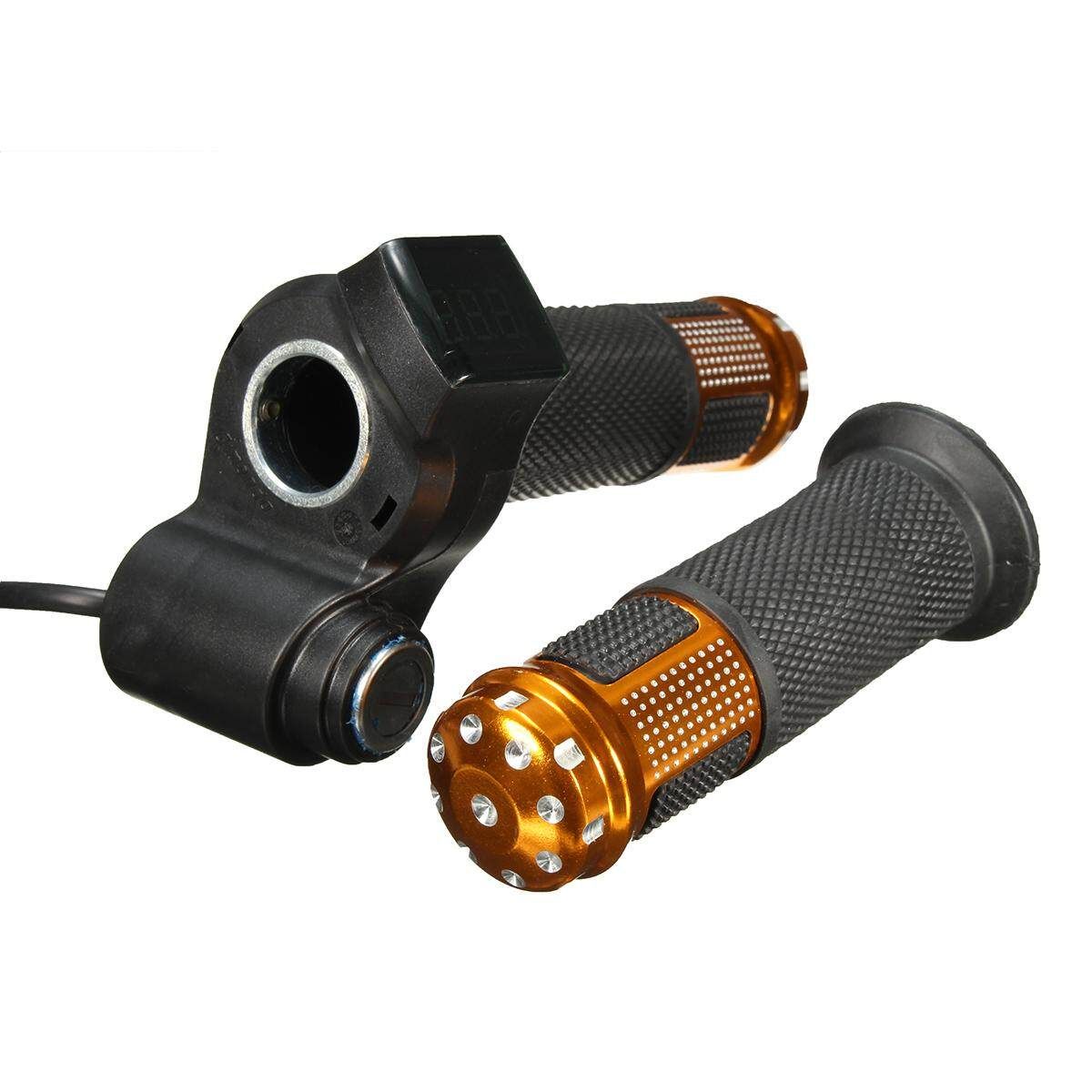

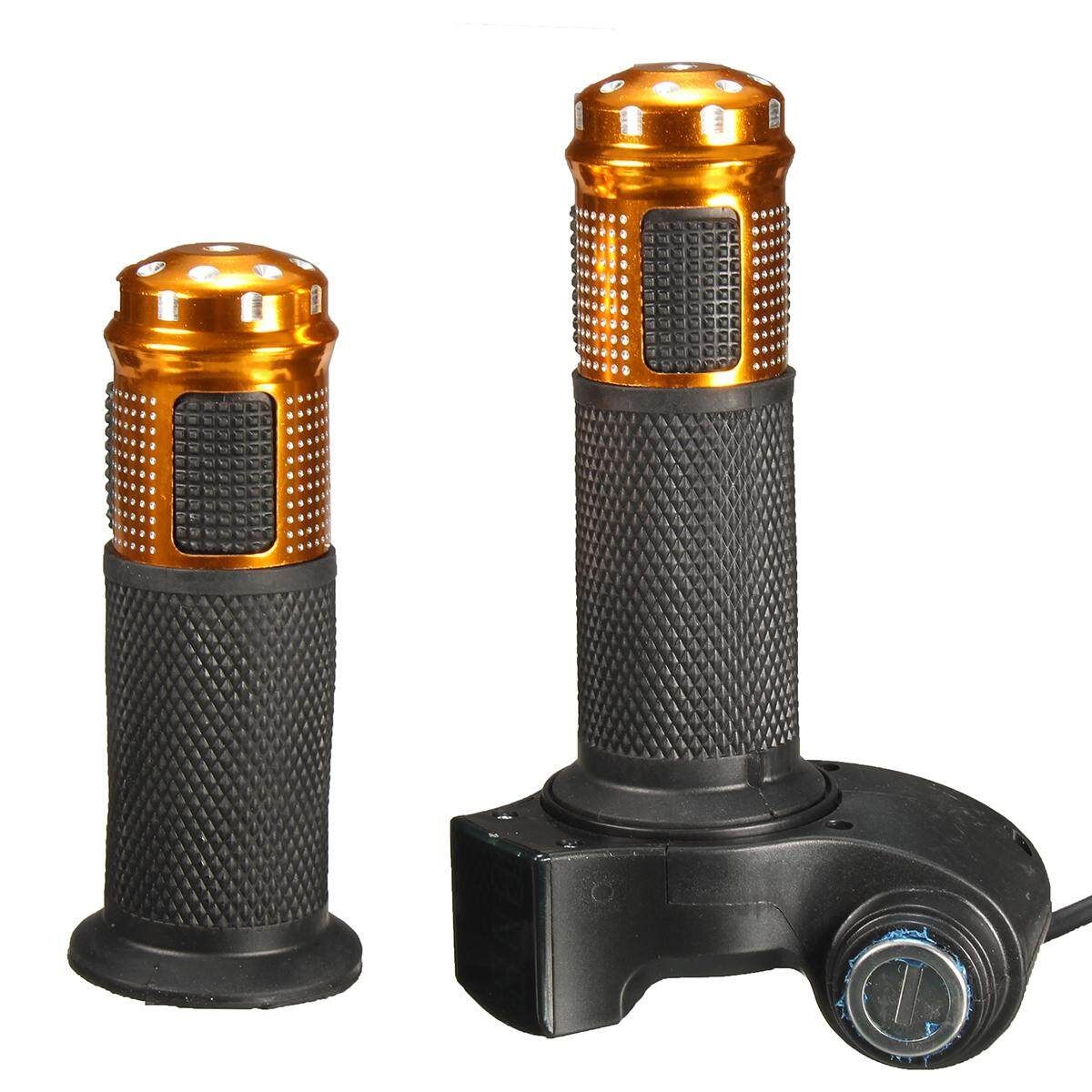

This Throttle grip using digital display voltage display the remaining ,
regardless of batteries, lead acid batteries, aqueous batteries, dry batteries,
below 100V electric vehicles can be used, it can automatically identify the voltage, real-time display.
Specifications:
Product size: 113x 34mm(length * dameter)
Cable Length: about 2 meter
Fit for 22mm diameter Handlebar
Suitable for 12v-99v E-bike
Yellow wire: +(24v 36v 48v )
red wire: +5v
green wire: signal
black wire: -
blue wire: I/O button(such as light,horn)
white wire: I/O button(such as light,horn)
Switch:Red Button
NOTICE: please don't link wrong wire!!!
Maximum voltage indicates fully charged. Low voltage indicates the runs out.
Before the minimum voltage necessary to charge the
24V electric car, the maximum voltage of about 29V, the lowest of about 21V (charge)
36V electric car, the maximum voltage of about 42V, the lowest of about 29V (charge)
48V electric car, the maximum voltage of about 54V, the lowest of about 39V (charge)
Installation method:
Speed to the red, black, green three lines, which the red line is the positive pole (the controller must be
Transferred to the line of the positive pole line can not be wrong, remember!), The black line is to turn the
Negative, the green line is to turn the signal line, a separate yellow is connected to the positive line.
Note:
When installing the non professionals, please pay attention to the line order, can not be connected to the
Wrong line, otherwise it is very easy to cause the burning of Holzer and LED tube
Package included:
2 x EBike Throttle Grip(key switch)
a a a a a
Key Features
Cable Length: about 2 meter
Yellow wire: +
Switch:Red Button
Suitable for 12v-99v E-bike
Fit for 22mm diameter Handlebar
Low voltage
Maximum voltage indicates fully charged
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
2 x EBike Throttle Grip(key switch)
