Model |
B18897SI4=DIY0228 |
Production Country |
China |
Size (L x W x H cm) |
15 x 12 x 2cm |
Weight (kg) |
0.10 |
Color |
Multicolor |
Main Material |
Multi-Material |

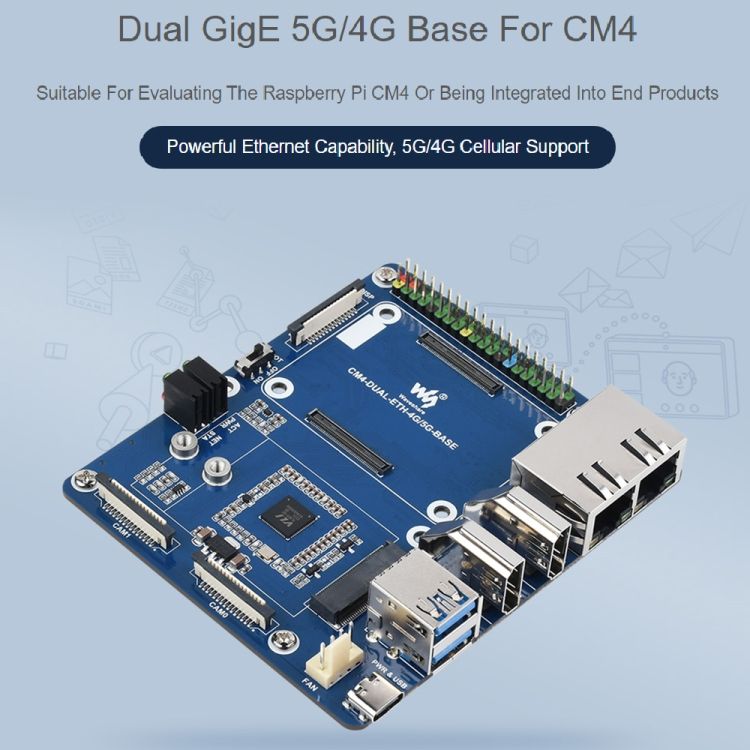

Dual Gigabit Ethernet 5G / 4G Board for Raspberry Pi CM4

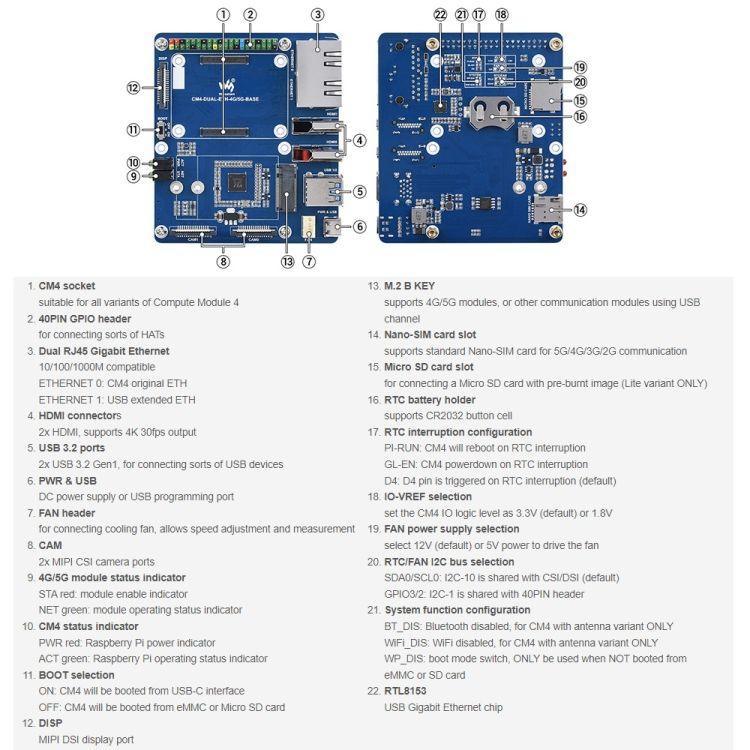

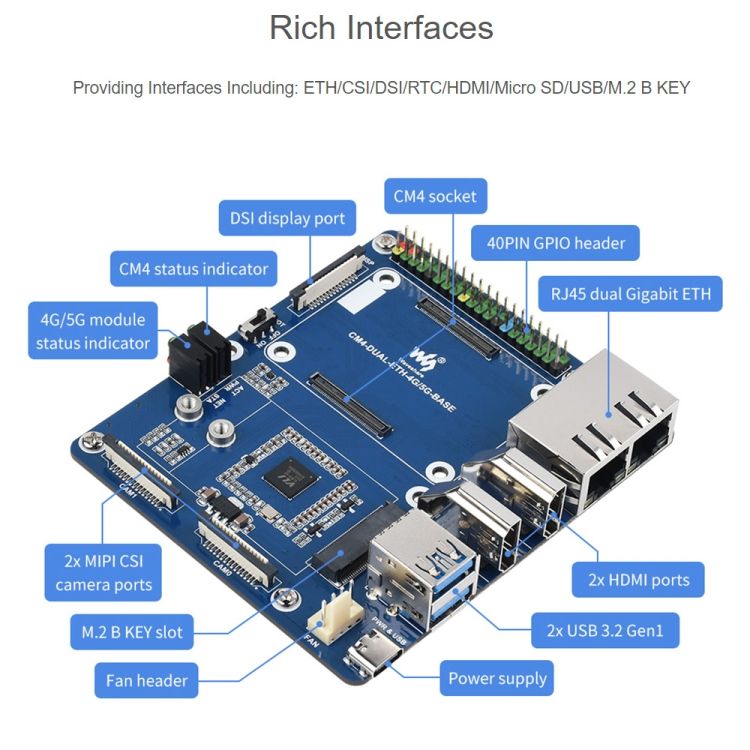

Specifications

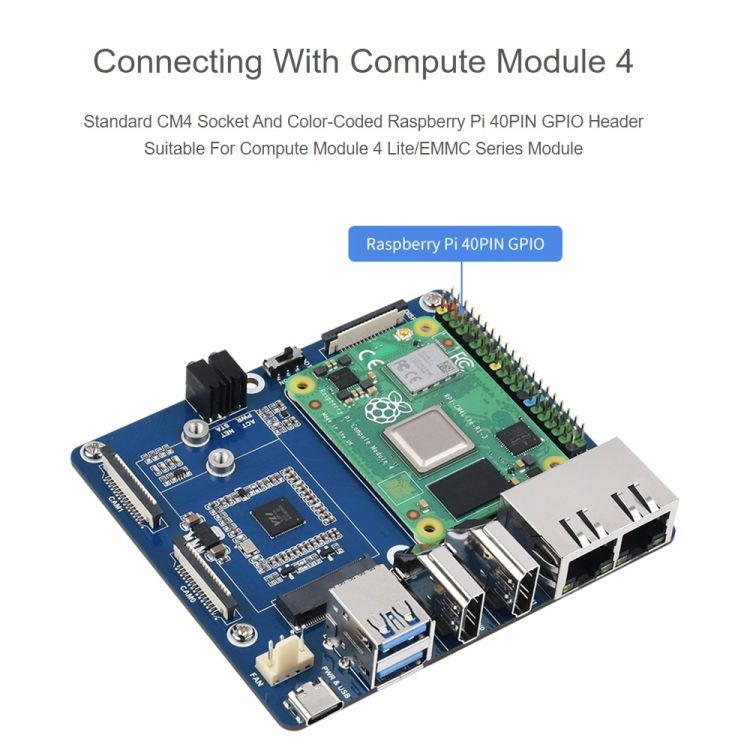

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Network:
- Ethernet: Dual Gigabit Ethernet RJ45
- M.2 B KEY, for connecting 5G / 4G module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 Gen1 x 2
4. PIN header: Raspberry Pi 40PIN GPIO headerx 1
5. Display: MIPI DSI port (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
7. Video: HDMI x 2, supports 4K 30fps output

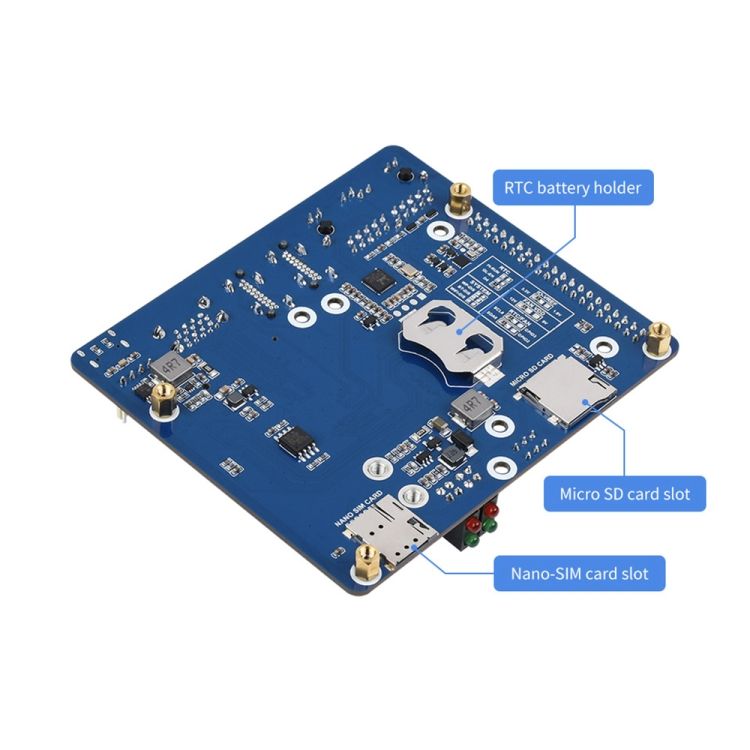

8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V/2.5A

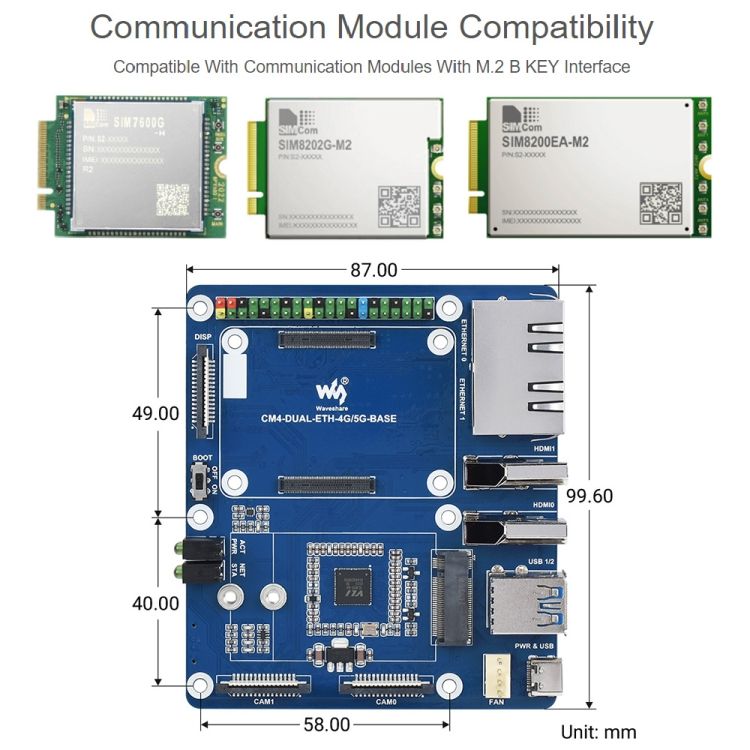

12. Size: 99.6 x 87.0mm
Key Features
CM4 socket: Suitable for all variants of Compute Module 4
Network:
- Ethernet: Dual Gigabit Ethernet RJ45
- M.2 B KEY, for connecting 5G / 4G module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
What's In the Box
1 x package
