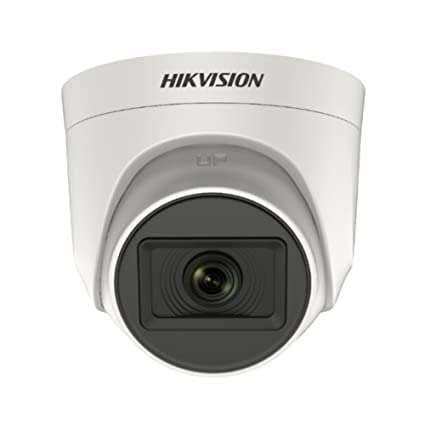

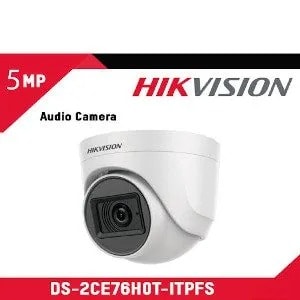

Hikvision DS-2CE76HOT-ITPF 5MP Dome CCTV Camera
The Hikvision DS-2CE76HOT-ITPF 5MP Dome CCTV Camera is a 5mega-pixel indoor video surveillance security camera. having a 2.8mm focal length the dome camera is able to capture a wider field of view from left to right.
The Hikvision DS-2CE76HOT-ITPF 5MP Dome CCTV Camera is backward compatible with the Hikvision 1080p .
Product Specification:
Image Sensor: 5 MP CMOS image sensor
Max. Resolution: 2560 (H) × 1944 (V)
Min. Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night: ICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Lens Type: 2.8 mm fixed lens
Focal Length & FOV: 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
Wide Dynamic Range: (WDR)Digital WDR
Image Enhancement: BLC, HLC
Video Output Switchable: TVI/AHD/CVI/CVBS
Material: Plastic
Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Approx: 143 g (0.32 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication: HIKVISION-C
Language: English
Power Supply:12 VDC ±25%
ConsumptionMax: 4.3 W
IR Range: Up to 20 m
- 5 MP coaxial audio camera
- Enhanced safety with discreet and economical built-in microphone
- Transmit audio over coaxial cable
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
- Camera
- Image Sensor5 MP CMOS
- Max. Resolution2560 (H) × 1944 (V)
- Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°,Rotation 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame Rate
TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- White BalanceATW/MANUAL
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
